CLI script action

CLI scripts can run when an automation stitch is triggered. The scripts can be entered manually, uploaded as a file, or recorded in the CLI console. The output of the script can be sent as an email action.

Note

The maximum size of the CLI script action output is 16K characters.

In this example, the script sets the idle timeout value to 479 minutes, and sends an email with the script output.

To configure a stitch with a CLI script action in the GUI:
  1. Go to Security Fabric > Automation and click Create New.
  2. Enter the stitch name (auto-cli-1).
  3. Configure the trigger:
    1. Click Add Trigger.
    2. Click Create and select Security Rating Summary.
    3. Enter the following:

      Name

      auto-cli-1

      Report

      Security Posture

    4. Click OK.
    5. Select the trigger in the list and click Apply.

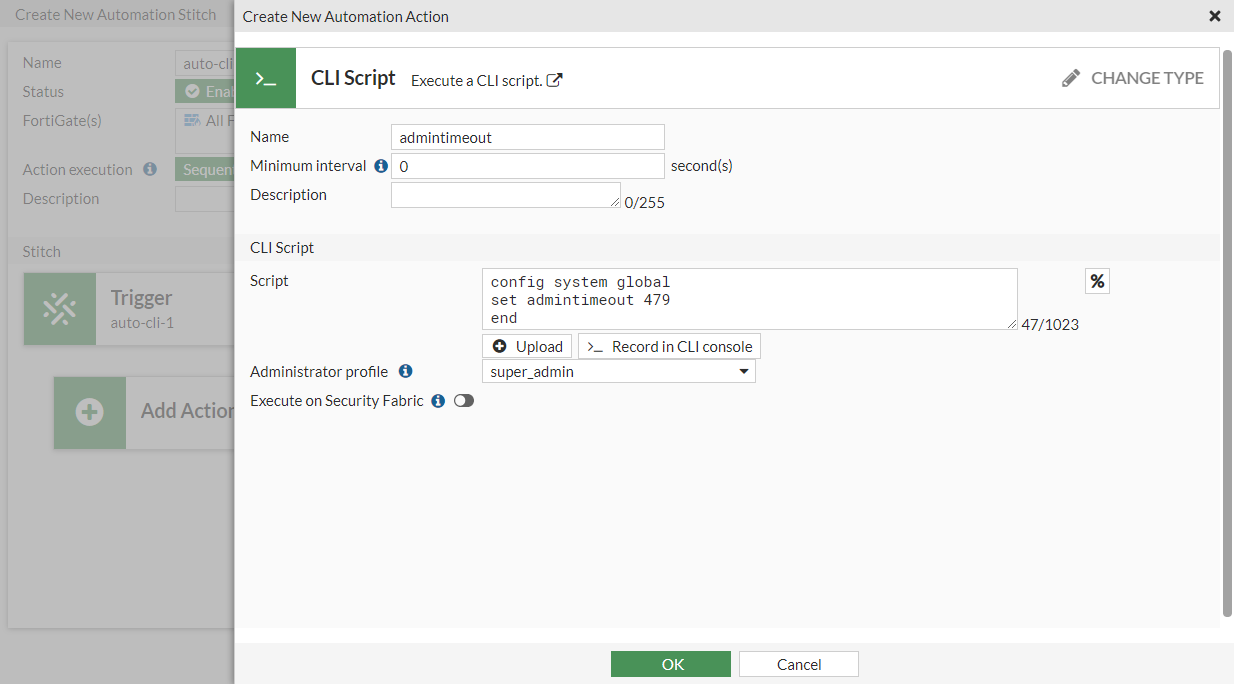

  4. Configure the CLI Script action:
    1. Click Add Action.
    2. Click Create and select CLI Script.
    3. Enter the following:

      Name

      admintimeout

      Script

      config system global
          set admintimeout 479
      end

      Alternatively, click Upload to upload a file, or click >_Record in CLI console and enter the CLI commands.

      Administrator profile

      Select a profile

    4. Click OK.
    5. Select the action in the list and click Apply.

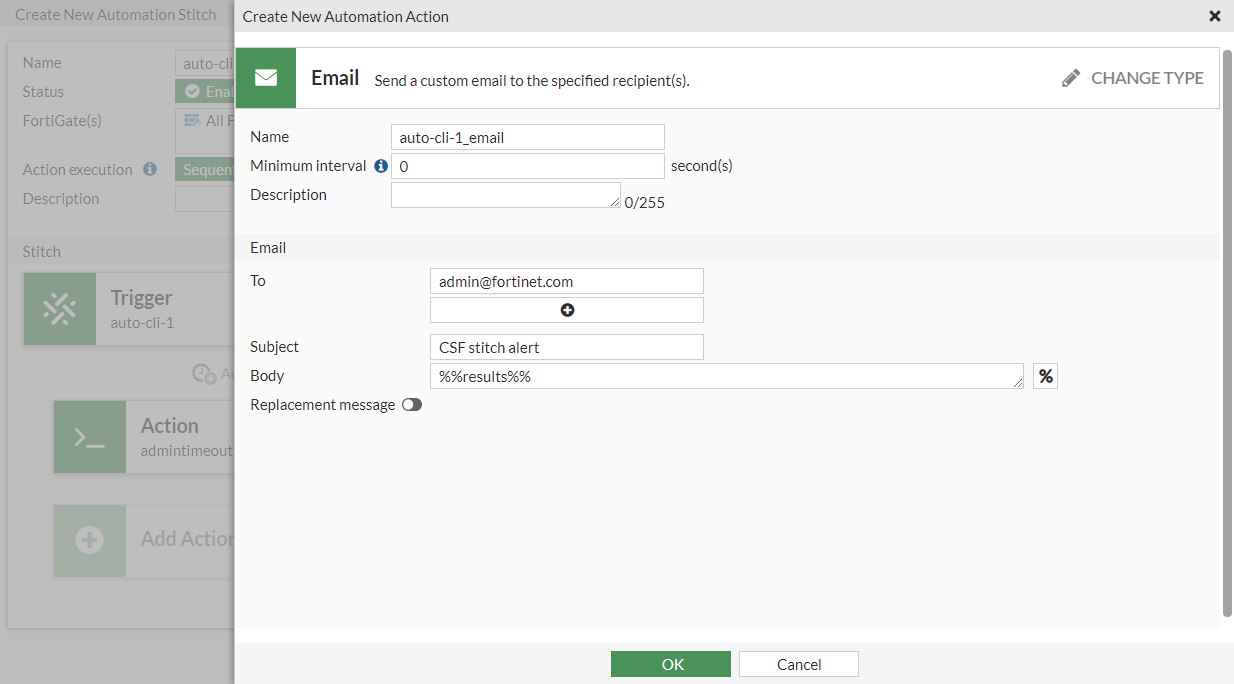

  5. Configure the Email notification action:
