Hybrid strategy of priority and SLA modes
A hybrid strategy for service rules is where priority mode and SLA mode work together for sla-mode service rules. See Best quality strategy and Lowest cost (SLA) strategy for more information about priority mode and SLA mode.
With the hybrid strategy, SD-WAN selects the best member based on both SLA value and link quality (latency, jitter, packet-loss). Additionally, health-check supports custom-profile as a link-cost-factor, allowing for a more customized SLA evaluation based on various link quality metrics.
In the hybrid mode, the sla-mode service rule selects the outgoing interface based on the following criteria:
-
Highest SLA Value: The SD-WAN member with the highest SLA value is chosen.
-
Tie-breaker 1: If multiple members have the same SLA value, the system compares members' cost to determine the better option.
-
Tie-breaker 2: If there is still a tie, members' quality based on specified link-cost-factor is considered and is used for ranking.
-
Tie-breaker 3: If there is still a tie, cfg_order is considered.
The following CLI commands are available:
config system sdwan
config health-check
edit <health-check name>
set packet-loss-weight <weight>
set latency-weight <weight>
set jitter-weight <weight>
set bandwidth-weight <weight>
config sla
edit 1
set link-cost-factor custom-profile-1
set custom-profile-threshold <threshold>
next
end
next
end
config service
edit 1
set mode sla
set tie-break priority
set link-cost-factor custom-profile-1
set link-cost-threshold <threshold>
config sla
edit <health-check name>
set id 1
next
end
next
end
end
|
Option |
Description |
|---|---|
|
packet-loss-weight <weight> |
Coefficient of packet-loss in the formula of custom-profile-1 (0 - 10000000, default = 0). |
|
latency-weight <weight> |
Coefficient of latency in the formula of custom-profile-1 (0 - 10000000, default = 0). |
|
jitter-weight <weight> |
Coefficient of jitter in the formula of custom-profile-1 (0 - 10000000, default = 0). |
|
bandwidth-weight <weight> |
Coefficient of reciprocal of available bidirectional bandwidth in the formula of custom-profile-1 (0 - 10000000, default = 0). |
|
link-cost-factor custom-profile-1 |
Custom profile allowing for a more customized SLA evaluation based on various link quality metrics. |
|
custom-profile-threshold <threshold> |
Custom profile threshold for SLA to be marked as pass (0 - 10000000, default = 0). |
|
tie-break priority |
Select the best members that meet the SLA based on link-cost-factor. This command is only configurable for sla-mode service rule. |
|
link-cost-factor custom-profile-1 |
Link cost factor. This command is only configurable when |
|
link-cost-threshold <threshold> |
Percentage threshold change of link cost values that will result in policy route regeneration (0 - 10000000, default = 10). This command is only configurable when |
Example
This example shows how the sla-mode service rule selects the outgoing interface based on different criteria as members experience various degradation.

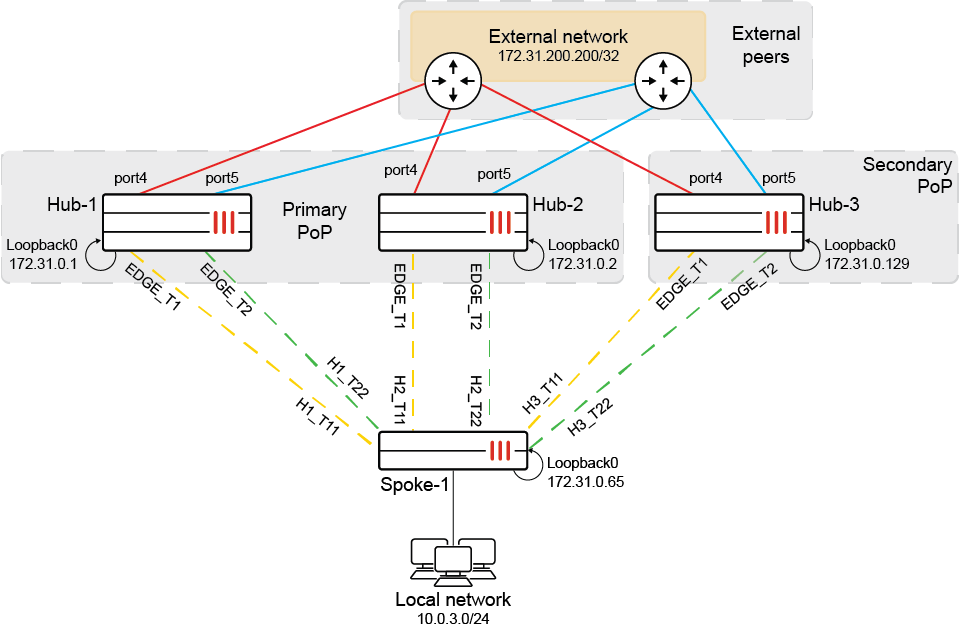

The configuration contains the following components:
-
Two PoPs:
-
The primary PoP has two hubs (Hub-1 and Hub-2).
-
The secondary PoP has one hub (Hub-3).
-
-
Spoke-1 has six overlays, with two overlay connections to each hub.
-
Spoke-1 has three BGP neighbors, with one BGP neighbor for each hub.
-
All BGP neighbors are established on loopback IPs.
-
-
Each hub has two paths to external peers.
-
Configure Spoke-1:
config system sdwan set status enable config zone edit "virtual-wan-link" next edit "PoP1" set minimum-sla-meet-members 2 next edit "PoP2" next end config members edit 1 set interface "H1_T11" set zone "PoP1" next edit 2 set interface "H1_T22" set zone "PoP1" next edit 3 set interface "H2_T11" set zone "PoP1" next edit 4 set interface "H2_T22" set zone "PoP1" next edit 5 set interface "H3_T11" set zone "PoP2" next edit 6 set interface "H3_T22" set zone "PoP2" next end config health-check edit "Hubs" set server "172.31.100.100" set source 172.31.0.65 set members 0 set packet-loss-weight 1 set latency-weight 1 set jitter-weight 1 config sla edit 1 set link-cost-factor latency packet-loss jitter custom-profile-1 set latency-threshold 100 set jitter-threshold 20 set packetloss-threshold 10 set custom-profile-threshold 60 next end next end config service edit 1 set mode sla set zone-mode enable set dst "all" set src "CORP_LAN" set tie-break priority set link-cost-factor packet-loss set link-cost-threshold 1 config sla edit "Hubs" set id 1 next end set priority-zone "PoP1" "PoP2" next end end -
Check the initial SD-WAN status on Spoke-1:
# diagnose sys sdwan health-check Health Check(Hubs): Seq(1 H1_T11): state(alive), packet-loss(0.000%), latency(0.256), jitter(0.030), mos(4.404), custom_profile(0.286), bandwidth-up(999999), bandwidth-dw(999997), bandwidth-bi(1999996), sla_map=0x1 Seq(2 H1_T22): state(alive), packet-loss(0.000%), latency(0.215), jitter(0.010), mos(4.404), custom_profile(0.225), bandwidth-up(999999), bandwidth-dw(999998), bandwidth-bi(1999997), sla_map=0x1 Seq(3 H2_T11): state(alive), packet-loss(0.000%), latency(0.219), jitter(0.022), mos(4.404), custom_profile(0.241), bandwidth-up(999999), bandwidth-dw(999997), bandwidth-bi(1999996), sla_map=0x1 Seq(4 H2_T22): state(alive), packet-loss(0.000%), latency(0.208), jitter(0.013), mos(4.404), custom_profile(0.221), bandwidth-up(999999), bandwidth-dw(999998), bandwidth-bi(1999997), sla_map=0x1 Seq(5 H3_T11): state(alive), packet-loss(0.000%), latency(0.199), jitter(0.014), mos(4.404), custom_profile(0.213), bandwidth-up(999999), bandwidth-dw(999997), bandwidth-bi(1999996), sla_map=0x1 Seq(6 H3_T22): state(alive), packet-loss(0.000%), latency(0.191), jitter(0.010), mos(4.404), custom_profile(0.200), bandwidth-up(999999), bandwidth-dw(999998), bandwidth-bi(1999997), sla_map=0x1
Zone PoP1 is preferred over zone PoP2 because the number of in-sla members in PoP1 is four, which is more than the configured
minimum-sla-meet-members.In the preferred zone PoP1, all members have the same SLA value (0x01), cost (0), and link quality (packet-loss 0.000%). As a result, the first member in the cfg-order, H1_T11, is selected as the best outgoing interface.
# diagnose sys sdwan service4 Service(1): Address Mode(IPV4) flags=0x14200 use-shortcut-sla use-shortcut Tie break: priority Shortcut priority: 2 Gen(4765), TOS(0x0/0x0), Protocol(0): src(1->65535):dst(1->65535), Mode(sla), link-cost-factor(packet-loss), link-cost-threshold(1), sla-compare-order Service role: standalone Members(6): 1: Seq_num(1 H1_T11 PoP1 active), alive, sla(0x1), gid(0), cfg_order(0), local cost(0), packet loss: 0.000%, selected 2: Seq_num(2 H1_T22 PoP1 active), alive, sla(0x1), gid(0), cfg_order(0), local cost(0), packet loss: 0.000%, selected 3: Seq_num(3 H2_T11 PoP1 active), alive, sla(0x1), gid(0), cfg_order(0), local cost(0), packet loss: 0.000%, selected 4: Seq_num(4 H2_T22 PoP1 active), alive, sla(0x1), gid(0), cfg_order(0), local cost(0), packet loss: 0.000%, selected 5: Seq_num(5 H3_T11 PoP2 standby), alive, sla(0x1), gid(0), cfg_order(1), local cost(0), packet loss: 0.000%, selected 6: Seq_num(6 H3_T22 PoP2 standby), alive, sla(0x1), gid(0), cfg_order(1), local cost(0), packet loss: 0.000%, selected Src address(1): 10.0.0.0-10.255.255.255 Dst address(1): 0.0.0.0-255.255.255.255Traffic matching service 1 selects H1_T11 as outgoing interface:
# diagnose sniffer packet any 'host 172.31.200.200' 4 interfaces=[any] filters=[host 172.31.200.200] 2.863817 port4 in 10.0.3.2 -> 172.31.200.200: icmp: echo request 2.863926 H1_T11 out 10.0.3.2 -> 172.31.200.200: icmp: echo request 2.864236 H1_T11 in 172.31.200.200 -> 10.0.3.2: icmp: echo reply 2.864389 port4 out 172.31.200.200 -> 10.0.3.2: icmp: echo reply 3.862809 port4 in 10.0.3.2 -> 172.31.200.200: icmp: echo request 3.862836 H1_T11 out 10.0.3.2 -> 172.31.200.200: icmp: echo request 3.863040 H1_T11 in 172.31.200.200 -> 10.0.3.2: icmp: echo reply 3.863072 port4 out 172.31.200.200 -> 10.0.3.2: icmp: echo reply
-
Introduce packet-loss on some members, then check the SD-WAN status on Spoke-1:
# diagnose sys sdwan health-check Health Check(Hubs): Seq(1 H1_T11): state(alive), packet-loss(8.000%), latency(0.259), jitter(0.026), mos(4.400), custom_profile(8.285), bandwidth-up(999999), bandwidth-dw(999998), bandwidth-bi(1999997), sla_map=0x1 Seq(2 H1_T22): state(alive), packet-loss(6.000%), latency(0.253), jitter(0.083), mos(4.401), custom_profile(6.337), bandwidth-up(999999), bandwidth-dw(999999), bandwidth-bi(1999998), sla_map=0x1 Seq(3 H2_T11): state(alive), packet-loss(5.000%), latency(0.228), jitter(0.028), mos(4.402), custom_profile(5.256), bandwidth-up(999999), bandwidth-dw(999998), bandwidth-bi(1999997), sla_map=0x1 Seq(4 H2_T22): state(alive), packet-loss(1.000%), latency(0.219), jitter(0.014), mos(4.404), custom_profile(1.232), bandwidth-up(999999), bandwidth-dw(999999), bandwidth-bi(1999998), sla_map=0x1 Seq(5 H3_T11): state(alive), packet-loss(0.000%), latency(0.229), jitter(0.068), mos(4.404), custom_profile(0.297), bandwidth-up(999999), bandwidth-dw(999998), bandwidth-bi(1999997), sla_map=0x1 Seq(6 H3_T22): state(alive), packet-loss(0.000%), latency(0.191), jitter(0.016), mos(4.404), custom_profile(0.207), bandwidth-up(999999), bandwidth-dw(999999), bandwidth-bi(1999998), sla_map=0x1
Zone PoP1 is preferred over zone PoP2 because the number of in-sla members in PoP1 is four, which is more than the configured
minimum-sla-meet-members.In the preferred zone PoP1, all members have the same SLA value (0x01) and cost (0). As a result, the members' quality based on packet-loss is considered, and the member H2_T22 with lowest packet-loss is selected as the best outgoing interface.
# diagnose sys sdwan service4 Service(1): Address Mode(IPV4) flags=0x14200 use-shortcut-sla use-shortcut Tie break: priority Shortcut priority: 2 Gen(7067), TOS(0x0/0x0), Protocol(0): src(1->65535):dst(1->65535), Mode(sla), link-cost-factor(packet-loss), link-cost-threshold(1), sla-compare-order Service role: standalone Members(6): 1: Seq_num(4 H2_T22 PoP1 active), alive, sla(0x1), gid(0), cfg_order(0), local cost(0), packet loss: 1.000%, selected 2: Seq_num(3 H2_T11 PoP1 active), alive, sla(0x1), gid(0), cfg_order(0), local cost(0), packet loss: 5.000%, selected 3: Seq_num(2 H1_T22 PoP1 active), alive, sla(0x1), gid(0), cfg_order(0), local cost(0), packet loss: 6.000%, selected 4: Seq_num(1 H1_T11 PoP1 active), alive, sla(0x1), gid(0), cfg_order(0), local cost(0), packet loss: 8.000%, selected 5: Seq_num(5 H3_T11 PoP2 standby), alive, sla(0x1), gid(0), cfg_order(1), local cost(0), packet loss: 0.000%, selected 6: Seq_num(6 H3_T22 PoP2 standby), alive, sla(0x1), gid(0), cfg_order(1), local cost(0), packet loss: 0.000%, selected Src address(1): 10.0.0.0-10.255.255.255 Dst address(1): 0.0.0.0-255.255.255.255Traffic matching service 1 selects H2_T22 as outgoing interface:
# diagnose sniffer packet any 'host 172.31.200.200' 4 interfaces=[any] filters=[host 172.31.200.200] 3.755271 port4 in 10.0.3.2 -> 172.31.200.200: icmp: echo request 3.755377 H2_T22 out 10.0.3.2 -> 172.31.200.200: icmp: echo request 3.755708 H2_T22 in 172.31.200.200 -> 10.0.3.2: icmp: echo reply 3.755759 port4 out 172.31.200.200 -> 10.0.3.2: icmp: echo reply 4.754278 port4 in 10.0.3.2 -> 172.31.200.200: icmp: echo request 4.754352 H2_T22 out 10.0.3.2 -> 172.31.200.200: icmp: echo request 4.754572 H2_T22 in 172.31.200.200 -> 10.0.3.2: icmp: echo reply 4.754617 port4 out 172.31.200.200 -> 10.0.3.2: icmp: echo reply
-
Introduce some latency on H2_T22, then check the SD-WAN status on Spoke-1:
On H2_T22, custom_profile = (weight 1 * packet-loss 1.190) + (weight 1 * latency 60.202) + (weight 1 * jitter 0.010) = 61.402, which is above the threshold of 60, so H2_T22 is out of SLA.
# diagnose sys sdwan health-check Health Check(Hubs): Seq(1 H1_T11): state(alive), packet-loss(8.333%), latency(0.257), jitter(0.034), mos(4.400), custom_profile(8.623), bandwidth-up(999999), bandwidth-dw(999998), bandwidth-bi(1999997), sla_map=0x1 Seq(2 H1_T22): state(alive), packet-loss(6.052%), latency(0.219), jitter(0.012), mos(4.401), custom_profile(6.183), bandwidth-up(999999), bandwidth-dw(999999), bandwidth-bi(1999998), sla_map=0x1 Seq(3 H2_T11): state(alive), packet-loss(5.271%), latency(0.214), jitter(0.012), mos(4.403), custom_profile(3.797), bandwidth-up(999999), bandwidth-dw(999998), bandwidth-bi(1999997), sla_map=0x1 Seq(4 H2_T22): state(alive), packet-loss(1.190%), latency(60.202), jitter(0.010), mos(4.372), custom_profile(61.402), bandwidth-up(999999), bandwidth-dw(999999), bandwidth-bi(1999998), sla_map=0x0 Seq(5 H3_T11): state(alive), packet-loss(0.000%), latency(0.224), jitter(0.074), mos(4.404), custom_profile(0.298), bandwidth-up(999999), bandwidth-dw(999998), bandwidth-bi(1999997), sla_map=0x1 Seq(6 H3_T22): state(alive), packet-loss(0.000%), latency(0.194), jitter(0.017), mos(4.404), custom_profile(0.211), bandwidth-up(999999), bandwidth-dw(999999), bandwidth-bi(1999998), sla_map=0x1
Zone PoP1 is preferred over zone PoP2 because the number of in-sla members in PoP1 is three, which is more than the configured
minimum-sla-meet-members.In the preferred zone PoP1, H2_T11, H1_T22 and H1_T11 have the same highest SLA value (0x01) and cost(0). As a result, the members' quality based on packet-loss is considered and the member H2_T11 with lowest packet-loss is selected as the best outgoing interface.
# diagnose sys sdwan service4 Service(1): Address Mode(IPV4) flags=0x14200 use-shortcut-sla use-shortcut Tie break: priority Shortcut priority: 2 Gen(347), TOS(0x0/0x0), Protocol(0): src(1->65535):dst(1->65535), Mode(sla), link-cost-factor(packet-loss), link-cost-threshold(1), sla-compare-order Service role: standalone Members(6): 1: Seq_num(3 H2_T11 PoP1 active), alive, sla(0x1), gid(0), cfg_order(0), local cost(0), packet loss: 5.000%, selected 2: Seq_num(2 H1_T22 PoP1 active), alive, sla(0x1), gid(0), cfg_order(0), local cost(0), packet loss: 6.000%, selected 3: Seq_num(1 H1_T11 PoP1 active), alive, sla(0x1), gid(0), cfg_order(0), local cost(0), packet loss: 8.000%, selected 4: Seq_num(5 H3_T11 PoP2 standby), alive, sla(0x1), gid(0), cfg_order(1), local cost(0), packet loss: 0.000%, selected 5: Seq_num(6 H3_T22 PoP2 standby), alive, sla(0x1), gid(0), cfg_order(1), local cost(0), packet loss: 0.000%, selected 6: Seq_num(4 H2_T22 PoP1 standby), alive, sla(0x0), gid(0), cfg_order(0), local cost(0), packet loss: 1.000%, selected Src address(1): 10.0.0.0-10.255.255.255 Dst address(1): 0.0.0.0-255.255.255.255Traffic matching service 1 selects H2_T11 as outgoing interface:
# diagnose sniffer packet any 'host 172.31.200.200' 4 interfaces=[any] filters=[host 172.31.200.200] 2.235538 port4 in 10.0.3.2 -> 172.31.200.200: icmp: echo request 2.235629 H2_T11 out 10.0.3.2 -> 172.31.200.200: icmp: echo request 2.235955 H2_T11 in 172.31.200.200 -> 10.0.3.2: icmp: echo reply 2.235990 port4 out 172.31.200.200 -> 10.0.3.2: icmp: echo reply 3.234544 port4 in 10.0.3.2 -> 172.31.200.200: icmp: echo request 3.234570 H2_T11 out 10.0.3.2 -> 172.31.200.200: icmp: echo request 3.234776 H2_T11 in 172.31.200.200 -> 10.0.3.2: icmp: echo reply 3.234811 port4 out 172.31.200.200 -> 10.0.3.2: icmp: echo reply
-
Introduce some latency on H2_T11 and H1_T22, then check the SD-WAN status on Spoke-1:
H2_T11, H1_T22, and H2_T22 are out of SLA becasue custom_profile on them are above the threshold of 60.
# diagnose sys sdwan health-check Health Check(Hubs): Seq(1 H1_T11): state(alive), packet-loss(9.000%), latency(0.281), jitter(0.023), mos(4.400), custom_profile(9.305), bandwidth-up(999999), bandwidth-dw(999998), bandwidth-bi(1999997), sla_map=0x1 Seq(2 H1_T22): state(alive), packet-loss(6.000%), latency(60.233), jitter(0.021), mos(4.369), custom_profile(66.254), bandwidth-up(999999), bandwidth-dw(999998), bandwidth-bi(1999997), sla_map=0x0 Seq(3 H2_T11): state(alive), packet-loss(4.000%), latency(60.214), jitter(0.016), mos(4.371), custom_profile(64.231), bandwidth-up(999999), bandwidth-dw(999998), bandwidth-bi(1999997), sla_map=0x0 Seq(4 H2_T22): state(alive), packet-loss(1.000%), latency(60.236), jitter(0.020), mos(4.372), custom_profile(61.255), bandwidth-up(999999), bandwidth-dw(999999), bandwidth-bi(1999998), sla_map=0x0 Seq(5 H3_T11): state(alive), packet-loss(0.000%), latency(0.217), jitter(0.015), mos(4.404), custom_profile(0.232), bandwidth-up(999999), bandwidth-dw(999998), bandwidth-bi(1999997), sla_map=0x1 Seq(6 H3_T22): state(alive), packet-loss(0.000%), latency(0.223), jitter(0.028), mos(4.404), custom_profile(0.251), bandwidth-up(999999), bandwidth-dw(999999), bandwidth-bi(1999998), sla_map=0x1
Zone PoP2 is preferred over zone PoP1 because the number of in-sla members in zone PoP1 is one, which is less than the configured minimum-sla-meet-members.
In the preferred zone PoP2, all members have the same SLA value (0x01), cost (0), and link quality (packet-loss 0.000%). As a result, the first member in cfg-order, H3_T11, is selected as the best outgoing interface.
# diagnose sys sdwan service4 Service(1): Address Mode(IPV4) flags=0x14200 use-shortcut-sla use-shortcut Tie break: priority Shortcut priority: 2 Gen(956), TOS(0x0/0x0), Protocol(0): src(1->65535):dst(1->65535), Mode(sla), link-cost-factor(packet-loss), link-cost-threshold(1), sla-compare-order Service role: standalone Members(6): 1: Seq_num(5 H3_T11 PoP2 active), alive, sla(0x1), gid(0), cfg_order(1), local cost(0), packet loss: 0.000%, selected 2: Seq_num(6 H3_T22 PoP2 active), alive, sla(0x1), gid(0), cfg_order(1), local cost(0), packet loss: 0.000%, selected 3: Seq_num(4 H2_T22 PoP1 standby), alive, sla(0x0), gid(0), cfg_order(0), local cost(0), packet loss: 1.000%, selected 4: Seq_num(3 H2_T11 PoP1 standby), alive, sla(0x0), gid(0), cfg_order(0), local cost(0), packet loss: 4.000%, selected 5: Seq_num(2 H1_T22 PoP1 standby), alive, sla(0x0), gid(0), cfg_order(0), local cost(0), packet loss: 6.000%, selected 6: Seq_num(1 H1_T11 PoP1 standby), alive, sla(0x0), gid(0), cfg_order(0), local cost(0), packet loss: 9.000%, selected Src address(1): 10.0.0.0-10.255.255.255 Dst address(1): 0.0.0.0-255.255.255.255Traffic matching service 1 selects H3_T11 as outgoing interface:
# diagnose sniffer packet any 'host 172.31.200.200' 4 interfaces=[any] filters=[host 172.31.200.200] 3.611593 port4 in 10.0.3.2 -> 172.31.200.200: icmp: echo request 3.611685 H3_T11 out 10.0.3.2 -> 172.31.200.200: icmp: echo request 3.611972 H3_T11 in 172.31.200.200 -> 10.0.3.2: icmp: echo reply 3.612009 port4 out 172.31.200.200 -> 10.0.3.2: icmp: echo reply 4.611686 port4 in 10.0.3.2 -> 172.31.200.200: icmp: echo request 4.611746 H3_T11 out 10.0.3.2 -> 172.31.200.200: icmp: echo request 4.611916 H3_T11 in 172.31.200.200 -> 10.0.3.2: icmp: echo reply 4.611948 port4 out 172.31.200.200 -> 10.0.3.2: icmp: echo reply
