Viewing normalized interfaces
You can view all normalized interfaces and their mapping rules. You can also collapse or expand all mapping rules and mapped interface/zones for normalized interfaces.
To view normalized interfaces:
- Go to Policy & Objects > Normalized Interface.
The list of normalized interfaces are displayed in the content pane.

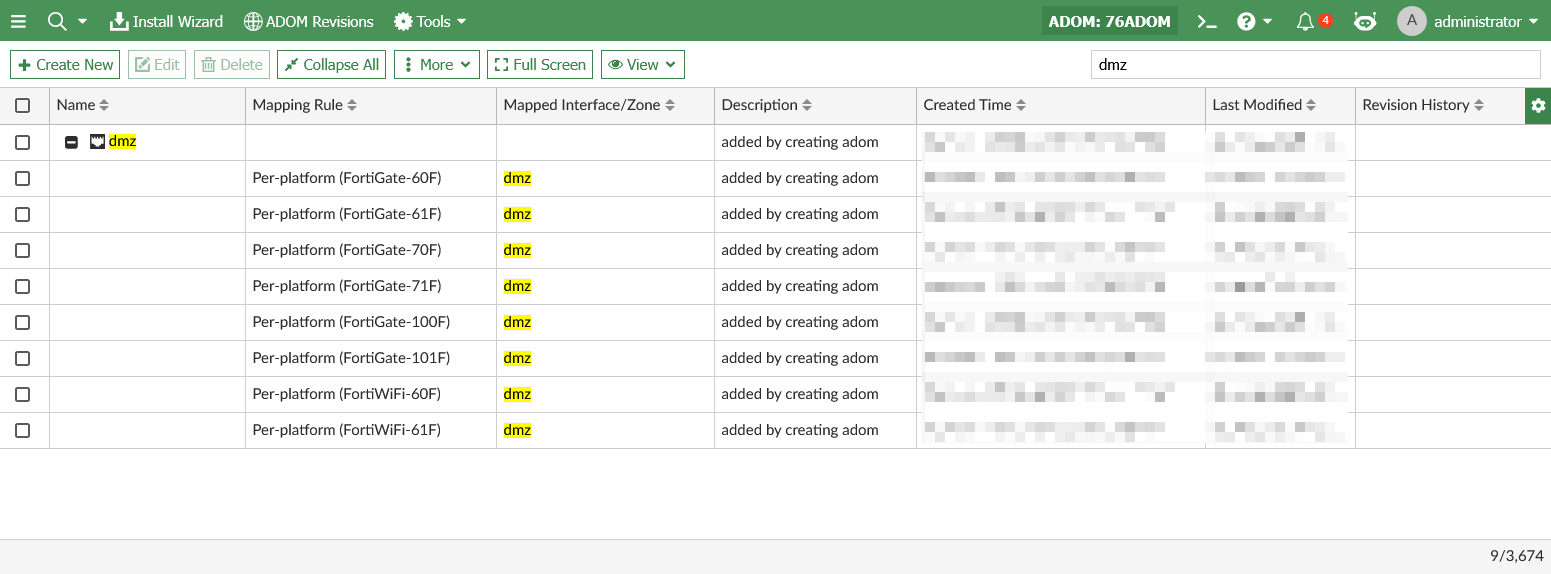

In the following example, the normalized interface named dmz is displayed, and it contains per-platform mappings for a number of FortiGate devices. The dmz normalized interface was added when an ADOM was created.
- From the toolbar, select Collapse All.
The list of normalized interfaces is displayed, but the mapping rules and mapped interface/zone information is hidden.
- From the toolbar, select Expand All .
The list of normalized interfaces and the mapping rules as well as mapped interface/zone information are displayed.
