Default address space objects

Default address space objects

FortiManager includes default addresses for RFC1918 addresses spaces which are commonly used when setting up firewall objects and policies in FortiManager. RFC1918 default addresses are included in an address group for ease of use in your policies.

To view default RFC1918 addresses and address groups, go to Policy & Objects > Firewall Objects > Addresses.

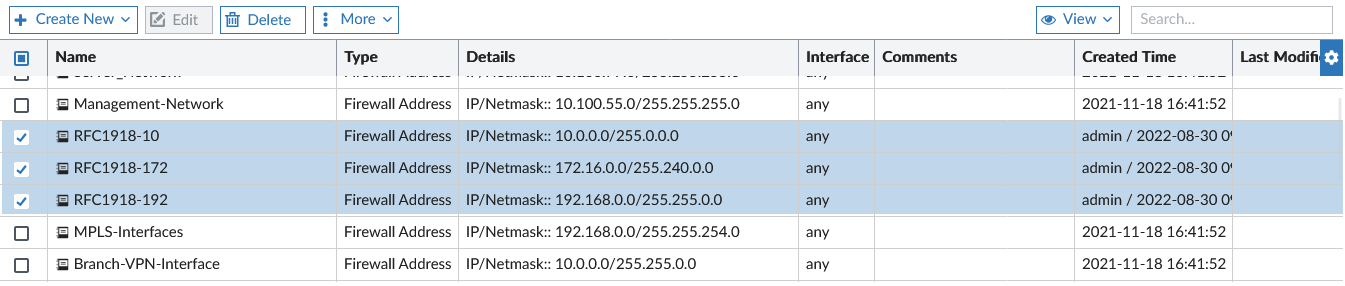

The following default RFC1918 address objects are available under Address:

  • RFC1918-10 with IP/Netmask: 10.0.0.0/255.0.0.0
  • RFC1918-172 with IP/Netmask: 172.16.0.0/255.240.0.0
  • RFC1918-192 with IP/Netmask: 192.168.0.0/255.255.0.0

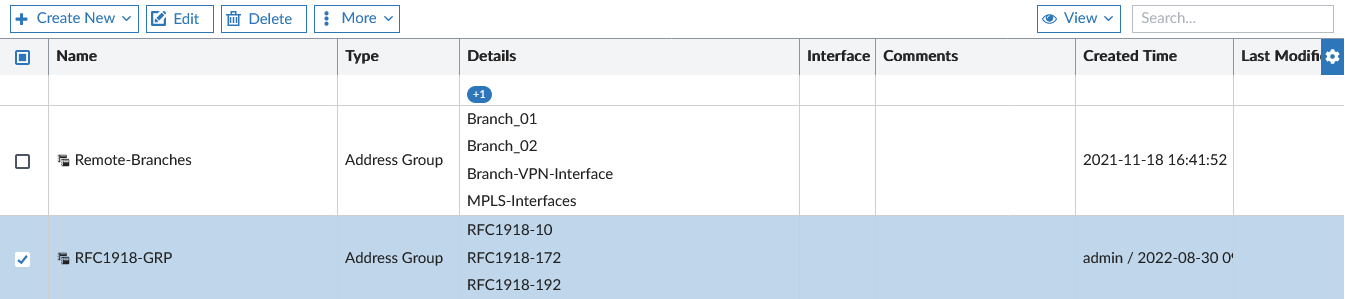

The following default RFC1918 address group containing the three address objects is available under Address Group:

  • RFC1918-GRP

Default address space objects

FortiManager includes default addresses for RFC1918 addresses spaces which are commonly used when setting up firewall objects and policies in FortiManager. RFC1918 default addresses are included in an address group for ease of use in your policies.

To view default RFC1918 addresses and address groups, go to Policy & Objects > Firewall Objects > Addresses.

The following default RFC1918 address objects are available under Address:

  • RFC1918-10 with IP/Netmask: 10.0.0.0/255.0.0.0
  • RFC1918-172 with IP/Netmask: 172.16.0.0/255.240.0.0
  • RFC1918-192 with IP/Netmask: 192.168.0.0/255.255.0.0

The following default RFC1918 address group containing the three address objects is available under Address Group:

  • RFC1918-GRP
