Block HTTPS upload traffic that includes credit card information

This configuration will block HTTPS upload traffic that includes credit card information. The predefined data type for credit card is used in the dictionary.

To block HTTPS upload traffic that includes credit card information in the GUI:

1. Configure the DLP dictionary:

   1. Go to Security Profiles > Data Loss Prevention, select the Dictionary tab, and click Create New.

   2. Enter a name (dic-case1).

   3. In the Dictionary Entries section, click Create New.

   4. Set the Type to credit-card and click OK.



   5. Click OK.

   6. Click OK to save the dictionary.

2. Configure the DLP sensor:

   1. Go to Security Profiles > Data Loss Prevention, select the Sensor tab, and click Create New.

   2. Enter a name (sensor-case1).

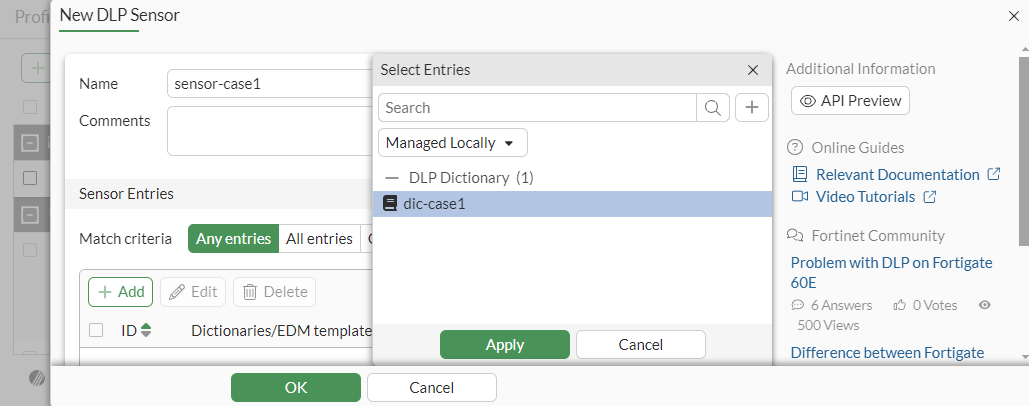

   3. In the Sensor Entries section, click Add. The Select Entries pane is displayed.

   4. Select Managed Locally from the dropdown menu.

   5. Select dic-case1 and click Apply.



   6. Click Apply.

   7. Click OK to save the sensor.

3. Configure the DLP profile:

   1. Go to Security Profiles > Data Loss Prevention, select the Profile tab, and click Create New.

   2. Enter a name (profile-case1).

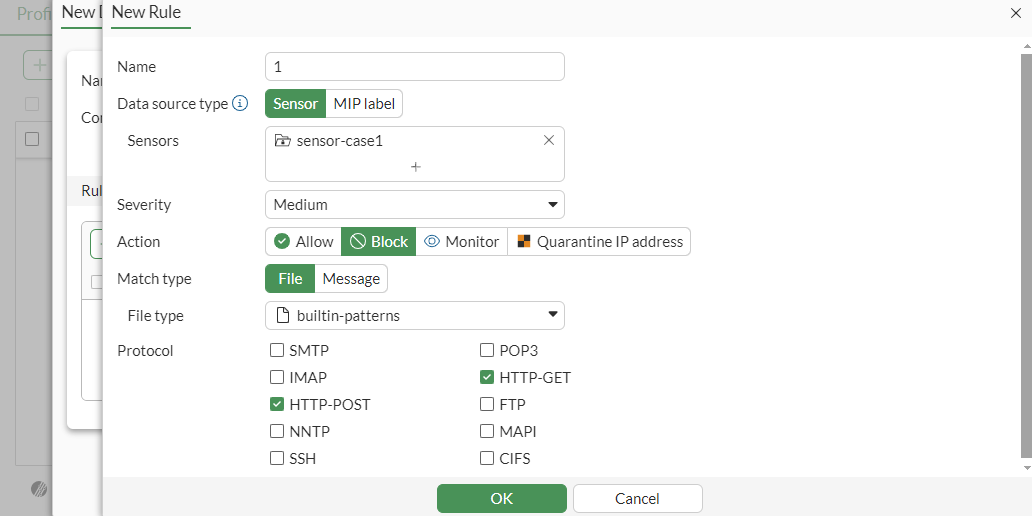

   3. In the Rules section, click Create New.

   4. Configure the following settings:

      Name	1
      Sensors	sensor-case1
      Severity	Medium
      Action	Block
      Type	File
      File type	builtin-patterns
      Protocol	HTTP-POST, HTTP-GET



   5. Click OK.

   6. Click OK to save the profile.

4. Add the DLP profile to a firewall policy:

   1. Go to Policy & Objects > Firewall Policy and click Create New.

   2. Set the Inspection Mode to Proxy-based.

   3. In the Security Profiles section, enable DLP Profile and select profile-case1.

   4. Configure the other settings as needed.

   5. Click OK.

      When a credit card is included in HTTP POST traffic, the file is blocked and a DLP log is generated.

To block HTTPS upload traffic that includes credit card information in the CLI:

1. Configure the DLP dictionary:

   config dlp dictionary
       edit "dic-case1"
           config entries
               edit 1
                   set type "credit-card"
               next
           end
       next
   end

2. Configure the DLP sensor:

   config dlp sensor
       edit "sensor-case1"
           config entries
               edit 1
                   set dictionary "dic-case1"
               next
           end
       next
   end

3. Configure the DLP profile:

   config dlp profile
       edit "profile-case1"
           set feature-set proxy
           config rule
               edit 1
                   set name "1"
                   set proto http-get http-post
                   set filter-by sensor
                   set file-type 1
                   set sensor "sensor-case1"
                   set action block
               next
           end
       next
   end

4. Add the DLP profile to a firewall policy:

   config firewall policy
       edit 1
           set srcintf "port2"
           set dstintf "port1"
           set action accept
           set srcaddr "all"
           set dstaddr "all"
           set srcaddr6 "all"
           set dstaddr6 "all"
           set schedule "always"
           set service "ALL"
           set utm-status enable
           set inspection-mode proxy
           set profile-protocol-options "protocol"
           set ssl-ssh-profile "protocols"
           set dlp-profile "profile-case1"
           set nat enable
       next
   end

   When a credit card is included in HTTP POST traffic, a replacement message appears because it is blocked. A DLP log is generated.

Sample log

From Windows, the following command below can be used to generate a sample log, using the cURL tool to post data, which contains a sample credit card number. See sample-data for sample credit card numbers.

# curl –k -d 4024007149133315 https://172.16.200.55/card.doc -o?

1: date=2022-10-26 time=11:25:01 eventtime=1666808700281057923 tz="-0700" logid="0954024576" type="utm" subtype="dlp" eventtype="dlp" level="warning" vd="root" ruleid=1 rulename="1" dlpextra="builtin-patterns;sensor-case1" filtertype="sensor" filtercat="file" severity="medium" policyid=1 poluuid="891a526a-51cd-51ed-577a-6505bec88af9" policytype="policy" sessionid=3905 epoch=2143297701 eventid=0 srcip=10.1.100.11 srcport=40370 srccountry="Reserved" srcintf="port2" srcintfrole="undefined" srcuuid="502d2c8e-51cd-51ed-a24e-a091f4ff6fed" dstip=172.16.200.55 dstport=443 dstcountry="Reserved" dstintf="port1" dstintfrole="undefined" dstuuid="502d2c8e-51cd-51ed-a24e-a091f4ff6fed" proto=6 service="HTTPS" filetype="msoffice" direction="outgoing" action="block" hostname="172.16.200.55" url="https://172.16.200.55/card.doc" agent="curl/7.83.1" httpmethod="POST" filename="card.doc" filesize=108 profile="profile-case1"
