Hub learns egress shaping value from spoke over IKE
With peer egress shaping for IPsec tunnels enabled, IKE bandwidth negotiation is used for traffic shaping. This configuration is useful for speed tests of large-scale SD-WAN deployments with thousands of sites using diverse connections (4G/5G, satellite, broadband).
A static configuration of per-tunnel egress shaping values on spokes is automatically communicated to hubs during IKEv2 negotiation. The hub then immediately applies persistent policing based on these spoke-defined values, ensuring consistent QoS without performance overhead for variable-connectivity scenarios.
config vpn ipsec phase1-interface
edit <tunnel_name>
set ike-version 2
set peer-egress-shaping {enable | disable}
set peer-egress-shaping-value <integer>
next
end
|
Command |
Description |
|---|---|
|
peer-egress-shaping {enable | disable} |
Enable/disable peer egress shaping. |
|
peer-egress-shaping-value <integer> |
Configure outbound bandwidth to use for peer egress shaping, in kbps (0 - 80000000, default = 0). |
Example

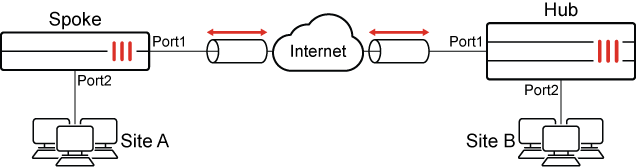

In this hub and spoke example, a peer-egress-shaping-value is configured on the spoke, and the hub learns the value through IKE negotiations. Subsequently, the hub applies the shaping value to its shaping profile, which enforces egress traffic policing on the overlay tunnel to the spoke.
The IP addresses are:
|
FortiGate |
Interface |
IP Address |
|---|---|---|
|
Spoke |
Port2 |
10.1.100.1 |
|
Port1 |
172.16.200.1 |
|
|
Hub |
Port1 |
172.16.200.4 |
|
Port2 |
192.168.5.4 |
The basic configuration steps are:
Configure the hub
To configure IPsec VPN on the hub:
config vpn ipsec phase1-interface
edit "tospokes"
set type dynamic
set interface "port1"
set ike-version 2
set peertype any
set net-device disable
set peer-egress-shaping enable
set mode-cfg enable
set proposal aes128-sha256 aes256-sha256 aes128gcm-prfsha256 aes256gcm-prfsha384 chacha20poly1305-prfsha256
set add-route disable
set dpd on-idle
set npu-offload disable
set auto-discovery-sender enable
set transport auto
set ipv4-start-ip 100.100.100.10
set ipv4-end-ip 100.100.100.20
set ipv4-netmask 255.255.255.0
set psksecret ******
set dpd-retryinterval 60
next
end
config vpn ipsec phase2-interface
edit "tospokes"
set phase1name "tospokes"
set proposal aes128-sha1 aes256-sha1 aes128-sha256 aes256-sha256 aes128gcm aes256gcm chacha20poly1305
next
end
To configure a static route on the hub:
config router static
edit 1
set device "tospokes"
next
end
To configure firewall policies on the hub:
config firewall policy
edit 1
set srcintf "port2"
set dstintf "tospokes"
set action accept
set srcaddr "all"
set dstaddr "all"
set schedule "always"
set service "ALL"
next
edit 2
set srcintf "tospokes"
set dstintf "port2"
set action accept
set srcaddr "all"
set dstaddr "all"
set schedule "always"
set service "ALL"
next
end
To configure the shaping class on the hub:
config firewall traffic-class
edit 2
set class-name "class_id_2"
next
end
To configure the shaping profile on the hub:
config firewall shaping-profile
edit "hub_spoke"
set type policing
set default-class-id 2
config shaping-entries
edit 1
set class-id 2
set guaranteed-bandwidth-percentage 100
set maximum-bandwidth-percentage 100
next
end
next
end
To apply the shaping profile to the hub's tunnel interface:
config system interface
edit "tospokes"
set egress-shaping-profile "hub_spoke"
set outbandwidth 0
next
end
When configuring egress shaping on a tunnel interface, do not manually set the outbandwidth value. It is dynamically obtained from the PEER_EGRESS_SHAPING_VALUE for each tunnel and should be left at its default value of 0.
Configure the spoke
To configure IPsec VPN on the spoke:
config vpn ipsec phase1-interface
edit "tohub-d"
set interface "port1"
set ike-version 2
set peertype any
set net-device disable
set peer-egress-shaping enable
set peer-egress-shaping-value 500
set mode-cfg enable
set proposal aes128-sha256 aes256-sha256 aes128gcm-prfsha256 aes256gcm-prfsha384 chacha20poly1305-prfsha256
set add-route disable
set auto-discovery-receiver enable
set auto-discovery-shortcuts dependent
set transport auto
set remote-gw 172.16.200.4
set psksecret ******
next
end
config vpn ipsec phase2-interface
edit "tohub-d"
set phase1name "tohub-d"
set proposal aes128-sha1 aes256-sha1 aes128-sha256 aes256-sha256 aes128gcm aes256gcm chacha20poly1305
set auto-negotiate enable
next
end
To configure a static route on the spoke:
config router static
edit 1
set device "tohub-d"
next
end
To configure firewall policies on the spoke:
config firewall policy
edit 1
set srcintf "port2"
set dstintf "tohub-d"
set action accept
set srcaddr "all"
set dstaddr "all"
set schedule "always"
set service "ALL"
next
edit 2
set srcintf "tohub-d"
set dstintf "port2"
set action accept
set srcaddr "all"
set dstaddr "all"
set schedule "always"
set service "ALL"
next
end
Verification
-
Verify that traffic can be sent from Site A to Site B:
# ping 192.168.5.55 Pinging 192.168.5.55 with 32 bytes of data: Reply from 192.168.5.55: bytes=32 time=2ms TTL=62 Reply from 192.168.5.55: bytes=32 time=2ms TTL=62 Reply from 192.168.5.55: bytes=32 time=1ms TTL=62 Reply from 192.168.5.55: bytes=32 time<1ms TTL=62 Ping statistics for 192.168.5.55: Packets: Sent = 4, Received = 4, Lost = 0 (0% loss), Approximate round trip times in milli-seconds: Minimum = 0ms, Maximum = 2ms, Average = 1ms -
Check the hub tunnel shaping:
# diagnose vpn tunnel list | grep -A 5 "egress traffic control" egress traffic control: bandwidth=500(kbps) lock_hit=0 default_class=2 n_active_class=1 class-id=2 allocated-bandwidth=500(kbps) guaranteed-bandwidth=500(kbps) max-bandwidth=500(kbps) current-bandwidth=1(kbps) priority=high forwarded_bytes=1512 dropped_packets=0 dropped_bytes=0 -
Confirm IKE negotiation on the hub:
# diagnose debug application ike -1 ike V=root:0:ac59d6f4e4dc005e/0000000000000000:6: responder received SA_INIT msg ike V=root:0:ac59d6f4e4dc005e/0000000000000000:6: received notify type NAT_DETECTION_SOURCE_IP ike V=root:0:ac59d6f4e4dc005e/0000000000000000:6: received notify type NAT_DETECTION_DESTINATION_IP ike V=root:0:ac59d6f4e4dc005e/0000000000000000:6: received notify type FRAGMENTATION_SUPPORTED ike V=root:0:ac59d6f4e4dc005e/0000000000000000:6: received notify type AUTO_DISCOVERY_RECEIVER ike V=root:0:ac59d6f4e4dc005e/0000000000000000:6: received notify type PEER_EGRESS_SHAPING ike V=root:0:ac59d6f4e4dc005e/0000000000000000:6: incoming proposal: ike V=root:0:ac59d6f4e4dc005e/0000000000000000:6: proposal id = 1: ... ike V=root:0:tospokes:6: processing notify type NAT_DETECTION_SOURCE_IP ike V=root:0:tospokes:6: processing NAT-D payload ike V=root:0:tospokes:6: NAT not detected ike V=root:0:tospokes:6: process NAT-D ike V=root:0:tospokes:6: processing notify type NAT_DETECTION_DESTINATION_IP ike V=root:0:tospokes:6: processing NAT-D payload ike V=root:0:tospokes:6: NAT not detected ike V=root:0:tospokes:6: process NAT-D ike V=root:0:tospokes:6: processing notify type FRAGMENTATION_SUPPORTED ike V=root:0:tospokes:6: processing notify type AUTO_DISCOVERY_RECEIVER ike V=root:0:tospokes:6: processing notify type PEER_EGRESS_SHAPING ike V=root:0:tospokes:6: received peer egress shaping ike V=root:0:tospokes:6: responder preparing SA_INIT msg ... ike V=root:0:tospokes:6: processing notify type INITIAL_CONTACT ike V=root:0:tospokes:6: processing notify type MESSAGE_ID_SYNC_SUPPORTED ike V=root:0:tospokes:6: processing notify type PEER_EGRESS_SHAPING_VALUE ike V=root:0:tospokes:6: received peer egress shaping value=500 ike V=root:0:tospokes:6: peer identifier IPV4_ADDR 172.16.200.1 ike V=root:0:tospokes:6: re-validate gw ID ike V=root:0:tospokes:6: gw validation OK ...
-
Confirm IKE negotiation on the spoke:
# diagnose debug application ike -1 ike V=root:0:tohub-d:3: processing notify type FRAGMENTATION_SUPPORTED ike V=root:0:tohub-d:3: processing notify type AUTO_DISCOVERY_SENDER ike V=root:0:tohub-d:3: processing notify type PEER_EGRESS_SHAPING ike V=root:0:tohub-d:3: received peer egress shaping ike V=root:0:tohub-d:3: incoming proposal: ike V=root:0:tohub-d:3: proposal id = 1: ... ike V=root:0:tohub-d:3: authentication succeeded ike V=root:0:tohub-d:3: processing notify type MESSAGE_ID_SYNC_SUPPORTED ike V=root:0:tohub-d:3: processing notify type INTERFACE_ADDR4 ike V=root:0:tohub-d:3: INTERFACE-ADDR4 100.100.100.4 ike V=root:0:tohub-d:3: processing notify type PEER_EGRESS_SHAPING_VALUE ike V=root:0:tohub-d:3: received peer egress shaping value=0 ike V=root:0:tohub-d:3: processing notify type ADVPN_EXT_IP4 ike V=root:0:tohub-d:3: ext IP = 172.16.200.1
