Site-to-site IPv4 over IPv6 VPN example

In this example, two private networks with IPv4 addressing communicate securely over IPv6 infrastructure.

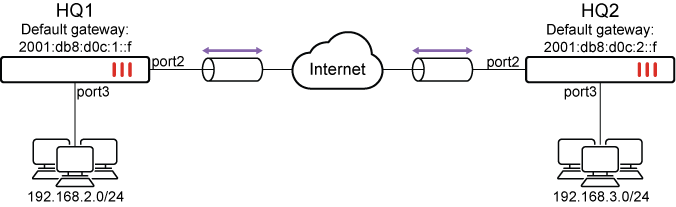

The following topology is used for this example:

• Port2 connects to the IPv6 public network and port3 connects to the IPv4 local network.

• HQ1 port2 IPv6 address is 2001:db8:d0c:1::e and port3 IPv4 address is 192.168.2.1.

• HQ2 port2 IPv6 address is 2001:db8:d0c:2::e and port3 IPv4 address is 192.168.3.1.

Please note that the IPv6 addresses used in this example are for illustrative purposes only and should not be used in your environment. The 2001:db8::/32 prefix is a special IPv6 prefix designated for use in documentation examples. See RFC 3849 for more information.

To configure the example in the GUI:

1. Configure the HQ1 FortiGate.

   1. Configure the IPv6 address on port2 and IPv4 address on port3:

      1. Go to Network > Interfaces and edit port2.

      2. Set IPv6 addressing mode to Manual and enter the IPv6 Address/Prefix.

         IPv6 Address/Prefix

         2001:db8:d0c:1::e/64

      3. Click OK.

      4. Go to Network > Interfaces and edit port3.

      5. Set Addressing mode to Manual and enter the IP/Netmask.

         IP/Netmask

         192.168.2.1/24

   2. Configure IPsec settings:

      1. Go to VPN > IPsec Wizard and enter a VPN name.

      2. Set Template type to Custom.

      3. Click Next.

      4. Configure the following Network settings:

         IP Version	IPv6
         Remote Gateway	Static IP Address
         IP Address	2001:db8:d0c:2::e
         Interface	port2

      5. Configure the following Authentication settings:

         Method	Pre-shared Key
         Pre-shared Key	sample

      6. Configure the following New Phase 2 settings:

         Local Address	addr_subnet
         Remote Address	addr_subnet

   3. Configure the IPv4 firewall policy to allow IPv4 traffic from port3 to the IPsec interface:

      1. Go to Policy & Objects > Firewall Policy.

      2. Click Create New.

      3. Name the policy and configure the following parameters:

         Incoming Interface	port3
         Outgoing Interface	to_HQ2
         Source	all
         Destination	all
         Schedule	always
         Service	ALL
         Action	ACCEPT

      4. Click OK.

   4. Configure the IPv4 firewall policy to allow IPv4 traffic from the IPsec interface to port3:

      1. Go to Policy & Objects > Firewall Policy.

      2. Click Create New.

      3. Name the policy and configure the following parameters:

         Incoming Interface	to_HQ2
         Outgoing Interface	port3
         Source	all
         Destination	all
         Schedule	always
         Service	ALL
         Action	ACCEPT

      4. Click OK.

   5. Configure the static routes:

      1. Go to Network > Static Routes.

      2. Click Create New > IPv6 Static Route.

      3. Configure the following settings for the default route to the remote VPN gateway:

         Destination	0.0.0.0/0.0.0.0
         Gateway Address	2001:db8:d0c:1::f
         Interface	port2

      4. Select OK.

      5. Repeat the first two steps for IPv4 Static Route and configure the following settings for the route to the remote protected network:

         Destination	192.168.3.0/24
         Interface	to_HQ2

      6. Select OK.

      7. Repeat the first two steps for IPv4 Static Route and configure the following settings for the blackhole route:

         Destination	192.168.3.0/24
         Interface	Blackhole
         Administrative Distance	254

      8. Select OK.

2. Configure the HQ2 FortiGate:

   1. Configure the IPv6 address on port2 and IPv4 address on port3:

      1. Go to Network > Interfaces and edit port2.

      2. Set IPv6 addressing mode to Manual and enter the IPv6 Address/Prefix.

         IPv6 Address/Prefix

         2001:db8:d0c:2::e/64

      3. Click OK.

      4. Go to Network > Interfaces and edit port3.

      5. Set Addressing mode to Manual and enter the IP/Netmask.

         IP/Netmask

         192.168.3.1/24

   2. Configure IPsec settings:

      1. Go to VPN > IPsec Wizard and enter a VPN name.

      2. Set Template type to Custom.

      3. Click Next.

      4. Configure the following Network settings:

         IP Version	IPv6
         Remote Gateway	Static IP Address
         IP Address	2001:db8:d0c:1::e
         Interface	port2

      5. Configure the following Authentication settings:

         Method	Pre-shared Key
         Pre-shared Key	sample

      6. Configure the following New Phase 2 settings:

         Local Address	addr_subnet
         Remote Address	addr_subnet

   3. Configure the IPv4 firewall policy to allow IPv4 traffic from port3 to the IPsec interface:

      1. Go to Policy & Objects > Firewall Policy.

      2. Click Create New.

      3. Name the policy and configure the following parameters:

         Incoming Interface	port3
         Outgoing Interface	to_HQ1
         Source	all
         Destination	all
         Schedule	always
         Service	ALL
         Action	ACCEPT

      4. Click OK.

   4. Configure the IPv4 firewall policy to allow IPv4 traffic from the IPsec interface to port3:

      1. Go to Policy & Objects > Firewall Policy.

      2. Click Create New.

      3. Name the policy and configure the following parameters:

         Incoming Interface	to_HQ1
         Outgoing Interface	port3
         Source	all
         Destination	all
         Schedule	always
         Service	ALL
         Action	ACCEPT

      4. Click OK.

   5. Configure the static routes:

      1. Go to Network > Static Routes.

      2. Click Create New > IPv6 Static Route.

      3. Configure the following settings for the default route to the remote VPN gateway:

         Destination	0.0.0.0/0.0.0.0
         Gateway Address	2001:db8:d0c:2::f
         Interface	port2

      4. Select OK.

      5. Repeat the first two steps for IPv4 Static Route and configure the following settings for the route to the remote protected network:

         Destination	192.168.2.0/24
         Interface	to_HQ1

      6. Select OK.

      7. Repeat the first two steps for IPv4 Static Route and configure the following settings for the blackhole route:

         Destination	192.168.2.0/24
         Interface	Blackhole
         Administrative Distance	254

      8. Select OK.

To configure the example in the CLI:

1. Configure the HQ1 FortiGate.

   1. Configure the IPv6 address on port2 and IPv4 address on port3:

      config system interface
          edit port2
              config ipv6
                  set ip6-address 2001:db8:d0c:1::e/64
              end
          next
          edit port3
              set ip 192.168.2.1/24
          next
      end

   2. Configure IPsec settings:

      config vpn ipsec phase1-interface
          edit "to_HQ2"
              set interface port2
              set ip-version 6
              set peertype any
              set proposal aes128-sha256 aes256-sha256 aes128-sha1 aes256-sha1
              set remote-gw6 2001:db8:d0c:2::e
              set psksecret sample
          next
      end
      config vpn ipsec phase2-interface
          edit "to_HQ2"
              set phase1name "to_HQ2"
              set proposal aes128-sha1 aes256-sha1 aes128-sha256 aes256-sha256 aes128gcm aes256gcm chacha20poly1305
              set src-addr-type subnet
              set dst-addr-type subnet
          next
      end

   3. Configure the IPv4 firewall policy to allow IPv4 traffic between port3 to the IPsec interface:

      config firewall policy
          edit 1
              set srcintf "port3"
              set dstintf "to_HQ2"
              set srcaddr "all"
              set dstaddr "all"
              set action accept
              set schedule "always"
              set service "ALL"
              set logtraffic "all"
          next
          edit 2
              set srcintf "to_HQ2"
              set dstintf "port3"
              set srcaddr "all"
              set dstaddr "all"
              set action accept
              set schedule "always"
              set service "ALL"
              set logtraffic "all"
          next
      end

   4. Configure the static routes:

      config router static6
          edit 1
              set gateway 2001:db8:d0c:1::f
              set device "port2"
          next
      end
      config router static
          edit 1
              set dst 192.168.3.0 255.255.255.0
              set device "to_HQ2"
          next
          edit 2
              set dst 192.168.3.0 255.255.255.0
              set device blackhole
              set distance 254
          next
      end

2. Configure the HQ2 FortiGate.

   1. Configure the IPv6 address on port2 and IPv4 address on port3:

      config system interface
          edit port2
              config ipv6
                  set ip6-address 2001:db8:d0c:2::e/64
              end
          next
          edit port3
              set ip 192.168.3.1/24
          next
      end

   2. Configure IPsec settings:

      config vpn ipsec phase1-interface
          edit "to_HQ1"
              set interface port2
              set ip-version 6
              set peertype any
              set proposal aes128-sha256 aes256-sha256 aes128-sha1 aes256-sha1
              set remote-gw6 2001:db8:d0c:1::e
              set psksecret sample
          next
      end
      config vpn ipsec phase2-interface
          edit "to_HQ2"
              set phase1name "to_HQ1"
              set proposal aes128-sha1 aes256-sha1 aes128-sha256 aes256-sha256 aes128gcm aes256gcm chacha20poly1305
              set src-addr-type subnet
              set dst-addr-type subnet
          next
      end

   3. Configure the IPv4 firewall policy to allow IPv4 traffic between port3 to the IPsec interface:

      config firewall policy
          edit 1
              set srcintf "port3"
              set dstintf "to_HQ1"
              set srcaddr "all"
              set dstaddr "all"
              set action accept
              set schedule "always"
              set service "ALL"
              set logtraffic "all"
          next
          edit 2
              set srcintf "to_HQ1"
              set dstintf "port3"
              set srcaddr "all"
              set dstaddr "all"
              set action accept
              set schedule "always"
              set service "ALL"
              set logtraffic "all"
          next
      end

   4. Configure the static routes:

      config router static6
          edit 1
              set gateway 2001:db8:d0c:2::f
              set device "port2"
          next
      end
      config router static
          edit 1
              set dst 192.168.2.0 255.255.255.0
              set device "to_HQ1"
          next
          edit 2
              set dst 192.168.2.0 255.255.255.0
              set device blackhole
              set distance 254
          next
      end

Verification

The following commands are useful to check IPsec phase1/phase2 interface status:

1. Run the diagnose vpn ike gateway list command on HQ1. The system should return the following:

   vd: root/0
   name: to_HQ2
   version: 1
   interface: port2 6
   addr: 2001:db8:d0c:1::e:500 -> 2001:db8:d0c:2::e:500
   tun_id: 10.0.0.1/::10.0.0.1
   remote_location: 0.0.0.0
   network-id: 0
   created: 7215s ago
   peer-id: 2001:db8:d0c:2::e
   peer-id-auth: no
   IKE SA: created 1/1  established 1/1  time 0/0/0 ms
   IPsec SA: created 1/2  established 1/2  time 0/5/10 ms

     id/spi: 160 8d7231820bb5ffd9/6c840a4c11b57927
     direction: initiator
     status: established 7215-7215s ago = 0ms
     proposal: aes128-sha256
     key: 32d8521a77d98529-5fe4b67914d30f87
     lifetime/rekey: 86400/78884
     DPD sent/recv: 00000007/00000003
     peer-id: 2001:db8:d0c:2::e

2. Run the diagnose vpn tunnel list command on HQ1. The system should return the following:

   list all ipsec tunnel in vd 0
   ------------------------------------------------------
   name=to_HQ2 ver=1 serial=1 2001:db8:d0c:1::e:0->2001:db8:d0c:2::e:0 tun_id=10.0.0.1 tun_id6=::10.0.0.1 dst_mtu=1500 dpd-link=on weight=1
   bound_if=6 lgwy=static/1 tun=intf mode=auto/1 encap=none/552 options[0228]=npu frag-rfc  run_state=0 role=primary accept_traffic=1 overlay_id=0

   proxyid_num=1 child_num=0 refcnt=4 ilast=581 olast=581 ad=/0
   stat: rxp=4 txp=4 rxb=26312 txb=26312
   dpd: mode=on-demand on=1 idle=20000ms retry=3 count=0 seqno=7
   natt: mode=none draft=0 interval=0 remote_port=0
   fec: egress=0 ingress=0
   proxyid=to_HQ2 proto=0 sa=1 ref=2 serial=2
     src: 0:0.0.0.0-255.255.255.255:0
     dst: 0:0.0.0.0-255.255.255.255:0
     SA:  ref=3 options=10202 type=00 soft=0 mtu=1422 expire=42116/0B replaywin=2048
          seqno=5 esn=0 replaywin_lastseq=00000005 qat=0 rekey=0 hash_search_len=1
     life: type=01 bytes=0/0 timeout=42902/43200
     dec: spi=97511f0d esp=aes key=16 c7323977434f48604c37d7be423f7519
          ah=sha1 key=20 ee8f9b457cec9b3c2e614db058bb97896d7ef8d9
     enc: spi=0f65cc65 esp=aes key=16 8b78642018b02165d1ef29ad3d8215c8
          ah=sha1 key=20 f2adca47b0b3925a87e329a237f0fd521e0afd19
     dec:pkts/bytes=8/52624, enc:pkts/bytes=8/52984
     npu_flag=00 npu_rgwy=2001:db8:d0c:2::e npu_lgwy=2001:db8:d0c:1::e npu_selid=1 dec_npuid=0 enc_npuid=0
   run_tally=0
