VLAN inside VXLAN

VLANs can be assigned to VXLAN interfaces. In a data center network where VXLAN is used to create an L2 overlay network and for multitenant environments, a customer VLAN tag can be assigned to VXLAN interface. This allows the VLAN tag from VLAN traffic to be encapsulated within the VXLAN packet.

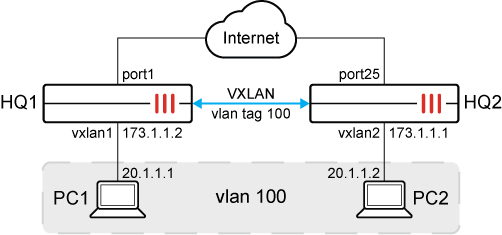

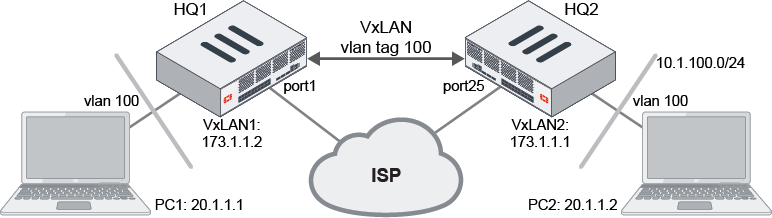

To configure VLAN inside VXLAN on HQ1:

1. Configure VXLAN:

   config system vxlan
       edit "vxlan1"
           set interface port1
           set vni 1000
           set remote-ip 173.1.1.1
       next
   end

2. Configure system interface:

   config system interface
       edit vlan100
           set vdom root
           set vlanid 100
           set interface dmz
       next
       edit vxlan100
           set type vlan
           set vlanid 100
           set vdom root
           set interface vxlan1
       next
   end

3. Configure software-switch:

   config system switch-interface
       edit sw1
           set vdom root
           set member vlan100 vxlan100
           set intra-switch-policy implicit
       next
   end

The default intra-switch-policy implicit behavior allows traffic between member interfaces within the switch. Therefore, it is not necessary to create firewall policies to allow this traffic.

Instead of creating a software-switch, it is possible to use a virtual-wire-pair as well. See Virtual wire pair with VXLAN.

To configure VLAN inside VXLAN on HQ2:

1. Configure VXLAN:

   config system vxlan
       edit "vxlan2"
           set interface port25
           set vni 1000
           set remote-ip 173.1.1.2
       next
   end

2. Configure system interface:

   config system interface
       edit vlan100
           set vdom root
           set vlanid 100
           set interface port20
       next
       edit vxlan100
           set type vlan
           set vlanid 100
           set vdom root
           set interface vxlan2
       next
   end

3. Configure software-switch:

   config system switch-interface
       edit sw1
           set vdom root
           set member vlan100 vxlan100
       next
   end

To verify the configuration:

Ping PC1 from PC2.

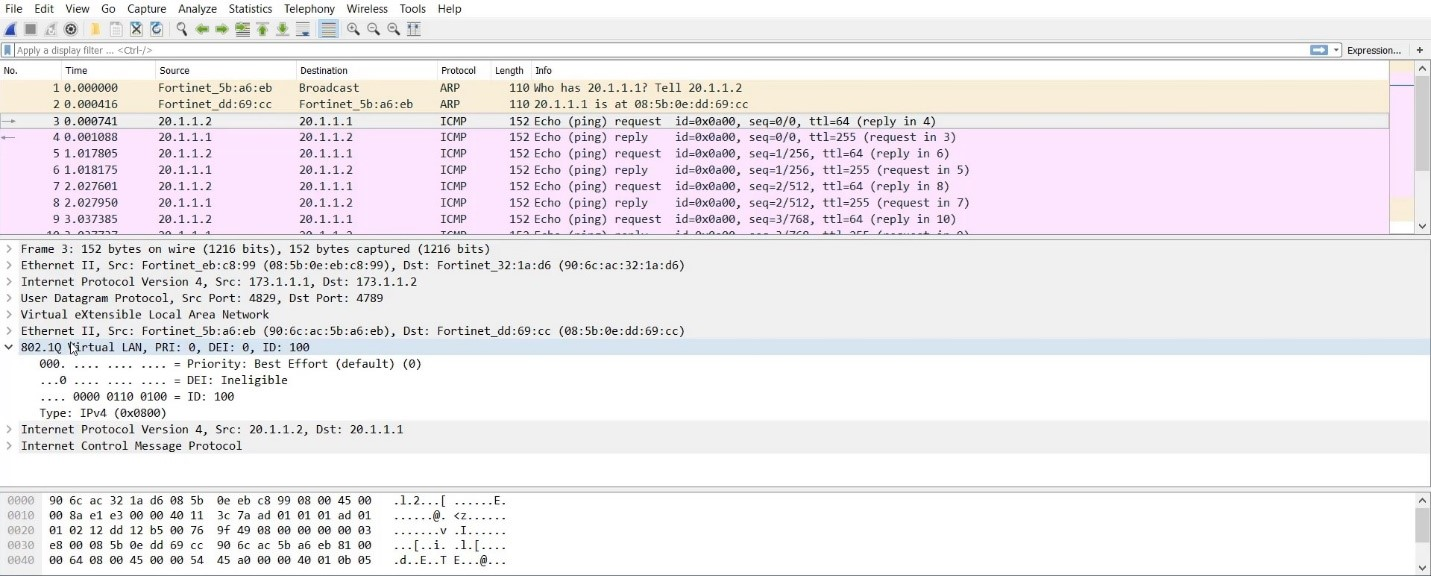

The following is captured on HQ2:

This captures the VXLAN traffic between 172.1.1.1 and 172.1.1.2 with the VLAN 100 tag inside.
