Basic OSPFv3 example

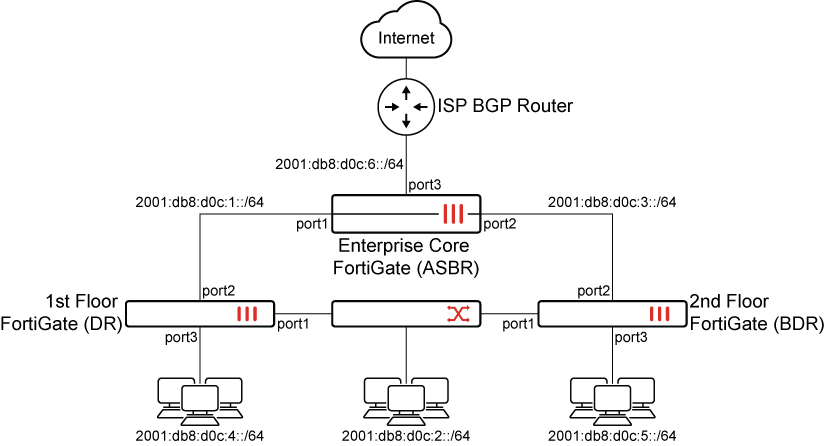

In this example, three FortiGate devices are configured in an OSPF network.

  • 1st Floor FortiGate is the Designated Router (DR). It has the highest priority and the lowest IP address, to ensure that it becomes the DR.

  • 2nd Floor FortiGate is the Backup Designated Router (BDR). It has a high priority to ensure that it becomes the BDR.

  • Enterprise Core FortiGate is the Autonomous System Border Router (ASBR). It routes all traffic to the ISP BGP router for internet access. It redistributes routes from BGP and advertises a default route to its neighbors. It can allow different types of routes, learned outside of OSPF, to be used in OSPF. Different metrics can be assigned to these routes to make them more or less preferred than regular OSPF routes. Route maps could be used to further control what prefixes are advertised or received from the ISP.

Note

Please note that the IPv6 addresses used in this example are for illustrative purposes only and should not be used in your environment.

The 2001:db8::/32 prefix is a special IPv6 prefix designated for use in documentation examples. See RFC 3849 for more information.

FortiGate

Interface

IP address

1st Floor FortiGate (DR) loopback 1.1.1.1
port1 2001:db8:d0c:2::1/64
port2 2001:db8:d0c:1::2/64
port3 2001:db8:d0c:4::1/64
2nd Floor FortiGate (BDR) loopback 2.2.2.2
port1 2001:db8:d0c:2::2/64
port2 2001:db8:d0c:3::2/64
port3 2001:db8:d0c:5::1/64
Enterprise Core FortiGate (ASBR) loopback 13.13.13.13
port1 2001:db8:d0c:1::1/64
port2 2001:db8:d0c:3::1/64
port3 2001:db8:d0c:6::1/64
  • Firewall policies are already configured to allow unfiltered traffic in both directions between all of the connected interfaces.

  • The interfaces are already configured. The cost for all of the interfaces is left at 0.

  • The OSPF network belongs to Area 0, and is not connected to any other OSPF networks. All of the routers are part of the backbone 0.0.0.0 area, so no inter-area communications are needed.

  • Enterprise Core FortiGate redistributes BGP routes into the OSPF AS and peers with the ISP BGP Router over eBGP. For information about configuring BGP, see Basic IPv6 BGP example.

  • The ISP IPv6 address is 2001:db8:d0c:6::2/64.

1st Floor FortiGate

To configure 1st Floor FortiGate in the CLI:
config router ospf6
    set router-id 1.1.1.1
    config area
        edit 0.0.0.0
        next
    end
    config ospf6-interface
        edit "1st-Floor-FortiGate-Internal-DR"
            set interface "port1"
            set priority 255
            set dead-interval 40
            set hello-interval 10
        next
        edit "1st-Floor-FortiGate-External"
            set interface "port2"
            set dead-interval 40
            set hello-interval 10
        next
    end
    edit "1st-Floor-FortiGate-Internal"
        set interface "port3"
        set dead-interval 40
        set hello-interval 10
    next
end

2nd Floor FortiGate

To configure 2nd Floor FortiGate in the CLI:
config router ospf6
    set router-id 2.2.2.2
    config area
        edit 0.0.0.0
        next
    end
    config ospf6-interface
        edit "2nd-Floor-FortiGate-Internal"
            set interface "port1"
            set priority 250
            set dead-interval 40
            set hello-interval 10
        next
        edit "2nd-Floor-FortiGate-External"
            set interface "port2"
            set dead-interval 40
            set hello-interval 10
        next
    end
    edit "2nd-Floor-FortiGate-Internal1"
        set interface "port3"
        set dead-interval 40
        set hello-interval 10
    next
end

Enterprise Core FortiGate

To configure Enterprise Core FortiGate in the CLI:
config router ospf6
    set default-information-originate enable
    set router-id 13.13.13.13
    config area
        edit 0.0.0.0
        next
    end
    config ospf6-interface
        edit "Enterprise-Core-FortiGate-Internal"
            set interface "port1"
            set dead-interval 40
            set hello-interval 10
        next
        edit "Enterprise-Core-FortiGate-Internal2"
            set interface "port2"
            set dead-interval 40
            set hello-interval 10
        next
    end
    config redistribute "bgp"
        set status enable
    end
end

Testing and configuration

Both the network connectivity and OSPF routing are tested. When a link goes down, routes should converge as expected.

  1. Working state

    • Enterprise Core FortiGate:

      # get router info6 ospf neighbor
      OSPFv3 Process (root)
      Neighbor ID     Pri   State           Dead Time   Interface
      1.1.1.1           1   Full/Backup     00:00:38    port1
      2.2.2.2           1   Full/Backup     00:00:32    port2

      # get router info6 ospf status
       Routing Process "OSPFv3 (root)" with ID 13.13.13.13
       Process uptime is 28 minutes
       Do not support Restarting
       This router is an ASBR (injecting external routing information)
       SPF schedule delay 5 secs, Hold time between SPFs 10 secs
       Minimum LSA interval 5 secs, Minimum LSA arrival 1 secs
       Number of incomming current DD exchange neighbors 0/5
       Number of outgoing current DD exchange neighbors 0/5
       Number of external LSA 0. Checksum Sum 0x0000
       Number of AS-Scoped Unknown LSA 0
       Number of LSA originated 14
       Number of LSA received 187
       Number of areas in this router is 1
          Area BACKBONE(0)
              Number of interfaces in this area is 2(2)
              SPF algorithm executed 36 times
              Number of LSA 9.  Checksum Sum 0x2DB91
              Number of Unknown LSA

      # get router info6 routing-table
      IPv6 Routing Table
      Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF,
             IA - OSPF inter area
             N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
             E1 - OSPF external type 1, E2 - OSPF external type 2
             i - IS-IS, B - BGP, V - BGP VPNv6
             * - candidate default

      Timers: Uptime

      Routing table for VRF=0
      B*      ::/0 [20/0] via fe80::20c:29ff:febc:eec2, port3, 00:02:56, [1024/0]
      C       ::1/128 via ::, root, 00:17:23
      B       64:ff9b::/96 [20/0] via fe80::20c:29ff:febc:eec2, port3, 00:02:56, [1024/0]
      C       2001:db8:d0c:1::/64 via ::, port1, 00:17:23
      O       2001:db8:d0c:2::/64 [110/2] via fe80::20c:29ff:fe4d:f81f, port1, 00:16:36, [1024/0]
                                  [110/2] via fe80::20c:29ff:fe6b:b2c9, port2, 00:16:36, [1024/0]
      C       2001:db8:d0c:3::/64 via ::, port2, 00:17:23
      O       2001:db8:d0c:4::/64 [110/2] via fe80::20c:29ff:fe4d:f81f, port1, 00:16:36, [1024/0]
      O       2001:db8:d0c:5::/64 [110/2] via fe80::20c:29ff:fe6b:b2c9, port2, 00:16:52, [1024/0]
      C       2001:db8:d0c:6::/64 via ::, port3, 00:17:23
    • 2nd Floor FortiGate:

      # get router info6 ospf neighbor
      OSPFv3 Process (root)
      Neighbor ID     Pri   State           Dead Time   Interface
      1.1.1.1         255   Full/DR         00:00:35    port1
      13.13.13.13       1   Full/DR         00:00:31    port2

      # get router info6 ospf status
       Routing Process "OSPFv3 (root)" with ID 2.2.2.2
       Process is not up
       SPF schedule delay 5 secs, Hold time between SPFs 10 secs
       Minimum LSA interval 5 secs, Minimum LSA arrival 1 secs
       Number of incomming current DD exchange neighbors 0/5
       Number of outgoing current DD exchange neighbors 0/5
       Number of external LSA 0. Checksum Sum 0x0000
       Number of AS-Scoped Unknown LSA 0
       Number of LSA originated 19
       Number of LSA received 157
       Number of areas in this router is 1
          Area BACKBONE(0)
              Number of interfaces in this area is 2(2)
              SPF algorithm executed 32 times
              Number of LSA 9.  Checksum Sum 0x2D793
              Number of Unknown LSA

      # get router info6 routing-table
      IPv6 Routing Table
      Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF,
             IA - OSPF inter area
             N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
             E1 - OSPF external type 1, E2 - OSPF external type 2
             i - IS-IS, B - BGP
             * - candidate default

      Timers: Uptime

      O*E2    ::/0 [110/10] via fe80::20c:29ff:fefc:185e, port2, 00:00:37
      C       ::1/128 via ::, root, 00:15:47
      O E2    64:ff9b::/96 [110/10] via fe80::20c:29ff:fefc:185e, port2, 00:00:37
      O       2001:db8:d0c:1::/64 [110/2] via fe80::20c:29ff:fe4d:f815, port1, 00:14:10
                                  [110/2] via fe80::20c:29ff:fefc:185e, port2, 00:14:10
      C       2001:db8:d0c:2::/64 via ::, port1, 00:15:47
      C       2001:db8:d0c:3::/64 via ::, port2, 00:15:47
      O       2001:db8:d0c:4::/64 [110/2] via fe80::20c:29ff:fe4d:f815, port1, 00:14:36
      C       2001:db8:d0c:5::/64 via ::, port3, 00:15:47
      C       fe80::/64 via ::, port8, 00:15:47

    The default route advertised by Enterprise Core FortiGate using default-information-originate is considered an OSPF E2 route. Other routes redistributed from BGP are also E2 routes.

    • 1st Floor FortiGate:

      # get router info6 ospf neighbor
      OSPFv3 Process (root)
      Neighbor ID     Pri   State           Dead Time   Interface
      2.2.2.2         250   Full/Backup     00:00:33    port1
      13.13.13.13       1   Full/DR         00:00:31    port2

      # get router info6 ospf status
       Routing Process "OSPFv3 (root)" with ID 1.1.1.1
       Process uptime is 38 minutes
       SPF schedule delay 5 secs, Hold time between SPFs 10 secs
       Minimum LSA interval 5 secs, Minimum LSA arrival 1 secs
       Number of incomming current DD exchange neighbors 0/5
       Number of outgoing current DD exchange neighbors 0/5
       Number of external LSA 0. Checksum Sum 0x0000
       Number of AS-Scoped Unknown LSA 0
       Number of LSA originated 21
       Number of LSA received 95
       Number of areas in this router is 1
          Area BACKBONE(0)
              Number of interfaces in this area is 2(2)
              SPF algorithm executed 30 times
              Number of LSA 9.  Checksum Sum 0x2D793
              Number of Unknown LSA 0


      # get router info6 routing-table
      IPv6 Routing Table
      Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF,
             IA - OSPF inter area
             N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
             E1 - OSPF external type 1, E2 - OSPF external type 2
             i - IS-IS, B - BGP
             * - candidate default

      Timers: Uptime

      Routing table for VRF=0
      O*E2    ::/0 [110/10] via fe80::20c:29ff:fefc:1854, port2, 00:00:12
      C       ::1/128 via ::, root, 00:15:10
      O E2    64:ff9b::/96 [110/10] via fe80::20c:29ff:fefc:1854, port2, 00:00:12
      C       2001:db8:d0c:1::/64 via ::, port2, 00:15:10
      C       2001:db8:d0c:2::/64 via ::, port1, 00:15:10
      O       2001:db8:d0c:3::/64 [110/2] via fe80::20c:29ff:fe6b:b2bf, port1, 00:13:45
                                  [110/2] via fe80::20c:29ff:fefc:1854, port2, 00:13:45
      C       2001:db8:d0c:4::/64 via ::, port3, 00:15:10
      O       2001:db8:d0c:5::/64 [110/2] via fe80::20c:29ff:fe6b:b2bf, port1, 00:14:20
      C       fe80::/64 via ::, port3, 00:15:10
  2. Link down state

    If port1 is disconnected on Enterprise Core FortiGate:

    • Enterprise Core FortiGate:

      # get router info6 routing-table
      IPv6 Routing Table
      Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF,
             IA - OSPF inter area
             N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
             E1 - OSPF external type 1, E2 - OSPF external type 2
             i - IS-IS, B - BGP, V - BGP VPNv6
             * - candidate default

      Timers: Uptime

      Routing table for VRF=0
      B*      ::/0 [20/0] via fe80::20c:29ff:febc:eec2, port3, 00:30:38, [1024/0]
      C       ::1/128 via ::, root, 01:29:46
      B       64:ff9b::/96 [20/0] via fe80::20c:29ff:febc:eec2, port3, 00:30:38, [1024/0]
      O       2001:db8:d0c:1::/ 64 [110/3] via fe80::20c:29ff:fe6b:b2c9, port2, 00:00:01, [1024/0]
      O       2001:db8:d0c:2::/64 [110/2] via fe80::20c:29ff:fe6b:b2c9, port2, 00:02:57, [1024/0]
      C       2001:db8:d0c:3::/64 via ::, port2, 01:29:46
      O       2001:db8:d0c:4::/64 [110/3] via fe80::20c:29ff:fe6b:b2c9, port2, 00:02:24, [1024/0]
      O       2001:db8:d0c:5::/64 [110/2] via fe80::20c:29ff:fe6b:b2c9, port2, 00:36:14, [1024/0]
      C       2001:db8:d0c:6::/64 via ::, port3, 01:29:46
    • 2nd Floor FortiGate:

      # get router info6 routing-table
      IPv6 Routing Table
      Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF,
             IA - OSPF inter area
             N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
             E1 - OSPF external type 1, E2 - OSPF external type 2
             i - IS-IS, B - BGP
             * - candidate default

      Timers: Uptime

      O*E2    ::/0 [110/10] via fe80::20c:29ff:fefc:185e, port2, 00:28:38
      C       ::1/128 via ::, root, 01:28:29
      O E2    64:ff9b::/96 [110/10] via fe80::20c:29ff:fefc:185e, port2, 00:28:38F
      O       2001:db8:d0c:1::/64 [110/2] via fe80::20c:29ff:fe4d:f815, port1, 00:00:27
      C       2001:db8:d0c:2::/64 via ::, port1, 01:28:29
      C       2001:db8:d0c:3::/64 via ::, port2, 01:28:29
      O       2001:db8:d0c:4::/64 [110/2] via fe80::20c:29ff:fe4d:f815, port1, 00:34:12
      C       2001:db8:d0c:5::/64 via ::, port3, 01:28:29
      C       fe80::/64 via ::, port8, 01:28:29
    • 1st Floor FortiGate:

      # get router info6 routing-table
      IPv6 Routing Table
      Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF,
             IA - OSPF inter area
             N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
             E1 - OSPF external type 1, E2 - OSPF external type 2
             i - IS-IS, B - BGP
             * - candidate default

      Timers: Uptime

      Routing table for VRF=0
      O*E2    ::/0 [110/10] via fe80::20c:29ff:fe6b:b2bf, port1, 00:00:55
      C       ::1/128 via ::, root, 01:28:14
      O E2    64:ff9b::/96 [110/10] via fe80::20c:29ff:fe6b:b2bf, port1, 00:00:55
      C       2001:db8:d0c:1::/64 via ::, port2, 01:28:14
      C       2001:db8:d0c:2::/64 via ::, port1, 01:28:14
      O       2001:db8:d0c:3::/64 [110/2] via fe80::20c:29ff:fe6b:b2bf, port1, 00:00:56
      C       2001:db8:d0c:4::/64 via ::, port3, 01:28:14
      O       2001:db8:d0c:5::/64 [110/2] via fe80::20c:29ff:fe6b:b2bf, port1, 00:33:59
      C       fe80::/64 via ::, port3, 01:28:14

In this example, three FortiGate devices are configured in an OSPF network.

  • 1st Floor FortiGate is the Designated Router (DR). It has the highest priority and the lowest IP address, to ensure that it becomes the DR.

  • 2nd Floor FortiGate is the Backup Designated Router (BDR). It has a high priority to ensure that it becomes the BDR.

  • Enterprise Core FortiGate is the Autonomous System Border Router (ASBR). It routes all traffic to the ISP BGP router for internet access. It redistributes routes from BGP and advertises a default route to its neighbors. It can allow different types of routes, learned outside of OSPF, to be used in OSPF. Different metrics can be assigned to these routes to make them more or less preferred than regular OSPF routes. Route maps could be used to further control what prefixes are advertised or received from the ISP.

Note

Please note that the IPv6 addresses used in this example are for illustrative purposes only and should not be used in your environment.

The 2001:db8::/32 prefix is a special IPv6 prefix designated for use in documentation examples. See RFC 3849 for more information.

FortiGate

Interface

IP address

1st Floor FortiGate (DR) loopback 1.1.1.1
port1 2001:db8:d0c:2::1/64
port2 2001:db8:d0c:1::2/64
port3 2001:db8:d0c:4::1/64
2nd Floor FortiGate (BDR) loopback 2.2.2.2
port1 2001:db8:d0c:2::2/64
port2 2001:db8:d0c:3::2/64
port3 2001:db8:d0c:5::1/64
Enterprise Core FortiGate (ASBR) loopback 13.13.13.13
port1 2001:db8:d0c:1::1/64
port2 2001:db8:d0c:3::1/64
port3 2001:db8:d0c:6::1/64
  • Firewall policies are already configured to allow unfiltered traffic in both directions between all of the connected interfaces.

  • The interfaces are already configured. The cost for all of the interfaces is left at 0.

  • The OSPF network belongs to Area 0, and is not connected to any other OSPF networks. All of the routers are part of the backbone 0.0.0.0 area, so no inter-area communications are needed.

  • Enterprise Core FortiGate redistributes BGP routes into the OSPF AS and peers with the ISP BGP Router over eBGP. For information about configuring BGP, see Basic IPv6 BGP example.

  • The ISP IPv6 address is 2001:db8:d0c:6::2/64.

1st Floor FortiGate

To configure 1st Floor FortiGate in the CLI:
config router ospf6
    set router-id 1.1.1.1
    config area
        edit 0.0.0.0
        next
    end
    config ospf6-interface
        edit "1st-Floor-FortiGate-Internal-DR"
            set interface "port1"
            set priority 255
            set dead-interval 40
            set hello-interval 10
        next
        edit "1st-Floor-FortiGate-External"
            set interface "port2"
            set dead-interval 40
            set hello-interval 10
        next
    end
    edit "1st-Floor-FortiGate-Internal"
        set interface "port3"
        set dead-interval 40
        set hello-interval 10
    next
end

2nd Floor FortiGate

To configure 2nd Floor FortiGate in the CLI:
config router ospf6
    set router-id 2.2.2.2
    config area
        edit 0.0.0.0
        next
    end
    config ospf6-interface
        edit "2nd-Floor-FortiGate-Internal"
            set interface "port1"
            set priority 250
            set dead-interval 40
            set hello-interval 10
        next
        edit "2nd-Floor-FortiGate-External"
            set interface "port2"
            set dead-interval 40
            set hello-interval 10
        next
    end
    edit "2nd-Floor-FortiGate-Internal1"
        set interface "port3"
        set dead-interval 40
        set hello-interval 10
    next
end

Enterprise Core FortiGate

To configure Enterprise Core FortiGate in the CLI:
config router ospf6
    set default-information-originate enable
    set router-id 13.13.13.13
    config area
        edit 0.0.0.0
        next
    end
    config ospf6-interface
        edit "Enterprise-Core-FortiGate-Internal"
            set interface "port1"
            set dead-interval 40
            set hello-interval 10
        next
        edit "Enterprise-Core-FortiGate-Internal2"
            set interface "port2"
            set dead-interval 40
            set hello-interval 10
        next
    end
    config redistribute "bgp"
        set status enable
    end
end

Testing and configuration

Both the network connectivity and OSPF routing are tested. When a link goes down, routes should converge as expected.

  1. Working state

    • Enterprise Core FortiGate:

      # get router info6 ospf neighbor
      OSPFv3 Process (root)
      Neighbor ID     Pri   State           Dead Time   Interface
      1.1.1.1           1   Full/Backup     00:00:38    port1
      2.2.2.2           1   Full/Backup     00:00:32    port2

      # get router info6 ospf status
       Routing Process "OSPFv3 (root)" with ID 13.13.13.13
       Process uptime is 28 minutes
       Do not support Restarting
       This router is an ASBR (injecting external routing information)
       SPF schedule delay 5 secs, Hold time between SPFs 10 secs
       Minimum LSA interval 5 secs, Minimum LSA arrival 1 secs
       Number of incomming current DD exchange neighbors 0/5
       Number of outgoing current DD exchange neighbors 0/5
       Number of external LSA 0. Checksum Sum 0x0000
       Number of AS-Scoped Unknown LSA 0
       Number of LSA originated 14
       Number of LSA received 187
       Number of areas in this router is 1
          Area BACKBONE(0)
              Number of interfaces in this area is 2(2)
              SPF algorithm executed 36 times
              Number of LSA 9.  Checksum Sum 0x2DB91
              Number of Unknown LSA

      # get router info6 routing-table
      IPv6 Routing Table
      Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF,
             IA - OSPF inter area
             N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
             E1 - OSPF external type 1, E2 - OSPF external type 2
             i - IS-IS, B - BGP, V - BGP VPNv6
             * - candidate default

      Timers: Uptime

      Routing table for VRF=0
      B*      ::/0 [20/0] via fe80::20c:29ff:febc:eec2, port3, 00:02:56, [1024/0]
      C       ::1/128 via ::, root, 00:17:23
      B       64:ff9b::/96 [20/0] via fe80::20c:29ff:febc:eec2, port3, 00:02:56, [1024/0]
      C       2001:db8:d0c:1::/64 via ::, port1, 00:17:23
      O       2001:db8:d0c:2::/64 [110/2] via fe80::20c:29ff:fe4d:f81f, port1, 00:16:36, [1024/0]
                                  [110/2] via fe80::20c:29ff:fe6b:b2c9, port2, 00:16:36, [1024/0]
      C       2001:db8:d0c:3::/64 via ::, port2, 00:17:23
      O       2001:db8:d0c:4::/64 [110/2] via fe80::20c:29ff:fe4d:f81f, port1, 00:16:36, [1024/0]
      O       2001:db8:d0c:5::/64 [110/2] via fe80::20c:29ff:fe6b:b2c9, port2, 00:16:52, [1024/0]
      C       2001:db8:d0c:6::/64 via ::, port3, 00:17:23
    • 2nd Floor FortiGate:

      # get router info6 ospf neighbor
      OSPFv3 Process (root)
      Neighbor ID     Pri   State           Dead Time   Interface
      1.1.1.1         255   Full/DR         00:00:35    port1
      13.13.13.13       1   Full/DR         00:00:31    port2

      # get router info6 ospf status
       Routing Process "OSPFv3 (root)" with ID 2.2.2.2
       Process is not up
       SPF schedule delay 5 secs, Hold time between SPFs 10 secs
       Minimum LSA interval 5 secs, Minimum LSA arrival 1 secs
       Number of incomming current DD exchange neighbors 0/5
       Number of outgoing current DD exchange neighbors 0/5
       Number of external LSA 0. Checksum Sum 0x0000
       Number of AS-Scoped Unknown LSA 0
       Number of LSA originated 19
       Number of LSA received 157
       Number of areas in this router is 1
          Area BACKBONE(0)
              Number of interfaces in this area is 2(2)
              SPF algorithm executed 32 times
              Number of LSA 9.  Checksum Sum 0x2D793
              Number of Unknown LSA

      # get router info6 routing-table
      IPv6 Routing Table
      Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF,
             IA - OSPF inter area
             N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
             E1 - OSPF external type 1, E2 - OSPF external type 2
             i - IS-IS, B - BGP
             * - candidate default

      Timers: Uptime

      O*E2    ::/0 [110/10] via fe80::20c:29ff:fefc:185e, port2, 00:00:37
      C       ::1/128 via ::, root, 00:15:47
      O E2    64:ff9b::/96 [110/10] via fe80::20c:29ff:fefc:185e, port2, 00:00:37
      O       2001:db8:d0c:1::/64 [110/2] via fe80::20c:29ff:fe4d:f815, port1, 00:14:10
                                  [110/2] via fe80::20c:29ff:fefc:185e, port2, 00:14:10
      C       2001:db8:d0c:2::/64 via ::, port1, 00:15:47
      C       2001:db8:d0c:3::/64 via ::, port2, 00:15:47
      O       2001:db8:d0c:4::/64 [110/2] via fe80::20c:29ff:fe4d:f815, port1, 00:14:36
      C       2001:db8:d0c:5::/64 via ::, port3, 00:15:47
      C       fe80::/64 via ::, port8, 00:15:47

    The default route advertised by Enterprise Core FortiGate using default-information-originate is considered an OSPF E2 route. Other routes redistributed from BGP are also E2 routes.

    • 1st Floor FortiGate:

      # get router info6 ospf neighbor
      OSPFv3 Process (root)
      Neighbor ID     Pri   State           Dead Time   Interface
      2.2.2.2         250   Full/Backup     00:00:33    port1
      13.13.13.13       1   Full/DR         00:00:31    port2

      # get router info6 ospf status
       Routing Process "OSPFv3 (root)" with ID 1.1.1.1
       Process uptime is 38 minutes
       SPF schedule delay 5 secs, Hold time between SPFs 10 secs
       Minimum LSA interval 5 secs, Minimum LSA arrival 1 secs
       Number of incomming current DD exchange neighbors 0/5
       Number of outgoing current DD exchange neighbors 0/5
       Number of external LSA 0. Checksum Sum 0x0000
       Number of AS-Scoped Unknown LSA 0
       Number of LSA originated 21
       Number of LSA received 95
       Number of areas in this router is 1
          Area BACKBONE(0)
              Number of interfaces in this area is 2(2)
              SPF algorithm executed 30 times
              Number of LSA 9.  Checksum Sum 0x2D793
              Number of Unknown LSA 0


      # get router info6 routing-table
      IPv6 Routing Table
      Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF,
             IA - OSPF inter area
             N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
             E1 - OSPF external type 1, E2 - OSPF external type 2
             i - IS-IS, B - BGP
             * - candidate default

      Timers: Uptime

      Routing table for VRF=0
      O*E2    ::/0 [110/10] via fe80::20c:29ff:fefc:1854, port2, 00:00:12
      C       ::1/128 via ::, root, 00:15:10
      O E2    64:ff9b::/96 [110/10] via fe80::20c:29ff:fefc:1854, port2, 00:00:12
      C       2001:db8:d0c:1::/64 via ::, port2, 00:15:10
      C       2001:db8:d0c:2::/64 via ::, port1, 00:15:10
      O       2001:db8:d0c:3::/64 [110/2] via fe80::20c:29ff:fe6b:b2bf, port1, 00:13:45
                                  [110/2] via fe80::20c:29ff:fefc:1854, port2, 00:13:45
      C       2001:db8:d0c:4::/64 via ::, port3, 00:15:10
      O       2001:db8:d0c:5::/64 [110/2] via fe80::20c:29ff:fe6b:b2bf, port1, 00:14:20
      C       fe80::/64 via ::, port3, 00:15:10
  2. Link down state

    If port1 is disconnected on Enterprise Core FortiGate:

    • Enterprise Core FortiGate:

      # get router info6 routing-table
      IPv6 Routing Table
      Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF,
             IA - OSPF inter area
             N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
             E1 - OSPF external type 1, E2 - OSPF external type 2
             i - IS-IS, B - BGP, V - BGP VPNv6
             * - candidate default

      Timers: Uptime

      Routing table for VRF=0
      B*      ::/0 [20/0] via fe80::20c:29ff:febc:eec2, port3, 00:30:38, [1024/0]
      C       ::1/128 via ::, root, 01:29:46
      B       64:ff9b::/96 [20/0] via fe80::20c:29ff:febc:eec2, port3, 00:30:38, [1024/0]
      O       2001:db8:d0c:1::/ 64 [110/3] via fe80::20c:29ff:fe6b:b2c9, port2, 00:00:01, [1024/0]
      O       2001:db8:d0c:2::/64 [110/2] via fe80::20c:29ff:fe6b:b2c9, port2, 00:02:57, [1024/0]
      C       2001:db8:d0c:3::/64 via ::, port2, 01:29:46
      O       2001:db8:d0c:4::/64 [110/3] via fe80::20c:29ff:fe6b:b2c9, port2, 00:02:24, [1024/0]
      O       2001:db8:d0c:5::/64 [110/2] via fe80::20c:29ff:fe6b:b2c9, port2, 00:36:14, [1024/0]
      C       2001:db8:d0c:6::/64 via ::, port3, 01:29:46
    • 2nd Floor FortiGate:

      # get router info6 routing-table
      IPv6 Routing Table
      Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF,
             IA - OSPF inter area
             N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
             E1 - OSPF external type 1, E2 - OSPF external type 2
             i - IS-IS, B - BGP
             * - candidate default

      Timers: Uptime

      O*E2    ::/0 [110/10] via fe80::20c:29ff:fefc:185e, port2, 00:28:38
      C       ::1/128 via ::, root, 01:28:29
      O E2    64:ff9b::/96 [110/10] via fe80::20c:29ff:fefc:185e, port2, 00:28:38F
      O       2001:db8:d0c:1::/64 [110/2] via fe80::20c:29ff:fe4d:f815, port1, 00:00:27
      C       2001:db8:d0c:2::/64 via ::, port1, 01:28:29
      C       2001:db8:d0c:3::/64 via ::, port2, 01:28:29
      O       2001:db8:d0c:4::/64 [110/2] via fe80::20c:29ff:fe4d:f815, port1, 00:34:12
      C       2001:db8:d0c:5::/64 via ::, port3, 01:28:29
      C       fe80::/64 via ::, port8, 01:28:29
    • 1st Floor FortiGate:

      # get router info6 routing-table
      IPv6 Routing Table
      Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF,
             IA - OSPF inter area
             N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
             E1 - OSPF external type 1, E2 - OSPF external type 2
             i - IS-IS, B - BGP
             * - candidate default

      Timers: Uptime

      Routing table for VRF=0
      O*E2    ::/0 [110/10] via fe80::20c:29ff:fe6b:b2bf, port1, 00:00:55
      C       ::1/128 via ::, root, 01:28:14
      O E2    64:ff9b::/96 [110/10] via fe80::20c:29ff:fe6b:b2bf, port1, 00:00:55
      C       2001:db8:d0c:1::/64 via ::, port2, 01:28:14
      C       2001:db8:d0c:2::/64 via ::, port1, 01:28:14
      O       2001:db8:d0c:3::/64 [110/2] via fe80::20c:29ff:fe6b:b2bf, port1, 00:00:56
      C       2001:db8:d0c:4::/64 via ::, port3, 01:28:14
      O       2001:db8:d0c:5::/64 [110/2] via fe80::20c:29ff:fe6b:b2bf, port1, 00:33:59
      C       fe80::/64 via ::, port3, 01:28:14
