Azure Function action

Azure functions can be called when an automation stitch is triggered. This example uses the default Any Security Rating Notification trigger in the automation stitch.

To configure an Azure function automation stitch in the GUI:
  1. Go to Security Fabric > Automation and click Create New.
  2. Enter the stitch name.
  3. Configure the trigger:
    1. Click Add Trigger.
    2. Select Any Security Rating Notification.
    3. Click Apply.
  4. Configure the Azure Function action:
    1. Click Add Action.
    2. Click Create and select Azure Function.
    3. Enter the following:

      Name

      azure_function

      URL

      Enter the request API URI

      Authorization

      Function

      API key

      Enter the API key

      HTTP header

      header1 : value1

    4. Click OK.
    5. Select the action in the list and click Apply.
  5. Click OK.
To configure an Azure function automation stitch in the CLI:
  1. Create an automation trigger:
    config system automation-trigger
        edit "Any Security Rating Notification"
            set event-type security-rating-summary
            set report-type any
        next
    end
  2. Create an automation action:
    config system automation-action
        edit "azure_function"
            set action-type azure-function
            set azure-function-authorization function
            set azure-api-key **********
            set uri "xxxxx00-no-delete-xxxx.azurewebsites.net/api/headersResponse"
            config http-headers
                edit 1
                    set key "header1"
                    set value "value1"
                next
            end
        next
    end
  3. Create the automation stitch:
    config system automation-stitch
        edit "auto-azure"
            set trigger "Any Security Rating Notification"
            config actions
                edit 1
                    set action "azure_function"
                    set required enable
                next
            end
        next
    end

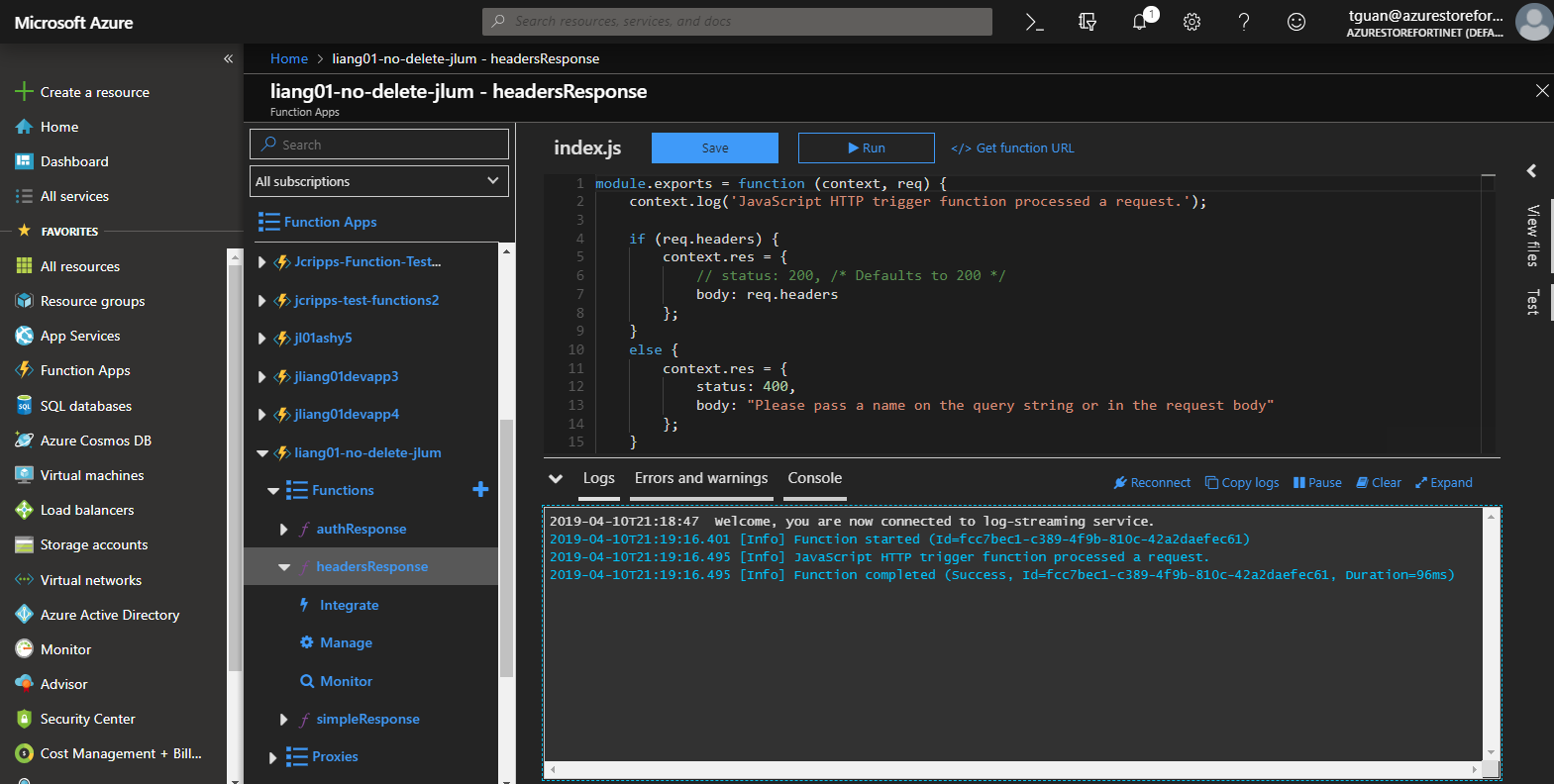

When the automation stitch is triggered, the Security Fabric > Automation page shows the stitch trigger time. In Azure, the function log shows that the function was called, executed, and finished:
