DHCP-PD support for MAP-E

Mapping of address and port with encapsulation (MAP-E) can operate in DHCPv6 prefix delegation (DHCPv6-PD) environments, providing greater flexibility, improved automation, and scalability in network configurations. Previously, MAP-E utilized the RA IPv6 prefix for deployment; see MAP-E support.

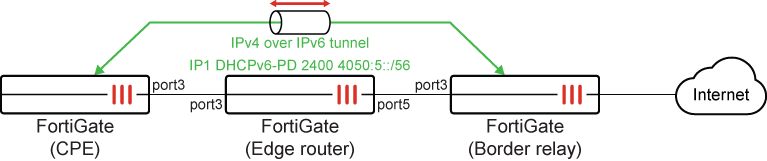

MAP-E mode

To configure MAP-E mode:

1. Configure the border relay FortiGate:

   config system interface
       edit "core-br21"
           set vdom "br2"
           set type vdom-link
           set snmp-index 27
           config ipv6
               set ip6-address 2001:db8:b2c::b/64
               set ip6-allowaccess ping
           end
       next
   end
   config system ipv6-tunnel
       edit "6"
           set source 2001:db8:b2c::b
           set destination 2400:4050:6:0:c0:2:2200:0
       next
   end

2. Configure the CPE FortiGate:

   1. Configure port6 to get an IPv6 address through the delegate:

      config system interface
          edit "port6"
              set vdom "root"
              set type physical
              set snmp-index 6
              config ipv6
                  set ip6-mode delegated
                  set ip6-allowaccess ping
                  set dhcp6-prefix-delegation enable
                  set ip6-delegated-prefix-iaid 1
                  set ip6-upstream-interface "port6"
                  set ip6-subnet ::1/64
                  config dhcp6-iapd-list
                      edit 1
                          set prefix-hint ::/56
                      next
                  end
              end
          next
      end

      # dianose ipv ad list | grep port6
      dev=7 devname=port6 flag= scope=0 prefix=64 addr=2400:4050:6::1 preferred=22 valid=45 cstamp=9913 tstamp=6047755
      dev=7 devname=port6 flag=P scope=253 prefix=64 addr=fe80::20c:29ff:fe7b:d83b preferred=4294967295 valid=4294967295 cstamp=6263 tstamp=6263

   2. Configure the virtual network enabler (VNE) tunnel:

      config system vne-interface
          edit "vne.port6"
              set interface "port6"
          next
      end

      # diagnose test application vned 1
      ----------------------------------------------------------------------------
      vdom: root/0, is master, devname=port6 link=1 tun=vne.port6 mode=map-e ssl_cert=Fortinet_Factory
      end user ipv6 perfix: 2400:4050:6::/56
      interface ipv6 addr: 2400:4050:6::1
      bmr rule ipv6 perfix: 2400:4050:6::/56
      bmr rule ipv4 perfix: 192.0.2.34/32
      bmr rule br: 2001:db8:b2c::b
      bmr rule hostname: Testbed6_dhcpv6-pd-IP1
      saved hostname: Testbed6_dhcpv6-pd-IP1
      tunnel br: 2001:db8:b2c::b
      tunnel ipv6 addr: 2400:4050:6:0:c0:2:2200:0
      tunnel ipv4 addr: 192.0.2.34/255.255.255.255
      update result: good

      Map-e rule client: state=succeed retries=0 interval=60 expiry=23634 reply_code=200
      fqdn=rule.map.ocn.ad.jp num=1 cur=0 ttl=86400 expiry=0
      2001:db8:c::1
      Map-e DDNS client: state=succeed retries=0 interval=120 expiry=61372 reply_code=200
      fqdn=ipoe-static.ocn.ad.jp num=1 cur=0 ttl=86400 expiry=0
      2001:db8:c::2

      vne.port6 is automatically configured after the VNE tunnel is set up:

      config system interface
          edit "vne.port6"
              set vdom "root"
              set ip 192.0.2.34 255.255.255.255
              set type tunnel
              set snmp-index 16
              set interface "port6"
          next
      end

      # diagnose ipv ad li | grep port6
      dev=7 devname=port6 flag=Pn scope=0 prefix=128 addr=2400:4050:6:0:c0:2:2200:0 preferred=4294967295 valid=4294967295 cstamp=10620 tstamp=10620
      dev=7 devname=port6 flag= scope=0 prefix=64 addr=2400:4050:6::1 preferred=37 valid=60 cstamp=9913 tstamp=6108593
      dev=7 devname=port6 flag=P scope=253 prefix=64 addr=fe80::20c:29ff:fe7b:d83b preferred=4294967295 valid=4294967295 cstamp=6263 tstamp=6263

   3. Traffic can now pass through the VNE tunnel:

      config router static
          edit 1
              set device "vne.port6"
          next
      end

      # execute ping 8.8.8.8
      PING 8.8.8.8 (8.8.8.8): 56 data bytes
      64 bytes from 8.8.8.8: icmp_seq=0 ttl=116 time=5.3 ms
      64 bytes from 8.8.8.8: icmp_seq=1 ttl=116 time=4.1 ms
      64 bytes from 8.8.8.8: icmp_seq=2 ttl=116 time=3.7 ms
      64 bytes from 8.8.8.8: icmp_seq=3 ttl=116 time=4.2 ms
      64 bytes from 8.8.8.8: icmp_seq=4 ttl=116 time=4.0 ms

      --- 8.8.8.8 ping statistics ---
      5 packets transmitted, 5 packets received, 0% packet loss
      round-trip min/avg/max = 3.7/4.2/5.3 ms

      # diagnose sniffer packet port6 'ip6'
      Using Original Sniffing Mode
      interfaces=[port6]
      filters=[ip6]
      pcap_lookupnet: port6: no IPv4 address assigned
      3.091513 2400:4050:6:0:c0:2:2200:0 -> 2001:db8:b2c::b: 192.0.2.34 -> 8.8.8.8: icmp: echo request
      3.096651 2001:db8:b2c::b -> 2400:4050:6:0:c0:2:2200:0: 8.8.8.8 -> 192.0.2.34: icmp: echo reply
      4.091842 2400:4050:6:0:c0:2:2200:0 -> 2001:db8:b2c::b: 192.0.2.34 -> 8.8.8.8: icmp: echo request
      4.095918 2001:db8:b2c::b -> 2400:4050:6:0:c0:2:2200:0: 8.8.8.8 -> 192.0.2.34: icmp: echo reply
      5.092029 2400:4050:6:0:c0:2:2200:0 -> 2001:db8:b2c::b: 192.0.2.34 -> 8.8.8.8: icmp: echo request
      5.095576 2001:db8:b2c::b -> 2400:4050:6:0:c0:2:2200:0: 8.8.8.8 -> 192.0.2.34: icmp: echo reply
      6.092221 2400:4050:6:0:c0:2:2200:0 -> 2001:db8:b2c::b: 192.0.2.34 -> 8.8.8.8: icmp: echo request
      6.096358 2001:db8:b2c::b -> 2400:4050:6:0:c0:2:2200:0: 8.8.8.8 -> 192.0.2.34: icmp: echo reply
      7.092372 2400:4050:6:0:c0:2:2200:0 -> 2001:db8:b2c::b: 192.0.2.34 -> 8.8.8.8: icmp: echo request
      7.096299 2001:db8:b2c::b -> 2400:4050:6:0:c0:2:2200:0: 8.8.8.8 -> 192.0.2.34: icmp: echo reply

Fixed IP mode

To configure fixed IP mode:

1. Configure the border relay FortiGate:

   config system ipv6-tunnel
       edit "VNE-IPV6-2"
           set source 2606:f900:8102:302::2
           set destination 2606:f900:8102:301:8000::
           set interface "port3"
       next
   end
   config system interface
       edit "port3"
           set vdom "root"
           set type physical
           set snmp-index 9
           config ipv6
               set ip6-address 2606:f900:8102:302::2/64
               set ip6-allowaccess ping
           end
       next
   end

2. Configure the CPE FortiGate:

   1. Configure port3 to get an IPv6 address through the delegate:

      config system interface
          edit "port3"
              set vdom "root"
              set type physical
              set snmp-index 9
              config ipv6
                  set ip6-mode delegated
                  set ip6-allowaccess ping
                  set dhcp6-prefix-delegation enable
                  set ip6-delegated-prefix-iaid 1
                  set ip6-upstream-interface "port3"
                  set ip6-subnet ::8000:0:0:0/64
                  config dhcp6-iapd-list
                      edit 1
                          set prefix-hint 2606:f900:8102:301::/64
                      next
                      edit 2
                          set prefix-hint 2606:f900:8102:303::/64
                      next
                  end
              end
          next
      end

      # diagnose ipv ad list | grep port3
      dev=13 devname=port3 flag=P scope=0 prefix=64 addr=2606:f900:8102:301:8000:: preferred=4294967295 valid=4294967295 cstamp=61106 tstamp=61106
      dev=13 devname=port3 flag=P scope=253 prefix=64 addr=fe80::e223:ffff:fe67:8e6e preferred=4294967295 valid=4294967295 cstamp=56882 tstamp=56882

   2. Configure the VNE tunnel:

      config system vne-interface
          edit "VNE"
              set interface "port3"
              set ipv4-address 10.100.100.1 255.255.255.255
              set br "2606:f900:8102:302::2"
              set update-url "http://test.com"
              set mode fixed-ip
          next
      end

      # diagnose test application vned 1
      ----------------------------------------------------------------------------
      vdom: root/0, is master, devname=port3 link=1 tun=VNE mode=fixed-ip ssl_cert=Fortinet_Factory
      end user ipv6 perfix: 2606:f900:8102:301::/64
      interface ipv6 addr: 2606:f900:8102:301:8000::
      config ipv4 perfix: 10.100.100.1/255.255.255.0
      config br: 2606:f900:8102:302::2
      HTTP username:
      update url: http://test.com
      host: test.com path: / port:80 ssl: 0
      tunnel br: 2606:f900:8102:302::2
      tunnel ipv6 addr: 2606:f900:8102:301:8000::
      tunnel ipv4 addr: 10.100.100.1/255.255.255.0
      update result:
      Fixed IP rule client: state=succeed retries=0 interval=0 expiry=0 reply_code=0
      fqdn=2606:f900:8102:302::2 num=1 cur=0 ttl=4294967295 expiry=0
      2606:f900:8102:302::2
      Fixed IP DDNS client: state=init retries=0 interval=10 expiry=4 reply_code=0
      fqdn=test.com num=0 cur=0 ttl=0 expiry=0

   3. Traffic can now pass through the VNE tunnel:

      # execute ping 8.8.8.8
      PING 8.8.8.8 (8.8.8.8): 56 data bytes
      64 bytes from 8.8.8.8: icmp_seq=0 ttl=52 time=5.0 ms
      64 bytes from 8.8.8.8: icmp_seq=1 ttl=52 time=6.4 ms
      64 bytes from 8.8.8.8: icmp_seq=2 ttl=52 time=4.7 ms
      64 bytes from 8.8.8.8: icmp_seq=3 ttl=52 time=4.6 ms
      64 bytes from 8.8.8.8: icmp_seq=4 ttl=52 time=4.6 ms

      --- 8.8.8.8 ping statistics ---
      5 packets transmitted, 5 packets received, 0% packet loss
      round-trip min/avg/max = 4.6/5.0/6.4 mss

      # diagnose sniffer packet port3 'ip6'
      interfaces=[port3]
      filters=[ip6]
      4.319283 2606:f900:8102:301:8000:: -> 2606:f900:8102:302::2: 10.100.100.1 -> 8.8.8.8: icmp: echo request
      4.324193 2606:f900:8102:302::2 -> 2606:f900:8102:301:8000::: 8.8.8.8 -> 10.100.100.1: icmp: echo reply
      5.331276 2606:f900:8102:301:8000:: -> 2606:f900:8102:302::2: 10.100.100.1 -> 8.8.8.8: icmp: echo request
      5.337550 2606:f900:8102:302::2 -> 2606:f900:8102:301:8000::: 8.8.8.8 -> 10.100.100.1: icmp: echo reply
      6.341289 2606:f900:8102:301:8000:: -> 2606:f900:8102:302::2: 10.100.100.1 -> 8.8.8.8: icmp: echo request
      6.345900 2606:f900:8102:302::2 -> 2606:f900:8102:301:8000::: 8.8.8.8 -> 10.100.100.1: icmp: echo reply
      7.351258 2606:f900:8102:301:8000:: -> 2606:f900:8102:302::2: 10.100.100.1 -> 8.8.8.8: icmp: echo request
      7.355743 2606:f900:8102:302::2 -> 2606:f900:8102:301:8000::: 8.8.8.8 -> 10.100.100.1: icmp: echo reply
      8.361257 2606:f900:8102:301:8000:: -> 2606:f900:8102:302::2: 10.100.100.1 -> 8.8.8.8: icmp: echo request
      8.365788 2606:f900:8102:302::2 -> 2606:f900:8102:301:8000::: 8.8.8.8 -> 10.100.100.1: icmp: echo reply
