ZTNA agentless web-based application access

A ZTNA web portal is available to provide end-user access to applications without FortiClient or client certificate checks. The ZTNA portal handles authentication and authorization of traffic destined for the protected resources. It is implemented entirely in WAD.

When end-users connect to the ZTNA web portal, they are directed to a login page:

Once logged in, end-users can access bookmarks defined by the administrator:

For web applications, the client must resolve the FQDN to the ZTNA portal VIP. In addition, when accessing the web application, end users are presented with the certificate configured on the ZTNA portal VIP instead of the certificate on the end web server. Hence, the certificate requires the correct Subject Alternate Name(s) to avoid browser certificate errors.

CLI syntax

Configure an access-proxy type of VIP. Disable client-cert so that it is not checked when an agentless client connects.

config firewall vip
    edit <name>
        set type access-proxy
        set server-type https
        set extip <ip address>
        set extintf <interface>
        set client-cert disable
        set extport <port>
        set ssl-certificate <certificate>
    next
end

Configure an access-proxy virtual host. End-users will connect to this destination to access the ZTNA web portal. Disable client-cert for this virtual host.

config firewall access-proxy-virtual-host
    edit "ztna-web-portal-fqdn"
        set host < web portal host name or ip >
        set client-cert disable
    next
end

Configure an authentication scheme. Then configure an authentication rule with ztna-portal.

config authentication rule
    edit <rule>
        set protocol ztna-portal
        set active-auth-method < auth scheme >
    next
end

Configure the ZTNA web portal:

config ztna web-portal
    edit <name>
        set vip <vip name>
        set host <virtual host name>
        set auth-portal {enable | disable}
        set vip6 <virtual IPv6 name>
        set auth-rule <rule>
    next
end

Command	Description
vip <vip name>	The access-proxy VIP associated with this portal.
host <virtual host name>	The access-proxy virtual host object and FQDN defined for accessing this portal. This virtual host object should not conflict with other virtual host objects used in TCP forwarding and HTTP web services or with the SAML SP host.
auth-portal {enable | disable}	Enable/disable the authentication portal.
vip6 <virtual IPv6 name>	The access-proxy VIP6 associated with the ZTNA server and applications that this portal is allowing.

Create the web portal bookmarks:

config ztna web-portal-bookmark
    edit <name>
        set users <users>
        set groups <groups>
            config bookmarks
		edit <name>
		set apptype {ftp | rdp | sftp | smb | ssh | telnet | vnc | web}
        	set url <string>
                set host <name or IP>
                set description <description>
                set port <remote port>
                set sso {enable | disable}
            next
	end
    next
end

Command	Description
users <users>	The user(s) allowed to access the web-portal.
groups <groups>	The group(s) allowed to access the web-portal.
apptype {ftp | rdp | sftp | smb | ssh | telnet | vnc | web}	Supported types of bookmarks: ftp, rdp, sftp, smb, ssh, telnet, vnc, web.
url <url>	For different types of applications, the URL used to define the destination.
host <name or ip>	For different types of applications, the host name or IP used to define the destination.
port <remote port>	Where applicable, define the port for the service.
sso {enable | disable}	Enable/disable the SSO user login and credentials to connect to the application, where applicable.

Not all options are listed. Some options are available only for certain types of applications.

Configure your proxy-policy to map to your web-portal.

config firewall proxy-policy
    edit <id>
        set proxy ztna-proxy
        set active-auth-method <authentication rule>
        set ztna-proxy <web-portal>
        …
    next
end

Example

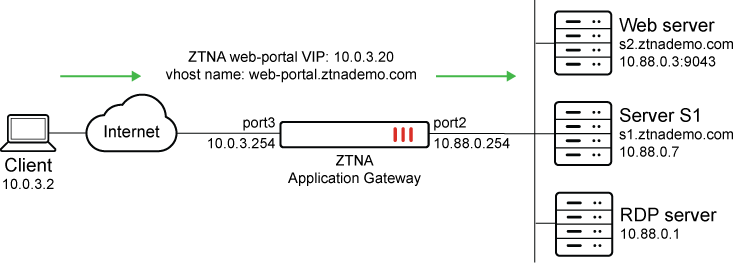

This example demonstrates connecting to a ZTNA web portal to gain access to protected resources. Authentication is performed with LDAP.

Prerequisites:

• The Client can resolve:

  • The hostname web-portal.ztnademo.com to the VIP address 10.0.3.20

  • The server s1.ztnademo.com to the VIP address 10.0.3.20

  • The server s2.ztnademo.com to the VIP address 10.0.3.20

• The FortiGate resolves:

  • s1.ztnademo.com to the real server IP of 10.88.0.7

  • s2.ztnademo.com to the real server IP of 10.88.0.3

• The FortiGate has an LDAP connection and user group already created.

To configure from the CLI:

1. Configure a firewall VIP with external IP 10.0.3.20:

   config firewall vip
       edit "ZTNA-web-proxy"
           set type access-proxy
           set server-type https
           set extip 10.0.3.20
           set extintf "port3"
           set client-cert disable
           set extport 443
           set ssl-certificate "ztna-wildcard"
       next
   end

2. Configure an access-proxy virtual host:

   The configuration here defines the virtual host used to access the ZTNA web portal, as well as the server certificate for the portal. It overrides the settings in the VIP. Ensure that client-cert is disabled.

   config firewall access-proxy-virtual-host
       edit "ztna-web-portal-fqdn"
           set host "web-portal.ztnademo.com"
           set client-cert disable
       next
   end

3. Configure the authentication scheme and rule:

   config authentication scheme
       edit "ztna-web-portal-ldap"
           set method basic
           set user-database "LDAP-fortiad"
       next
   end
   config authentication rule
       edit "ztna-web-portal-rule"
           set protocol ztna-portal
           set ip-based disable
           set active-auth-method "ztna-web-portal-ldap"
           set web-auth-cookie enable
       next
   end

4. Configure the ZTNA web-portal:

   Map the portal to the VIP, virtual host, and authentication rule that were previously created.

   config ztna web-portal
       edit "ztna-web-portal-ldap"
           set vip "ZTNA-web-proxy"
           set host "ztna-web-portal-fqdn"
           set auth-rule "ztna-web-portal-rule"
       next
   end

5. Create web-portal bookmarks that will point to your internal resources:

   The groups setting defines the user group allowed access to the portal.

   config ztna web-portal-bookmark
       edit "bookmark"
           set groups "LDAP-Remote-Allowed-Group"
           config bookmarks
               edit "Webserver"
                   set url "https://s2.ztnademo.com:9043"
               next
               edit "Server-S1-Web"
                   set sso enable
                   set url "https://s1.ztnademo.com"
               next
               edit "Server-S1-SSh"
                   set apptype ssh
                   set sso enabled
                   set host "10.88.0.7"
                   set logon-user "admin"
                   set logon-password <password>
               next
               edit "FortiGate-Internal-SSH"
                   set apptype ssh
                   set host "10.88.0.254"
               next
               edit "RDP"
                   set apptype rdp
                   set host "10.88.0.1"
                   set port 3389
               next
           end
       next
   end

6. Create a full ZTNA policy (proxy-policy) to allow access to the new VIP:

   config firewall proxy-policy
       edit 0
           set name "ZTNA-web-portal"
           set proxy ztna-proxy
           set ztna-proxy "ztna-web-portal-ldap"
           set srcintf "any"
           set srcaddr "all"
           set dstaddr "all"
           set action accept
           set schedule "always"
           set logtraffic all
       next
   end

Verification:

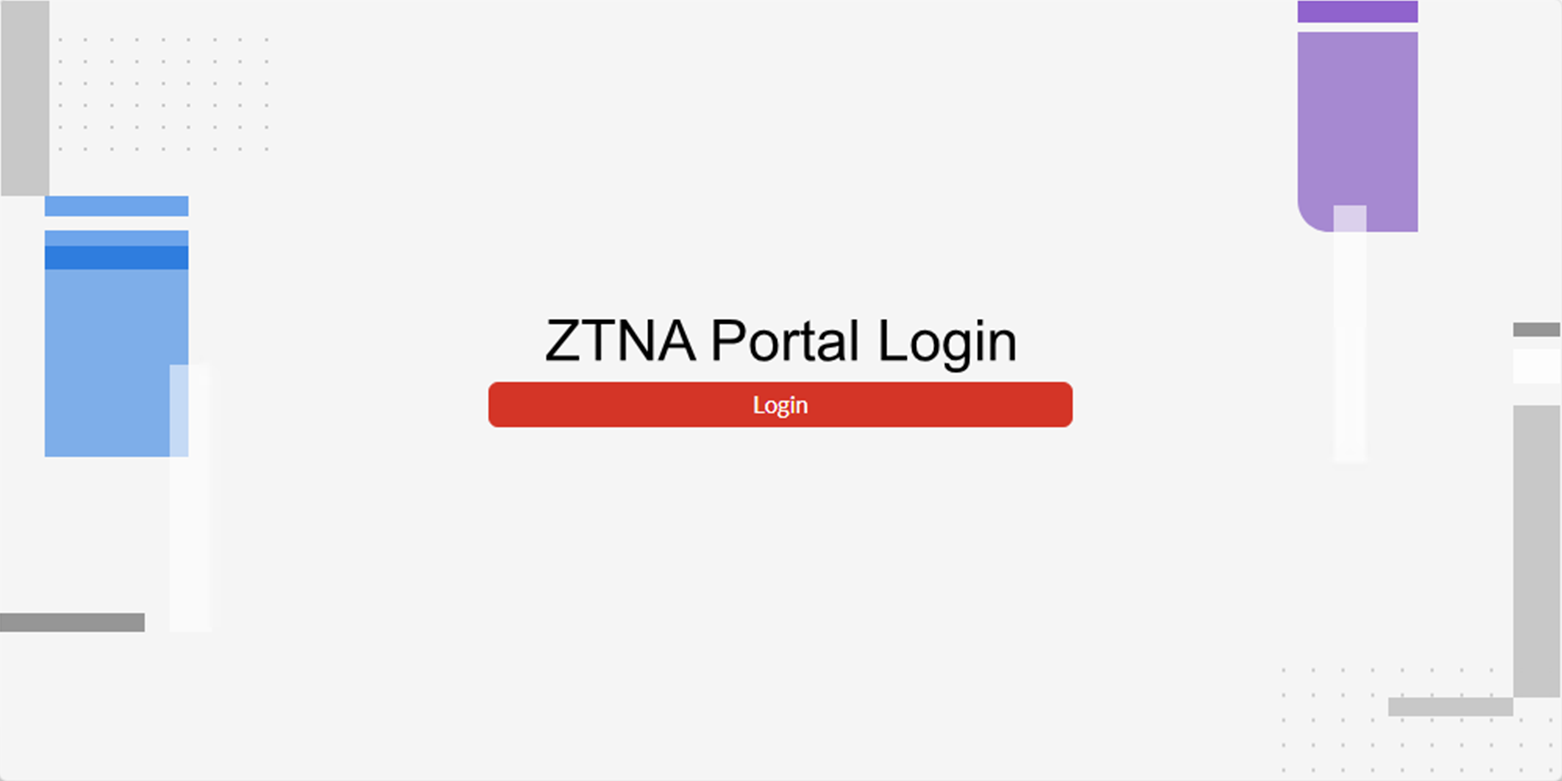

1. On the Client 10.0.3.2, access the portal on https://web-portal.ztnademo.com.

2. When prompted, enter the LDAP user credentials.

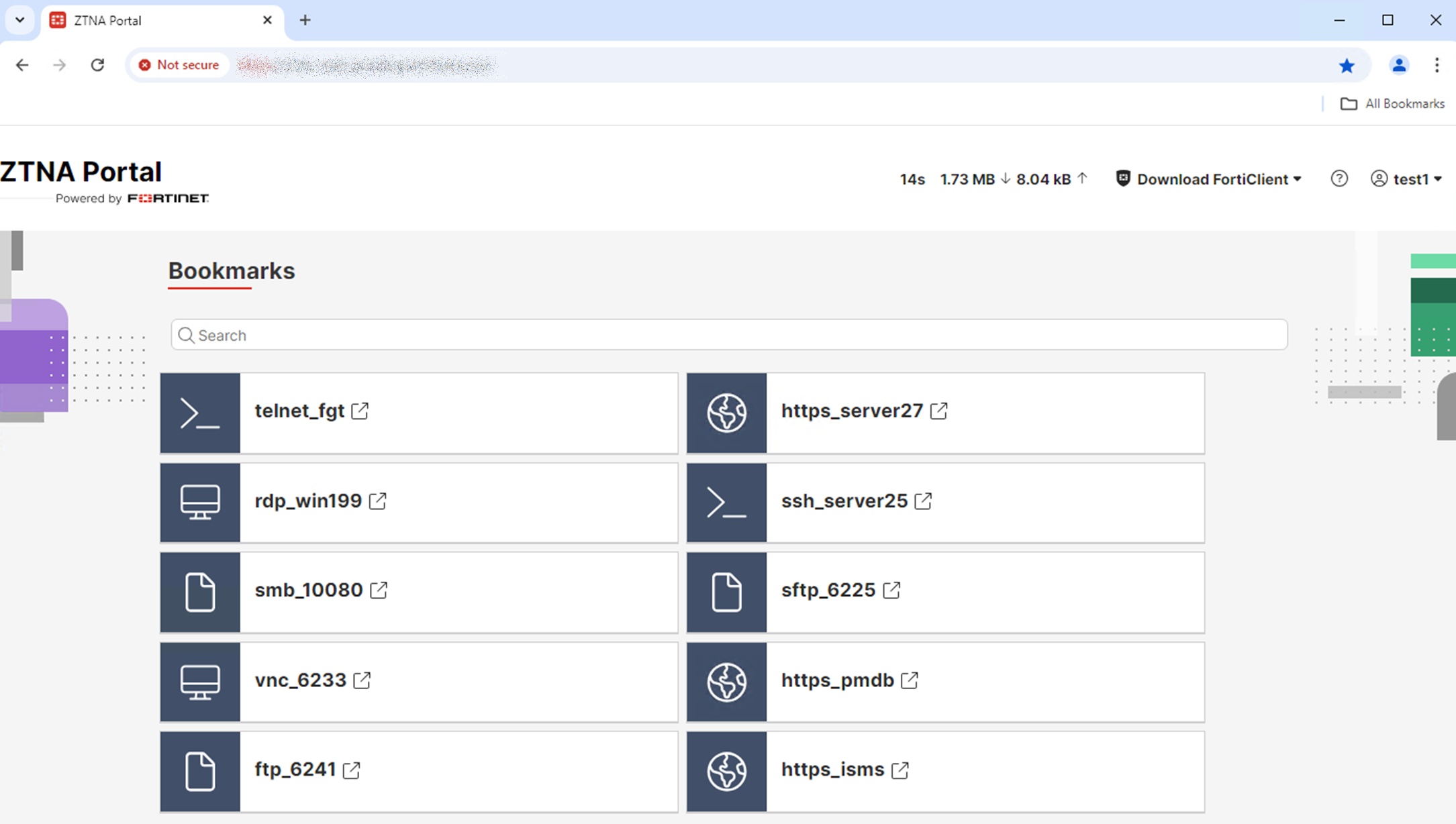

3. Once logged into the ZTNA Portal, choose the application bookmark to connect to.



4. Click Webserver to access s2.ztnademo.com. A new tab opens up to the web page.

5. Check the certificate to confirm it is signed by the CA certificate used in the VIP configurations.



6. On the FortiGate, go to Log & Report > ZTNA Traffic to view the latest traffic log. Alternatively, use these commands to view the logs from CLI:

   # execute log filter field subtype ztna

   # execute log display
   32 logs found.
   10 logs returned.

   1: date=2024-12-03 time=13:04:33 eventtime=1733259873399494172 tz="-0800" logid="0005000024" type="traffic" subtype="ztna" level="notice" vd="root" srcip=10.0.3.2 srcport=1629 srcintf="port3" srcintfrole="wan" dstcountry="Reserved" srccountry="Reserved" dstip=10.0.3.20 dstport=443 dstintf="port2" dstintfrole="dmz" sessionid=6761 srcuuid="b458a65a-f759-51ea-d7df-ef2e750026d1" service="HTTPS" proxyapptype="ztna-proxy" proto=6 action="accept" policyid=2 policytype="proxy-policy" poluuid="b93f2588-b125-51ef-47b1-85fc99ba0ab1" policyname="ZTNA-web-portal" trandisp="dnat" tranip=10.88.0.3 tranport=9043 appcat="unscanned" duration=421 gatewayid=1 vip="ZTNA-web-proxy" clientdevicemanageable="unknown" clientcert="no" wanin=303011 rcvdbyte=303011 wanout=5460 lanin=3202 sentbyte=3202 lanout=306669

7. On the ZTNA Portal, connect to RDP. When prompted enter the credentials.

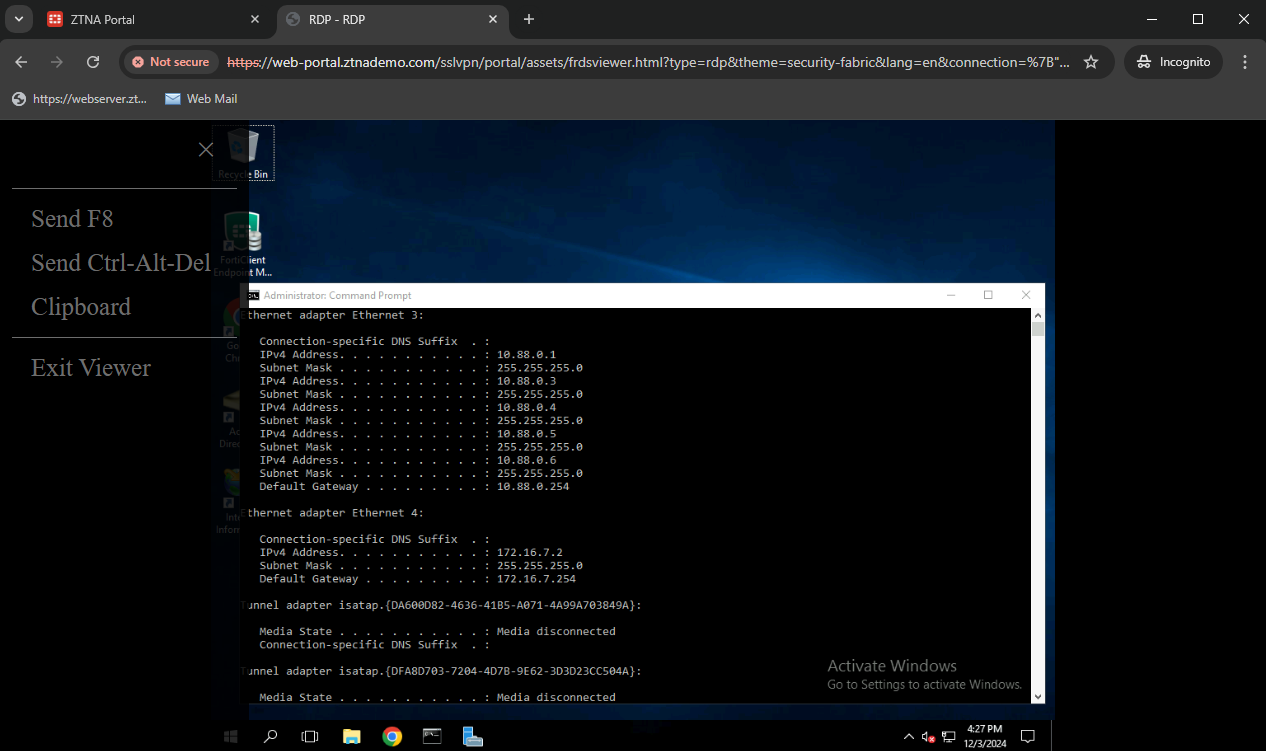

8. Once successfully connected, users can press F8 for additional controls.



9. Review the logs:

   # execute log filter field subtype ztna

   # execute log display
   35 logs found.
   10 logs returned.

   1: date=2024-12-03 time=16:24:50 eventtime=1733271890886450548 tz="-0800" logid="0005000024" type="traffic" subtype="ztna" level="notice" vd="root" srcip=10.0.3.2 srcport=2540 srcintf="port3" srcintfrole="wan" dstcountry="Reserved" srccountry="Reserved" dstip=10.0.3.20 dstport=443 dstintf="port2" dstintfrole="dmz" sessionid=8146 srcuuid="b458a65a-f759-51ea-d7df-ef2e750026d1" service="HTTPS" proxyapptype="ztna-proxy" proto=6 action="accept" policyid=2 policytype="proxy-policy" poluuid="b93f2588-b125-51ef-47b1-85fc99ba0ab1" policyname="ZTNA-web-portal" trandisp="dnat" tranip=10.88.0.1 tranport=3389 appcat="unscanned" duration=0 gatewayid=1 vip="ZTNA-web-proxy" clientdevicemanageable="unknown" clientcert="no" wanin=0 rcvdbyte=0 wanout=0 lanin=3242 sentbyte=3242 lanout=1726

Additional troubleshooting and debugs:

If an issue occurs, you can troubleshoot by running these commands:

# diagnose wad debug enable category all
# diagnose wad debug enable level verbose
# diagnose debug enable

A working connection will output the debugs indicating the web-portal matched the proper gateway. Then accessing the bookmark will output debugs for matching the bookmark.

GET /XX/YY/ZZ/webservice?bmgroup=bookmark&bmname=Webserver&cookie=9DC408DF3F32C8805385A1204DED7F81 HTTP/1.1
Host: s2.ztnademo.com
upgrade-insecure-requests: 1
user-agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/131.0.0.0 Safari/537.36
accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.7
sec-fetch-site: same-site
sec-fetch-mode: navigate
sec-fetch-user: ?1
sec-fetch-dest: document
sec-ch-ua: "Google Chrome";v="131", "Chromium";v="131", "Not_A Brand";v="24"
sec-ch-ua-mobile: ?0
sec-ch-ua-platform: "Windows"
referer: https://web-portal.ztnademo.com/
accept-encoding: gzip, deflate, br, zstd
accept-language: en-US,en;q=0.9
cookie: ZTPORTAL-EP-w8ICkTaqA8_EMoSCNDe_gyTAXEUw=430AAAAAAIAAAAAAAAAKF1h1WrrQAbAnodk0tYbtu1vnZZ-qlaOhL_y-UZIXxPCwqIplM3ujQ==DAAAAFB0iNTviC6zS6nUx9VNZ3yWCbkG
priority: u=0, i

[V][p:3472][s:6905][r:815] wad_http_marker_uri               :1533  path=/XX/YY/ZZ/webservice len=20
[V][p:3472][s:6905][r:815] wad_http_parse_host               :1911  host_len=15
[I][p:3472][s:6905][r:815] wad_http_parse_host               :1948  host=[15]s2.ztnademo.com
[I][p:3472][s:6905][r:815] wad_http_str_canonicalize         :2468  enc=0 path=/XX/YY/ZZ/webservice len=20 changes=0
[I][p:3472][s:6905][r:815] wad_http_str_canonicalize         :2470  end=5 path=bmgroup=bookmark&bmname=Webserver&cookie=9DC408DF3F32C8805385A1204DED7F81 len=
73 changes=0
[V][p:3472][s:6905][r:815] wad_http_normalize_uri            :2643  host_len=15 path_len=20 query_len=73
[I][p:3472][s:6905][r:815] wad_http_req_detect_special       :14025 captive_portal detected: false, preflight=(null)
[I][p:3472][s:6905][r:815] wad_vs_proxy_match_gwy            :4534  16059:ZTNA-web-proxy: matching gwy with vhost(_def_virtual_host_)
[V][p:3472][s:6905][r:815] wad_vs_proxy_match_vhost          :4653  16059:ZTNA-web-proxy: matching vhost by: s2.ztnademo.com
[V][p:3472][s:6905][r:815] wad_vs_proxy_match_vhost          :4656  16059:ZTNA-web-proxy: no host matched.
[V][p:3472][s:6905][r:815] wad_vs_web_portal_cookie_lookup   :8784  decode cookie_str=9DC408DF3F32C8805385A1204DED7F81 as cookie_val=1870837449, vd_id=0, vs_
id=16059, gwy_id=1
[I][p:3472][s:6905][r:815] wad_vs_proxy_match_gwy            :4578  16059:ZTNA-web-proxy: Matched gwy(1) type(ztna-portal) via cookie in query 0x7fdeabcd2448
.
…
[I][p:3472][s:6905][r:815] wad_ztna_portal_match_user        :79    matched cached grp:LDAP-Remote-Allowed-Group
…
[V][p:3472][s:6905][r:815] wad_http_req_exec_act             :13264 response is ready!
[V][p:3472][s:6905][r:815] wad_http_msg_start_setup_proc     :2280  msg(0x7fdeaa161048) proc-setup started from: req_resp_ready.
[V][p:3472][s:6905][r:815] wad_http_def_proc_msg_plan        :2242  msg(0x7fdeaa161048) setting up processor(req_resp_ready)
[V][p:3472][s:6905][r:815] wad_http_msg_start_setup_proc     :2280  msg(0x7fdeaa4f4cf0) proc-setup started from: resp_forward.
[V][p:3472][s:6905][r:815] wad_http_def_proc_msg_plan        :2242  msg(0x7fdeaa4f4cf0) setting up processor(resp_forward)
[I][p:3472][s:6905][r:815] wad_dump_fwd_http_resp            :3040  hreq=0x7fdeaa161048 Forward response from Internal:

HTTP/1.1 303 See Other
X-Content-Type-Options: nosniff
X-Frame-Options: SAMEORIGIN
X-XSS-Protection: 1; mode=block
Strict-Transport-Security: max-age=31536000
Content-Security-Policy: frame-ancestors 'self'; object-src 'self'; script-src 'self' https: 'unsafe-eval' 'unsafe-inline' blob:;
Connection: close
Content-Type: text/html
Cache-Control: no-cache
Location: https://s2.ztnademo.com:443
Content-Length: 133
Set-Cookie: ZTNAWebPortal=9DC408DC3F32C8805385A1204DED7F81; Max-Age=3600; Path=/; HTTPOnly; Secure
Set-Cookie: ZTNAWEB=bmgroup=bookmark&bmname=Webserver; Path=/; HTTPOnly; Secure
