Multiple dynamic header count

Multiple dynamic headers are supported for web proxy profiles, as well as Base64 encoding and the append/new options.

Administrators only have to select the dynamic header in the profile. The FortiGate will automatically display the corresponding static value. For example, if the administrator selects the $client-ip header, the FortiGate will display the actual client IP address.

The supported headers are:

$client-ip	Client IP address
$user	Authentication user name
$domain	User domain name
$local_grp	Firewall group name
$remote_grp	Group name from authentication server
$proxy_name	Proxy realm name

To configure dynamic headers using the CLI:

Since authentication is required, FSSO NTLM authentication is configured in this example.

1. Configure LDAP:

   config user ldap
       edit "ldap-kerberos"
           set server "172.18.62.220"
           set cnid "cn"a
           set dn "dc=fortinetqa,dc=local"
           set type regular
           set username "CN=root,CN=Users,DC=fortinetqa,DC=local"
           set password **********
       next
   end

2. Configure FSSO:

   config user fsso
       edit "1"
           set server "172.18.62.220"
           set password **********
       next
   end

3. Configure a user group:

   config user group
       edit "NTLM-FSSO"
           set group-type fsso-service
           set member "FORTINETQA/FSSO"
       next
   end

4. Configure an authentication scheme:

   config authentication scheme
       edit "au-sch-ntlm"
           set method ntlm
       next
   end

5. Configure an authentication rule:

   config authentication rule
       edit "au-rule-fsso"
           set srcaddr "all"
           set active-auth-method "au-sch-ntlm"
       next
   end

6. Create a web proxy profile that adds a new dynamic and custom Via header:

   config web-proxy profile
       edit "test"
           set log-header-change enable
           config headers
               edit 1
                   set name "client-ip"
                   set content "$client-ip"
               next
               edit 2
                   set name "Proxy-Name"
                   set content "$proxy_name"
               next
               edit 3
                   set name "user"
                   set content "$user"
               next
               edit 4
                   set name "domain"
                   set content "$domain"
               next
               edit 5
                   set name "local_grp"
                   set content "$local_grp"
               next
               edit 6
                   set name "remote_grp"
                   set content "$remote_grp"
               next
               edit 7
                   set name "Via"
                   set content "Fortigate-Proxy"
               next
           end
       next
   end

7. In the proxy policy, append the web proxy profile created in the previous step:

   config firewall proxy-policy
       edit 1
           set proxy explicit-web
           set dstintf "port1"
           set srcaddr "all"
           set dstaddr "all"
           set service "web"
           set action accept
           set schedule "always"
           set logtraffic all
           set groups "NTLM-FSSO"
           set webproxy-profile "test"
           set utm-status enable
           set av-profile "av"
           set webfilter-profile "content"
           set ssl-ssh-profile "deep-custom"
       next
   end

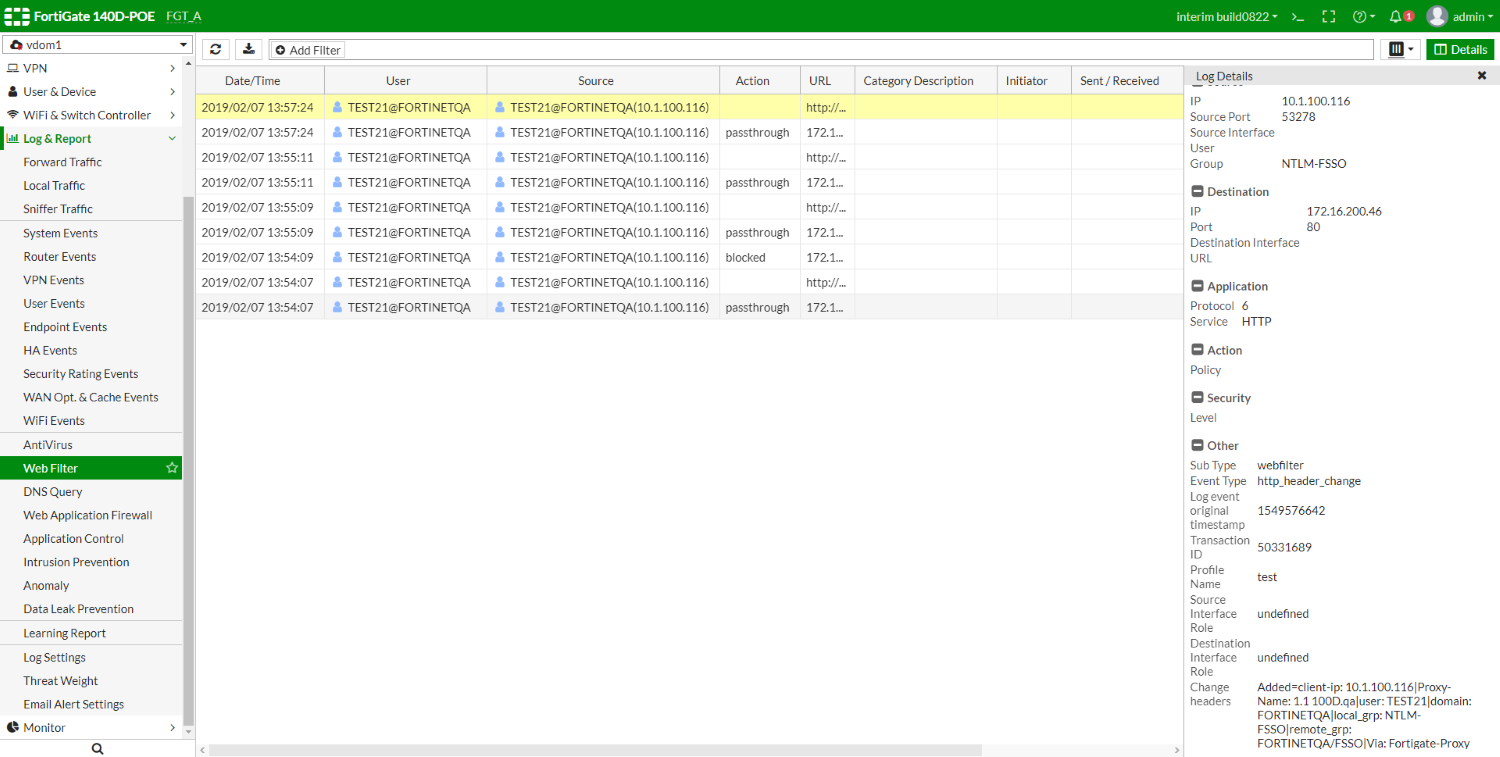

8. Once traffic is being generated from the client, look at the web filter logs to verify that it is working.

   The corresponding values for all the added header fields displays in the Change headers section at the bottom of the Log Details pane.

   1: date=2019-02-07 time=13:57:24 logid="0344013632" type="utm" subtype="webfilter" eventtype="http_header_change" level="notice" vd="vdom1" eventtime=1549576642 policyid=1 transid=50331689 sessionid=1712788383 user="TEST21@FORTINETQA" group="NTLM-FSSO" profile="test" srcip=10.1.100.116 srcport=53278 dstip=172.16.200.46 dstport=80 srcintf="port2" srcintfrole="undefined" dstintf="port1" dstintfrole="undefined" proto=6 service="HTTP" url="http://172.16.200.46/" agent="curl/7.22.0" chgheaders="Added=client-ip: 10.1.100.116|Proxy-Name: 1.1 100D.qa|user: TEST21|domain: FORTINETQA|local_grp: NTLM-FSSO|remote_grp: FORTINETQA/FSSO|Via: Fortigate-Proxy"
