FS-AX9000G-LC25 line card
The FS-AX9000G-LC25 features the following front panel interfaces:
-
Forty-eight 25/10 GigE SFP28 (1-48, 1000BASE-X is not supported on ports 1-48)
-
Four 100/40 GigE QSFP28 (49-52)

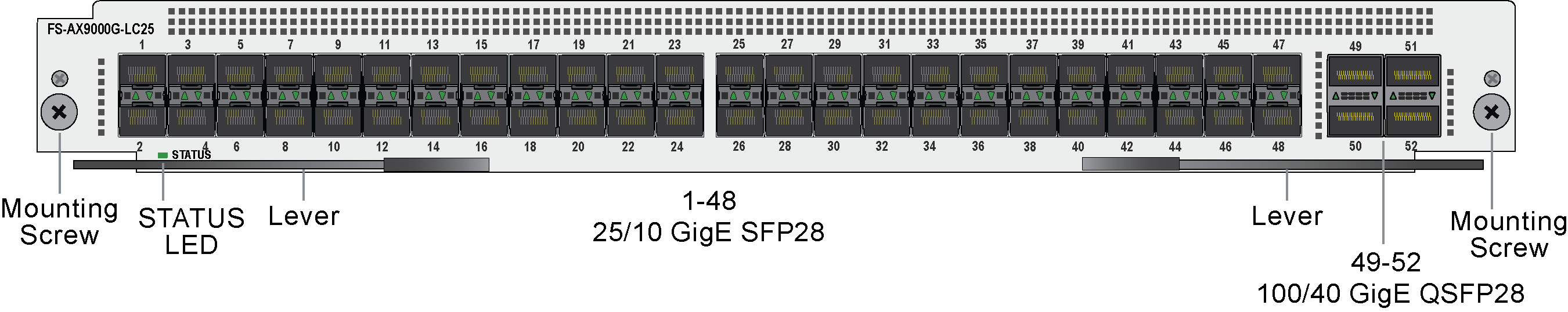

FS-AX9000G-LC25 front panel
Physical description
|
Max power consumption |
685W / 630W (Input Power Base/Output Power Base. Output power = input power x 0.92) |
|
Dimensions |
2.0 x 17.2 x 19.6in (49 x 436 x 496.2mm) |
|
Weight |
17.0lbs (7.7 kg) |
|
Operating temperature |
32 to 104°F (0 to 40°C) |
|
Storage temperature |
-13 to 149°F (-25 to 65°C) |
|
Relative humidity |
5 to 85% (recommended value 45 to 55%) |
Front panel LEDs
|
LED |
State |
Description |
|---|---|---|
|
STATUS
|
Off |
The FS-AX9000G-LC25 is powered off. |
|
Green |
The FS-AX9000G-LC25 is powered on and operating normally. |
|
| Flashing Green |
The FS-AX9000G-LC25 is starting up or has been stopped by inputting the |
|
|
Red |
Line card fault detected. |
|
|
LINK
|
Off |
Network cable is not connected or link failure or operation is stopped. |
|
Green |
Link established. |
|
| Flashing Green |
Packets are being sent or received. |
|
|
|
Orange |
Port fault detected. |
