FS-AX9000G-LC10P line card
The FS-AX9000G-LC10P features the following front panel interfaces:
-
Forty-eight 10/5/2.5/1 GigE RJ45 (1-48)
-
Two 10 GigE SFP+ (49 and 50, 1000BASE-X is not supported on ports 49 and 50)

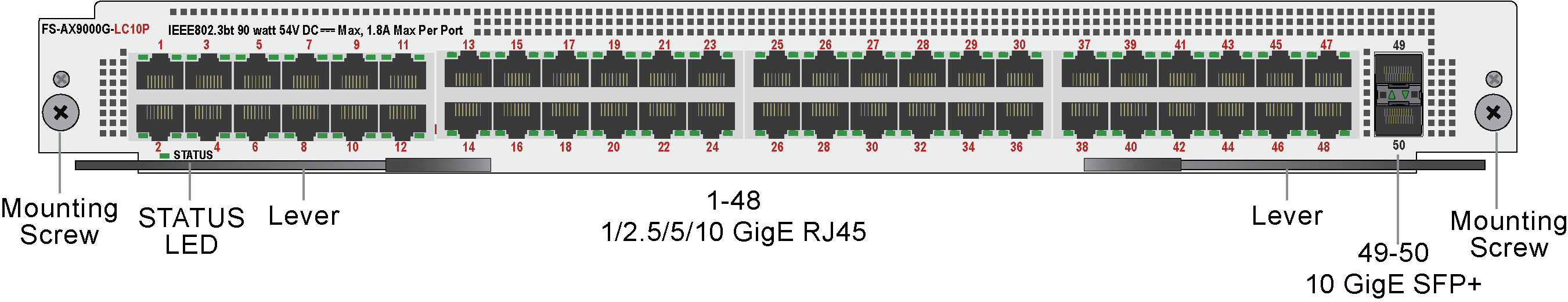

FS-AX9000G-LC10P front panel
Physical description
|
Max power consumption (No PoE Power Supply) |
234W / 215W (Input Power Base/Output Power Base. Output power = input power x 0.92) |
|
PoE Power Supply |
Max 4,320W (The total power that one FS-AX9000G-LC10P board can supply to PDs: 90W × 48 ports.) |
|
Dimensions |
2.0 x 17.2 x 19.6in (49 x 436 x 496.2mm) |
|
Weight |
15.9lbs (7.2 kg) |
|
Operating temperature |
32 to 104°F (0 to 40°C) |
|
Storage temperature |
-13 to 149°F (-25 to 65°C) |
|
Relative humidity |
5 to 85% (recommended value 45 to 55%) |
Front panel LEDs
|
LED |
State |
Description |
|---|---|---|
|
STATUS
|
Off |
The FS-AX9000G-LC10P is powered off. |
|
Green |
The FS-AX9000G-LC10P is powered on and operating normally. |
|
| Flashing Green |
The FS-AX9000G-LC10P is starting up or has been stopped by inputting the |
|
|
Red |
Line card fault detected. |
|
|
LINK
|
Off |
Network cable is not connected or link failure or operation is stopped. |
|
Green |
Link established. |
|
| Flashing Green |
Packets are being sent or received. |
|
|
|
Orange |
Port failure detected. |
