SSL-VPN monitor
The SSL-VPN monitor displays remote user logins and active connections. You can use the monitor to disconnect a specific connection. The monitor will notify you when VPN users have not enabled two-factor authentication.
To view the SSL-VPN monitor in the GUI:
- Go Dashboard > Network.

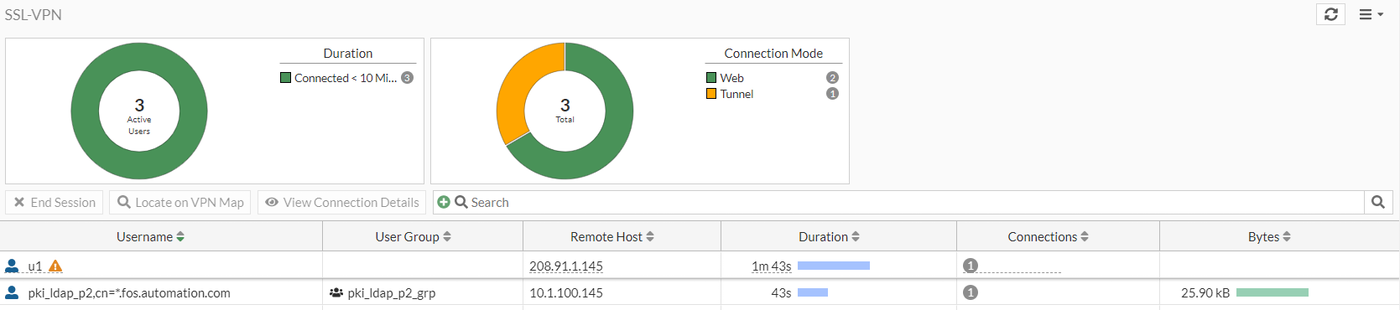

- Hover over the SSL-VPN widget, and click Expand to Full Screen.The Duration and Connection Summary charts are displayed at the top of the monitor.
|
To filter or configure a column in the table, hover over the column heading and click the Filter/Configure Column button. |
To disconnect a user:
- Select a user in the table.
- In the table, right-click the user, and click End Session. The Confirm window opens.
- Click OK.
To monitor SSL-VPN users in the CLI:
# get vpn ssl monitor
Sample output
SSL VPN Login Users:
Index User Group Auth Type Timeout From HTTP in/out HTTPS in/out
0 amitchell TAC 1(1) 296 10.100.64.101 3838502/11077721 0/0
1 mmiles Dev 1(1) 292 10.100.64.101 4302506/11167442 0/0
SSL VPN sessions:
Index User Group Source IP Duration I/O Bytes Tunnel/Dest IP
