Administration Guide

Authorizing devices

Authorizing devices

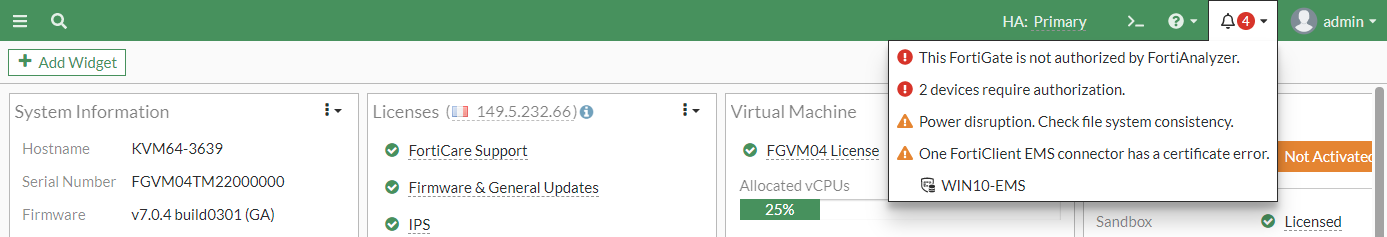

If there are any notifications in the top banner dropdown for unauthorized devices or devices that require authorization, clicking the notification redirects the user to the System > Fabric Management page. In this example, two devices require authorization.

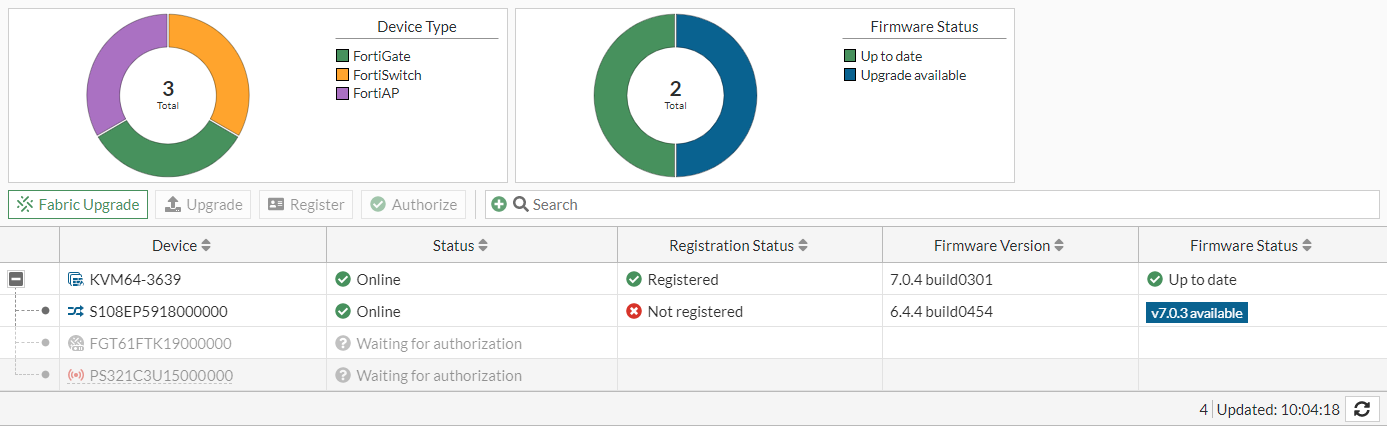

On the Fabric Management page, the unauthorized devices (a downstream FortiGate and a FortiAP) are grayed out, and their status is Waiting for authorization.

To authorize a Security Fabric device from the Fabric Management page:
  1. Go to System > Fabric Management, and select an unauthorized device.

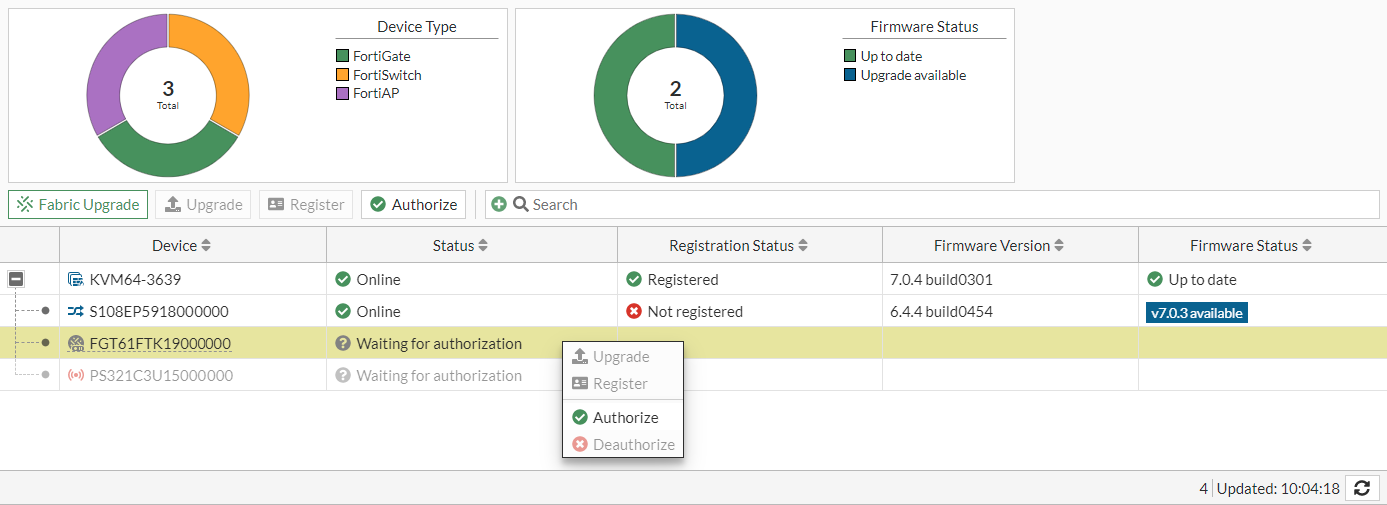

  2. Click Authorize (below the donut charts), or right-click and select Authorize.

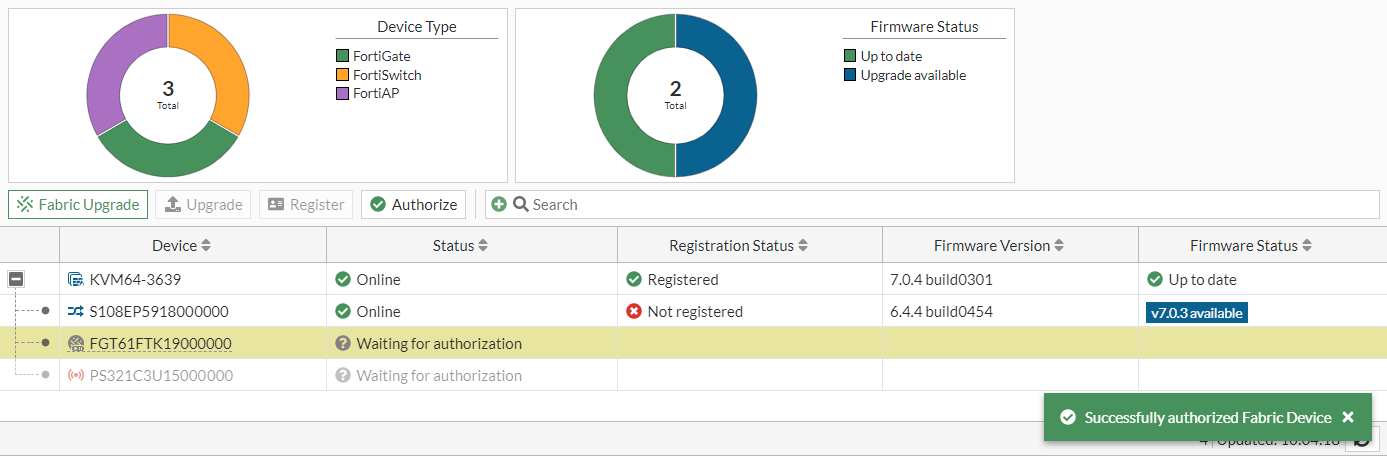

    A notification appears in the bottom-right corner once the device is authorized.

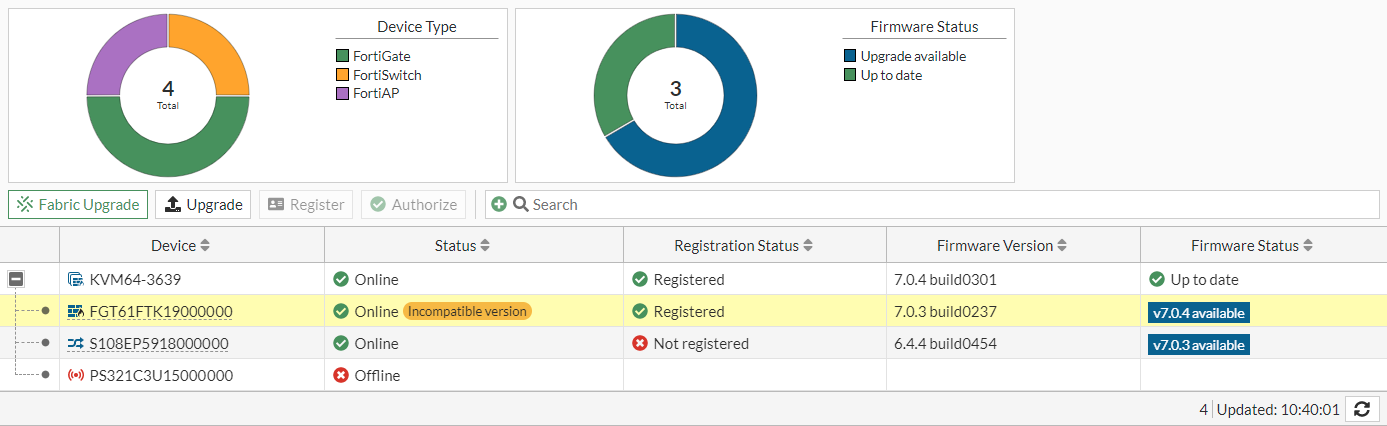

  3. Click the subsequent notification to refresh the page. The device's status is now Online.

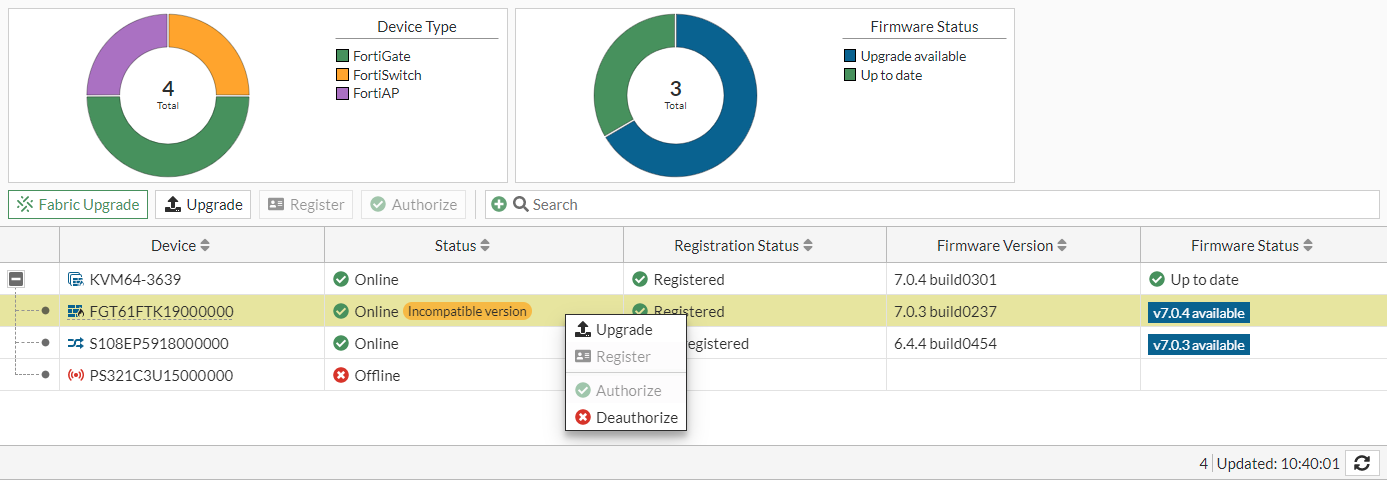

To deauthorize a Security Fabric device from the Fabric Management page:
  1. Go to the System > Fabric Management page, and select a device.
  2. Right-click and select Deauthorize.

  3. Click the subsequent notification to refresh the page.

Authorizing devices

If there are any notifications in the top banner dropdown for unauthorized devices or devices that require authorization, clicking the notification redirects the user to the System > Fabric Management page. In this example, two devices require authorization.

On the Fabric Management page, the unauthorized devices (a downstream FortiGate and a FortiAP) are grayed out, and their status is Waiting for authorization.

To authorize a Security Fabric device from the Fabric Management page:
  1. Go to System > Fabric Management, and select an unauthorized device.
  2. Click Authorize (below the donut charts), or right-click and select Authorize.

    A notification appears in the bottom-right corner once the device is authorized.

  3. Click the subsequent notification to refresh the page. The device's status is now Online.

To deauthorize a Security Fabric device from the Fabric Management page:
  1. Go to the System > Fabric Management page, and select a device.
  2. Right-click and select Deauthorize.

  3. Click the subsequent notification to refresh the page.
