KVM

To recover your EMS user password on KVM:

1. Shut down the EMS VM using the following command:

   sudo virsh shutdown <vm-name>

   Alternatively, shut down the VM via virt-manager if you prefer using the GUI.

2. Wait until the VM is completely powered off before proceeding.

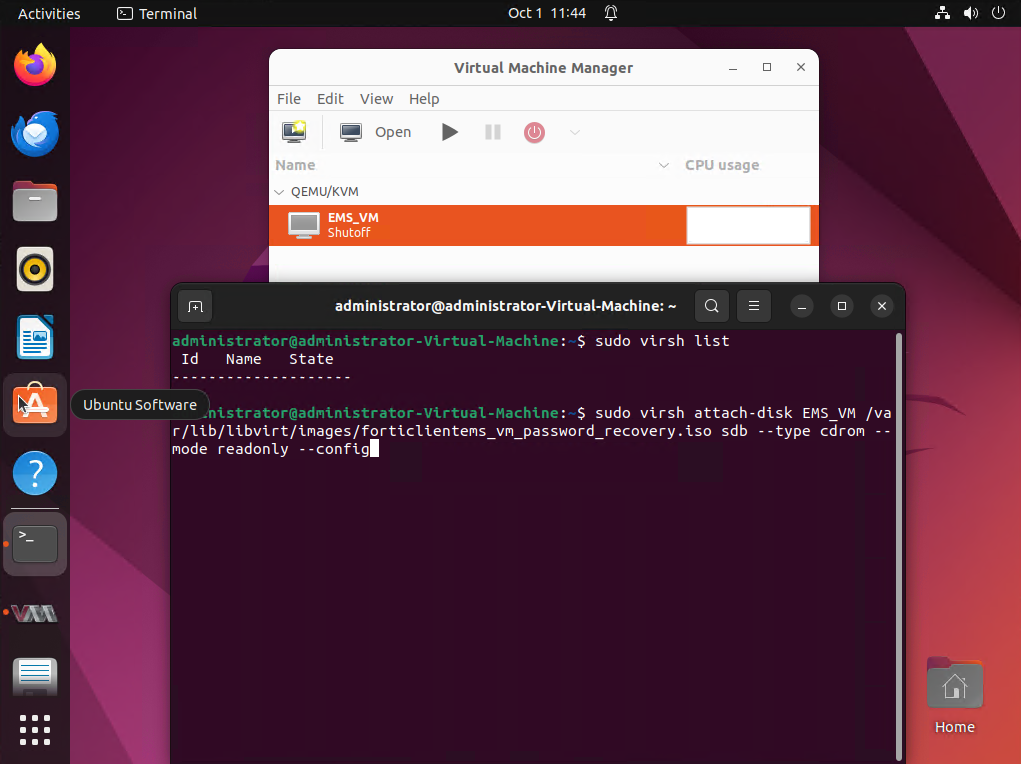

3. Attach the recovery ISO to the VM as a read-only CD-ROM device (via SCSI):

   sudo virsh attach-disk <vm-name> <full-path-to-forticlient_vm_password_recovery.iso> sdb --type cdrom --mode readonly --config




   <vm-name>	Replace with your VM’s name
   <full-path-to-forticlient_vm_password_recovery.iso>	Replace with the absolute path to the ISO file on the host.
   sdb	Device name assigned to the CD-ROM. Ensure it matches what you will configure in the VM XML.
   --config	The flag makes this persistent across VM reboots.

4. Edit the VM configuration to set ISO as boot priority:

   1. Open the VM XML configuration for editing:

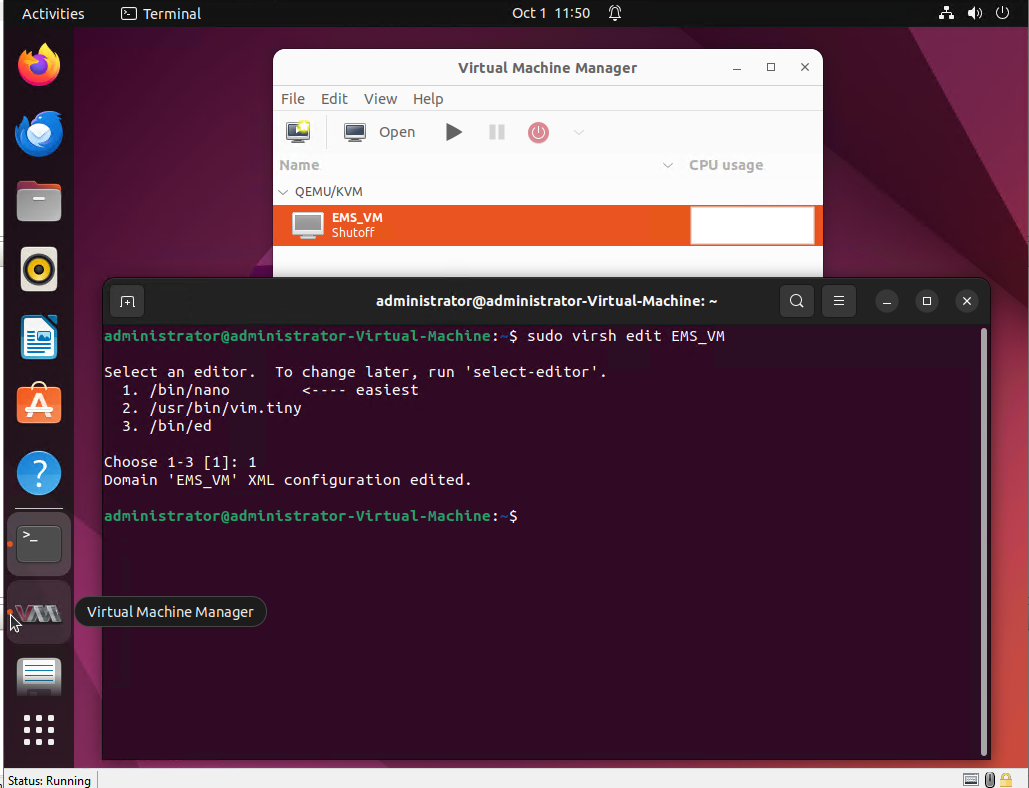

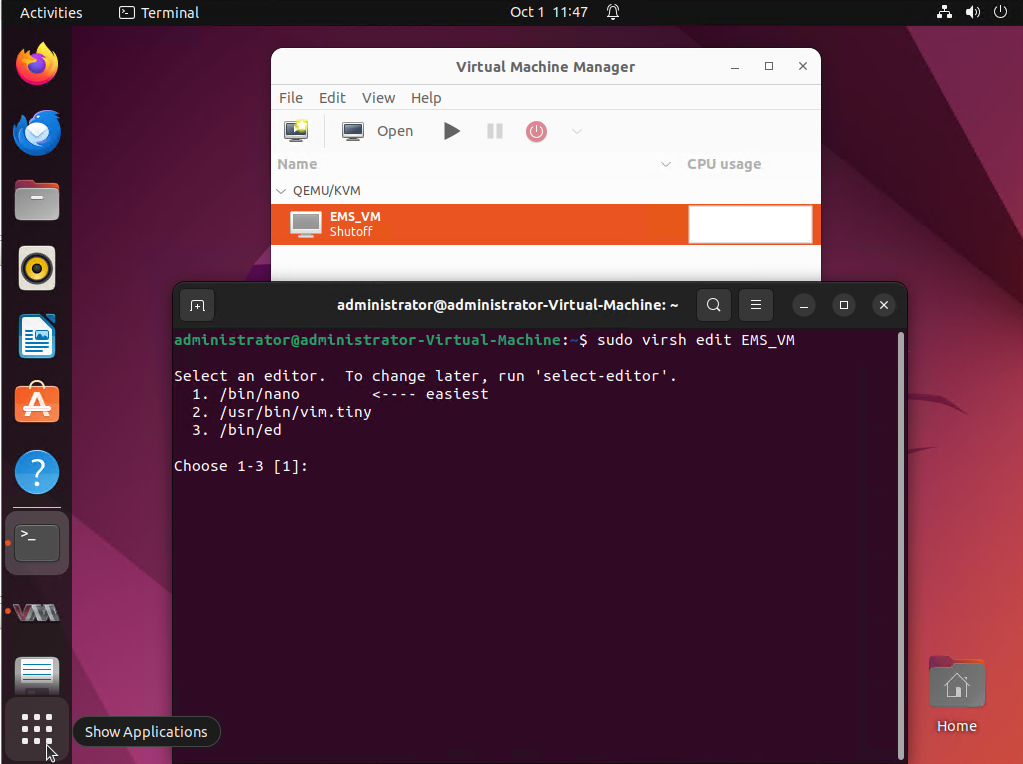

      sudo virsh edit <vm-name>



   2. Under the <os> section, remove any existing boot device line, such as <boot dev='hd'/>, so it looks like this (no boot lines):

      <os>
       <type arch='x86_64' machine='pc-q35-6.2'>hvm</type>
      </os>



   3. Under the <devices> section:

      1. Ensure the SCSI controller exists:

         <controller type='scsi' model='virtio-scsi'/>

      2. Add or verify the CD-ROM device entry is configured to match the attached ISO path and device:

         <disk type='file' device='cdrom'>
          <driver name='qemu' type='raw'/>
          <source file='<full-path-to-forticlient_vm_password_recovery.iso>'/>
          <target dev='sdb' bus='scsi'/>
          <readonly/>
          <boot order='1'/>
         </disk>

         Replace <full-path-to-forticlient_vm_password_recovery.iso> with the ISO’s absolute path.

   4. Save and exit the editor.



5. Start the VM:

   sudo virsh start <vm-name>

   Alternatively, use virt-manager to start the VM.

   The VM will boot from the recovery ISO.

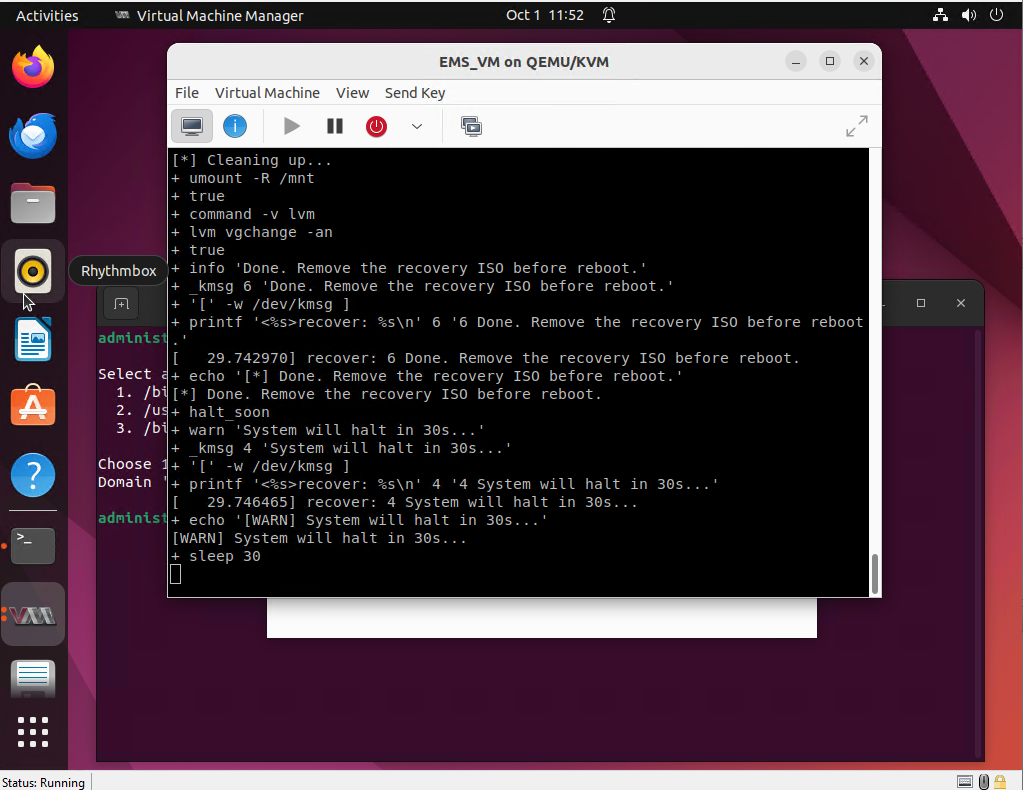

6. Open the VM console and wait for the recovery process to finish. You should see a message similar to the following:

   SUCCESS: Password for ‘ems’ has been reset

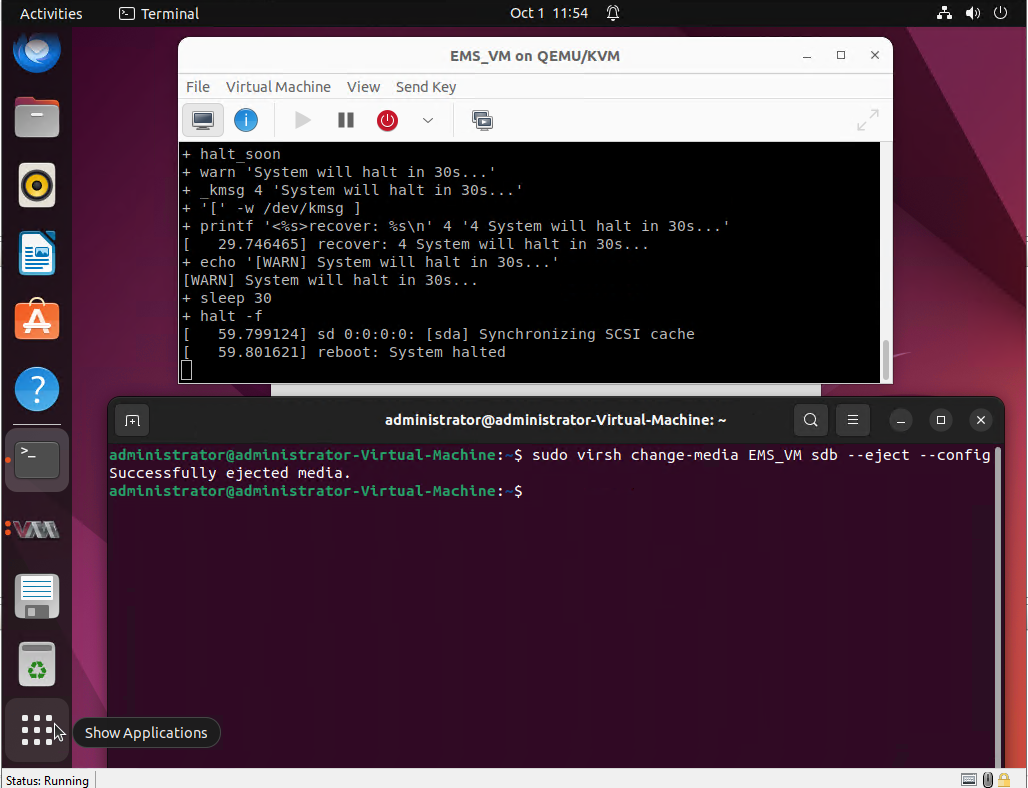

7. Once the password reset is confirmed, eject the recovery ISO:

   sudo virsh change-media <vm-name> sdb --eject --config



8. To safely remove the CD-ROM device, first force stop the VM:

   sudo virsh destroy <vm-name>

   Alternatively, stop the VM from virt-manager.

9. Remove the CD-ROM device from the VM configuration by editing the VM config again:

   sudo virsh edit <vm-name>

   Inside <devices>, remove the entire <disk ... device='cdrom'>...</disk> block that you previously added for the recovery ISO. Or, if you want to keep the device, just remove the <boot order='1'/> line so the VM boots from disk normally.

10. Save and exit.

11. To verify the result, start the VM again using the following command (or virt-manager):

    sudo virsh start <vm-name>

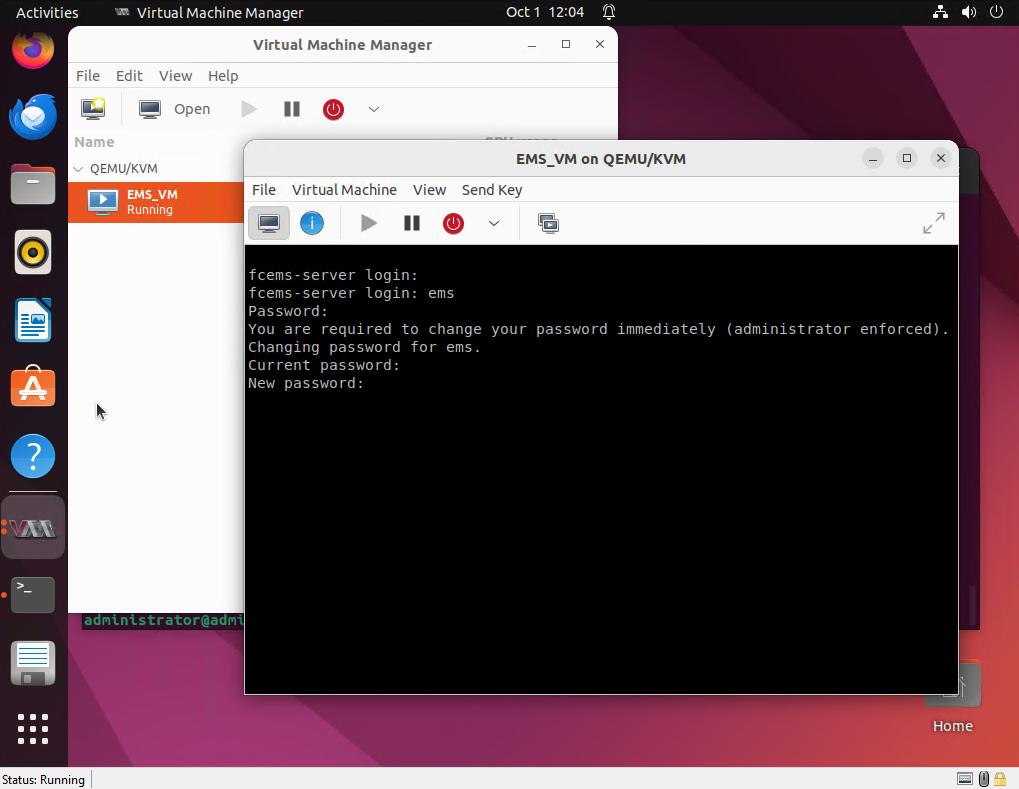

    You should now be able to log in with the default credentials (username and password are both ems). On the first login, you will be prompted to set a new password, which you should do immediately for security.
