Policy & Objects

Policy & Objects enables you to centrally manage policies and any objects used by those policies for devices that are managed by the FortiManager.

All changes related to policies and objects should be made on the FortiManager device, and not on the managed devices.

This chapter includes the following sections:

• About policies

• Policy workflow

• Feature visibility

• Managing policy packages

• Managing policies

• Using Policy Blocks

• Managing objects and dynamic objects

• ADOM revisions

Administrator permissions If the administrator account you logged on with does not have the appropriate permissions, you will not be able to edit or delete settings, or apply any changes. Instead you are limited to browsing. To modify these settings, see Administrator profiles.

Object selection pane You can determine the way that objects are displayed in Policy & Objects using the following object selection pane settings under the Tools menu. Classic Dual Pane: The Policy Packages and Object Configurations tabs are displayed on the same pane, with object configurations on the lower half of the screen. Dock to Right: You can open the objects window by clicking the expand icon on the right side of the screen. See Feature visibility.

Workspace and Workflow mode If workspace is enabled, the ADOM must be locked before changes can be made. See Locking an ADOM. If workflow is enabled, the ADOM must be locked and a session must be started before changes can be made. See Workflow mode.

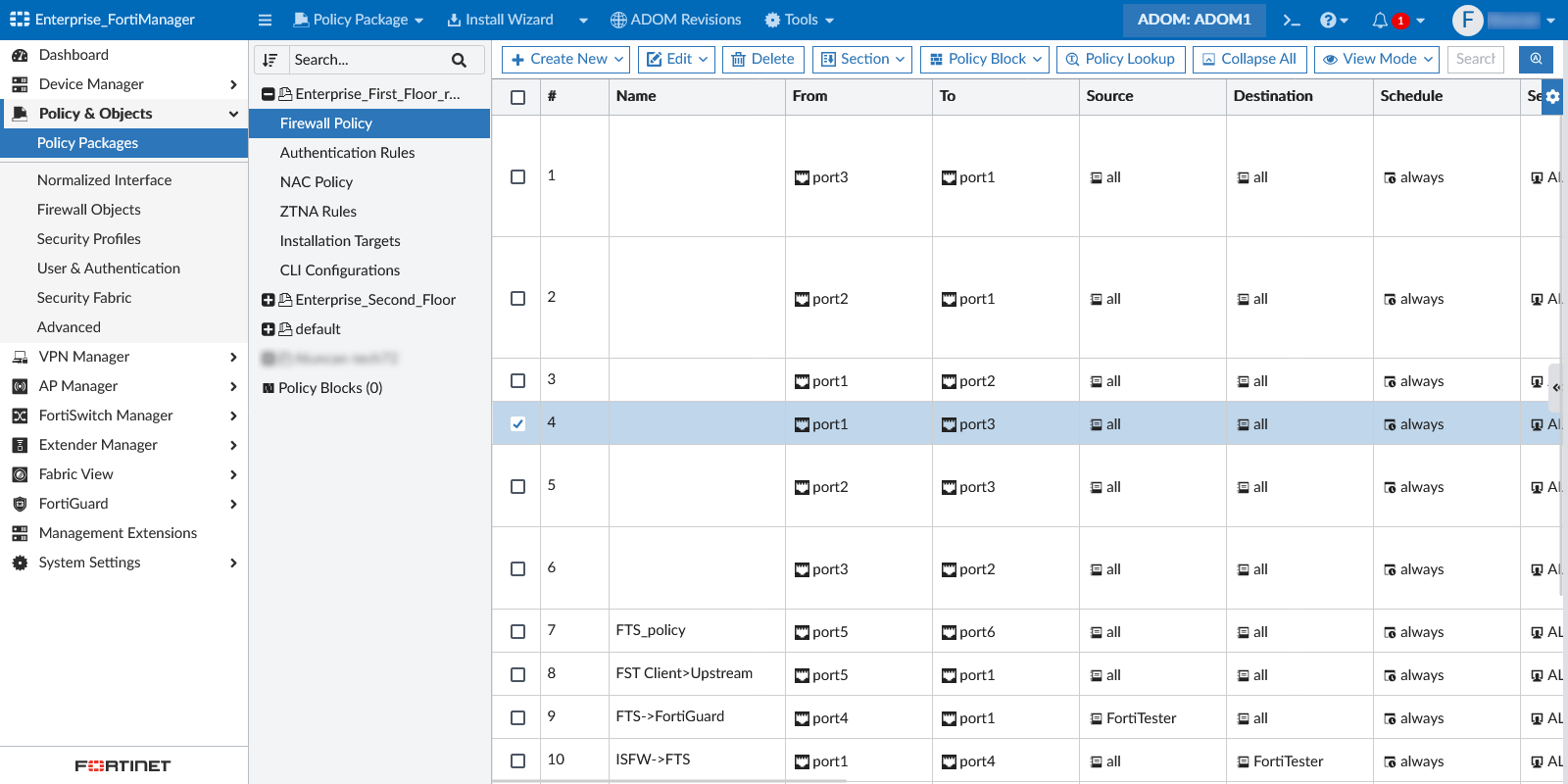

The following sections are available in the tree menu under Policy & Objects:

Policy Packages	Click to view and configure policy packages.
Normalized Interface	Click to view and configure normalized interfaces.
Firewall Objects	Click to view and configure firewall objects.
Security Profiles	Click to view and configure security profiles.
User & Authentication	Click to view and configure user and authentication objects.
Security Fabric	Click to view and configure Fortinet Security Fabric objects.
Advanced	Click to view and configure advanced objects including metadata variables and CLI configurations.

The following options are available in the Policy Packages pane:

Policy Package	Click to access the policy package menu. The menu options are the same as the right-click menu options.
Install Wizard	Click to access the Install Wizard. You can start the Install Wizard where you can install policy packages and device settings. You can also re-install a policy by clicking the dropdown arrow and choosing Re-install Policy.
ADOM Revisions	Click to create, edit, delete, restore, lock, and unlock ADOM Revisions.
Tools	Click to select one of the following tools from the menu: Find Unused Objects, Find Duplicate Objects, Find Unused Policies, Refresh Hit Counts, Feature Visibility, or Object Selection Pane.
Create New	Create a new policy. See Creating policies.
Edit	Edit a policy. See Editing policies.
Delete	Delete a policy.
Section	Create a new policy section. You can apply colors to policy sections to help differentiate your different policies in the table. See Managing policies.
Policy Lookup	Perform a policy lookup. See Policy Lookup
Collapse/Expand All	Collapse or expand all the categories in the policy list.
View Mode	Toggle between the By Sequence and Interface Pair View display modes. See Managing policies. View Mode is disabled when policy packages include policies using multiple source/destination interfaces (including the "Any" interface) or when policy blocks are used.
Search	The tree menu can be searched and sorted using the search field and sorting button at the top of the menu.
Column Settings	Select which columns are displayed in the policy table.

The following options are available on the objects configuration panes:

Install Wizard	Click to access the Install Wizard. You can start the Install Wizard where you can install policy packages and device settings. You can also re-install a policy by clicking the dropdown arrow and choosing Re-install Policy.
ADOM Revisions	Click to create, edit, delete, restore, lock, and unlock ADOM Revisions.
Tools	Click to select one of the following tools from the menu: Find Unused Objects, Find Duplicate Objects, Find Unused Policies, Refresh Hit Counts, Feature Visibility, or Object Selection Pane.
Create New	Create a new object. See Creating objects.
Edit	Edit an object. See Edit an object.
Delete	Delete an object. See Remove an object.
More	Select the dropdown to view additional options for objects.
Column Settings	Select which columns are displayed in the objects table.

If workspace is enabled, you can select to lock and edit the policy package in the right-click menu. You do not need to lock the ADOM first. The policy package lock status is displayed in the toolbar.

The following options are available:

Lock | Unlock	Select to lock or unlock the ADOM.
Sessions	Click to display the sessions list where you can save, submit, or discard changes made during the session.
