Defining a preferred source IP for local-out egress interfaces on SD-WAN members

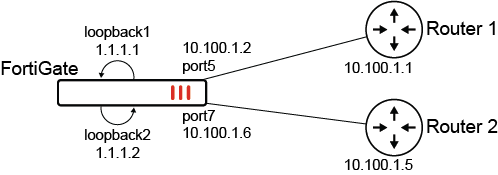

The preferred source IP can be configured on SD-WAN members so that local-out traffic is sourced from that IP. In the following example, two SD-WAN members (port5 and port6) will use loopback1 and loopback2 as sources instead of their physical interface address. A static route is created for destination 200.0.0.0/24 to use the virtual-wan-link. In turn, the FortiGate will create two ECMP routes to the member gateways and source the traffic from the loopback IPs.

To configure preferred source IPs for SD-WAN members:

1. Configure the SD-WAN members and other settings:

   config system sdwan
       set status enable
       config zone
           edit "virtual-wan-link"
           next
       end
       config members
           edit 1
               set interface "port5"
               set gateway 10.100.1.1
               set preferred-source 1.1.1.1
               set source 1.1.1.1
           next
           edit 2
               set interface "port7"
               set gateway 10.100.1.5
               set preferred-source 1.1.1.2
               set source 1.1.1.2
           next
       end
   end

   In the SD-WAN config members settings, configuring the source for the health check probes is still required. SD-WAN adds dedicated kernel routes (proto=17) for the health checks using the interface IP or source IP when specified. To view the kernel routes, use diagnose ip route list.

2. Configure the static route:

   config router static
       edit 2000
           set dst 200.0.0.0 255.255.255.0
           set distance 1
           set sdwan-zone "virtual-wan-link"
       next
   end

To verify the configuration:

1. Verify the kernel routing table for 200.0.0.0/24:

   # get router info kernel | grep -A 2 200.0.0.0/24
   tab=254 vf=0 scope=0 type=1 proto=11 prio=1 0.0.0.0/0.0.0.0/0->200.0.0.0/24 pref=0.0.0.0
           gwy=10.100.1.1 flag=14 hops=255 oif=13(port5) pref=1.1.1.1
           gwy=10.100.1.5 flag=14 hops=254 oif=15(port7) pref=1.1.1.2

2. Verify the routing table for 200.0.0.0/24:

   # get router info routing-table details 200.0.0.0/24
   Routing table for VRF=0
   Routing entry for 200.0.0.0/24
     Known via "static", distance 1, metric 0, best
     * vrf 0 10.100.1.1, via port5, prefsrc 1.1.1.1
     * vrf 0 10.100.1.5, via port7, prefsrc 1.1.1.2

3. Run a sniffer trace after some traffic passes.

   1. When traffic leaves port5:

      # diagnose sniffer packet any "host 200.0.0.1" 4
      interfaces=[any]
      filters=[host 200.0.0.1]
      6.592488 port5 out 1.1.1.1 -> 200.0.0.1: icmp: echo request
      7.592516 port5 out 1.1.1.1 -> 200.0.0.1: icmp: echo request
      8.592532 port5 out 1.1.1.1 -> 200.0.0.1: icmp: echo request

   2. When traffic leaves port7:

      # diagnose sniffer packet any "host 200.0.0.1" 4
      interfaces=[any]
      filters=[host 200.0.0.1]
      75.664173 port7 out 1.1.1.2 -> 200.0.0.1: icmp: echo request
      76.664194 port7 out 1.1.1.2 -> 200.0.0.1: icmp: echo request


   Traffic exiting each interface is sourced from the corresponding loopback IP.

Individual source IP commands, such as FortiManager source IP and FortiAnalyzer source IP, take precedence over these preferred-source configurations.
