IPsec IKEv2 VPN 2FA with EAP and certificate authentication 7.4.2
|
This information is also available in the FortiOS 7.4 Administration Guide: |
IPsec IKEv2 VPNs now support certificate authentication and EAP authentication at the same time from a dialup FortiClient. With the eap-cert-auth setting enabled, FortiGate will validate the X.509 certificate sent from FortiClient when establishing a IKEv2 tunnel. After it is authenticated, FortiGate will continue to perform EAP authentication.
config vpn ipsec phase1-interface
edit <tunnel>
set eap enable
set eap-cert-auth {*disable | enable}
set peer <user peer>
next
end
|
Setting |
Description |
|---|---|
|
eap enable |
Enable EAP to perform user authentication. |
|
eap-cert-auth {*disable | enable} |
Enable/Disable certificate authentication in addition to EAP (default = disable). |
|
peer <user peer> |
When eap-cert-auth is enabled, the peer certificate is validated if |
Example

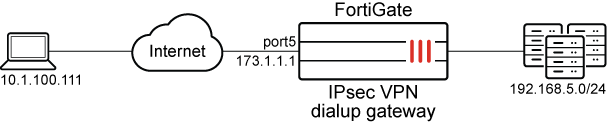

In this example, FortiClient is configured to use an X.509 certificate and EAP to perform certificate and user authentication. The certificate is issued by a CA that is trusted by the FortiGate.
To configure FortiClient:
-

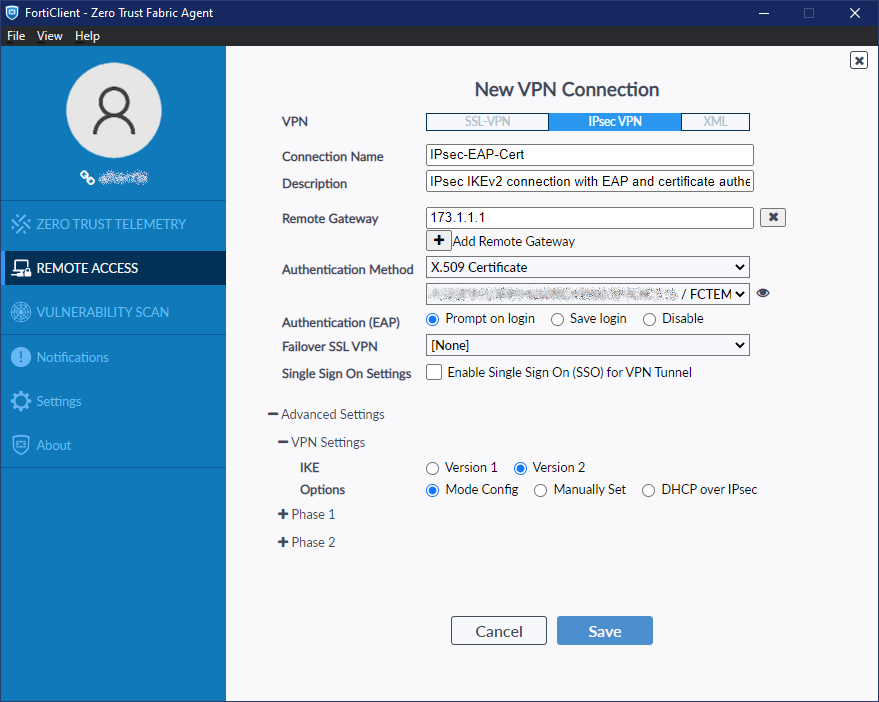

Go to Remote Access, click the sandwich menu, and select Add a new connection.
-
Configure the new VPN connection.
Field
Value
VPN
IPsec VPN
Connection Name
IPsec-EAP-Cert
Description
(Optional)
Remote Gateway
173.1.1.1
Authentication Method
X.509 Certificate
Authentication (EAP)
Prompt on login
Failover SSL VPN
[None]
Advanced Settings > VPN Settings
IKE
Version 2
Options
Mode Config
-
Click Save.
To configure local users and peer (certificate authentication):
config user group
edit "local-group"
set member "usera" "userc" "bi_local"
next
end
config user peer
edit "peer-test3"
set ca "Eternity-CA"
set subject "test3"
next
end
A certificate issued by Eternity-CA with test3 in the subject will be trusted by the FortiGate.
To configure the IPsec VPN phase1:
config vpn ipsec phase1-interface
edit "fct-eapcert"
set type dynamic
set interface "port5"
set ike-version 2
set authmethod signature
set net-device disable
set mode-cfg enable
set proposal aes128-sha1 aes256-sha256
set comments "VPN: fct3459 -- Created by VPN wizard"
set dhgrp 20
set eap enable
set eap-identity send-request
set eap-cert-auth enable
set wizard-type dialup-forticlient
set authusrgrp "local-group"
set certificate "test1"
set peer "peer-test3"
set ipv4-start-ip 3.3.1.1
set ipv4-end-ip 3.3.1.100
set dns-mode auto
set ipv4-split-include "fct3459_split1"
set save-password enable
set client-auto-negotiate enable
set client-keep-alive enable
next
end
The FortiGate will validate the client certificate based on the eap-cert-auth setting. The following examples show different outcomes from different configuration scenarios.
Scenario 1: eap-cert-auth is enabled and FortiGate receives a valid and trusted certificate
Using IKE debugs, we can observe the steps when FortiGate receives the connection request with the client certificate, validates it, and continues to perform EAP authentication before establishing the VPN connection.
# diagnose debug application ike -1 # diagnose debug enable ike V=root:0:fct-eapcert:11: received FCT-UID : 4E98BCE511844FA8B161FA5DF047B12C ike V=root:0:fct-eapcert:11: received peer identifier DER_ASN1_DN 'C = CA, ST = BC, L = Burnaby, O = Fortinet, OU = QA, CN = test3' ike V=root:0:fct-eapcert:11: re-validate gw ID ike V=root:0:fct-eapcert:11: gw validation OK ike V=root:0:fct-eapcert:11: Validating X.509 certificate ike V=root:0:fct-eapcert:11: peer cert, subject='test3', issuer='Eternity-CA' ike V=root:0:fct-eapcert:11: peer ID verified ike V=root:0:fct-eapcert:11: building fnbam peer candidate list ike V=root:0:fct-eapcert:11: FNBAM_GROUP_NAME candidate 'peer-test3' ike V=root:0:fct-eapcert:11: certificate validation before eap pending ike V=root:0:fct-eapcert:11: fnbam reply 'peer-test3' ike V=root:0:fct-eapcert:11: certificate validation complete ike V=root:0:fct-eapcert:11: responder preparing EAP identity request ike V=root:0:fct-eapcert:11: local cert, subject='test1', issuer='Eternity-CA' ike 0:fct-eapcert:11: enc … ike V=root:0:fct-eapcert:11: sent IKE msg (AUTH_RESPONSE): 173.1.1.1:500->10.1.100.111:500, len=1420, vrf=0, id=e955507be9a857eb/b48a41c47db35bdb:00000001, oif=13 ike V=root:0: comes 10.1.100.111:500->173.1.1.1:500,ifindex=13,vrf=0,len=92.... … ike V=root:0:fct-eapcert:11: responder received EAP msg ike V=root:0:fct-eapcert:11: send EAP message to FNBAM ike V=root:0:fct-eapcert:11: initiating EAP authentication ike V=root:0:fct-eapcert: EAP user "bi_local" ike V=root:0:fct-eapcert: auth group local-group ike V=root:0:fct-eapcert: EAP 1600011514 pending ike V=root:0:fct-eapcert:11 EAP 1600011514 result FNBAM_CHALLENGED ike V=root:0:fct-eapcert: EAP challenged for user "bi_local" ike V=root:0:fct-eapcert:11: responder preparing EAP pass through message …
Checking the IPsec VPN tunnel list:
# diagnose vpn tunnel list list all ipsec tunnel in vd 0 … name=fct-eapcert_0 ver=2 serial=6 173.1.1.1:0->10.1.100.111:0 tun_id=3.3.1.1 tun_id6=::10.0.0.5 dst_mtu=1500 dpd-link=on weight=1 bound_if=13 lgwy=static/1 tun=intf mode=dial_inst/3 encap=none/74408 options[122a8]=npu rgwy-chg frag-rfc run_state=0 role=primary accept_traffic=1 overlay_id=0 parent=fct-eapcert index=0 proxyid_num=1 child_num=0 refcnt=5 ilast=1 olast=13 ad=/0 stat: rxp=2 txp=97 rxb=16460 txb=53465 dpd: mode=on-demand on=1 idle=20000ms retry=3 count=0 seqno=0 natt: mode=none draft=0 interval=0 remote_port=0 fec: egress=0 ingress=0 proxyid=fct3459 proto=0 sa=1 ref=6 serial=1 add-route src: 0:0.0.0.0-255.255.255.255:0 dst: 0:3.3.1.1-3.3.1.1:0 …
The result shows that the tunnel is established.
Scenario 2: eap-cert-auth is enabled and FortiGate receives an invalid certificate
In this example, a user peer object is used that does not trust the issuer Eternity-CA.
# diagnose debug application ike -1 # diagnose debug enable ke V=root:0:fct-eapcert:9: received FCT-UID : 4E98BCE511844FA8B161FA5DF047B12C ike V=root:0:fct-eapcert:9: received peer identifier DER_ASN1_DN 'C = CA, ST = BC, L = Burnaby, O = Fortinet, OU = QA, CN = test3' ike V=root:0:fct-eapcert:9: re-validate gw ID ike V=root:0:fct-eapcert:9: gw validation OK ike V=root:0:fct-eapcert:9: Validating X.509 certificate ike V=root:0:fct-eapcert:9: peer cert, subject='test3', issuer='Eternity-CA' ike V=root:0:fct-eapcert:9: peer ID verified ike V=root:0:fct-eapcert:9: building fnbam peer candidate list ike V=root:0:fct-eapcert:9: FNBAM_GROUP_NAME candidate 'peer-test3' ike V=root:0:fct-eapcert:9: certificate validation before eap pending ike V=root:0:fct-eapcert:9: fnbam cert group matching failed ike V=root:0:fct-eapcert:9: certificate validation failed
The result shows that the tunnel is not established.
Scenario 3: eap-cert-auth is disabled and FortiGate receives an invalid certificate
In this example, eap-cert-auth is disabled, so the incoming peer certificate is not validated.
# diagnose debug application ike -1 # diagnose debug enable ike V=root:0:fct-eapcert:3: received FCT-UID : 4E98BCE511844FA8B161FA5DF047B12C ike V=root:0:fct-eapcert:3: received peer identifier DER_ASN1_DN 'C = CA, ST = BC, L = Burnaby, O = Fortinet, OU = QA, CN = test3' ike V=root:0:fct-eapcert:3: re-validate gw ID ike V=root:0:fct-eapcert:3: gw validation OK ike V=root:0:fct-eapcert:3: responder preparing EAP identity request ike V=root:0:fct-eapcert:3: local cert, subject='test1', issuer='Eternity-CA' ike 0:fct-eapcert:3: enc … ike V=root:0:fct-eapcert:3: responder received EAP msg ike V=root:0:fct-eapcert:3: send EAP message to FNBAM ike V=root:0:fct-eapcert:3: initiating EAP authentication ike V=root:0:fct-eapcert: EAP user "bi_local" ike V=root:0:fct-eapcert: auth group local-group ike V=root:0:fct-eapcert: EAP 1600011502 pending ike V=root:0:fct-eapcert:3 EAP 1600011502 result FNBAM_CHALLENGED ike V=root:0:fct-eapcert: EAP challenged for user "bi_local" ike V=root:0:fct-eapcert:3: responder preparing EAP pass through message
Checking the IPsec VPN tunnel list:
# diagnose vpn tunnel list list all ipsec tunnel in vd 0 … name=fct-eapcert_0 ver=2 serial=5 173.1.1.1:0->10.1.100.111:0 tun_id=3.3.1.1 tun_id6=::10.0.0.4 dst_mtu=1500 dpd-link=on weight=1 bound_if=13 lgwy=static/1 tun=intf mode=dial_inst/3 encap=none/74408 options[122a8]=npu rgwy-chg frag-rfc run_state=0 role=primary accept_traffic=1 overlay_id=0 parent=fct-eapcert index=0 proxyid_num=1 child_num=0 refcnt=5 ilast=0 olast=0 ad=/0 stat: rxp=641 txp=747 rxb=16325 txb=471587 dpd: mode=on-demand on=1 idle=20000ms retry=3 count=0 seqno=0 natt: mode=none draft=0 interval=0 remote_port=0 fec: egress=0 ingress=0 proxyid=fct3459 proto=0 sa=1 ref=6 serial=1 add-route src: 0:0.0.0.0-255.255.255.255:0 dst: 0:3.3.1.1-3.3.1.1:0
The result shows that the tunnel is established even though the client sent an untrusted certificate.
