Configuring IPv4 over IPv6 DS-Lite service

IPv4 over IPv6 DS-Lite service can be configured on a virtual network enabler (VNE) tunnel. In addition, VNE tunnel fixed IP mode supports username and password authentication.

config system vne-tunnel
    set status enable
    set mode {map-e | fixed-ip | ds-lite}
    set ipv4-address <IPv4_address>
    set br <IPv6_address or FQDN>
    set http-username <string>
    set http-password <password>
end

mode {map-e | fixed-ip | ds-lite}	Set the VNE tunnel mode: map-e: MAP-E fixed-ip: fixed IP ds-lite: DS-Lite
ipv4-address <IPv4_address>	Enter the tunnel IPv4 address and netmask. This setting is optional.
br <IPv6_address or FQDN>	Enter the IPv6 or FQDN of the border relay.
http-username <string>	Enter the HTTP authentication user name.
http-password <password>	Enter the HTTP authentication password.

DS-Lite allows applications using IPv4 to access the internet with IPv6. DS-Lite is supported by internet providers that do not have enough public IPv4 addresses for their customers, so DS-Lite is used for IPv6 internet connections. When a DS-Lite internet connections is used, the FortiGate encapsulates all data from IPv4 applications into IPv6 packets. The packets are then transmitted to the internet service provider using the IPv6 connection. Next, a dedicated server unpacks the IPv6 packets and forwards the IPv4 data to the actual destination on the internet.

DS-Lite example

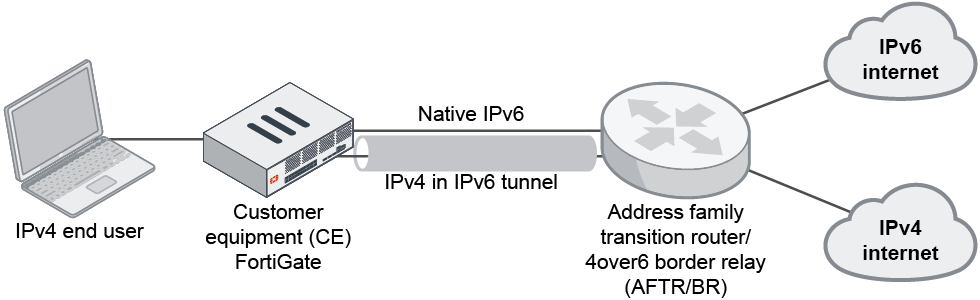

In this example, DS-Lite VNE tunnel mode is used between the FortiGate and the BR.

To configure a DS-Lite tunnel between the FortiGate and the BR:

1. Configure the IPv6 interface:

   config system interface
       edit "wan1"
           set vdom "root"
           set mode dhcp
           set allowaccess ping fgfm
           set type physical
           set role wan
           set snmp-index 1
           config ipv6
               set ip6-allowaccess ping
               set dhcp6-information-request enable
               set autoconf enable
               set unique-autoconf-addr enable
           end
       next
   end

2. Configure the VNE tunnel:

   config system vne-tunnel
       set status enable
       set interface "wan1"
       set ssl-certificate "Fortinet_Factory"
       set auto-asic-offload enable
       set ipv4-address 192.168.1.99 255.255.255.255
       set br "dgw.xxxxx.jp"
       set mode ds-lite
   end

3. View the wan1 IPv6 configuration details:

   config system interface
       edit "wan1"
           config ipv6
               get
                   ip6-mode            : static
                   nd-mode             : basic
                   ip6-address         : 2001:f70:2880:xxxx:xxxx:xxxx:fe39:ccd2/64
                   ip6-allowaccess     : ping
                   icmp6-send-redirect : enable
                   ra-send-mtu         : enable
                   ip6-reachable-time  : 0
                   ip6-retrans-time    : 0
                   ip6-hop-limit       : 0
                   dhcp6-information-request: enable
                   cli-conn6-status    : 1
                   vrrp-virtual-mac6   : disable
                   vrip6_link_local    : ::
                   ip6-dns-server-override: enable
                   Acquired DNS1       : 2001:f70:2880:xxxx:xxxx:xxxx:fe40:9082
                   Acquired DNS2       : ::
                   ip6-extra-addr:
                   ip6-send-adv        : disable
                   autoconf            : enable
                   prefix      : 2001:f70:2880:xxxx::/64
                   preferred-life-time         : 942735360
                   valid-life-time     : 1077411840
                   unique-autoconf-addr: enable
                   interface-identifier: ::
                   dhcp6-relay-service : disable
           end
       next
   end

4. Verify the IPv6 address list:

   # diagnose ipv6 address list
   dev=5 devname=wan1 flag= scope=0 prefix=64 addr=2001:f70:2880:xxxx:xxxx:xxxx:fe39:ccd2 preferred=11525 valid=13325 cstamp=6520 tstamp=6892
   dev=5 devname=wan1 flag=P scope=253 prefix=64 addr=fe80::xxxx:xxxx:fe39:ccd2 preferred=4294967295 valid=4294967295 cstamp=6373 tstamp=6373
   dev=18 devname=root flag=P scope=254 prefix=128 addr=::1 preferred=4294967295 valid=4294967295 cstamp=3531 tstamp=3531
   dev=25 devname=vsys_ha flag=P scope=254 prefix=128 addr=::1 preferred=4294967295 valid=4294967295 cstamp=5604 tstamp=5604
   dev=27 devname=vsys_fgfm flag=P scope=254 prefix=128 addr=::1 preferred=4294967295 valid=4294967295 cstamp=6377 tstamp=6377

5. Test the tunnel connection by pinging the Google public DNS IPv6 address:

   # execute ping6 2001:4860:4860::8888
   PING 2001:4860:4860::8888(2001:4860:4860::8888) 56 data bytes
   64 bytes from 2001:4860:4860::8888: icmp_seq=1 ttl=114 time=6.89 ms
   64 bytes from 2001:4860:4860::8888: icmp_seq=2 ttl=114 time=3.39 ms
   64 bytes from 2001:4860:4860::8888: icmp_seq=3 ttl=114 time=3.46 ms
   64 bytes from 2001:4860:4860::8888: icmp_seq=4 ttl=114 time=3.34 ms
   64 bytes from 2001:4860:4860::8888: icmp_seq=5 ttl=114 time=3.39 ms
   --- 2001:4860:4860::8888 ping statistics ---
   5 packets transmitted, 5 packets received, 0% packet loss, time 4079ms
   rtt min/avg/max/mdev = 3.340/4.097/6.895/1.400 ms

Fixed IP mode example

In this example, fixed IP VNE tunnel mode with HTTP authentication is used between the FortiGate and the BR.

To configure a fixed IP mode with HTTP authentication between the FortiGate and the BR:

1. Configure the IPv6 interface:

   config system interface
       edit "wan1"
           set vdom "root"
           set mode dhcp
           set allowaccess ping fgfm
           set type physical
           set role wan
           set snmp-index 1
           config ipv6
               set ip6-allowaccess ping
               set dhcp6-information-request enable
               set autoconf enable
           end
       next
   end

2. Configure the VNE tunnel:

   config system vne-tunnel
       set status enable
       set interface "wan1"
       set ipv4-address 120.51.xxx.xxx1 255.255.255.255
       set br "2001:f60:xxxx:xxxx::1"
       set update-url "https://ddnsweb1.ddns.xxxxxx.jp/cgi-bin/ddns_api.cgi?d=xxxxxx.v4v6.xxxxx.jp&p=**********&a=[IP6]&u=xxxxxx.v4v6.xxxxx.jp"
       set mode fixed-ip
       set http-username "laptop-1"
       set http-password **********
   end

3. Verify the wan1 IPv6 configuration details:

   config system interface
       edit "wan1"
           config ipv6
               get
                   ....

4. Verify the VNE daemon:

   # diagnose test application vned 1
   ----------------------------------------------------------------------------
   vdom: root/0, is master, devname=wan1 link=0 tun=vne.root mode=fixed-ip ssl_cert=Fortinet_Factory
   end user ipv6 perfix: 2001:f70:2880:xxxx::/64
   interface ipv6 addr: 2001:f70:2880:xxxx:xxxx:xxxx:fe39:ccd2
   config ipv4 perfix: 120.51.xxx.xxx1/255.255.255.255
   config br: 2001:f60:xxxx:xxxx::1
   HTTP username: laptop-1
   update url: https://ddnsweb1.ddns.xxxxxx.jp/cgi-bin/ddns_api.cgi?d=xxxxxx.v4v6.xxxxx.jp&p=**********&a=[IP6]&u=xxxxxx.v4v6.xxxxx.jp
   host: ddnsweb1.ddns.xxxxxx.jp path: /cgi-bin/ddns_api.cgi?d=xxxxxx.v4v6.xxxxx.jp&p=**********&a=[IP6]&u=xxxxxx.v4v6.xxxxx.jp port:443 ssl: 1
   tunnel br: 2001:f60:xxxx:xxxx::1
   tunnel ipv6 addr: 2001:f70:2880:xxxx:xxxx:xxxx:fe39:ccd2
   tunnel ipv4 addr: 120.51.xxx.xxx1/255.255.255.255
   update result: <H1>DDNS API</H1><HR><H2>* Query parameter check : OK</H2>FQDN=xxxxxx.v4v6.xxxxx.jp<BR>Password=**********<BR>IPv6=2001:f70:2880:xxxx:xxxx:xxxx:fe39:ccd2<BR>UID=xxxxxx.v4v6.xxxxx.jp<BR>Address=2001:f70:2880:xxxx:xxxx:xxxx:fe39:ccd2<BR><H2>* routerinfo check : OK</H2><H2>* records check : OK</H2><H2>* routerinfo update : OK</H2><H2>* records update : OK</H2><H2>* DDNS API update : Success [2022-01-18 18:37:58 1642498678]</H2>
   Fixed IP rule client: state=succeed retries=0 interval=0 expiry=0 reply_code=0
   fqdn=2001:f60:xxxx:xxxx::1 num=1 cur=0 ttl=4294967295 expiry=0
   2001:f60:xxxx:xxxx::1
   Fixed IP DDNS client: state=succeed retries=0 interval=10 expiry=0 reply_code=200
   fqdn=ddnsweb1.ddns.xxxxxx.jp num=1 cur=0 ttl=6 expiry=0
   2001:f61:0:2a::18

5. Test the tunnel connection by pinging the Google public DNS IPv4 and IPv6 addresses:

   # execute ping 8.8.8.8
   PING 8.8.8.8 (8.8.8.8): 56 data bytes
   64 bytes from 8.8.8.8: icmp_seq=0 ttl=119 time=3.7 ms
   64 bytes from 8.8.8.8: icmp_seq=1 ttl=119 time=3.6 ms
   64 bytes from 8.8.8.8: icmp_seq=2 ttl=119 time=3.6 ms
   64 bytes from 8.8.8.8: icmp_seq=3 ttl=119 time=3.6 ms
   64 bytes from 8.8.8.8: icmp_seq=4 ttl=119 time=3.5 ms
   --- 8.8.8.8 ping statistics ---
   5 packets transmitted, 5 packets received, 0% packet loss
   round-trip min/avg/max = 3.5/3.6/3.7 ms


   # execute ping6 2001:4860:4860::8888
   PING 2001:4860:4860::8888(2001:4860:4860::8888) 56 data bytes
   64 bytes from 2001:4860:4860::8888: icmp_seq=1 ttl=114 time=6.99 ms
   64 bytes from 2001:4860:4860::8888: icmp_seq=2 ttl=114 time=3.61 ms
   64 bytes from 2001:4860:4860::8888: icmp_seq=3 ttl=114 time=3.34 ms
   64 bytes from 2001:4860:4860::8888: icmp_seq=4 ttl=114 time=3.27 ms
   64 bytes from 2001:4860:4860::8888: icmp_seq=5 ttl=114 time=3.75 ms
   --- 2001:4860:4860::8888 ping statistics ---
   5 packets transmitted, 5 packets received, 0% packet loss, time 4039ms
   rtt min/avg/max/mdev = 3.276/4.195/6.992/1.409 ms
