Configuring FortiAnalyzer Cloud service

FortiAnalyzer Cloud differs from FortiAnalyzer in the following ways:

• You cannot enable FortiAnalyzer Cloud in vdom override-setting when global FortiAnalyzer Cloud is disabled.
• You must use the CLI to retrieve and display logs sent to FortiAnalyzer Cloud. The FortiOS GUI is not supported.
• You cannot enable FortiAnalyzer Cloud and FortiGate Cloud at the same time.

For more information, see Licensing in the FortiAnalyzer Cloud Deployment Guide.

In the Security Fabric > Fabric Connectors > Cloud Logging card settings, FortiAnalyzer Cloud is grayed out when you do not have a FortiAnalyzer Cloud entitlement. When you have a FortiAnalyzer Cloud entitlement, FortiAnalyzer Cloud is available and you can authenticate by the certificate.

You can also view the FortiAnalyzer Cloud settings in the Log & Report > Log Settings page.

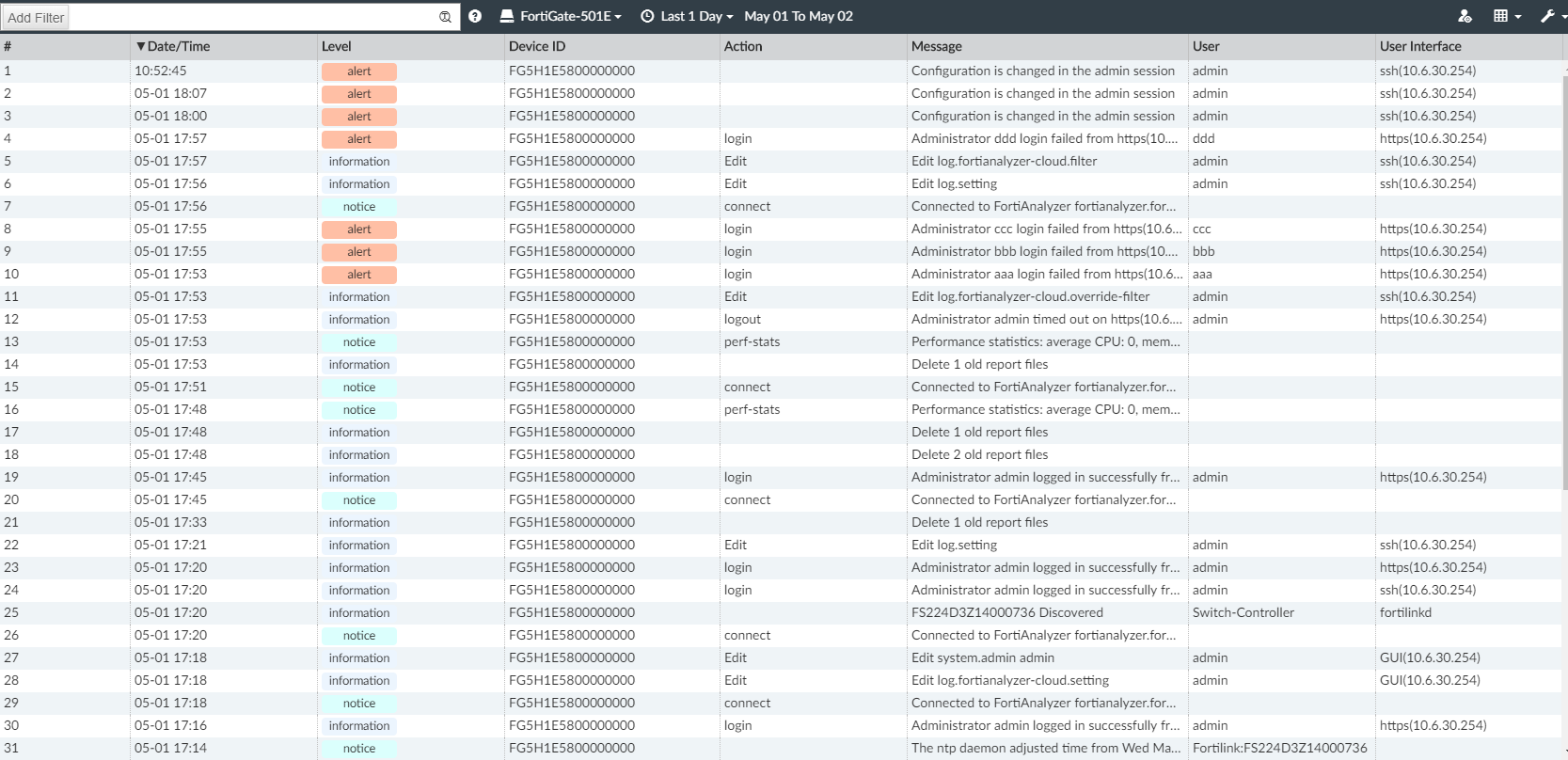

In FortiAnalyzer Cloud, you can view logs from FortiOS in the Event > All Types page.

To configure FortiAnalyzer Cloud logging in the GUI:

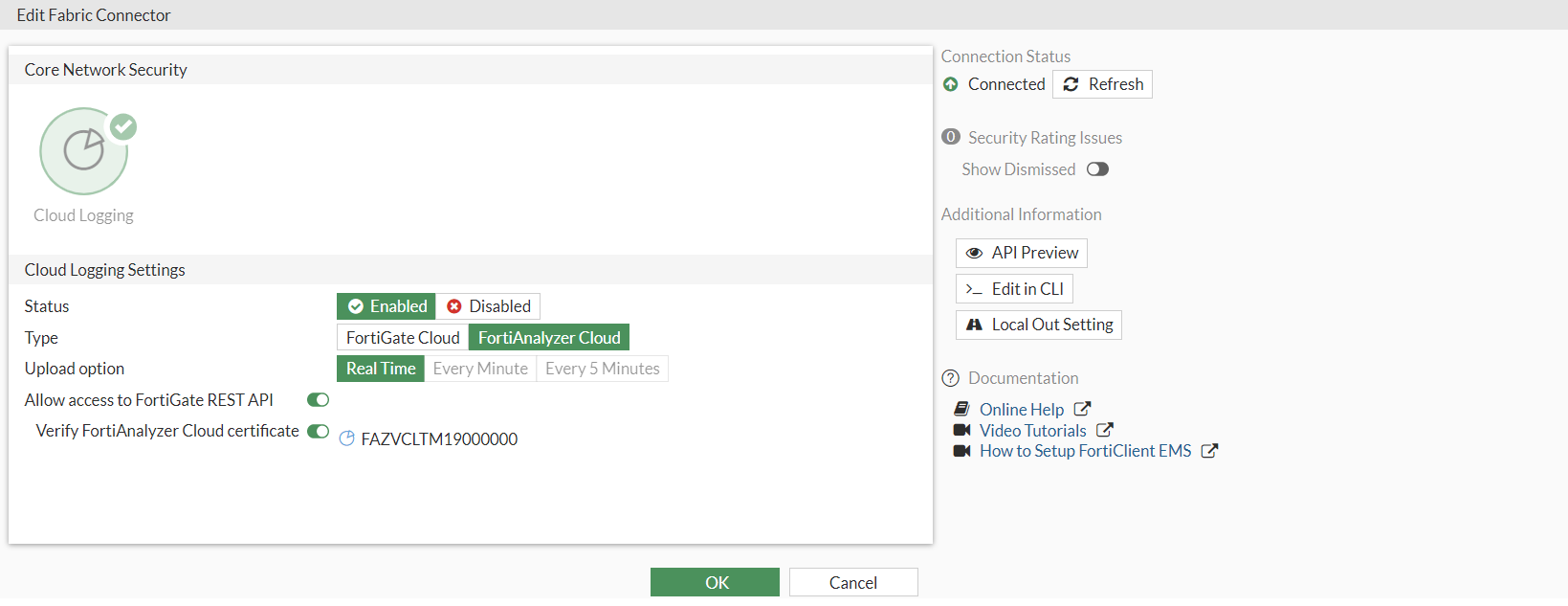

1. Go to Security Fabric > Fabric Connectors and double-click the Cloud Logging card.
2. Set the Type to FortiAnalyzer Cloud.

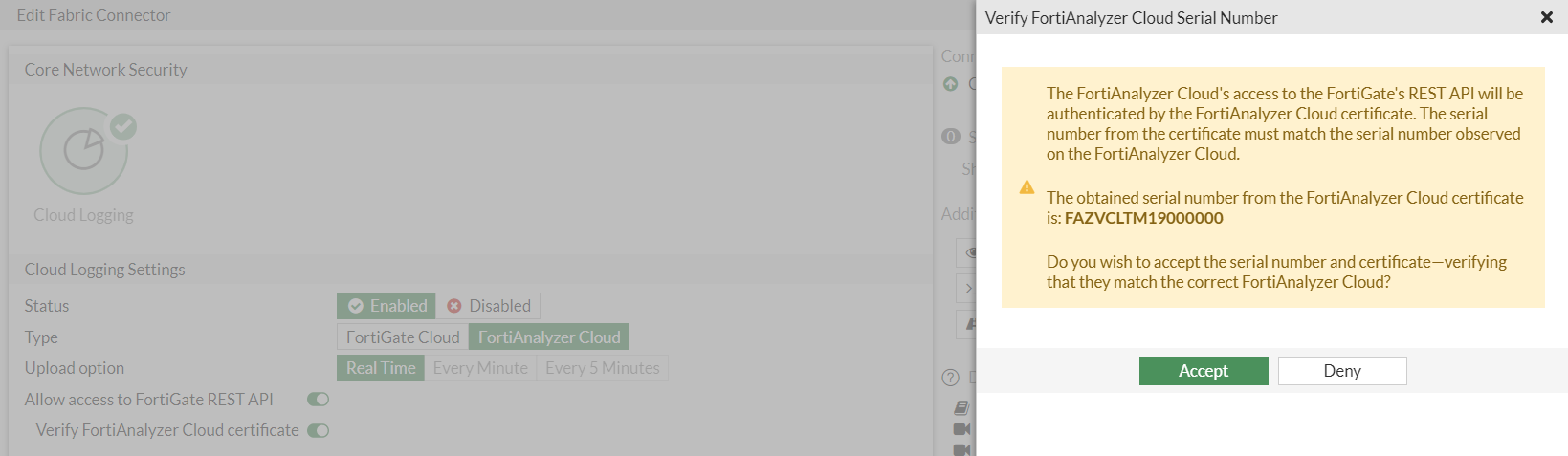

3. Click OK. A prompt appears to verify the FortiAnalyzer Cloud serial number.



4. Click Accept.
5. The verified FortiAnalyzer Cloud certificate appears in the settings.



To enable FortiAnalyzer Cloud logging in the CLI:

1. Configure the FortiAnalyzer Cloud settings:

   config log fortianalyzer-cloud setting
       set status enable
       set ips-archive disable
       set certificate-verification enable
       set serial "FAZVCLTM19000000"
       set access-config enable
       set enc-algorithm high
       set ssl-min-proto-version default
       set conn-timeout 10
       set monitor-keepalive-period 5
       set monitor-failure-retry-period 5
       set upload-option realtime
   end

2. Configure the FortiAnalyzer Cloud filters:

   config log fortianalyzer-cloud filter
       set severity information
       set forward-traffic disable
       set local-traffic disable
       set multicast-traffic disable
       set sniffer-traffic disable
       set anomaly disable
       set voip disable
       set dlp-archive disable
   end

To disable FortiAnalyzer Cloud logging for a specific VDOM in the CLI:

1. Enable override FortiAnalyzer in the general log settings:

   config log setting
       set faz-override enable
   end

2. Disable the override FortiAnalyzer Cloud setting:

   config log fortianalyzer-cloud override-setting
       set status disable
   end

To set FortiAnalyzer Cloud logging to filter for a specific VDOM in the CLI:

1. Enable override FortiAnalyzer in the general log settings:

   config log setting
       set faz-override enable
   end

2. Enable the override FortiAnalyzer Cloud setting:

   config log fortianalyzer-cloud override-setting
       set status enable
   end

3. Configure the override filters for FortiAnalyzer Cloud:

   config log fortianalyzer-cloud override-filter
       set severity information
       set forward-traffic disable
       set local-traffic disable
       set multicast-traffic disable
       set sniffer-traffic disable
       set anomaly disable
       set voip disable
       set dlp-archive disable
   end

To display FortiAnalyzer Cloud logs in the CLI:

# ​​​​​​​execute log filter device fortianalyzer-cloud
# execute log filter category event
# execute log display​​​​​​​

Sample log

date=2019-05-01 time=17:57:45 idseq=60796052214644736 bid=100926 dvid=1027 itime="2019-05-01 17:57:48" euid=3 epid=3 dsteuid=0 dstepid=3 logver=602000890 logid=0100032002 type="event" subtype="system" level="alert" srcip=10.6.30.254 dstip=10.6.30.9 action="login" msg="Administrator ddd login failed from https(10.6.30.254) because of invalid user name" logdesc="Admin login failed" sn="0" user="ddd" ui="https(10.6.30.254)" status="failed" reason="name_invalid" method="https" eventtime=1556758666274548325 devid="FG5H1E5818900000" vd="root" dtime="2019-05-01 17:57:45" itime_t=1556758668 devname="FortiGate-501E"

date=2019-05-01 time=17:57:21 idseq=60796052214644736 bid=100926 dvid=1027 itime="2019-05-01 17:57:23" euid=3 epid=3 dsteuid=0 dstepid=3 logver=602000890 logid=0100044546 type="event" subtype="system" level="information" action="Edit" msg="Edit log.fortianalyzer-cloud.filter " logdesc="Attribute configured" user="admin" ui="ssh(10.6.30.254)" cfgtid=164757536 cfgpath="log.fortianalyzer-cloud.filter" cfgattr="severity[information->critical]" eventtime=1556758642413367644 devid="FG5H1E5818900000" vd="root" dtime="2019-05-01 17:57:21" itime_t=1556758643 devname="FortiGate-501E"
