Inspecting HTTP3 traffic

HTTP/3 traffic can be inspected on the FortiGate in flow mode inspection.

When using Chrome, the browser may switch the HTTP/3 connection to HTTP/2 when deep inspection is applied, due to its sensitivity to delays caused by deep inspection.

Example

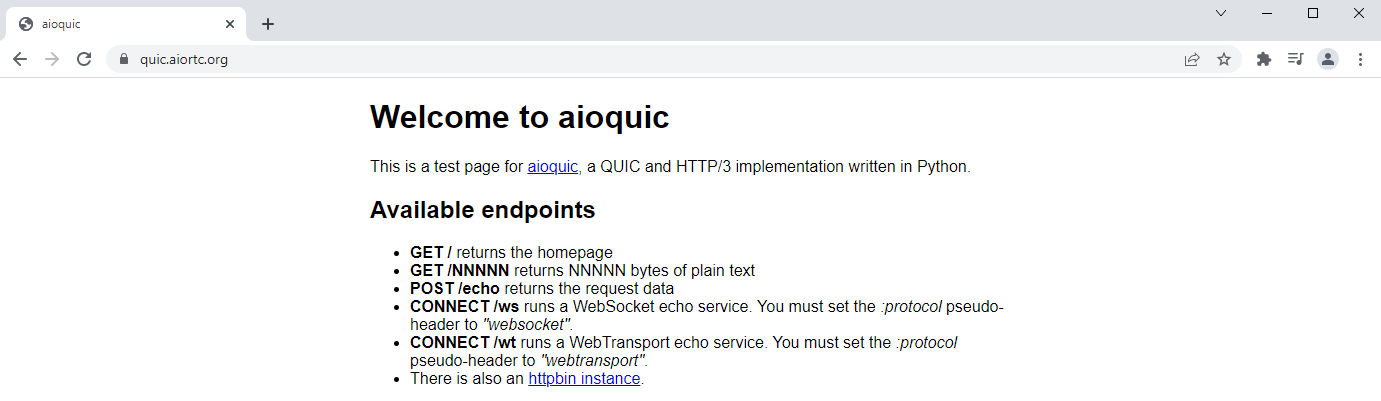

In this example, a web filter profile is created to block the words Welcome to aioquic, which appear in a website that uses HTTP/3.

To block content in HTTP/3 traffic:

1. Configure the web filter banned word table:

   config webfilter content
       edit 1
           set name "aioquic"
           config entries
               edit "Welcome to aioquic"
                   set status enable
               next
           end
       next
   end

2. Apply the banned word table in the web filter profile:

   config webfilter profile
       edit "flow-webfilter"
           config web
               set bword-table 1
           end
           config ftgd-wf
               unset options
           end
       next
   end

3. Configure the firewall policy:

   config firewall policy
       edit 1
           set utm-status enable
           set ssl-ssh-profile "deep-inspection"
           set webfilter-profile "flow-webfilter"
           set logtraffic all
           set nat enable
       next
   end

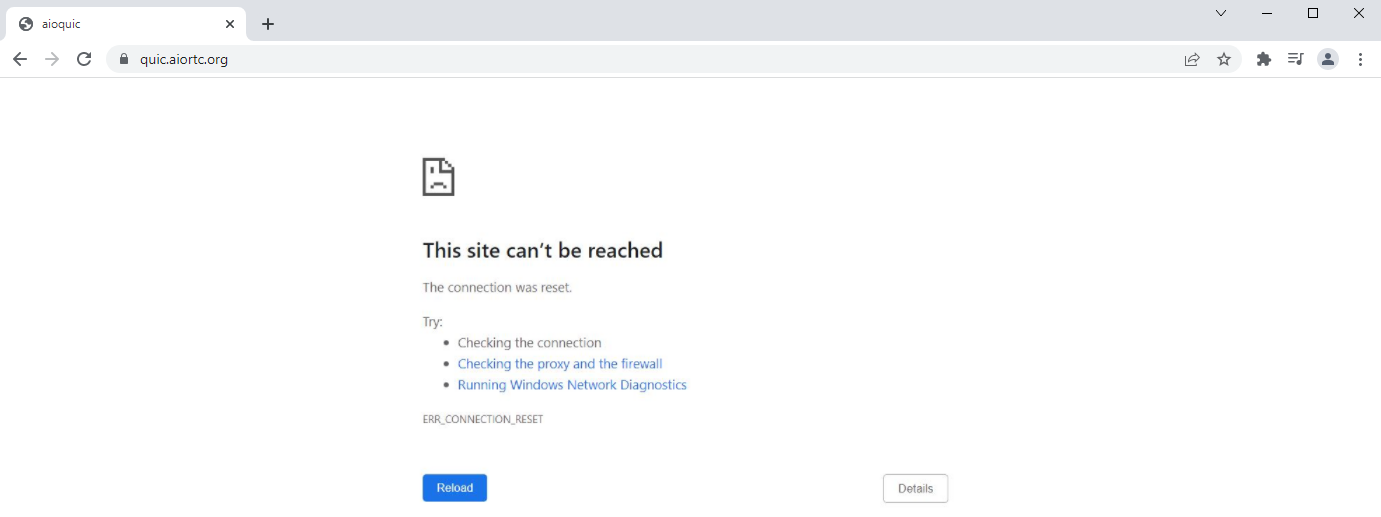

4. Access the website using a supported HTTP/3 client, such as Chrome or Firefox. The website is blocked by the FortiGate.
