FortiAP device list

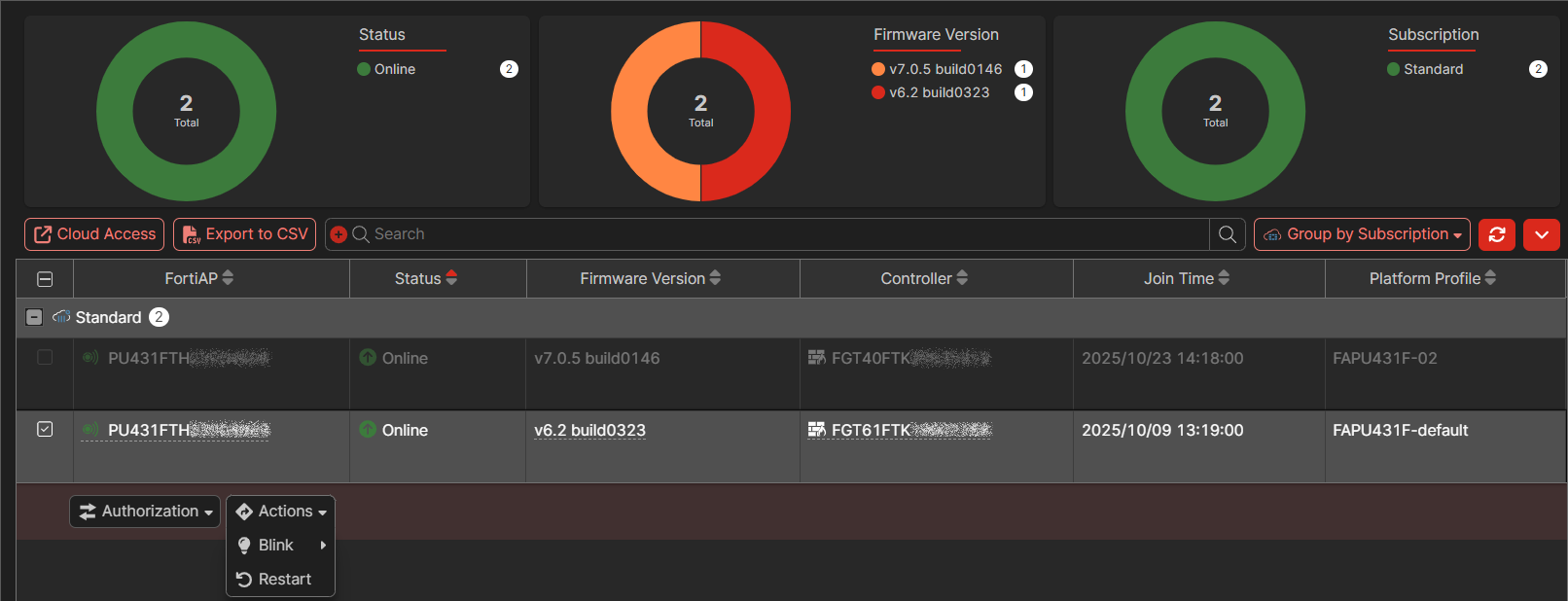

On the Devices and Provisioning > Device List > FortiAP page, you can see FortiAP devices managed by FortiGates.

Charts at the top of the page display:

Chart	Description
Status	Displays the total number of FortiAPs and how many devices have a status of Online. Click the chart to filter the page. Click the Filter icon beside Status to remove the filter.
Firmware Version	Displays the total number of FortiAPs and how many devices are running each firmware version. Click the chart to filter the page. Click the Filter icon beside Firmware Version to remove the filter.
Subscription	Displays the FortiGate Cloud subscription status of the FortiGate managing the FortiAP. Click the chart to filter the page. Click the Filter icon beside Subscription to remove the filter.

Chart

Description

Status

Displays the total number of FortiAPs and how many devices have a status of Online.

Click the chart to filter the page. Click the Filter icon beside Status to remove the filter.

Firmware Version

Displays the total number of FortiAPs and how many devices are running each firmware version.

Click the chart to filter the page. Click the Filter icon beside Firmware Version to remove the filter.

Subscription

Displays the FortiGate Cloud subscription status of the FortiGate managing the FortiAP.

Click the chart to filter the page. Click the Filter icon beside Subscription to remove the filter.

Below the charts, you can access the following buttons:

Button	Description
Cloud Access	Select a FortiAP, and click Cloud Access to access the FortiGate that is managing the FortiAP.
Export to CSV	Click the Export to CSV to export the Devices and Provisioning > Device List > FortiAP page to a CSV file.
Group by	Select how to group the list of displayed devices: Group by Controller No Grouping

Button

Description

Cloud Access

Select a FortiAP, and click Cloud Access to access the FortiGate that is managing the FortiAP.

Export to CSV

Click the Export to CSV to export the Devices and Provisioning > Device List > FortiAP page to a CSV file.

Group by

Select how to group the list of displayed devices:

Group by Controller
No Grouping

The table displays the following information about each FortiAP:

Column	Description
FortiAP	Displays the name and serial number. Hover the mouse over a column heading to display: Configure Table icon: Click to choose which columns to display in the table. Filter icon: Click to access filter options for the column. May not be available for all columns.
Status	Displays whether the FortiAP is online.
Firmware Version	Displays the firmware version and build number running on the FortiAP.
Controller	Indicates that the FortiAP belongs to a Fortinet Security Fabric by displaying a FortiGate serial number.
Platform Profile	Displays the name of the configuration profile assigned to the FortiAP.

Select a FortiAP to display and access the following options:

Option	Description
Authorize	Select a FortiAP to display and access the following buttons to authorize, reject, or deauthorize the selected FortiAP. See Authorizing managed devices.
Actions	Access the following options: Blink: Select to start or stop blinking on the FortiAP for a specified period of time. Restart: Select to restart the selected FortiAP.

Option

Description

Authorize

Select a FortiAP to display and access the following buttons to authorize, reject, or deauthorize the selected FortiAP. See Authorizing managed devices.

Actions

Access the following options:

Blink: Select to start or stop blinking on the FortiAP for a specified period of time.
Restart: Select to restart the selected FortiAP.

FortiAP device list

On the Devices and Provisioning > Device List > FortiAP page, you can see FortiAP devices managed by FortiGates.

Charts at the top of the page display:

Chart	Description
Status	Displays the total number of FortiAPs and how many devices have a status of Online. Click the chart to filter the page. Click the Filter icon beside Status to remove the filter.
Firmware Version	Displays the total number of FortiAPs and how many devices are running each firmware version. Click the chart to filter the page. Click the Filter icon beside Firmware Version to remove the filter.
Subscription	Displays the FortiGate Cloud subscription status of the FortiGate managing the FortiAP. Click the chart to filter the page. Click the Filter icon beside Subscription to remove the filter.

Chart

Description

Status

Displays the total number of FortiAPs and how many devices have a status of Online.

Click the chart to filter the page. Click the Filter icon beside Status to remove the filter.

Firmware Version

Displays the total number of FortiAPs and how many devices are running each firmware version.

Click the chart to filter the page. Click the Filter icon beside Firmware Version to remove the filter.

Subscription

Displays the FortiGate Cloud subscription status of the FortiGate managing the FortiAP.

Click the chart to filter the page. Click the Filter icon beside Subscription to remove the filter.

Below the charts, you can access the following buttons:

Button	Description
Cloud Access	Select a FortiAP, and click Cloud Access to access the FortiGate that is managing the FortiAP.
Export to CSV	Click the Export to CSV to export the Devices and Provisioning > Device List > FortiAP page to a CSV file.
Group by	Select how to group the list of displayed devices: Group by Controller No Grouping

Button

Description

Cloud Access

Select a FortiAP, and click Cloud Access to access the FortiGate that is managing the FortiAP.

Export to CSV

Click the Export to CSV to export the Devices and Provisioning > Device List > FortiAP page to a CSV file.

Group by

Select how to group the list of displayed devices:

Group by Controller
No Grouping

The table displays the following information about each FortiAP:

Column	Description
FortiAP	Displays the name and serial number. Hover the mouse over a column heading to display: Configure Table icon: Click to choose which columns to display in the table. Filter icon: Click to access filter options for the column. May not be available for all columns.
Status	Displays whether the FortiAP is online.
Firmware Version	Displays the firmware version and build number running on the FortiAP.
Controller	Indicates that the FortiAP belongs to a Fortinet Security Fabric by displaying a FortiGate serial number.
Platform Profile	Displays the name of the configuration profile assigned to the FortiAP.

Select a FortiAP to display and access the following options:

Option	Description
Authorize	Select a FortiAP to display and access the following buttons to authorize, reject, or deauthorize the selected FortiAP. See Authorizing managed devices.
Actions	Access the following options: Blink: Select to start or stop blinking on the FortiAP for a specified period of time. Restart: Select to restart the selected FortiAP.

Option

Description

Authorize

Select a FortiAP to display and access the following buttons to authorize, reject, or deauthorize the selected FortiAP. See Authorizing managed devices.

Actions

Access the following options:

Blink: Select to start or stop blinking on the FortiAP for a specified period of time.
Restart: Select to restart the selected FortiAP.
