Cloud provisioning

Cloud provisioning is the mechanism to connect a FortiGate to FortiGate Cloud and configure it for cloud management and logging. You can provision a FortiGate to FortiGate Cloud using one of the following methods:

• FortiCloud key
• FortiCloud inventory
• FortiOS GUI

After provisioning a FortiGate to FortiGate Cloud using one of the methods described, complete basic configuration by doing the following:

1. Create a firewall policy with logging enabled. Configure log uploading if necessary.
2. Log in to FortiGate Cloud using your FortiCloud account.

To provision a FortiGate/FortiWifi to FortiGate Cloud using the FortiCloud key:

1. Log in to FortiGate Cloud.
2. Go to Devices and Provisioning > Device List > FortiGate, then click Add FortiGate.
3. Click Import FortiGate.
4. In the FortiCloud or FortiDeploy key field, enter your key value.
5. For End user type, select A non-government user or A government user as required.
6. From the Partner dropdown list, select the affiliated Fortinet partner.
7. To provision your FortiGate to FortiGate Cloud after import, enable Provision after import.
8. If desired, you can associate a script with the provisioning. The selected script is executed automatically once the FortiGate establishes a management tunnel with its management server. This feature is limited to FortiGates that have an active FortiGate Cloud subscription. If the script depends on a specific FortiOS version, you must specify the target FortiOS version to ensure compatibility. From the Pre-run Script dropdown list, select the desired script. CLI scripts configured in CLI scripts are available for selection. The Description and CLI Scripts fields populate according to the selected script. If needed, from the Enforce Firmware dropdown list, select the desired FortiOS version.
9. Click OK.

After the device is successfully provisioned, the device key becomes invalid. You can only use the key once to provision a device.

To provision a FortiGate or FortiWifi to FortiGate Cloud using the inventory:

1. Log in to the FortiGate Cloud.
2. Go to Devices and Provisioning > Device List > FortiGate, then click Add FortiGate.
3. Select the desired device from the displayed inventory. This displays all assets from the logged-in FortiCloud account. Click Provision > Provision to FortiGate Cloud.
4. From the Select Display Timezone for Device dropdown list, select the desired time zone.
5. Click Submit.

To provision a FortiGate or FortiWifi to FortiGate Cloud in the FortiOS GUI:

1. In the FortiCloud portal, ensure that you have a product entitlement for FortiGate Cloud for the desired FortiGate or FortiWifi.
2. In FortiOS, in the Dashboard, in the FortiGate Cloud widget, the Status displays as Not Activated. Click Not Activated.
3. Click the Activate button.

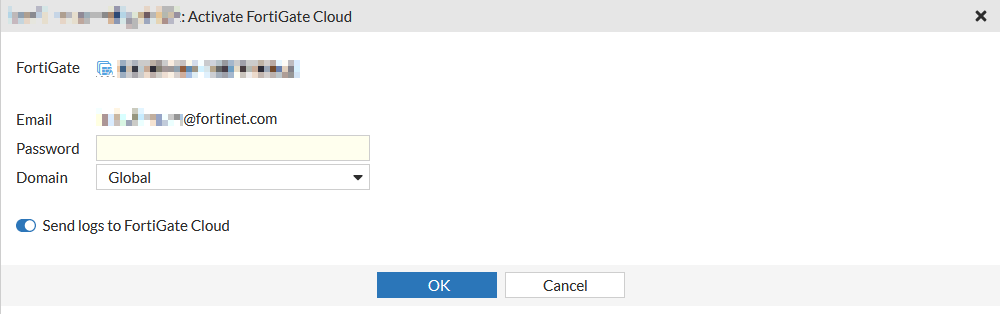

4. In the Activate FortiGate Cloud panel, the Email field is already populated with the FortiCloud account that this FortiGate is registered to.
5. In the Password field, enter the password associated with the FortiCloud account.
6. Enable Send logs to FortiGate Cloud. Click OK.



7. This should have automatically enabled Cloud Logging. Ensure that Cloud Logging was enabled. If it was not enabled, go to Security Fabric > Fabric Connectors > Cloud Logging, enable it, then set Type to FortiGate Cloud.
8. You must set the central management setting to FortiCloud, as this is the initial requirement for enabling device management features.

To configure a FortiGate-VM for FortiGate Cloud:

FortiGate-VMs require additional configuration to ensure that they function with FortiGate Cloud. Run the following commands in the FortiOS CLI:

config system fortiguard

unset update-server-location

end
