Configure EDM for data loss prevention NEW

In this example, an exact data match (EDM) template named Customer SSN EDM is created for a data threat feed file in a CSV file (testEDM.csv) located on an external server. The data threat feed file contains data for use with the following pre-defined DLP data types:

• credit-card

• edm-keyword

• mip-label

• ssn-us

The EDM template is used to identify the URL location of the data threat feed file and what column index in the file contains data (or patterns) for the specific DLP data types that you want to match. In this example, the EDM template specifies:

• Column index 1 in the external data threat feed file contains patterns for the g-ssn-us data type.

• Column index 3 and 9 contain patterns for the g-edm-keyword data type.

• The patterns from column index 1 must match for FortiProxy to take an action.

• The pattern from either column index 3 or 9 must match for FortiProxy to take an action.

The patterns in the data file must be valid. If the patterns are invalid, FortiProxy cannot use them, and no warning is displayed.

To configure EDM for DLP in the GUI:

1. Ensure that Data Loss Prevention is enabled.

   1. Go to System > Feature Visibility.

   2. Under Security Features, enable Data Loss Prevention, and click Apply.

2. Create an EDM template with matching criteria:

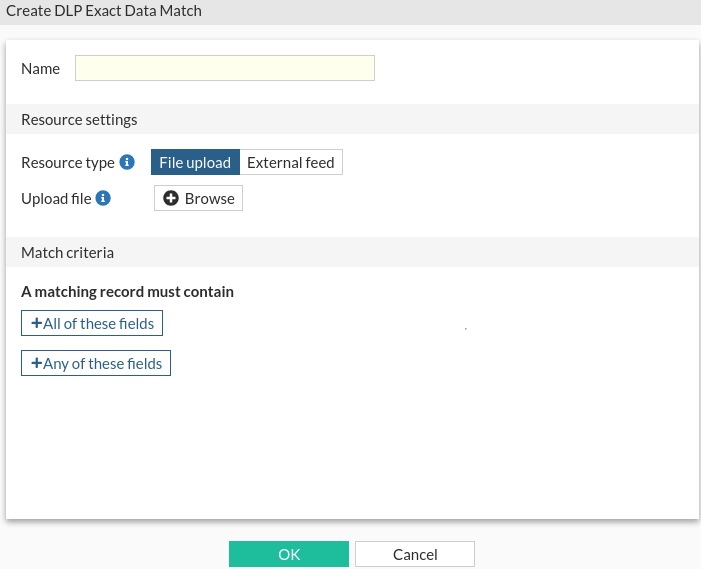

   1. Go to Security Profiles > Data Loss Prevention > EDM Templates, and click Create New.



   2. Specify a name for the template, such as Customer SSN EDM.

   3. Set Resource type to External feed, and set External feed URL to the location of the file on the external server.

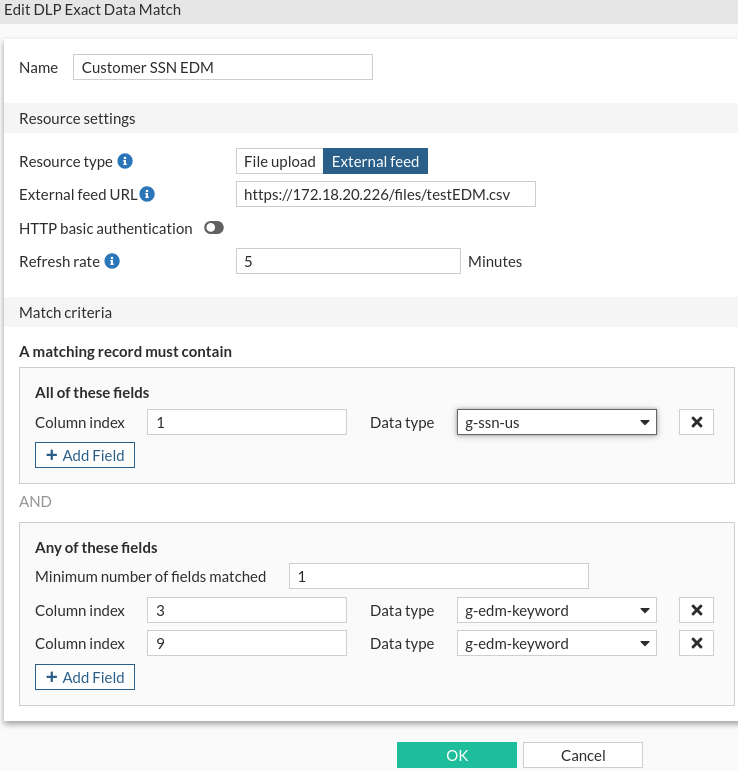

   4. Click +All of these fields to pair the column index of patterns with a DLP data type. All of the specified data in this section must match for FortiProxy to take an action.

      In this example, column 1 in the external resource file contains the patterns for the g-ssn-us data type.

   5. Click +Any of these fields to pair the column index of patterns with a DLP data type, and to specify how many of these pairs must match for FortiProxy to take an action.

      In this example, columns 3 and 9 in the external resource file contains the patterns for the g-edm-keyword data type. Only one pattern from the two columns must match.



   6. Click OK.

3. Configure a DLP sensor for the EDM template.

   1. In Security Profiles > Data Loss Prevention, click Sensors > Create New.

   2. Specify a name for the DLP sensor.

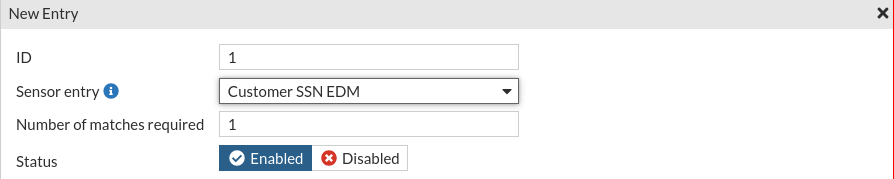

   3. Click Create New. The New Entry pane is displayed.

   4. From the Sensor entry list, select the EDM template, and click OK.



      The New DLP Sensor pane is displayed

   5. Click OK.
4. Create a DLP profile and select the DLP sensor for the EDM template.

   1. In Security Profiles > Data Loss Prevention, click Profiles > Create New.

   2. Specify a name for the DLP profile.

   3. Click Create New. The New Rule pane is displayed.

   4. Specify a name for the rule.

   5. Set Data source type to Sensor, and select the DLP sensor that uses the EDM template.

   6. Set Action.

   7. Set Match type to File, and set File type to builtin-patterns.

   8. Select one or more protocols.

   9. Click OK. The New DLP Profile pane is displayed.
   10. Click OK to save the profile.

To configure EDM for DLP in the CLI:

1. Add the URL for the data threat feed file to FortiProxy.

   In this example, an external resource named customer data EDM is created, and it defines the location of the data threat feed file in CSV format on an external server.

   config system external-resource
       edit "customer data EDM"
           set uuid 3cadb9be-f639-51ee-df8d-ea94d069c9cf
           set type data
           set resource "https://172.18.20.226/files/testEDM.csv"
           end
       next
   end

2. Configure the EDM template.

   In this example, an exact data-match template named Customer SSN EDM is created for the external resource named customer data EDM. The matching record must contain the pattern for the data type from column index 1 (g-ssn-us) and at least one pattern for the data type from column index 3 (g-edm-keyword) or 9 (g-edm-keyword).

   config dlp exact-data-match
       edit "Customer SSN EDM"
           set optional 1
           set data "customer data EDM"
           config columns
               edit 1
                   set type "g-ssn-us"
               next
               edit 3
                   set type "g-edm-keyword"
                   set optional enable
               next
               edit 9
                   set type "g-edm-keyword"
                   set optional enable
               next
           end
       next
   end

3. Add the EDM template to a DLP sensor.

   config dlp sensor
       edit <name>
           config entries
               edit <id>
                   set dictionary Customer SSN EDM
               next
           end
       next
   end

4. Configure a DLP profile to use the DLP sensor.

   config dlp profile
       edit <name>
           config rule
               edit <id>
                   set name <name>
                   set proto <protocol> <protocol> ...
                   set filter-by sensor
                   set sensor Customer SSN EDM
                   set action {allow | log-only | block | quarantine-ip}
               next
           end
       next
   end

To verify:

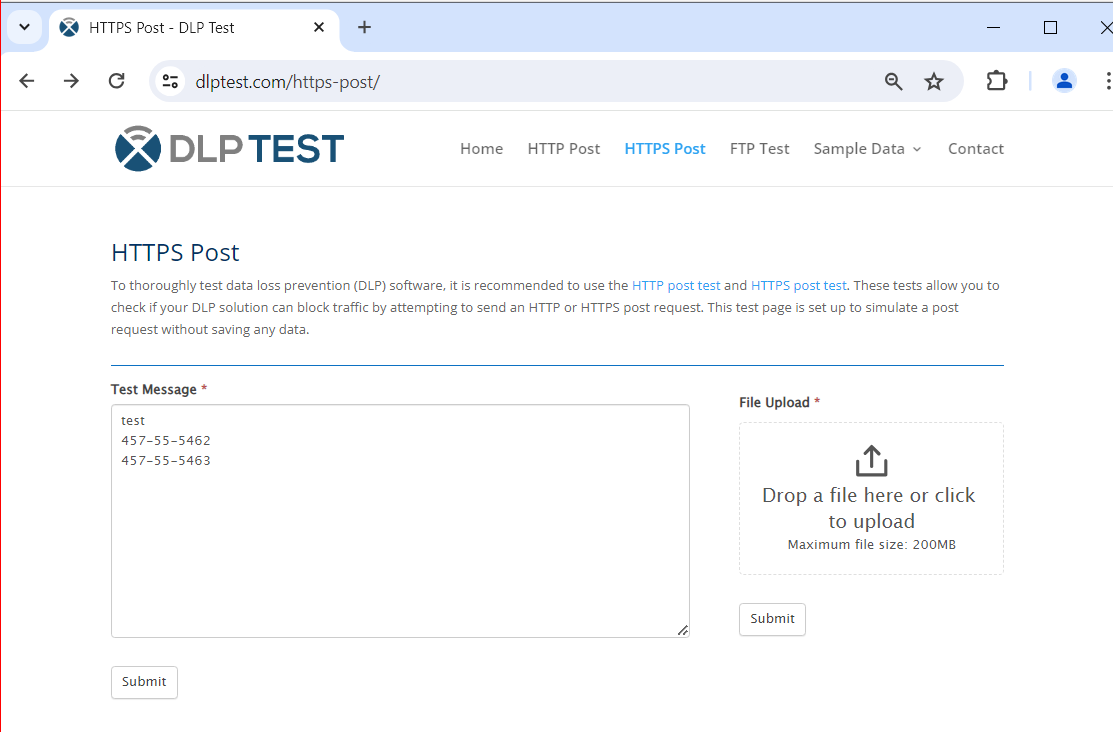

1. A user attempts to post a sensitive message through HTTPS to dlptest.com, and the message content matches the EDM template.

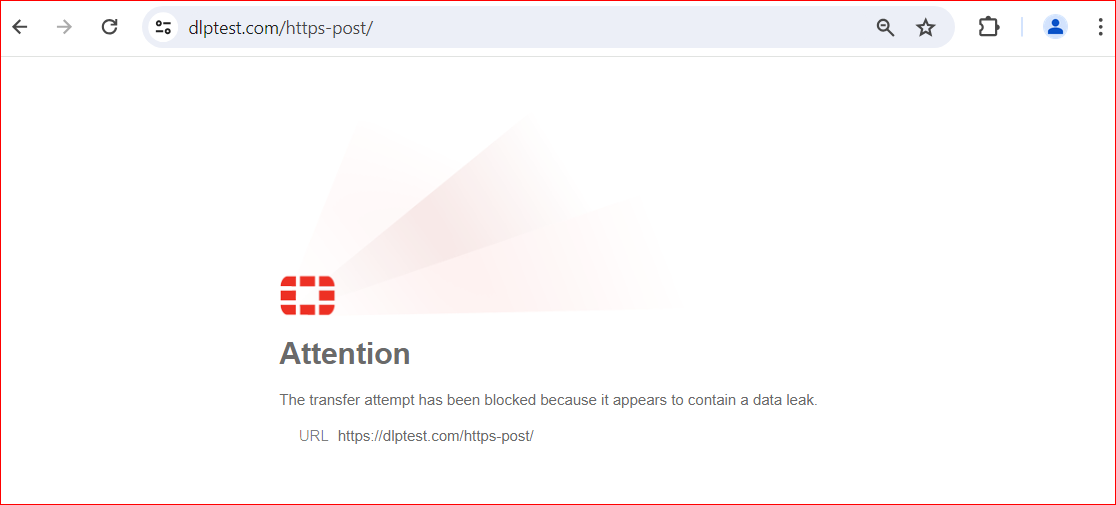

2. FortiProxy blocks the user's attempt and displays a replacement message:

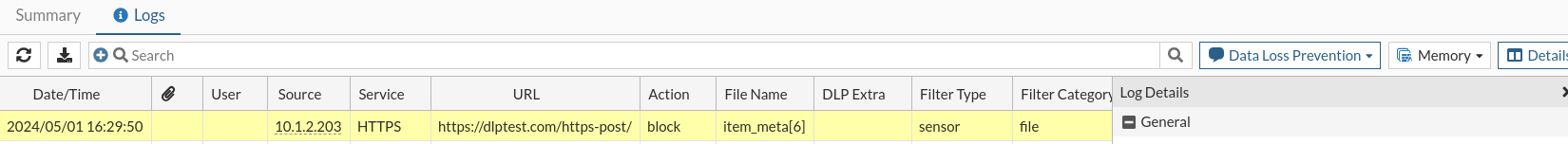

3. FortiProxy generates a DLP log:



   1: date=2024-05-01 time=16:29:50 eventtime=1714606189934871347 tz="-0700" logid="0954024576" type="utm" subtype="dlp" eventtype="dlp" level="warning" vd="root" ruleid=1 filtertype="sensor" filtercat="file" severity="medium" policyid=1 poluuid="2e09d668-0750-51ef-6133-8897d1a36d2d" policytype="policy" sessionid=926212558 epoch=224041789 eventid=0 srcip=10.1.2.203 srcport=55709 srccountry="Reserved" srcintf="port2" srcintfrole="undefined" srcuuid="82127bdc-21d9-51ee-c7d4-aae693c18c05" dstip=35.209.95.242 dstport=443 dstcountry="United States" dstintf="port1" dstintfrole="undefined" proto=6 service="HTTPS" filetype="unknown" direction="outgoing" action="block" hostname="dlptest.com" url="
   https://dlptest.com/https-post/"
   agent="Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/124.0.0.0 Safari/537.36" httpmethod="POST" referralurl="
   https://dlptest.com/https-post/"
   filename="item_meta[6]" filesize=24 profile="edm"
