Enhanced EVPN support for VXLAN Anycast gateway and type-5 routing

This enhancement adds support for VXLAN Anycast gateway, EVPN IRB (Ethernet VPN Integrated Routing and Bridging), and type-5 EVPN routes, enabling seamless L2/L3 service integration and scalable IP prefix advertisement across the VXLAN fabric. It simplifies mobility and routing in modern data center deployments. For more background on EVPN, see VXLAN with MP-BGP EVPN.

The config router bgp command has new options:

config router bgp
    config redistribute {connected | static | isis | ospf | rip}
        set status-evpn {enable | disable}
        set route-map-evpn <string>
    end
    config {neighbor | neighbor-group}
        edit <string>
            set adv-evpn-route {type2 | type5 | local}
        next
    end
end

Option	Description
config redistribute {connected | static | isis | ospf | rip}	Types of routes to be redistributed.
status-evpn {enable | disable}	Enable/disable EVPN redistribution status.
route-map-evpn <string>	Route map name for EVPN redistribution.
adv-evpn-route {type2 | type5 | local}	Types of EVPN routes that can be advertised to this neighbor as IPv4 routes: type2: Type 2 EVPN routes. type5: Type 5 EVPN routes. local: Local EVPN routes.

The config system evpn command has new options:

config system evpn
    edit <id>
        set type {macvrf | ipvrf}
        set adv-default-gw {enable | disable}
        set virtual-mac-vrid <integer>
        set l3-instance <integer>
        set *interface <string>
        set distribute-local-route {enable | disable}
    next
end

Option	Description
type {macvrf | ipvrf}	EVPN instance type: macvrf: MAC VRF. ipvrf: L3 VRF.
adv-default-gw {enable | disable}	Enable/disable advertisement of default gateway.
virtual-mac-vrid <integer>	VRID used to generate virtual MAC address (1 to 255).
l3-instance <integer>	L3VRF EVPN instance ID (0 to 4294967295).
*interface <string>	Outgoing interface for all VxLANs in this L3VRF EVPN instance. Available when type is set to ipvrf.
distribute-local-route {enable | disable}	Enable/disable distribution of local EVPN routes as IPv4 routes to BGP.

A new get command is available for default-gateway:

get l2vpn evpn default-gateway

Example

This section includes the following examples:

• Anycast gateway example

• IRB example

• Type-5 route example

Anycast gateway example

In a Security Fabric configured with EVPN, VXLAN, and an Anycast gateway (swch1), all leaf switches that connect endpoints in the same VLAN (or subnet) share the same virtual default gateway IP address. The leaf switches also share the same virtual MAC address for that gateway.

Endpoints (such as servers, VMs, containers) always see the same gateway regardless of which leaf they connect to. If a VM or host moves from Leaf1 to Leaf2, its default gateway stays the same and doesn't require any reconfiguration (for example re-ARP or a new IP address), which provides seamless mobility.

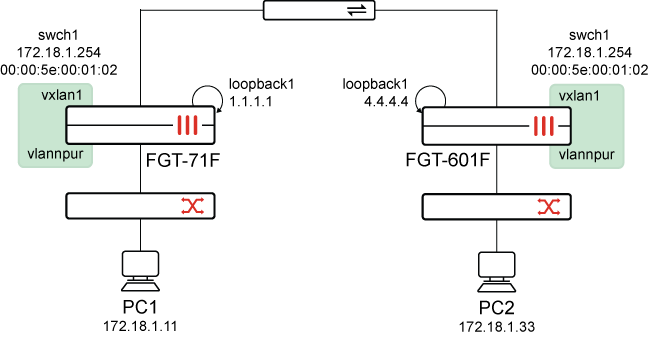

This example describes how to configure FortiGate-71F and FortiGate-601F in the topology. It also describes how to verify the configuration.

To configure FortiGate-71F:

1. Configure EVPN:

   config system evpn
       edit 100
           set rd "100:100"
           set import-rt "1:1"
           set export-rt "1:1"
           set ip-local-learning enable
           set adv-default-gw enable
           set virtual-mac-vrid 2
       next
   end

2. Configure VXLAN:

   config system vxlan
       edit "vxlan1"
           set interface "loopback1"
           set vni 1000
           set evpn-id 100
           set learn-from-traffic enable
       next
   end

3. Configure a system switch interface:

   config system switch-interface
       edit "swch1"
           set vdom "root"
           set member "vxlan1" "vlannpur"
       next
   end

4. Configure a system interface:

   config system interface
       edit "swch1"
           set vdom "root"
           set ip 172.18.1.254 255.255.255.0
           set allowaccess ping
           set type switch
           set snmp-index 26
       next
   end

5. Configure BGP:

   config router bgp
       set as 65412
       set router-id 1.1.1.1
       set ibgp-multipath enable
       set network-import-check disable
       set recursive-next-hop enable
       set graceful-restart enable
       config neighbor
           edit "172.18.5.123"
               set ebgp-enforce-multihop enable
               set next-hop-self enable
               set next-hop-self-vpnv4 enable
               set soft-reconfiguration enable
               set soft-reconfiguration-evpn enable
               set remote-as 65412
               set graceful-shutdown-community "22:55"
           next
       end
       config network
           edit 1
               set prefix 1.1.1.1 255.255.255.255
           next
           edit 4
               set prefix 172.28.6.0 255.255.255.0
           next
       end
       config redistribute "connected"
       end
       config redistribute "rip"
       end
       config redistribute "ospf"
       end
       config redistribute "static"
       end
       config redistribute "isis"
       end
       config redistribute6 "connected"
       end
       config redistribute6 "rip"
       end
       config redistribute6 "ospf"
       end
       config redistribute6 "static"
       end
       config redistribute6 "isis"
       end
   end

To configure FortiGate-601F:

1. Configure EVPN:

   config system evpn
       edit 100
           set rd "100:100"
           set import-rt "1:1"
           set export-rt "1:1"
           set ip-local-learning enable
           set adv-default-gw enable
           set virtual-mac-vrid 2
       next
   end

2. Configure VXLAN:

   config system vxlan
       edit "vxlan1"
           set interface "loopback1"
           set vni 1000
           set evpn-id 100
           set learn-from-traffic enable
       next
   end

3. Configure a system switch interface:

   config system switch-interface
       edit "swch1"
           set vdom "root"
           set member "vxlan1" "vlannpur"
       next
   end

4. Configure a system interface:

   config system interface
       edit "swch1"
           set vdom "root"
           set ip 172.18.1.254 255.255.255.0
           set allowaccess ping
           set type switch
           set snmp-index 50
       next
   end

5. Configure BGP:

   config router bgp
       set as 65412
       set router-id 4.4.4.4
       set ibgp-multipath enable
       set recursive-next-hop enable
       config neighbor
           edit "172.18.5.121"
               set next-hop-self enable
               set next-hop-self-vpnv4 enable
               set soft-reconfiguration enable
               set soft-reconfiguration-evpn enable
               set remote-as 65412
           next
       end
       config network
           edit 1
               set prefix 4.4.4.4 255.255.255.255
           next
       end
       config redistribute "connected"
       end
       config redistribute "rip"
       end
       config redistribute "ospf"
       end
       config redistribute "static"
       end
       config redistribute "isis"
       end
       config redistribute6 "connected"
       end
       config redistribute6 "rip"
       end
       config redistribute6 "ospf"
       end
       config redistribute6 "static"
       end
   end

To verify:

1. From FortiGate-601F, ping 172.18.1.11:

   # execute ping 172.18.1.11
   PING 172.18.1.11 (172.18.1.11): 56 data bytes
   64 bytes from 172.18.1.11: icmp_seq=0 ttl=255 time=0.4 ms
   64 bytes from 172.18.1.11: icmp_seq=1 ttl=255 time=0.3 ms
   ^C
   --- 172.18.1.11 ping statistics ---
   2 packets transmitted, 2 packets received, 0% packet loss
   round-trip min/avg/max = 0.3/0.3/0.4 ms

   FortiGate-601F (vdom1) (Interim)# diagnose ip arp list | grep 254
   index=51 ifname=vlannpu1 172.18.1.254 00:00:5e:00:01:02 state=00000004 use=9094399 confirm=9100246 update=9094246 ref=0

   FortiGate-601F (vdom1) (Interim)#

2. From FortiGate-71F, diagnose the IP ARP list:

   # diagnose ip arp list
   index=27 ifname=vlannpu1 172.18.1.33 86:39:8f:13:f7:01 state=00000002 use=2374 confirm=2374 update=1946 ref=3
   index=27 ifname=vlannpu1 172.18.1.254 00:00:5e:00:01:02 state=00000002 use=435 confirm=435 update=435 ref=2
   version count: 2

IRB example

IRB (Integrated Routing and Bridging) in EVPN means that FortiGate can both bridge (L2) and route (L3) traffic inside the Security Fabric configured with VXLAN/EVPN. EVPN IRB allows L2 services for intra-subnet communication and L3 services for inter-subnet communications.

This example uses the following VLAN, subnets, and VNI names:

PC	VLAN	Subnet	VNI
PC95	vlan95	192.95.1.0/24	vni 141
PC94	vlan84	192.84.1.0/24	vni 84

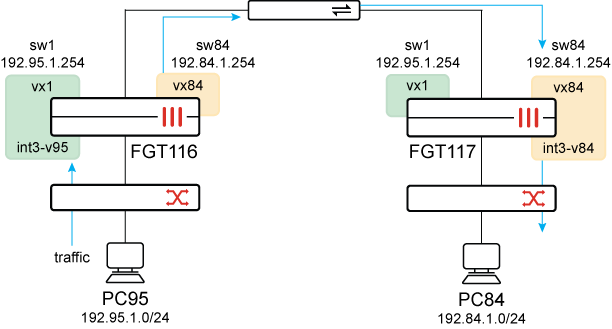

This example describes how to configure FGT116 and FGT117 in the topology to allow inter-subnet routing between vlan95 and vlan84 over the VXLANs between the two FortiGate VTEPs. This allows PC95 to reach PC84 using EVPN over VXLAN.

To configure FGT116:

1. Configure EVPN:

   config system evpn
       edit 1
           set import-rt "1:1"
           set export-rt "1:1"
           set ip-local-learning enable
       next
       edit 84
           set import-rt "84:84"
           set export-rt "84:84"
           set ip-local-learning enable
       next
   end

2. Configure VXLAN interfaces:

   config system vxlan
       edit "vx1"
           set interface "loopback1"
           set vni 141
           set evpn-id 1
           set learn-from-traffic enable
       next
        edit "vx84"
           set interface "loopback1"
           set vni 84
           set evpn-id 84
           set learn-from-traffic enable
       next
   end

3. Configure a system interface:

   config system interface
       edit "int3-v95"
           set vdom "root"
           set interface "internal3"
           set vlanid 95
       next
   end

4. Configure system switch interfaces and select the VXLAN interface:

   config system switch-interface
       edit "sw1"
           set vdom "root"
           set member "int3-v95" "vx1"
           set intra-switch-policy explicit
       next
       edit "sw84"
           set vdom "root"
           set member "vx84"
           set intra-switch-policy explicit
       next
   end

5. Configure system interfaces:

   config system interface
       edit "sw1"
           set vdom "root"
           set ip 192.95.1.254 255.255.255.0
           set allowaccess ping ssh telnet
       next
       edit "sw84"
           set vdom "root"
           set ip 192.84.1.254 255.255.255.0
           set allowaccess ping ssh telnet
       next
   end

6. Configure BGP:

   config router bgp
       set as 65010
       set router-id 10.255.255.116
       config neighbor
           edit "10.1.2.117"
               set next-hop-self enable
               set soft-reconfiguration-evpn enable
               set remote-as 65010
               set connect-timer 1
           next
       end
       config network
           edit 1
               set prefix 10.255.255.116 255.255.255.255
           next
       end
   end

To configure FGT117:

1. Configure EVPN:

   config system evpn
       edit 1
           set import-rt "1:1"
           set export-rt "1:1"
           set ip-local-learning enable
       next
       edit 84
           set import-rt "84:84"
           set export-rt "84:84"
           set ip-local-learning enable
       next
   end

2. Configure VXLAN interfaces:

   config system vxlan
       edit "vx1"
           set interface "loopback1"
           set vni 141
           set evpn-id 1
           set learn-from-traffic enable
       next
       edit "vx84"
           set interface "loopback1"
           set vni 84
           set evpn-id 84
           set learn-from-traffic enable
       next
   end

3. Configure a system switch interface and select the VXLAN interfaces:

   config system switch-interface
       edit "sw1"
           set vdom "root"
           set member "vx1"
           set intra-switch-policy explicit
       next
       edit "sw84"
           set vdom "root"
           set member "int3-v84"  "vx84"
           set intra-switch-policy explicit
       next
   end

4. Configure system interfaces:

   config system interface
       edit "sw1"
           set vdom "root"
           set ip 192.95.1.254 255.255.255.0
           set allowaccess ping ssh telnet
       next
       edit "sw84"
           set vdom "root"
           set ip 192.84.1.254 255.255.255.0
           set allowaccess ping ssh telnet
       next
   end

5. Configure BGP:

   config router bgp
       set as 65010
       set router-id 10.255.255.117
       config neighbor
           edit "10.1.2.116"
               set next-hop-self enable
               set soft-reconfiguration-evpn enable
               set remote-as 65010
               set connect-timer 1
           next
       end
       config network
           edit 1
               set prefix 10.255.255.117 255.255.255.255
           next
       end
   end

To verify:

1. On FGT116, view the routing table. The FortiGate learned both the subnet of vlan95 and vlan84:

   # get router info routing-table  all
   Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP
          O - OSPF, IA - OSPF inter area
          N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
          E1 - OSPF external type 1, E2 - OSPF external type 2
          i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
          V - BGP VPNv4, E - BGP EVPN
          * - candidate default

   Routing table for VRF=0
   S*      0.0.0.0/0 [10/0] via 172.18.18.1, wan1, [1/0]
   C       10.1.2.0/24 is directly connected, wan2
   C       10.255.255.116/32 is directly connected, loopback1
   B       10.255.255.117/32 [200/0] via 10.1.2.117 (recursive is directly connected, wan2), 20:28:32, [1/0]
   C       172.18.18.0/24 is directly connected, wan1
   C       192.84.1.0/24 is directly connected, sw84
   C       192.95.1.0/24 is directly connected, sw1
   C       192.96.0.0/16 is directly connected, int3-v96

2. Look at the L2 EVPN table for VNI 84, FGT116 has learned the MAC address for PC84.

   The MAC address for PC84 is 00:0c:29:da:ca:07 84.

   # get l2vpn evpn table 84

   EVPN instance 84
    Broadcast domain VNI 84 TAGID 0

     EVPN MAC table:
     MAC               VNI      Remote Addr     Binded Address
     00:0c:29:da:ca:07 84       10.255.255.117  -
     00:11:92:d4:5e:8f 84       10.255.255.117  -
     04:d5:90:b1:9d:e8 84       10.255.255.117  -
     6a:a5:45:75:d5:65 84       10.255.255.117  -

     EVPN Local MAC table:
     "Inactive" means this MAC/IP pair will not be sent to peer.
     Flag code: S - Static, F - FDB, L - Switch local MAC, G - Default Gateway.
     Trailing * means HA
     MAC               Flag Status   Binded Address
     02:4c:63:08:3d:39 LG   Inactive 192.84.1.254
                       L    Active   -

     EVPN Local IP table:
     Address         MAC
     192.84.1.254    02:4c:63:08:3d:39

     EVPN PEER table:
     VNI      Remote Addr     Binded Address
     84       10.255.255.117  10.255.255.117

Type-5 route example

Instead of advertising MAC/IP bindings used in type-2 routes, type-5 EVPN routes advertise IP prefixes (subnets), allowing EVPN to carry L3 VPN routes across the Security Fabric configured with VXLAN to provide more than only L2 reachability.

This example uses the following VLAN and VNI names and IDs:

PC and L3 instance	VLAN	VNI
PC95	vlan95	vni 95
PC94	vlan84	vni 84
L3 instance	-	vni 100

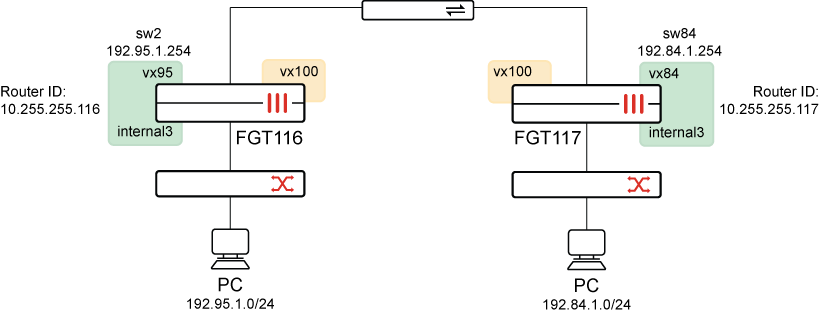

This example describes how to configure FGT116 and FGT117 in the topology. It also describes how to verify the configuration.

To configure FGT116:

1. Configure EVPN:

   config system evpn
       edit 95
           set import-rt "95:95"
           set export-rt "95:95"
           set l3-instance 100
       next
       edit 100
           set type ipvrf
           set rd "100:100"
           set import-rt "100:100"
           set export-rt "100:100"
           set interface "loopback1"
       next
   end

2. Configure VXLAN interfaces:

   config system vxlan
       edit "vx95"
           set vni 95
           set evpn-id 95
           set learn-from-traffic enable
       next
       edit "vx100"
           set vni 100
           set evpn-id 100
       next
   end

3. Configure the system switch interface:

   config system switch-interface
       edit "sw2"
           set vdom "root"
           set member "vx95" "internal3"
           set intra-switch-policy explicit
       next
   end

4. Configure the system interface:

   config system interface
       edit "sw2"
           set vdom "root"
           set ip 192.95.1.254 255.255.0.0
           set allowaccess ping
           set type switch
       next
   end

5. Configure BGP:

   config router bgp
       set as 65010
       set router-id 10.255.255.116
       config neighbor
           edit "10.1.2.117"
               set next-hop-self enable
               set soft-reconfiguration-evpn enable
               set remote-as 65010
               set connect-timer 1
           next
       end
       config network
           edit 1
               set prefix 10.255.255.116 255.255.255.255
           next
       end
       config redistribute "connected"
           set status evpn enable
       end
   end

To configure FGT117:

1. Configure EVPN:

   config system evpn
       edit 100
           set type ipvrf
           set rd "100:100"
           set import-rt "100:100"
           set export-rt "100:100"
           set interface "loopback1"
       next
       edit 84
           set import-rt "84:84"
           set export-rt "84:84"
           set l3-instance 100
       next
   end

2. Configure VXLAN interfaces:

   config system vxlan
       edit "vx84"
           set vni 84
           set evpn-id 84
           set learn-from-traffic enable
       next
       edit "vx100"
           set vni 100
           set evpn-id 100
           set learn-from-traffic enable
       next
   end

3. Configure the system switch interface:

   config system switch-interface
       edit "sw84"
           set vdom "root"
           set member "vx84" "internal3"
           set intra-switch-policy explicit
       next
   end

4. Configure the system interface:

   config system interface
       edit "sw84"
           set vdom "root"
           set ip 192.84.1.254 255.255.0.0
           set allowaccess ping
           set type switch
       next
   end

To verify:

1. On FGT117, get router info for the BGP EVPN network:

   Type-5 routes are in bold.

   FGT117# get router info bgp evpn network
   <string>    L2VPN EVPN prefix

   FGT117# get router info bgp evpn network
      Network          Next Hop            Metric     LocPrf Weight RouteTag Path
   Route Distinguisher: 100:100 (Default for VRF 0)
   *> [5][0][16][192.84.0.0]/72
                       10.255.255.117      0             100  32768        0 ? <-/1>
   *> [5][0][16][192.95.0.0]/72
                       10.255.255.116      0             100      0        0 ? <-/1>
   *> [5][0][16][192.96.0.0]/72
                       10.255.255.116      0             100      0        0 ? <-/1>
   *  [5][0][16][192.96.0.0]/72
                       10.255.255.117      0             100  32768        0 ? <-/->
   *> [5][0][24][10.1.2.0]/72
                       10.255.255.116      0             100      0        0 ? <-/1>
   *  [5][0][24][10.1.2.0]/72
                       10.255.255.117      0             100  32768        0 ? <-/->
   *> [5][0][24][172.18.18.0]/72
                       10.255.255.116      0             100      0        0 ? <-/1>
   *  [5][0][24][172.18.18.0]/72
                       10.255.255.117      0             100  32768        0 ? <-/->
   *> [5][0][32][10.255.255.116]/72
                       10.255.255.116      0             100      0        0 ? <-/1>
   *> [5][0][32][10.255.255.117]/72
                       10.255.255.117      0             100  32768        0 ? <-/1>

      Network          Next Hop            Metric     LocPrf Weight RouteTag Path
   Route Distinguisher: 100:100 (received from VRF 0)
   *>i[5][0][16][192.95.0.0]/72
                       10.255.255.116      0             100      0        0 ? <-/1>
   *>i[5][0][16][192.96.0.0]/72
                       10.255.255.116      0             100      0        0 ? <-/1>
   *>i[5][0][24][10.1.2.0]/72
                       10.255.255.116      0             100      0        0 ? <-/1>
   *>i[5][0][24][172.18.18.0]/72
                       10.255.255.116      0             100      0        0 ? <-/1>
   *>i[5][0][32][10.255.255.116]/72
                       10.255.255.116      0             100      0        0 ? <-/1>

      Network          Next Hop            Metric     LocPrf Weight RouteTag Path
   Route Distinguisher: 0.0.0.0:84 (Default for VRF 0)
   *> [2][0][48][00:0c:29:da:ca:07][0]/72
                       10.255.255.117      0             100  32768        0 i <-/1>
   *> [2][0][48][00:11:92:d4:5e:8f][0]/72
                       10.255.255.117      0             100  32768        0 i <-/1>
   *> [2][0][48][04:d5:90:b1:9d:e8][0]/72
                       10.255.255.117      0             100  32768        0 i <-/1>
   *> [2][0][48][0e:61:aa:b2:bb:c3][0]/72
                       10.255.255.117      0             100  32768        0 i <-/1>
   *> [3][0][32][10.255.255.117]/80
                       10.255.255.117      0             100  32768        0 i <-/1>

2. Get router info for the BGP EVPN network:

   FGT117# get router info bgp evpn network [5][0][16][192.95.0.0]/72
   Route Distinguisher: 100:100 (Default for VRF 0)
   BGP routing table entry for [5][0][16][192.95.0.0]/72
     Original VRF 0
     Local
       10.255.255.116 from 10.1.2.116 (10.255.255.116)
         Origin incomplete distance 200 metric 0, localpref 100, valid, internal, evpn, best
         Extended Community: RT:100:100  RMAC:d2:22:98:41:e5:ba
         RD [100:100]
         LABEL1 100
         Last update: Fri Apr 11 14:08:56 2025

   Route Distinguisher: 100:100 (received from VRF 0)
   BGP routing table entry for [5][0][16][192.95.0.0]/72
     Original VRF 0
     Local
       10.255.255.116 from 10.1.2.116 (10.255.255.116)
         Origin incomplete distance 200 metric 0, localpref 100, valid, internal, evpn, best
         Extended Community: RT:100:100  RMAC:d2:22:98:41:e5:ba
         RD [100:100]
         LABEL1 100
         Last update: Fri Apr 11 14:08:56 2025
