FortiData labels

When FortiData and FortiGate are integrated, you can use FortiData labels for DLP processing in FortiGate proxy-based firewall policies. For information about integrating FortiData with FortiGate, see FortiData.

FortiData is used to create labels by discovering, classifying, and labeling files with sensitive in your file storage system. See the FortiData Administration Guide for information.

Once FortiData labels are created, you can configure DLP labels in FortiOS, reference the FortiData labels in a DLP profile, and then apply the DLP profile to a proxy-based firewall policy.

To use FortiData labels in FortiOS:

1. Configure a DLP label of the FortiData type:

   config dlp label
       edit "fortidata"
           set type fortidata
           config entries
               edit 1
                   set fortidata-label-name "Critical"
               next
           end
       next
   end

2. Reference the FortiData DLP label in your DLP profile:

   config dlp profile
       edit "fortidata"
           set feature-set proxy
           config rule
               edit 1
                   set proto
                   set filter-by label
                   set name fortidata
                   set action block
               next
           end
       next
   end

3. Apply your DLP profile into a proxy-based firewall policy on your FortiGate to scan your traffic and detect any data loss based on the label of your document.

   config firewall policy
       edit 1
           set inspection-mode proxy
           set dlp-profile fortidata
       next
   end

Example

This example describes how to use following FortiData labels in FortiOS DLP processing: health-care, credit-card, and python-source-code.

A file server is configured, and labels are selected in FortiData. FortiData scans the file server and applies labels to matching files.

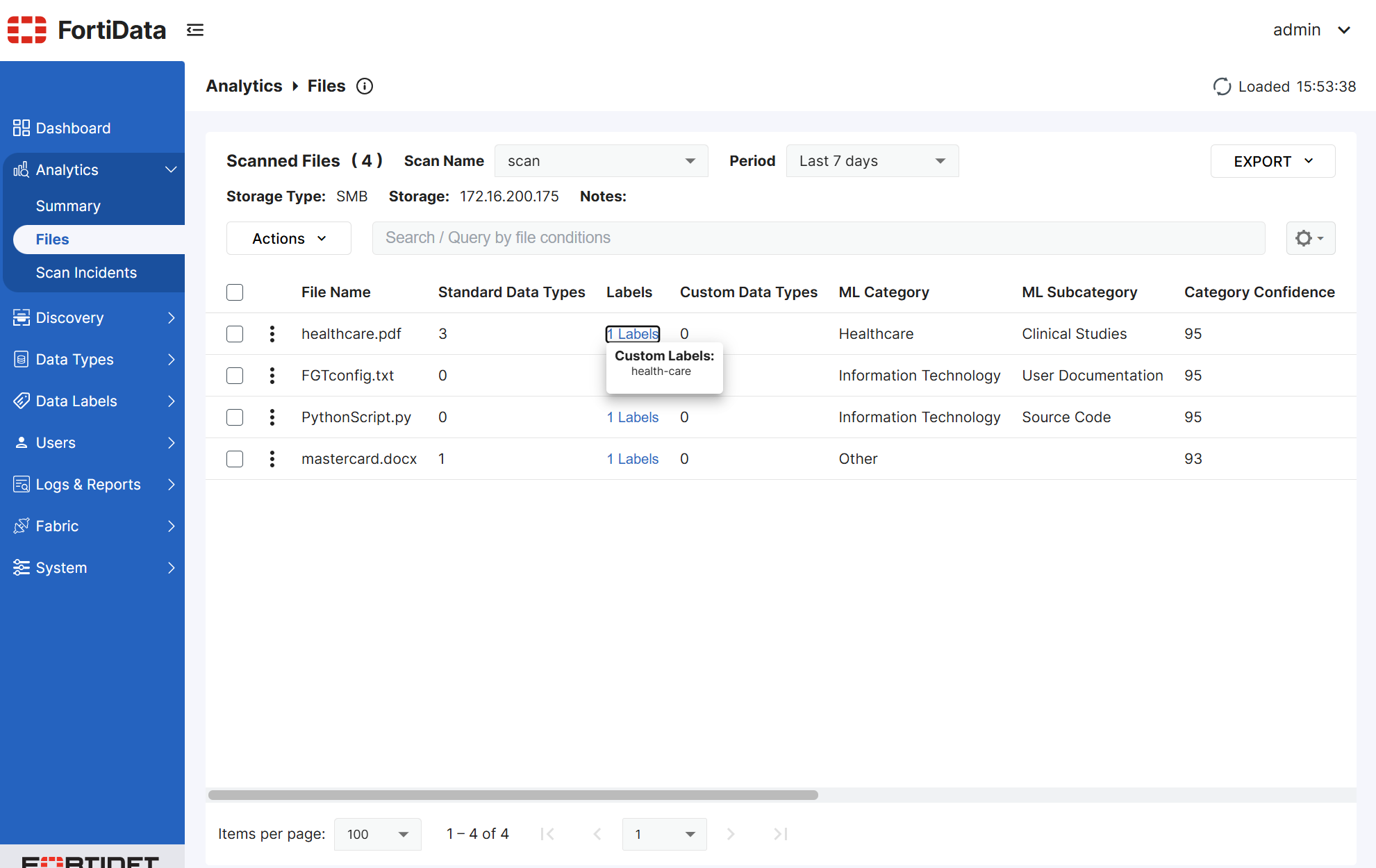

Following is an example FortiData file source with the labels health-care, credit-card, and python-source-code. Only the health-care label is visible in the screen shot:

The next step is to configure FortiGate to use the FortiData labels. See Configuring FortiGate to use FortiData labels.

With FortiData and FortiGate configured, the labels can be used for DLP processing in FortiGate policies. The results of DLP processing are described in the following example scenarios:

• Scenario 1: FortiData error action

• Scenario 2: DLP action quarantine

• Scenario 3: DLP action monitor

Configuring FortiGate to use FortiData labels

Configure the following FortiData labels in FortiOS: health-care, credit-card, and python-source-code.

To configure FortiGate to use FortiData labels:

1. In FortiOS, configure DLP FortiData labels:

   config dlp label
       edit "fortidata-label"
           set type fortidata
           config entries
               edit 1
                   set fortidata-label-name "python-source-code"
               next
               edit 2
                   set fortidata-label-name "credit-card"
               next
               edit 3
                   set fortidata-label-name "health-care"
               next
           end
       next
   end

2. Configure a DLP profile:

   In this example, action is set to block, and fortidata-error-action is set to block:

   config dlp profile
       edit "fortidata-sensitive"
           set feature-set proxy
           config rule
               edit 1
                   set type file
                   set proto http-get http-post ftp
                   set filter-by label
                   set label "fortidata-label"
                   set action block
               next
           end
           set fortidata-error-action block
       next
   end

3. Create a firewall policy:

   config firewall policy
       edit 1
           set uuid 19e776e0-5c63-51f0-9d68-3053988cbc21
           set srcintf "port2"
           set dstintf "port1"
           set action accept
           set srcaddr "all"
           set dstaddr "all"
           set srcaddr6 "all"
           set dstaddr6 "all"
           set schedule "always"
           set service "ALL"
           set utm-status enable
           set inspection-mode proxy
           set profile-protocol-options "protocol"
           set ssl-ssh-profile "protocols"
           set dlp-profile "fortidata-sensitive"
           set nat enable
       next
   end

Scenario 1: FortiData error action

This scenario demonstrates what happens when the FortiGate DLP profile has fortidata-error-action set to block, and the FortiData query fails.

When the user attempts to post a PythonScript.py file through FTPS and the FortiData query fails, FortiGate blocks the attempt with an error message.

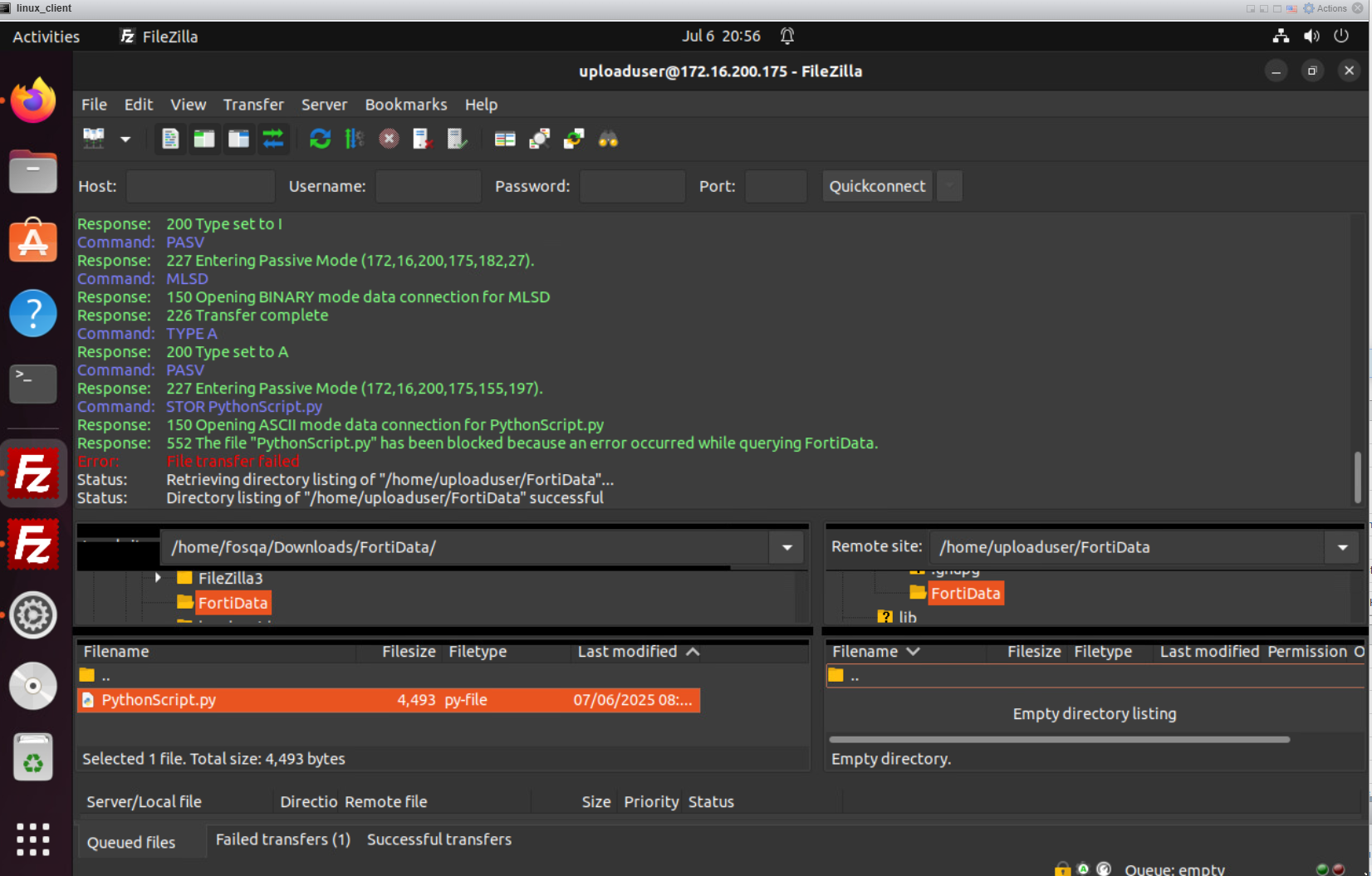

The following screen shot shows the PythonScript.py file has been blocked:

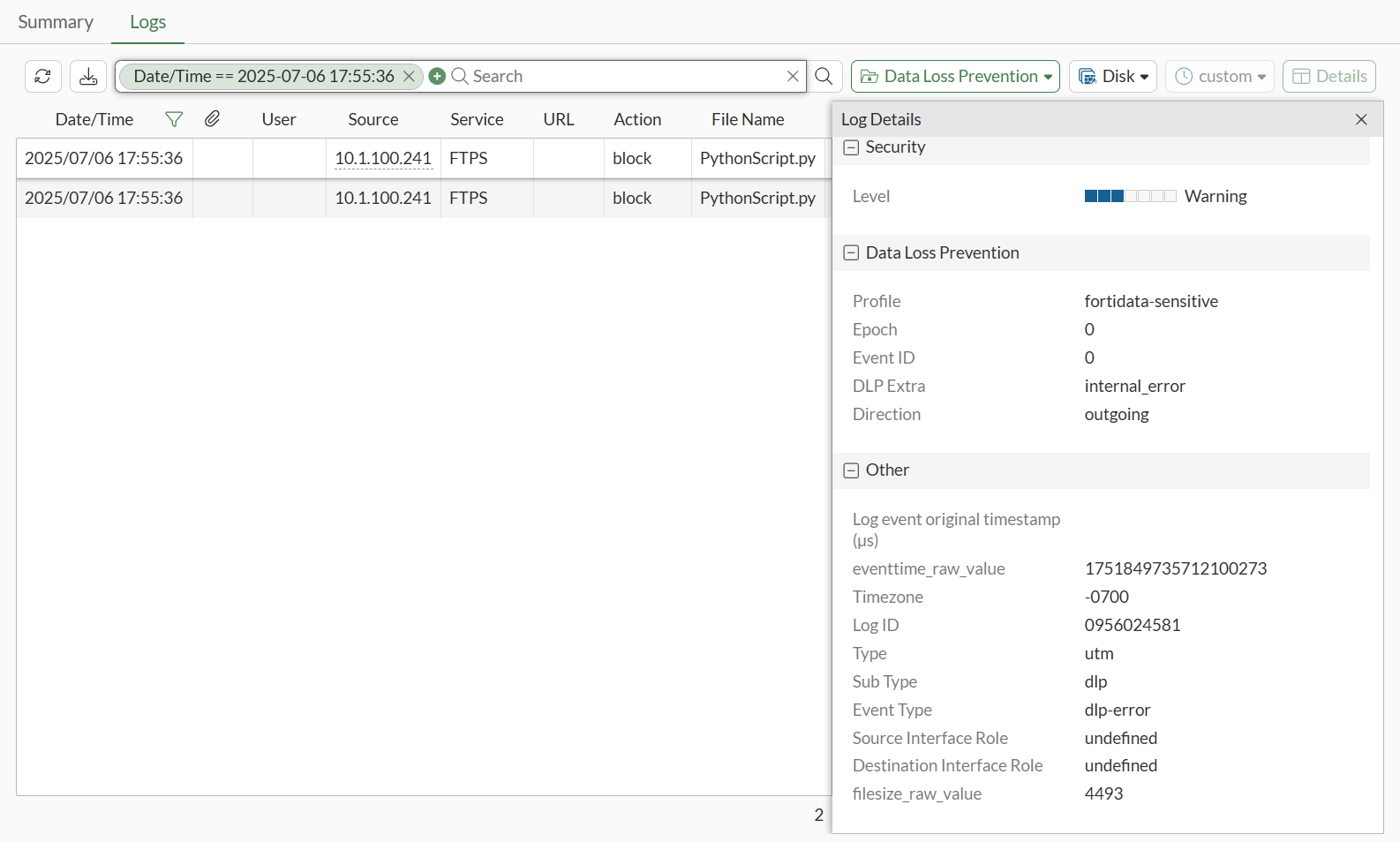

A DLP log with block action is generated on FortiGate, and you can view the log in the GUI on the Log & Report > Security Events > Data Loss Prevention pane:

You can also view the log in the CLI:

30: date=2025-07-06 time=17:55:24 eventtime=1751849724254438363 tz="-0700" logid="0956024581" type="utm" subtype="dlp" eventtype="dlp-error" level="warning" vd="vdom1" error="fortidata" dlpextra="internal_error" policyid=1 poluuid="8a20ddd4-5abf-51f0-3fcd-80a21a2eac18" policytype="policy" sessionid=3142 epoch=0 eventid=0 srcip=10.1.100.241 srcport=58837 srccountry="Reserved" srcintf="port2" srcintfrole="undefined" srcuuid="5146e274-5abf-51f0-48e4-5a4728500b83" dstip=172.16.200.175 dstport=40325 dstcountry="Reserved" dstintf="port1" dstintfrole="undefined" dstuuid="5146e274-5abf-51f0-48e4-5a4728500b83" proto=6 service="FTPS" filetype="python" direction="outgoing" action="block" filename="PythonScript.py" filesize=4493 profile="fortidata-sensitive"

Scenario 2: DLP action quarantine

This scenario demonstrates what happens when the FortiGate DLP profile has action set to quarantine-ip:

config dlp profile
    edit "fortidata-sensitive"
        set feature-set proxy
        config rule
            edit 1
                set proto http-get http-post ftp ssh
                set filter-by label
                set label "fortidata-label"
                set action quarantine-ip
            next
        end
    next
end

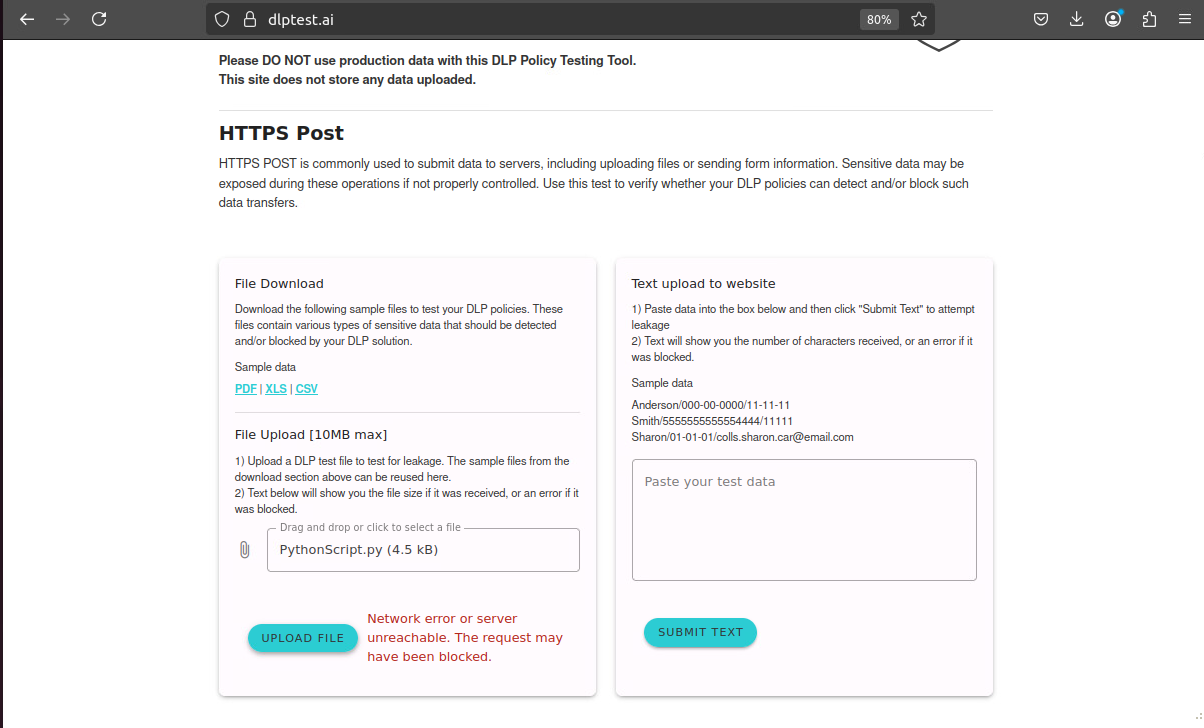

When the user attempts to post a PythonScript.py file through dlptest.ai that matches python-source-code FortiData label, FortiGate blocks the file and quarantines the IP:

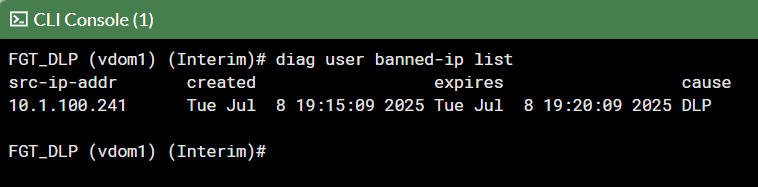

In FortiGate, the client is banned:

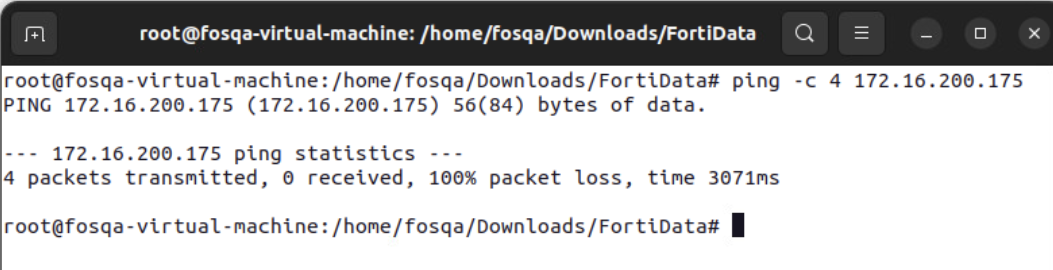

The client cannot ping the server through FortiGate:

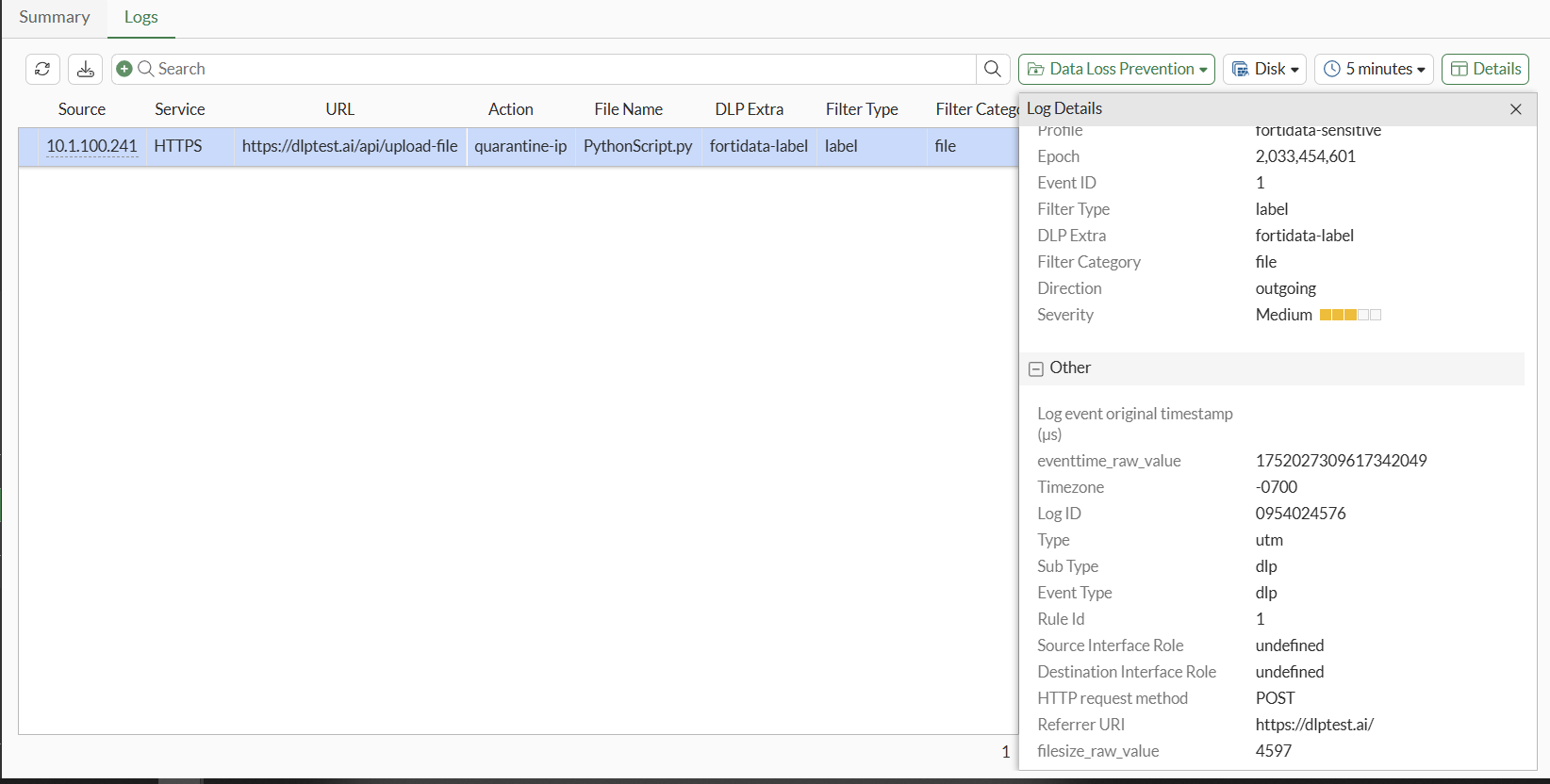

A DLP log with quarantine-ip action is generated on FortiGate, and you can view the log in the GUI on the Log & Report > Security Events > Data Loss Prevention pane:

You can view the log in the CLI:

1: date=2025-07-08 time=19:15:09 eventtime=1752027309617342049 tz="-0700" logid="0954024576" type="utm" subtype="dlp" eventtype="dlp" level="warning" vd="vdom1" ruleid=1 dlpextra="fortidata-label" filtertype="label" filtercat="file" severity="medium" policyid=1 poluuid="19e776e0-5c63-51f0-9d68-3053988cbc21" policytype="policy" sessionid=3465 epoch=2033454601 eventid=1 srcip=10.1.100.241 srcport=37258 srccountry="Reserved" srcintf="port2" srcintfrole="undefined" srcuuid="dea915de-5c62-51f0-b993-090ad249da82" dstip=206.47.132.132 dstport=443 dstcountry="Canada" dstintf="port1" dstintfrole="undefined" dstuuid="dea915de-5c62-51f0-b993-090ad249da82" proto=6 service="HTTPS" filetype="python" direction="outgoing" action="quarantine-ip" hostname="dlptest.ai" url="https://dlptest.ai/api/upload-file" agent="Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:139.0) Gecko/20100101 Firefox/139.0" httpmethod="POST" referralurl="https://dlptest.ai/" filename="PythonScript.py" filesize=4597 profile="fortidata-sensitive"

Scenario 3: DLP action monitor

This scenario demonstrates what happens when the FortiGate DLP profile has action set to monitor:

config dlp profile
    edit "fortidata-sensitive"
        set feature-set proxy
        config rule
            edit 1
                set proto http-get http-post ftp ssh
                set filter-by label
                set label "fortidata-label"
                set action monitor
            next
        end
    next
end

When the user attempts to post a file (mastercard.docx) that matches a FortiData label, FortiGate passes the file through.

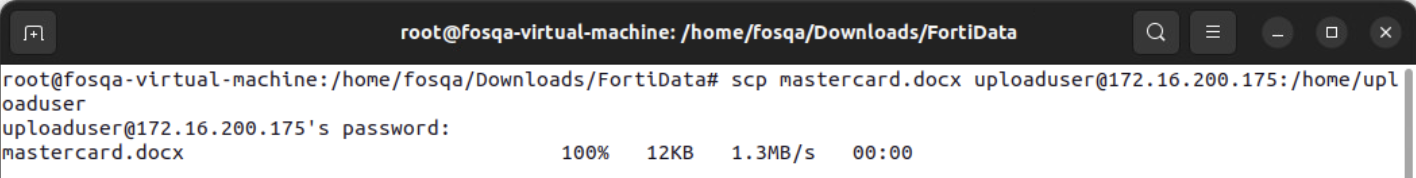

User secure copy to upload the mastercard.docx file to the server:

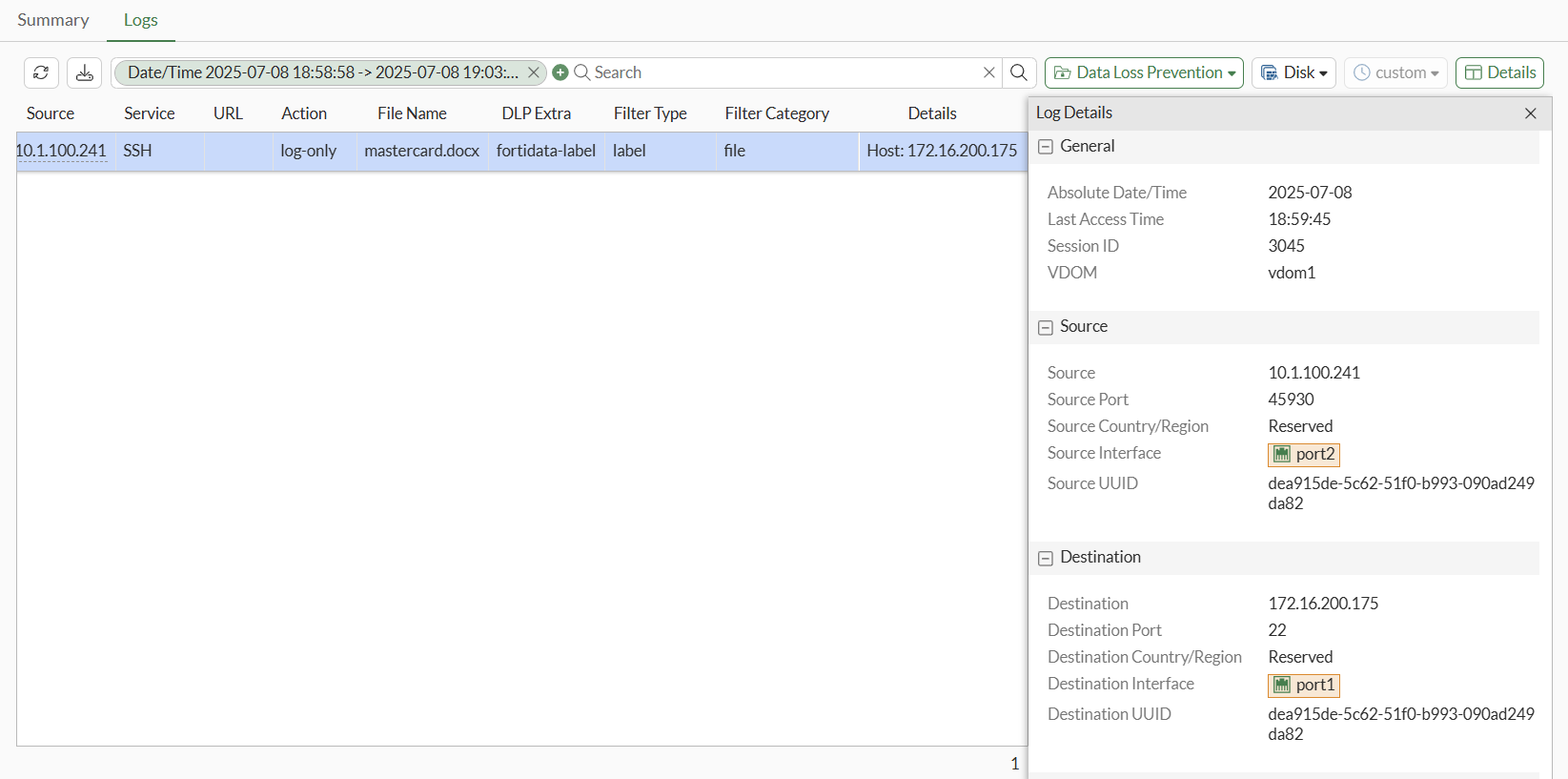

A DLP log with log-only action is generated on FortiGate, and you can view the log in the GUI on the Log & Report > Security Events > Data Loss Prevention pane

You can view the log in the CLI:

1: date=2025-07-08 time=18:59:45 eventtime=1752026384529707336 tz="-0700" logid="0954024577" type="utm" subtype="dlp" eventtype="dlp" level="notice" vd="vdom1" ruleid=1 dlpextra="fortidata-label" filtertype="label" filtercat="file" severity="medium" policyid=1 poluuid="19e776e0-5c63-51f0-9d68-3053988cbc21" policytype="policy" sessionid=3045 epoch=2033454538 eventid=0 srcip=10.1.100.241 srcport=45930 srccountry="Reserved" srcintf="port2" srcintfrole="undefined" srcuuid="dea915de-5c62-51f0-b993-090ad249da82" dstip=172.16.200.175 dstport=22 dstcountry="Reserved" dstintf="port1" dstintfrole="undefined" dstuuid="dea915de-5c62-51f0-b993-090ad249da82" proto=6 service="SSH" subservice="SCP" filetype="msofficex" direction="outgoing" action="log-only" filename="mastercard.docx" filesize=12604 profile="fortidata-sensitive"
