External feed connectors per VDOM

When multi-VDOM mode is enabled, an external feed connector can be defined in global or within a VDOM. Global external feeds can be used in any VDOM, but cannot be edited within the VDOM. FortiGuard category and domain name-based external feeds have an added category number field to identify the external feed. The external feed name in global must start with g-. External feed names in VDOMs cannot start with g-.

FortiGuard category and domain name-based external feed entries must have a number assigned to them that ranges from 192 to 221. This number can be assigned to both external feed types. However, when a category number is used under a global entry, such as 192 with the name g-cat-192, this category number cannot be used in any other global or VDOM entries. If a category is used under a VDOM entry, such as 192 under VDOM1 with the name cat-192, the category 192 can be used in another VDOM or root with the name cat-192.

An external feed connector can only be used in profiles in the VDOM that it was created in. Global connectors can be used in all VDOMs.

Each VDOM can have a maximum of 256 external feed entries. But in total, a FortiGate can only have 511 external feed entries.

To improve the security of the connection, it is recommended to enable server certificate validation (server-identity-check) either in basic or full mode.

To configure a FortiGuard category external feed connector under global in the GUI:

1. Go to Security Fabric > External Connectors and click Create New.

2. In the External Feeds section, click FortiGuard Category.

3. Enter a name that begins with g-.

4. Configure the other settings as needed.

5. Click OK.

To configure a FortiGuard category external feed connector under global in the CLI:

config global
    config system external-resource
        edit "g-category"
            set status enable
            set type category
            set category 192
            set comments ''
            set resource "http://172.16.200.55/external-resource-test/513-FDGCategory.txt"
            set server-identity-check {none | basic | full}
            set refresh-rate 5
        next
    end
end

To configure a domain name external feed connector under a VDOM in the GUI:

1. Go to Security Fabric > External Connectors and click Create New.

2. In the External Feeds section, click Domain Name.

3. Enter a name that does not begin with g-.

4. Configure the other settings as needed.

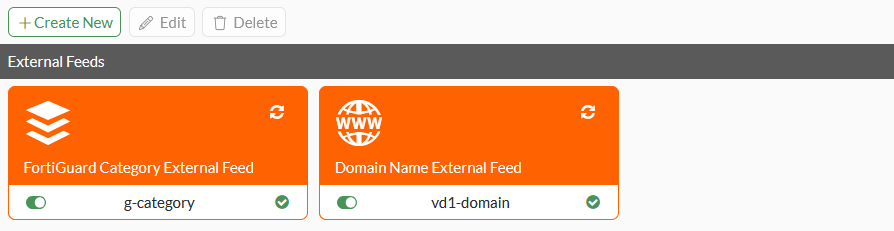

5. Click OK. The external feed connector created under global also appears, but it is not editable.



To configure a domain name external feed connector under a VDOM in the CLI:

config vdom
    edit vd1
        config system external-resource
            edit "vd1-domain"
                set status enable
                set type domain
                set category 193
                set comments ''
                set resource "http://172.16.200.55/external-resource-test/513-Domain.txt"
                set server-identity-check {none | basic | full}
                set refresh-rate 5
            next
        end
    next
end

To use an IP address external feed in a policy in the GUI:

1. Configure an IP address connector in global:

   1. Go to Security Fabric > External Connectors and click Create New.

   2. In the External Feeds section, click IP Address.

   3. Enter a name that begins with g-.

   4. Configure the other settings as needed.

   5. Click OK.

2. Configure an IP address connector in the VDOM (vd1):

   1. Go to Security Fabric > External Connectors and click Create New.

   2. In the External Feeds section, click IP Address.

   3. Enter a name that does not begin with g-.

   4. Configure the other settings as needed.

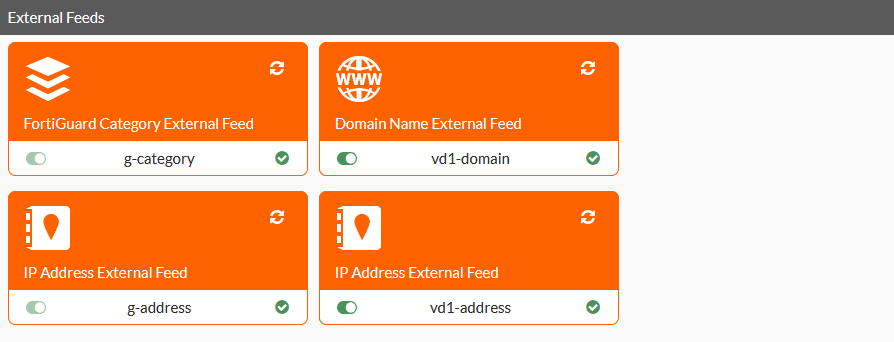

   5. Click OK. The external feed connectors created under global also appear, but they are not editable.



3. Configure the firewall policy in the VDOM (vd1):

   1. Go to Policy & Objects > Firewall Policy and click Create New.

   2. For Destination, select vd1-address. Since this policy is configured under vd1, g-address can also be set as the destination.



   3. Configure the other settings as needed.

   4. Click OK.

To use an IP address external feed in a policy in the CLI:

1. Configure the IP address connectors:

   config global
       config system external-resource
           edit "g-address"
               set status enable
               set type address
               set username ''
               set comments ''
               set resource "http://172.16.200.55/external-resource-test/513-IP.txt"
               set server-identity-check {none | basic | full}
               set refresh-rate 5
           next
       end
   end

   config vdom
       edit vd1
           config system external-resource
               edit "vd1-address"
                   set status enable
                   set type address
                   set comments ''
                   set resource "http://172.16.200.55/external-resource-test/513-IP.txt"
                   set user-agent "curl/7.58.0"
                   set server-identity-check {none | basic | full}
                   set refresh-rate 5
               next
           end
       next
   end


2. In the VDOM, configure a firewall policy with the external address as the destination address:

   config vdom
       edit vd1
           config firewall policy
               edit 1
                   set name "test"
                   set srcintf "port10"
                   set dstintf "port9"
                   set srcaddr "all"
                   set dstaddr "vd1-address"
                   set action accept
                   set schedule "always"
                   set service "ALL"
                   set profile-protocol-options "protocol"
                   set nat enable
               next
           end
       next
   end

   Since this firewall policy is configured under vd1, g-address can also be set as the dstaddr.
