SAML authentication in a proxy policy

SAML user authentication can be used in explicit web proxies and transparent web proxies with the FortiGate acting as a SAML SP. SAML can be used as an authentication method for an authentication scheme that requires using a captive portal.

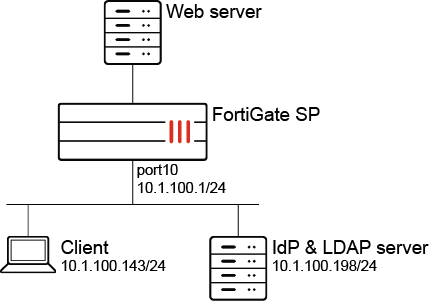

Topology

In this configuration, SAML authentication is used with an explicit web proxy. The IdP is a Windows 2016 server configured with ADFS. The LDAP and IdP servers are on the same server. The LDAP server is used as the user backend for the IdP to perform authentication; however, they are not required to be on the same server.

The authentication and authorization flow is as follows:

1. The client opens a browser and visits https://www.google.com.
2. The browser is redirected by the web proxy the captive portal.
3. The request is redirected to the IdP's sign-in page.
4. If the user signs in, the IdP authenticates the user and sends back a SAML assertion message to the user's browser with the user group information.
5. The browser forwards the SAML assertion response as a HTTP POST to the FortiGate SAML assertion consumer service URL (https://fgt9.myqalab.local:7831/XX/YY/ZZ/saml/login/).
6. If the FortiGate authentication scheme has a user database configured, the FortiGate will query the LDAP server for the user group information and ignore the user group information from the SAML message.
7. The user group information is returned. The FortiGate matches the user group information against the LDAP group in the proxy policy group settings. If there is a match, the request is authorized and the proxy policy is matched.
8. If all policy criteria match successfully, then the webpage is returned to the client.

To configure SAML authentication with an explicit web proxy:

1. Enable the web proxy:

   config web-proxy explicit
       set status enable
       set http-incoming-port 8080
   end

2. Enable the proxy captive portal:

   config system interface
       edit "port10"
           set vdom "vdom1"
           set ip 10.1.100.1 255.255.255.0
           set allowaccess ping https ssh snmp http telnet
           set type physical
           set explicit-web-proxy enable
           set explicit-ftp-proxy enable
           set proxy-captive-portal enable
           set snmp-index 12
       next
   end

3. Configure the LDAP server:

   config user ldap
       edit "ldap-10.1.100.198"
           set server "10.1.100.198"
           set cnid "cn"
           set dn "dc=myqalab,dc=local"
           set type regular
           set username "cn=fosqa1,cn=users,dc=myqalab,dc=local"
           set password ************
           set group-search-base "dc=myqalab,dc=local"
       next
   end

4. Configure the user group:

   config user group
       edit "ldap-group-saml"
           set member "ldap-10.1.100.198"
       next
   end

5. Configure SAML:

   config user saml
       edit "saml_user"
           set cert "Fortinet_CA_SSL"
           set entity-id "https://fgt9.myqalab.local:7831/XX/YY/ZZ/saml/metadata/"
           set single-sign-on-url "https://fgt9.myqalab.local:7831/XX/YY/ZZ/saml/login/"
           set single-logout-url "https://fgt9.myqalab.local:7831/XX/YY/ZZ/saml/logout/"
           set idp-entity-id "http://MYQALAB.LOCAL/adfs/services/trust"
           set idp-single-sign-on-url "https://myqalab.local/adfs/ls"
           set idp-single-logout-url "https://myqalab.local/adfs/ls"
           set idp-cert "REMOTE_Cert_4"
           set digest-method sha256
           set adfs-claim enable
           set user-claim-type name
           set group-claim-type group
       next
   end

6. Configure the authentication scheme, rule, and setting:

   config authentication scheme
       edit "saml"
           set method saml
           set saml-server "saml_user"
           set user-database "ldap-10.1.100.198"
       next
   end


   config authentication rule
       edit "saml"
           set srcaddr "all"
           set active-auth-method "saml"
       next
   end


   config authentication setting
       set captive-portal "fgt9.myqalab.local"
   end

7. Configure the proxy policy:

   config firewall proxy-policy
       edit 3
           set proxy explicit-web
           set dstintf "port9"
           set srcaddr "all"
           set dstaddr "all"
           set service "webproxy"
           set action accept
           set schedule "always"
           set logtraffic all
           set groups "ldap-group-saml"
           set utm-status enable
           set profile-protocol-options "protocol"
           set ssl-ssh-profile "deep-custom"
           set av-profile "av"
       next
   end

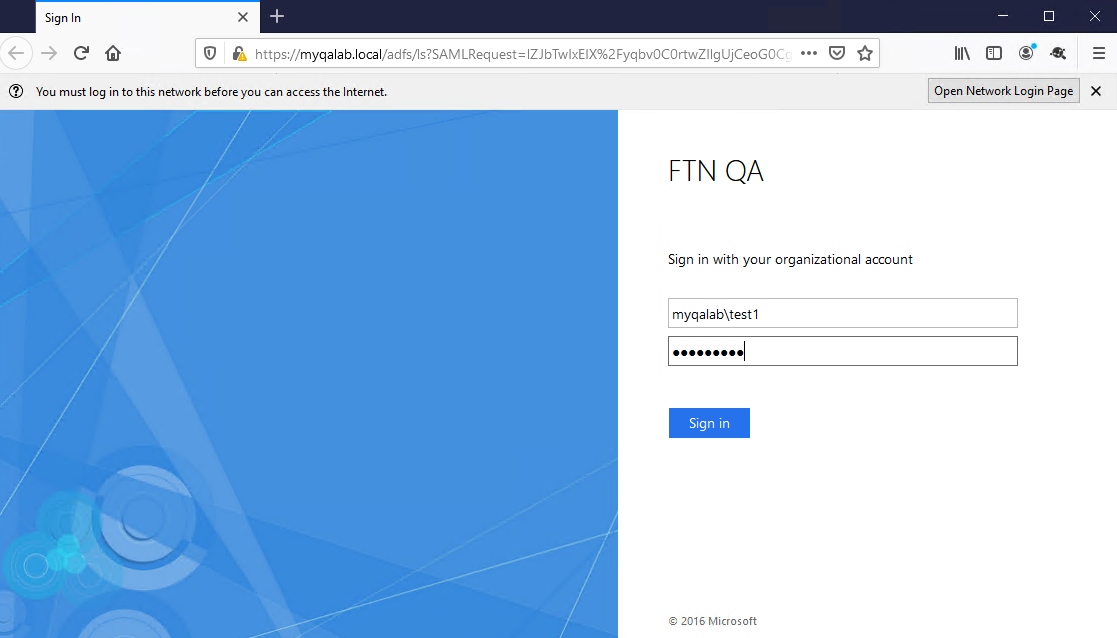

   When a user goes to www.google.com in a browser that is configured to use the FortiGate as a proxy, the IdP sign-in page appears.



Sample log

7: date=2021-03-16 time=21:11:19 eventtime=1615954279072391030 tz="-0700" logid="0000000010" type="traffic" subtype="forward" level="notice" vd="vdom1" srcip=10.1.100.143 srcport=53544 srcintf="port10" srcintfrole="undefined" dstcountry="United States" srccountry="Reserved" dstip=173.194.219.99 dstport=443 dstintf="port9" dstintfrole="undefined" sessionid=1751272387 service="HTTPS" wanoptapptype="web-proxy" proto=6 action="accept" policyid=3 policytype="proxy-policy" poluuid="052ae158-7d40-51eb-c1d8-19235c4500c2" trandisp="snat" transip=172.16.200.1 transport=14844 duration=268 user="test1@MYQALAB.local" group="ldap-group-saml" authserver="ldap-10.1.100.198" wanin=345633 rcvdbyte=345633 wanout=13013 lanin=5098 sentbyte=5098 lanout=340778 appcat="unscanned"
