Optimizing FGSP session synchronization and redundancy

In this example where standalone FortiGates are peered in FGSP, using session-sync-dev optimizes session synchronization as it eliminates UDP encapsulation and offloads session synchronization processing to the kernel. FGSP session synchronization can be supported to handle heavy loads.

For more information about session synchronization, see Session synchronization interfaces in FGSP.

Topology

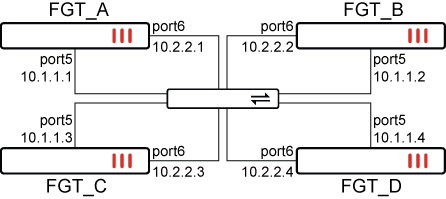

In this topology, there are three FGSP peer groups for each FortiGate. Sessions are synchronized between each FortiGate and its peer groups. Redundancy is achieved by using two dedicated session sync device links for each peer setup. There are a total of six peer IPs for each session synchronization device link in each FGSP peer. When one link is fails, session synchronization is not affected.

For optimization, sync-packet-balance is enabled to distribute synchronization packets processing to multiple CPUs. The session synchronization process is offloaded to the kernel, and sessions are synchronized over layer 2 over the connected interfaces (set session-sync-dev "port5" "port6"). Jumbo frame MTU 9216 is configured on each session synchronization device link to reduce the number of packets; however, setting MTU to 9216 is entirely optional.

To configure FGT_A:

1. Configure HA:

   config system ha
       set sync-packet-balance enable
       set session-pickup enable
       set session-pickup-connectionless enable
       set session-pickup-expectation enable
       set session-pickup-nat enable
   end

2. Configure the layer 2 session synchronization links:

   config system standalone-cluster
       set session-sync-dev "port5" "port6"
   end

3. Configure the session TTL default timeout:

   config system session-ttl
       set default 300
   end

4. Configure the interfaces:

   config system interface
       edit port5
           set ip 10.1.1.1/24
           set mtu-override enable
           set mtu 9216
       next
       edit port6
           set ip 10.2.2.1/24
           set mtu-override enable
           set mtu 9216
       next
   end

5. Configure FGSP session synchronization:

   config system standalone-cluster
       config cluster-peer
           edit 1
               set peerip 10.1.1.2
           next
           edit 2
               set peerip 10.2.2.2
           next
           edit 3
               set peerip 10.1.1.3
           next
           edit 4
               set peerip 10.2.2.3
           next
           edit 5
               set peerip 10.1.1.4
           next
           edit 6
               set peerip 10.2.2.4
           next
       end
   end

To configure FGT_B:

1. Configure HA:

   config system ha
       set sync-packet-balance enable
       set session-pickup enable
       set session-pickup-connectionless enable
       set session-pickup-expectation enable
       set session-pickup-nat enable
   end

2. Configure the layer 2 session synchronization links:

   config system standalone-cluster
       set session-sync-dev "port5" "port6"
   end

3. Configure the session TTL default timeout:

   config system session-ttl
       set default 300
   end

4. Configure the interfaces:

   config system interface
       edit port5
           set ip 10.1.1.2/24
           set mtu-override enable
           set mtu 9216
       next
       edit port6
           set ip 10.2.2.2/24
           set mtu-override enable
           set mtu 9216
       next
   end

5. Configure FGSP session synchronization:

   config system standalone-cluster
       config cluster-peer
           edit 1
               set peerip 10.1.1.1
           next
           edit 2
               set peerip 10.2.2.1
           next
           edit 3
               set peerip 10.1.1.3
           next
           edit 4
               set peerip 10.2.2.3
           next
           edit 5
               set peerip 10.1.1.4
           next
           edit 6
               set peerip 10.2.2.4
           next
       end
   end

To configure FGT_C:

1. Configure HA:

   config system ha
       set sync-packet-balance enable
       set session-pickup enable
       set session-pickup-connectionless enable
       set session-pickup-expectation enable
       set session-pickup-nat enable
   end

2. Configure the layer 2 session synchronization links:

   config system standalone-cluster
       set session-sync-dev "port5" "port6"
   end

3. Configure the session TTL default timeout:

   config system session-ttl
       set default 300
   end

4. Configure the interfaces:

   config system interface
       edit port5
           set ip 10.1.1.3/24
           set mtu-override enable
       set mtu 9216
       next
       edit port6
           set ip 10.2.2.3/24
           set mtu-override enable
           set mtu 9216
       next
   end

5. Configure FGSP session synchronization:

   config system standalone-cluster
       config cluster-peer
           edit 1
               set peerip 10.1.1.1
           next
           edit 2
               set peerip 10.2.2.1
           next
           edit 3
               set peerip 10.1.1.2
           next
           edit 4
               set peerip 10.2.2.2
           next
           edit 5
               set peerip 10.1.1.4
           next
           edit 6
               set peerip 10.2.2.4
           next
       end
   end

To configure FGT_D:

1. Configure HA:

   config system ha
       set sync-packet-balance enable
       set session-pickup enable
       set session-pickup-connectionless enable
       set session-pickup-expectation enable
       set session-pickup-nat enable
   end

2. Configure the layer 2 session synchronization links:

   config system standalone-cluster
       set session-sync-dev "port5" "port6"
   end

3. Configure the session TTL default timeout:

   config system session-ttl
       set default 300
   end

4. Configure the interfaces:

   config system interface
       edit port5
           set ip 10.1.1.4/24
           set mtu-override enable
           set mtu 9216
       next
       edit port6
           set ip 10.2.2.4/24
           set mtu-override enable
           set mtu 9216
       next
   end

5. Configure FGSP session synchronization:

   config system standalone-cluster
       config cluster-peer
           edit 1
               set peerip 10.1.1.1
           next
           edit 2
               set peerip 10.2.2.1
           next
           edit 3
               set peerip 10.1.1.2
           next
           edit 4
               set peerip 10.2.2.2
           next
           edit 5
               set peerip 10.1.1.3
           next
           edit 6
               set peerip 10.2.2.3
           next
       end
   end
