ABP Application

On the Application page, you can set up and manage settings for your Advanced Bot Protection (ABP) applications. This involves tasks like adding new applications, checking application details, changing the application's name, and setting up login protection.

Click into each application to view its traffic insights and configurations.

For information on adding ABP Applications, please refer to ABP Setup.

Application Information

The table on the Application page displays all the Advanced Bot Protection applications currently under your FortiAppSec Cloud account.

Column	Description
Name	The internal name by which this application is displayed within the web portal GUI. Click on the Name to access Traffic Insights and General modules.
Domain Name	The domain name of your application. For example, www.fortinet.com. This field cannot be edited.
Region	The region of the ABP service that processes the traffic of your application
Auto Discovery Status	The Auto Discovery Status indicates the current stage of the protection entry discovery process. In Progress: Auto Discovery is still analyzing your application. No urgent action required. Review Needed: Auto Discovery has suggested new protection entries. Please review and confirm the changes. Connection Issue: Advanced Bot Protection could not connect to the entry points you provided. Potential causes for this include: The application's firewall is blocking ABP's management IPs. Add these IPs to your allowlist to prevent requests from being blocked. FortiAppSec Cloud WAF: IP protection FortiWeb: IP List - Blocklisting & whitelisting clients using a source IP or source IP range FortiADC： Using the Geo IP allowlist There is an error in the entry point URL. To edit the entry point URL: From Advanced Bot Protection > Applications, click the three dots under Action . Click Edit Application. Go to the Entry Points tab, and edit the Entry Point text input field No Results: Auto Discovery has completed analyzing your application, and did not identify any protection entries. To proceed, either rerun Auto Discovery after confirming your entry points are configured correctly, or manually create protection entries under Configurations > Protection Entry. No Updates: The Auto Discovery results match the current protection entries, with no changes detected.
Application Status	This field displays the protection status of the application. Onboarding: The application has been created, and is now being analyzed. The duration of this process depends on the application's complexity, as well as the number of entry points and protection categories selected. Integration Required: Advanced Bot Protection has not detected any attack queries targeting your protected entries from any connected WAF, FortiWeb, or FortiADC device. Possible reasons include: On-Premises integration has not been configured. Refer to the FortiWeb integration and FortiADC integration guides for detailed setup instructions. DNS records are not routed to your FortiAppSec Cloud WAF application or On-Premises device. Refer to changing DNS records on AWS Route 53 for an example configuration. Rule Adjustment: ABP tunes protection rules for two weeks based on real traffic to your application. During this time, please do not enable Block Mode. Protected: The application's traffic is monitored and protected by ABP.
Action	Click to expand the available actions to be taken on the protection entry. Copy Application ID: Securely copy the Application ID to your clipboard. The Application ID is not displayed for security reasons, and is used to enable integration with FortiADC and FortiWeb. Run AutoDiscovery: Initiates the Auto Discovery process to analyze the entry points defined in this application. This process typically takes several hours to complete. Edit Application Delete Application

Edit Application

1. Find the row containing the preferred application name.

2. Click the Edit icon to open the Edit Application wizard.

   Changes to domain names or entry points require manually re-running Auto Discovery or adding a protection entry. Editing the application alone does not fully update the configuration.

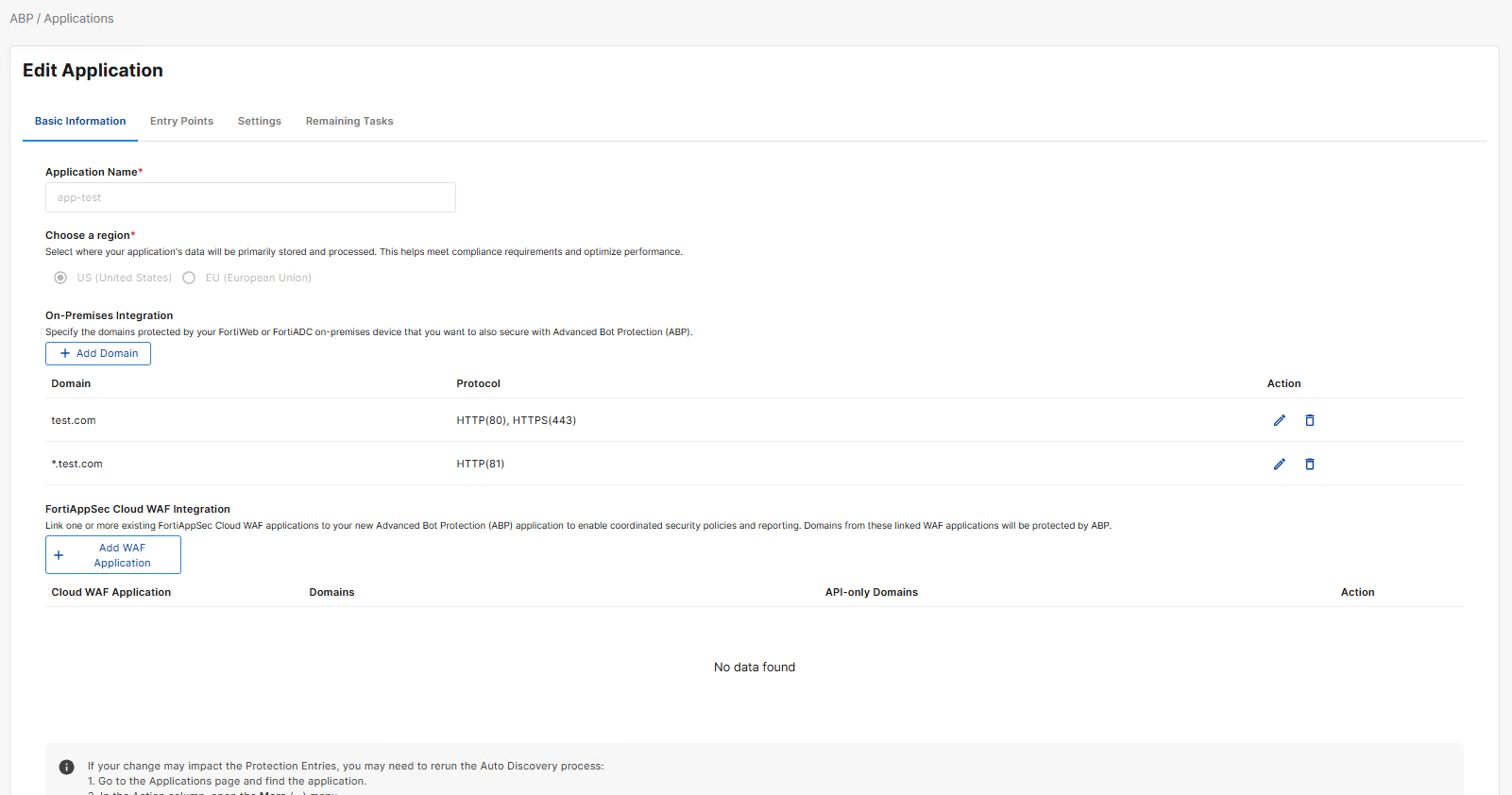

   1. Basic Information:

      The Application Name and Region cannot be edited.



      1. Click the Edit icon next to a domain or application to apply the ABP application to a different domain.

         • If editing an On-Premises Integration, enter the following:

           Setting	Description
           Domains	Enter the domains associated with your on-premises integration.
           Advanced Domain Options	Select whether your domain uses HTTP, HTTPS, or both. Enable Special Port to enter a custom port number if your domain uses a non-standard port (other than HTTP 80 or HTTPS 443).
           API-Only Domains	Enter any domains belonging to your application that only handle API calls.

         • If editing a FortiAppSec Cloud WAF Application, enter the following:


           Setting	Description
           Cloud WAF Application Name	From the drop-down list, select the desired existing WAF Application under your account.
           API-Only Domains	Enter any domains belonging to your application that only handle API calls.

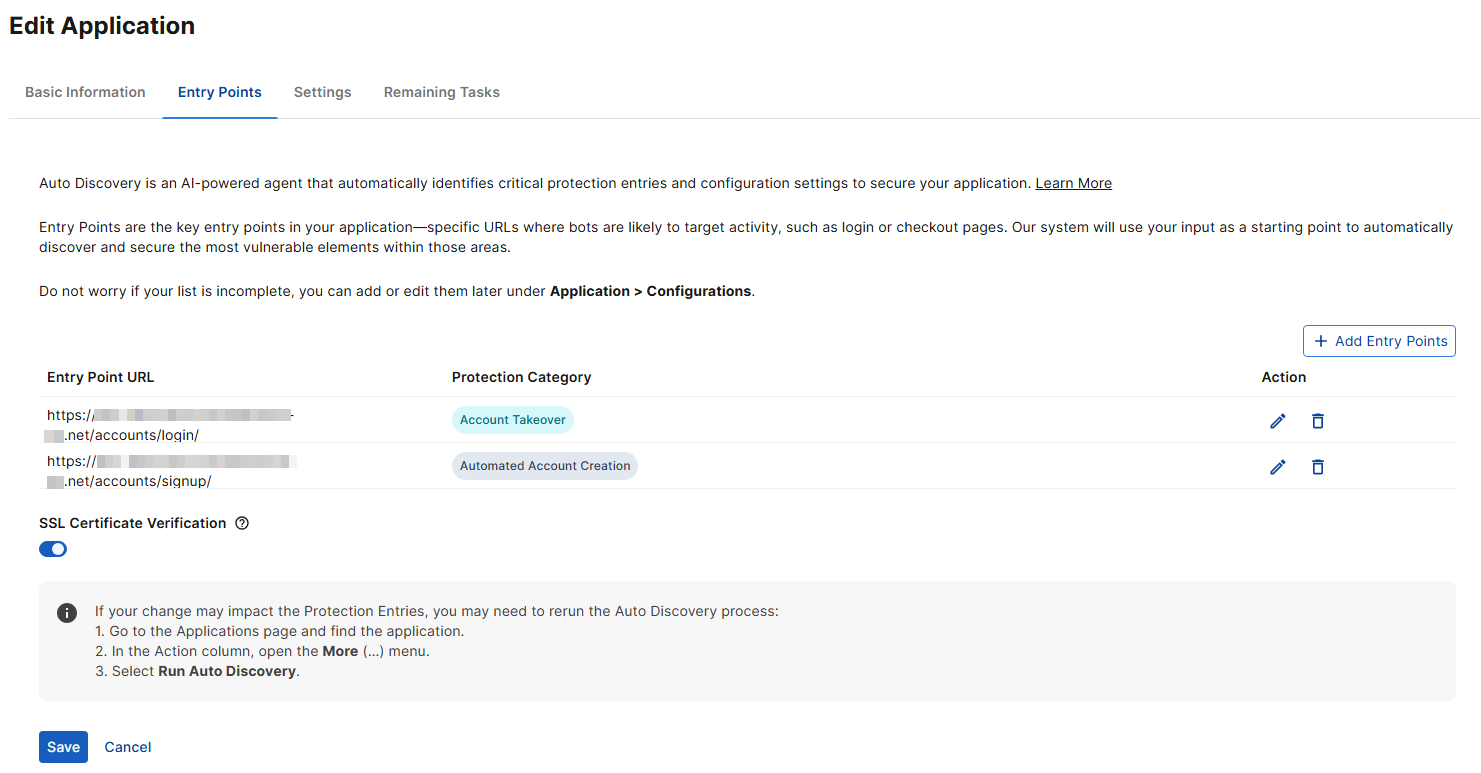

   2. Entry Points:



      1. Add or edit an existing Entry Point

         • To add an Entry Point, click Add Entry Points.

         • To edit an existing entry point, click the Edit icon under Action.

      2. Enter the following:

         Setting	Description
         Entry Point URL	Entry Points are URLs in your application that are likely targets for bots. This typically includes pages where users enter sensitive information, such as login or checkout pages. For more details on this concept, please refer to ABP Application. If the port number is not 80 for HTTP or 443 for HTTPS, please include the custom port number in the Entry Point URL. Example input where the port number is 1111: example.com:1111/login
         Protection Category	Select the attack categories relevant to the URL entered above. Note that selecting more protection categories may increase the time required for the AutoDiscovery process to complete. Denial of Service (DoS): Attempts to overwhelm your site with traffic, causing downtime or slow performance. AutoDiscovery primarily detects DoS activity targeting search pages. Account Takeover: Attempts to gain unauthorized access to user accounts. Typically targets login or password-reset pages. Automated Account Creation: Bots create fake accounts to exploit services or commit fraud. Typically targets registration or signup pages. Content Scraping: Bots extract content from your site, such as articles or images. Typically targets browsing pages. Price Scraping: Bots collect pricing information for competitive analysis. Typically targets browsing pages.
         Credentials	Optional; Provide the username and password for an existing, non-critical test account. This allows the system to determine the conditions for successful authentication, such as expected HTTP responses.

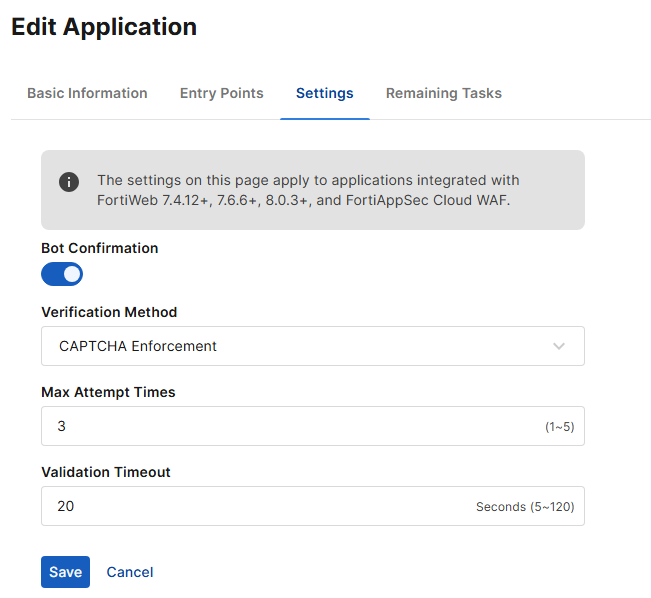

   3. Settings: this page includes configuration options for bot confirmation.

      Please note, the settings on this page apply to applications integrated with FortiWeb 7.4.12+, 7.6.6+, 8.0.3+, and FortiAppSec Cloud WAF.

      As of release 26.1.a, the Protective Action is configured per Entry Point rather than per application. For instructions on editing the Protective Action, see Configurations.



      Setting

      Description

      Bot Confirmation

      When enabled, the system displays a verification challenge to distinguish between human users and automated bots. Verification Method: Currently, only CAPTCHA Enforcement is supported. Max Attempt Times: Number of verification attempts allowed before the Protective Action is triggered. Validation Timeout: The amount of time allowed for a user or client to complete the verification before the Protective Action is triggered.

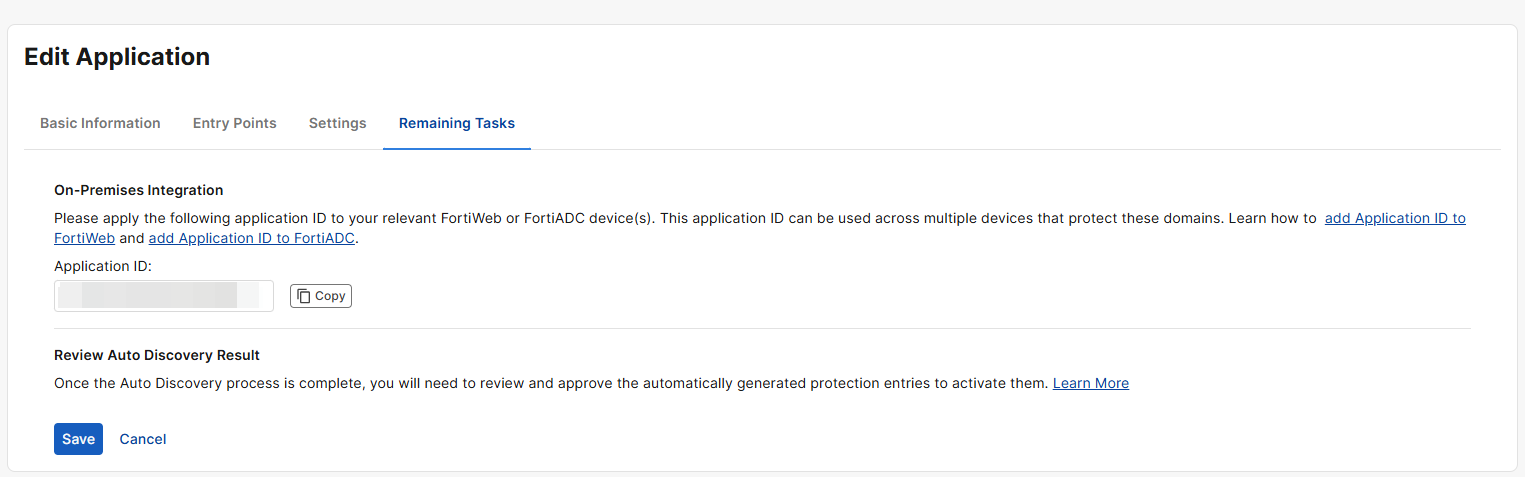

   4. Remaining Tasks: This page lists the outstanding actions that must be completed before your application can be fully connected and protected.

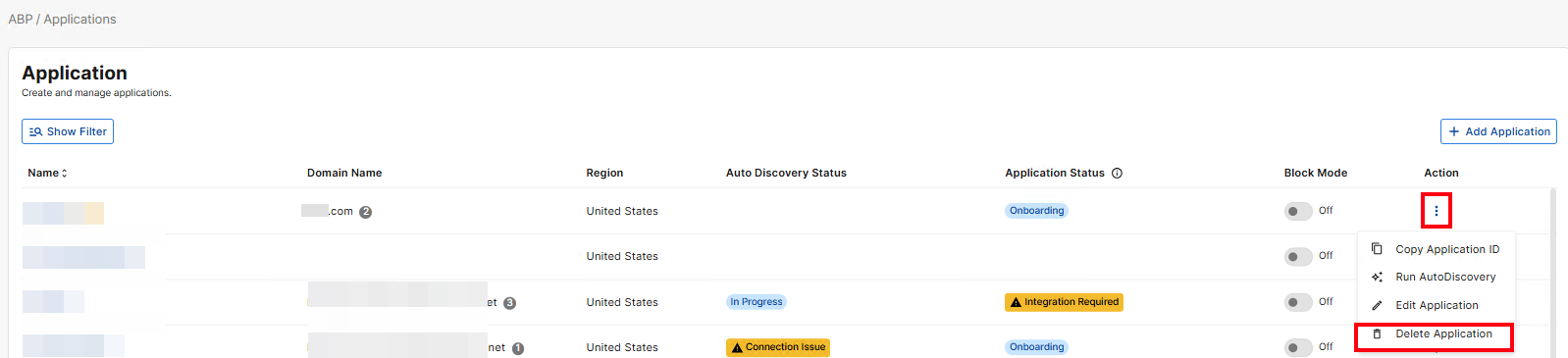

Delete Application

1. Find the row containing the preferred application name.

2. Click Delete Application.
