Installation in VxLAN Mode

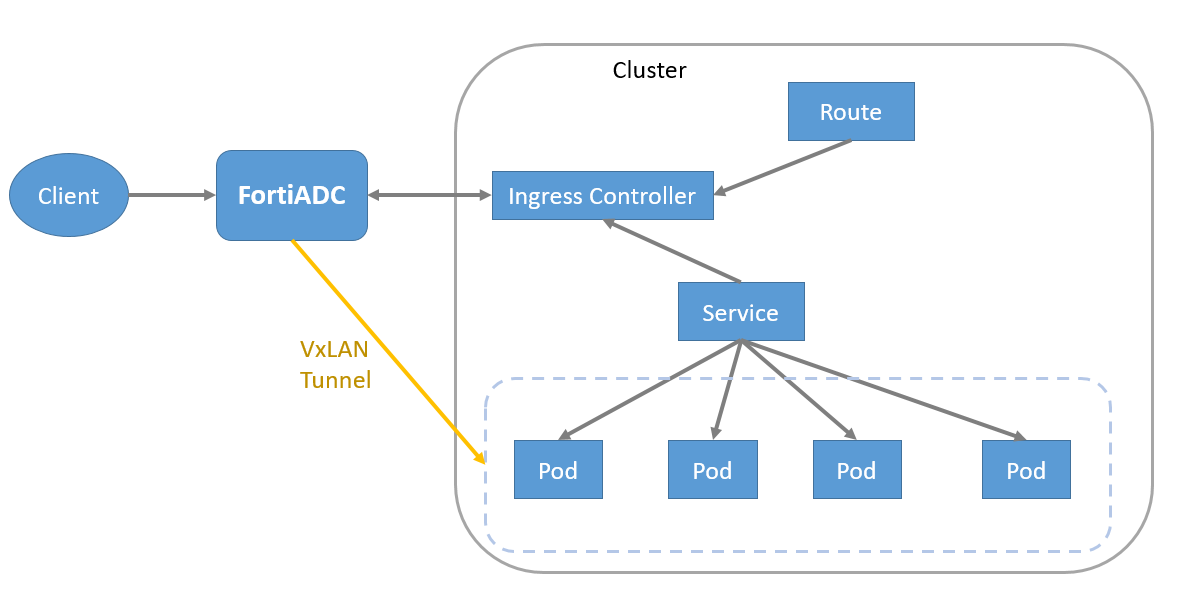

FortiADC Kubernetes Controller with OpenShift on VxLAN mode requires integration with an OpenShift Cluster utilizing the OVN-Kubernetes CNI, and it must have hybrid networking enabled.
Supported OpenShift version
The FortiADC OpenShift connector with VxLAN supports OpenShift Container Platform versions 4.7 to 4.12.x. FortiADC Kubernetes Controller needs to work with OpenShift OVN-Kubernetes CNI and hybrid networking enabled.
Installing FortiADC Kubernetes Controller in OpenShift with VxLAN
Install FortiADC Kubernetes Controller on OpenShift Container Platform 4 using Helm Charts.
|
Currently, only Helm 3 (version 3.6.3 or later) is supported. |
Helm Charts ease the installation of FortiADC Kubernetes Controller in the OpenShift cluster. By using the Helm 3 installation tool, most of the OpenShift objects required for FortiADC Kubernetes Controller can be deployed in one simple command.
The OpenShift objects required for FortiADC Kubernetes Controller are listed below:
|
OpenShift object |
Description |
|---|---|
| Deployment | By configuring the replica and pod template in the OpenShift deployment, the deployment ensures FortiADC Kubernetes Controller provides a non-terminated service. |
| Service Account | The service account is used in FortiADC Kubernetes Controller. |
| Cluster Role | A cluster role defines the permission on the OpenShift cluster-scoped Routes-related objects. |
| Cluster Role Binding | The cluster role is bound to the service account used for FortiADC Kubernetes Controller, allowing FortiADC Kubernetes Controller to access and operate the OpenShift cluster-scoped Routes-related objects. |
| Ingress Class | The IngressClass "fadc-ingress-controller" is created for FortiADC Kubernetes Controller to identify the Ingress resource. If the Ingress is defined with the IngressClass "fadc-ingress-controller", FortiADC Kubernetes Controller will manage this Ingress resource as FortiADC Kubernetes Controller also supports Ingress in the OpenShift cluster. |
The Helm Chart is composed of a collection of files that describe the related set of OpenShift files required by FortiADC Kubernetes Controller; one of which is the values.yaml file that provides the default configuration for deploying the OpenShift objects listed above.
Below lists parts of the values in the values.yaml file.
# Default values for fadc-k8s-ctrl.
# This is a YAML-formatted file.
# Declare variables to be passed into your templates.
# FortiADC Kubernetes Controller image from Dockerhub.com
image:
repository: fortinet/fortiadc-ingress
pullPolicy: IfNotPresent
tag: "3.1.0"
serviceAccount:
create: true
annotations: {}
name: "fortiadc-ingress"
tolerations:
- effect: "NoExecute"
key: "node.kubernetes.io/not-ready"
operator: "Exists"
tolerationSeconds: 30
- effect: "NoExecute"
key: "node.kubernetes.io/unreachable"
operator: "Exists"
tolerationSeconds: 30
# Define Ingress Class for FortiADC Kubernetes Controller
controller:
ingressClassResource:
name: "fadc-ingress-controller"
enabled: true
default: true
controllerValue: "fortinet.com/fadc-ingress-controller"
# You can decide parameters defined in annotation of Ingress to be optional or mandatory.
# FortiADC Kubernetes Controller will check the parameter if it marks mandatory.
parameters:
virtualServerNatSrcPool : "optional"
virtualServerWafProfile : "optional"
virtualServerAvProfile : "optional"
virtualServerDosProfile : "optional"
virtualServerCaptchaProfile : "optional"
virtualServerPersistence : "optional"
virtualServerFortiGSLB : "optional"
openshiftRouteSupport: "no"
enableStaticRouteSupport: "no"
webhook:
useCertManager: true
service:
name: fad-webhook
port: 443
targetPort: 8443
tlsSecretName: webhook-tls
validatingWebhookName: validator.fadk8sctrl.fortinet.com
mutatingWebhookName: mutator.fadk8sctrl.fortinet.com
rules:
validating:
- name: validate-vs.fadk8sctrl.fortinet.com
group: fadk8sctrl.fortinet.com
version: v1alpha2
resources:
- virtualservers
scope: "Namespaced"
path: /validate-vs
- name: validate-ingress.fadk8sctrl.fortinet.com
group: networking.k8s.io
version: v1
resources:
- ingresses
scope: "Namespaced"
path: /validate-ingress
mutating:
- name: mutate-vs.fadk8sctrl.fortinet.com
group: fadk8sctrl.fortinet.com
version: v1alpha2
resources:
- virtualservers
scope: "Namespaced"
path: /mutate-vs
|
|
In some scenarios, you may want to override some of the values included in the |
Install the Helm Chart
curl -L https://mirror.openshift.com/pub/openshift-v4/clients/helm/latest/helm-linux-amd64 -o /usr/local/bin/helm chmod +x /usr/local/bin/helm helm version
For more details, see the OpenShift documentation on Helm Chart installation:
https://docs.openshift.com/container-platform/4.9/applications/working_with_helm_charts/installing-helm.html
Install cert-manager.io
|
Starting with FortiADC Kubernetes Controller version 3.1, a webhook server is introduced. A cert-manager installation is required to generate the self-signed certificate used for the TLS connection between the Kubernetes API server and the webhook server. |
Before installing FortiADC Kubernetes Controller 3.1 or later, or upgrading to version 3.1 or later, install cert-manager by following the official installation guide at https://cert-manager.io/docs/installation/.
Compatibility has been verified with cert-manager v1.19.1.
helm repo add jetstack https://charts.jetstack.io
helm repo update
helm install --debug cert-manager jetstack/cert-manager \
--namespace cert-manager \
--create-namespace \
--version v1.19.1 \
--set crds.enabled=true
Get Repo Information
To get the repository information:
helm repo add fortiadc-kubernets-controller https://fortinet.github.io/fortiadc-kubernets-controller/ helm repo update
Installation parameters
To support Routes in OpenShift Container Platform, the openshiftRouteSupport parameter is added for installation. The default value of openshiftRouteSupport is no.
Starting from version 3.0.0, the security level of the FortiADC Kubernetes Controller has been increased. When deploying in OpenShift environments, you must set openshiftRouteSupport to yes to ensure a secure installation and prevent installation failure.
Install and Update the Helm Chart
You can specify a particular OpenShift Project in which FortiADC Kubernetes Controller will be deployed. Note that OpenShift Project is equal to Kubernetes Namespace.
By default, if no OpenShift Project is specified, the default project would be "default". The RELEASE_NAME is the name you give to this chart installation.
Try with the following command to enable OpenShift Routes support in FortiADC Kubernetes Controller.
helm install --set parameters.openshiftRouteSupport="yes" --namespace [OpenShift Project] [RELEASE_NAME] fortiadc-kubernetes-controller/fadc-k8s-ctrl
In the example below, the Helm chart is installed with the release name “first-release” in the OpenShift project “fortiadc-ingress”.
helm install --set parameters.openshiftRouteSupport="yes" \ --namespace fortiadc-ingress first-release fortiadc-kubernetes-controller/fadc-k8s-ctrl
If you want to override values in the Helm Chart, you can add --set flags in the command. In the example below, you can set the virtualServerWafProfile parameter as mandatory.
helm install --set parameters.openshiftRouteSupport="yes" \ --set parameters.virtualServerWafProfile="mandatory" \ --namespace fortiadc-ingress first-release fortiadc-kubernetes-controller/fadc-k8s-ctrl
Moreover, you can create a new project and deploy FortiADC Kubernetes Controller within the project at the same time.
helm install --set parameters.openshiftRouteSupport="yes" --namespace fortiadc-ingress --create-namespace first-release fortiadc-kubernetes-controller/fadc-k8s-ctrl
Upgrade the Helm Chart
Starting with version 3.0.0, the Helm chart repository was renamed to fortiadc-kubernetes-controller.
When upgrading from version 2.x to 3.0.0 or later, remove the old Helm repository and add the new repository before continuing with the upgrade.
helm repo remove fortiadc-ingress helm repo add fortiadc-kubernetes-controller \ https://fortinet.github.io/fortiadc–kubernetes–controller/ helm repo update
To upgrade the Helm chart, add the required parameter.
helm upgrade --set parameters.openshiftRouteSupport="yes" [RELEASE_NAME] fortiadc-kubernetes-controller/fadc-k8s-ctrl
In the example below, you can upgrade the helm chart with the release name “first-release”.
helm upgrade --set parameters.openshiftRouteSupport="yes" \ first-release fortiadc-kubernetes-controller/fadc-k8s-ctrl
Using the --debug option, you can check the Helm debug information “USER-SUPPLIED VALUES” to check if you have all the value set as you need.
Release "first-release" has been upgraded. Happy Helming! NAME: first-release LAST DEPLOYED: Fri Aug 4 13:32:10 2023 NAMESPACE: fortiadc-ingress STATUS: deployed REVISION: 2 TEST SUITE: None USER-SUPPLIED VALUES: parameters: virtualServerWafProfile: mandatory openshiftRouteSupport: yes
Check the Installation
The helm history command shows the installation information.
[root@bastion ~]# helm history first-release REVISION UPDATED STATUS CHART APP VERSION DESCRIPTION 1 Fri Aug 4 13:31:20 2023 superseded fadc-k8s-ctrl-2.0.0 2.0.0 Install complete
Check if FortiADC Kubernetes Controller is installed correctly.
[root@ocpexp openshift]# oc get deployment NAME READY UP-TO-DATE AVAILABLE AGE first-release-fadc-k8s-ctrl 1/1 1 1 4d17h
Check the FortiADC Kubernetes Controller log.
[root@ocpexp openshift]# oc logs first-release-fadc-k8s-ctrl-7cdcfdbdf6-fds6h Stopping fortiadc Kubernetes controller Starting fortiadc Kubernetes controller time="2024-06-05T05:42:38Z" level=info msg="Starting FortiADC Kubernetes controller" time="2024-06-05T05:42:39Z" level=info msg="Routes Monitor Enabled"
