Navigating the GUI
This section includes an overview of the FortiCloud and FortiVoice Cloud portal GUI.

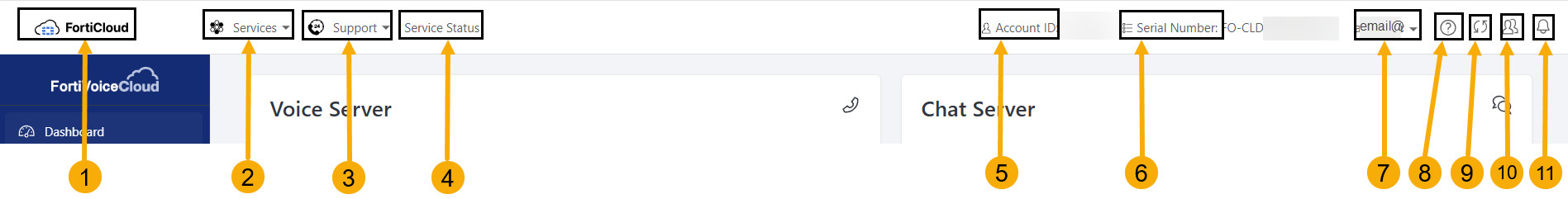

After logging in to FortiVoice Cloud using your FortiCloud account, you access the following GUI:
The following table explains the function of the icons and screen elements:
|
Number |
Description |
See more |
|---|---|---|
|
1 |
The FortiCloud logo has two variants:
|
|
|
2 |
The Services section includes links to FortiCloud assets and accounts management and other Fortinet cloud services. |
|
|
3 |
The Support section includes the following:
|
FortiFone firmware upgrades in the FortiVoice Cookbook |
|
4 |
The Service Status section shows the uptime and any service interruption details for your FortiVoice Cloud instance as follows:
|
|
|
5 |
Your FortiCloud account number. |
|
|
6 |
Your FortiVoice Cloud instance. |
|
|
7 |
The FortiCloud account name is typically your email address. To access and manage your FortiCloud account, click the arrow next to your FortiCloud account name and select My Account. To end your FortiCloud session, click the arrow and select Logout. |
|
|
8 |
The Help icon gives you access to context-sensitive help (CSH) which opens the FortiVoice Cloud online documentation in HTML format. You can also download the PDF file from the HTML page. |
|
|
9 |
The Sync All Data icon allows you to manually synchronize all account, license, and entitlement data. Data is synchronized automatically on a daily basis with FortiCare. However, if you make manual changes to your account, licenses, or entitlements, and you want to view the changes instantly, click this icon. |
|
|
10 |
The Switch Account / Role icon allows you to select a different account or role if you have multiple. |
Switching accounts in the FortiCloud Services Asset Management Administration Guide |
|
11 |
The Message Center icon gives you access to the following FortiVoice Cloud modules and their progress: Voice—pending and completed tasks such as instances being deployed. Maintenance—any outages reported or planned maintenance. |
