GRE over IPsec

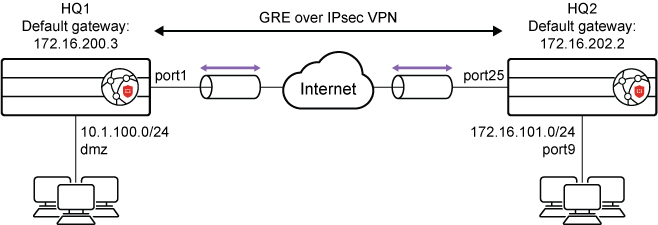

This is an example of GRE over an IPsec tunnel using a static route over GRE tunnel and tunnel-mode in the phase2-interface settings.

To configure GRE over an IPsec tunnel:

1. Enable subnet overlapping at both HQ1 and HQ2.

   config system settings
       set allow-subnet-overlap enable
   end

2. Configure the WAN interface and static route.
   1. HQ1.

      config system interface
          edit "port1"
              set ip 172.16.200.1 255.255.255.0
          next
          edit "dmz"
              set ip 10.1.100.1 255.255.255.0
          next
      end
      config router static
          edit 1
              set gateway 172.16.200.3
              set device "port1"
          next
      end

   2. HQ2.

      config system interface
          edit "port25"
              set ip 172.16.202.1 255.255.255.0
          next
          edit "port9"
              set ip 172.16.101.1 255.255.255.0
          next
      end
      config router static
          edit 1
              set gateway 172.16.202.2
              set device "port25"
          next
      end

3. Configure IPsec phase1-interface and phase2-interface.
   1. HQ1.

      config vpn ipsec phase1-interface
          edit "greipsec"
              set interface "port1"
              set peertype any
              set proposal aes128-sha256 aes256-sha256 aes128-sha1 aes256-sha1
              set remote-gw 172.16.202.1
              set psksecret sample
              next
      end
      config vpn ipsec phase2-interface
          edit "greipsec"
              set phase1name "greipsec"
              set proposal aes128-sha1 aes256-sha1 aes128-sha256 aes256-sha256 aes128gcm aes256gcm chacha20poly1305
              set protocol 47
          next
      end

   2. HQ2.

      config vpn ipsec phase1-interface
          edit "greipsec"
              set interface "port25"
              set peertype any
              set proposal aes128-sha256 aes256-sha256 aes128-sha1 aes256-sha1
              set remote-gw 172.16.200.1
              set psksecret sample
              next
      end
      config vpn ipsec phase2-interface
          edit "greipsec"
              set phase1name "greipsec"
              set proposal aes128-sha1 aes256-sha1 aes128-sha256 aes256-sha256 aes128gcm aes256gcm chacha20poly1305
              set protocol 47
          next
      end

4. Configure IPsec tunnel interface IP address.
   1. HQ1.

      config system interface
          edit "greipsec"
              set ip 10.10.10.1 255.255.255.255
              set remote-ip 10.10.10.2 255.255.255.255
          next
      end

   2. HQ2.

      config system interface
          edit "greipsec"
              set ip 10.10.10.2 255.255.255.255
              set remote-ip 10.10.10.1 255.255.255.255
          next
      end

5. Configure the GRE tunnel.
   1. HQ1.

      config system gre-tunnel
          edit "gre_to_HQ2"
              set interface "greipsec"
              set remote-gw 10.10.10.2
              set local-gw 10.10.10.1
          next
      end

   2. HQ2.

      config system gre-tunnel
          edit "gre_to_HQ1"
              set interface "greipsec"
              set remote-gw 10.10.10.1
              set local-gw 10.10.10.2
          next
      end

6. Configure the firewall policy.
   1. HQ1.

      config firewall policy
          edit 1
              set srcintf "dmz"
              set dstintf "gre_to_HQ2"
              set srcaddr "all"
              set dstaddr "all"
              set action accept
              set schedule "always"
              set service "ALL"
          next
          edit 2
              set srcintf "gre_to_HQ2"
              set dstintf "dmz"
              set srcaddr "all"
              set dstaddr "all"
              set action accept
              set schedule "always"
              set service "ALL"
          next
          edit 3
              set srcintf "greipsec"
              set dstintf "greipsec"
              set srcaddr "all"
              set dstaddr "all"
              set action accept
              set schedule "always"
              set service "ALL"
          next
      end

   2. HQ2.

      config firewall policy
          edit 1
              set srcintf "port9"
              set dstintf "gre_to_HQ1"
              set srcaddr "all"
              set dstaddr "all"
              set action accept
              set schedule "always"
              set service "ALL"
          next
          edit 2
              set srcintf "gre_to_HQ1"
              set dstintf "port9"
              set srcaddr "all"
              set dstaddr "all"
              set action accept
              set schedule "always"
              set service "ALL"
          next
          edit 3
              set srcintf "greipsec"
              set dstintf "greipsec"
              set srcaddr "all"
              set dstaddr "all"
              set action accept
              set schedule "always"
              set service "ALL"
          next
      end

7. Configure the static route.
   1. HQ1.

      config router static
          edit 2
              set dst 172.16.101.0 255.255.255.0
              set device "gre_to_HQ2"
          next
      end

   2. HQ2.

      config router static
          edit 2
              set dst 10.1.100.0 255.255.255.0
              set device "gre_to_HQ1"
          next
      end

8. Configure central SNAT in HQ1 and HQ2:

   1. HQ1.

      config firewall central-snat-map
          edit 7
              set srcintf "gre_to_HQ2"
              set dstintf "dmz"
              set src-addr "all"
              set dst-addr "all"
          next
      end

   2. HQ2.

      config firewall central-snat-map
          edit 7
              set srcintf "gre_to_HQ1"
              set dstintf "port9"
              set src-addr "all"
              set dst-addr "all"
          next
      end
