Integrating FortiPAM and Jenkins- CLI

Before you begin

1. Install the Jenkins OIDC provider plugin.
   1. Manage Jenkins > System configuration > Plugins.
   2. Search OpenID Connect Provider in Available Plugins.

      OR

   3. Download the hpi file in https://plugins.jenkins.io/oidc-provider/releases/.
   4. Go to Advanced setting > Deploy Plugin > Choose file.
2. jq
   1. On the Jenkins host Unix machine , use:

       sudo apt install jq

3. curl
   1. On the Jenkins host Unix machine, use:

       sudo apt install curl

Setting up Jenkins URL

1. Go to Manage Jenkins -> System configuration -> System -> Jenkins URL, and enter the URL.

Setting up Jenkins OIDC provider

1. Go to Manage Jenkins > Security > Credentials.
2. To open the System page, go to the Stores scoped to Jenkins field and click System.
3. To open the Global Credentials, click Global credentials.
4. Click Add credentials and choose OpenID Connect id token.

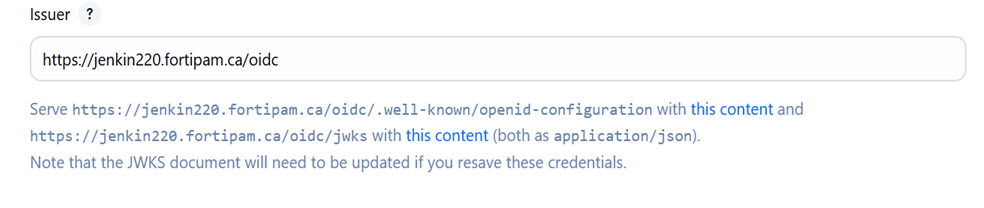

5. Optionally, edit Issuer, Audience, and ID.
6. Click Create.
7. Click Update to update the new credential.

   If the issuer is changed, you need to manually host the OIDC files. Otherwise, the OIDC link is https://<Jenkins_URL>/oidc/.well-known/openid-configuration.



8. If the ID is not set, the credential ID is generated.



Setting up FortiPAM JWT authentication

1. In the FortiPAM CLI console, enter the following commands:

     config secret jwt-key
      edit "jenkins"
       set type jwks
       set url <url> #The JWT URL
      next
     end

2. Check that the key has been retrieved.
3. Set up the JWT api user.

     config system api-user
      edit "jenkins_jwt_test"
       set type jwt
       set accprofile "pam_standard_user"
       set vdom "root"
       config claims
         edit "iss"
          set value <value> #This is same as the Jenkins settings, e.g., https://jenkin220.fortipam.ca/oidc
         next
         edit "sub"
          set value "<by default the URL of a Jenkins job>" #e.g., https://jenkin220.fortipam.ca/job/jwt-test/
         next
        end
       next
      end


4. In the FortiPAM GUI, grant API user secret and folder permission.

Jenkins job example script

 pipeline {
  agent any
  stages {
   stage ('JWT-TEST') {
   steps {
      withCredentials([string(credentialsId: ‘<This will be the Jenkins credential id>', variable: 'JWT')])
       script{
        def PAM_ADDR = https://[PAM_Addr]:443
        sh 'echo $JWT | base64'
			def TOKEN_INFO = sh (
			script: "curl -k $PAM_ADDR/auth/jwt/login -H 'Content-Type:application/json' -d '{\"jwt\":\"$JWT\"}'",
			returnStdout: true
			).trim()
	sh "echo $TOKEN_INFO"
        def TOKEN = sh (
          script: "echo '$TOKEN_INFO' | jq -r '.[\"access-token\"]'",
	   returnStdout: true
	  ).trim()
	sh "echo $TOKEN"
	def FIELD_NAME = "<FPAM secret field name>"
	def SEC_CRED = sh (
           script "curl -k $PAM_ADDR/api/v2/cmdb/secret/database/<secret_id>?fieldname=$FIELD_NAME –H \"Authorization:Bearer $TOKEN\"",
           returnStdout: true
           ).trim()
         sh"echo $SEC_CRED"
	  pwd = sh (
       script: "echo '$SEC_CRED' | jq -r '.results[0].$FIELD_NAME'",
       returnStdout: true
       ).trim()
       println pwd
      }
     }
    }
   }
  }
 }

Jenkins freestyle setup

1. Go to Job > Configure.

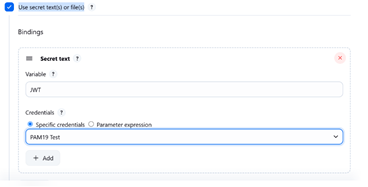

2. In Environment, select Use secret text(s) or file(s).



3. Enter the environment variable name and select the OIDC provider credential.

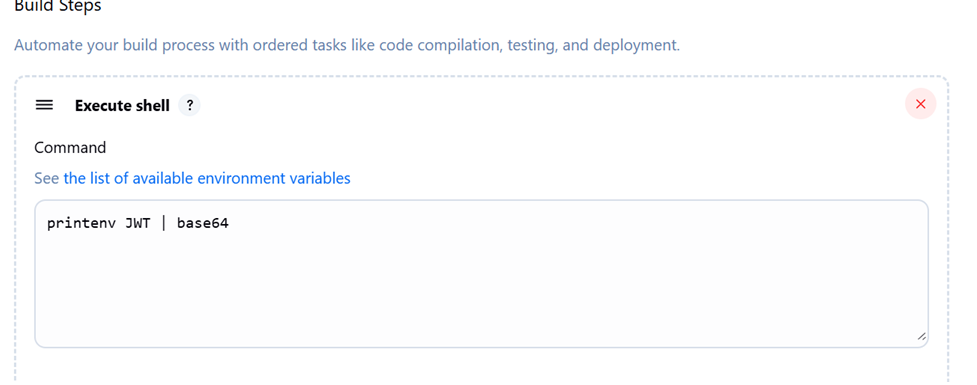

4. In the build setup, proceed with the script used in Jenkins job example script, e.g., environment variable referencing.
