On-demand duplication at the Hub using remote health-check
Packet duplication on hub devices can be configured to automatically activate when a spoke begins sending out-of-SLA remote health checks. Duplication continues until the hub once again receives in-SLA health checks from that spoke. The duplication is limited to the affected spoke's tunnels. For each original packet, the hub sends one duplicate per tunnel until either all tunnels have transmitted the same packet or the configured maximum (duplication-max-num) is reached.

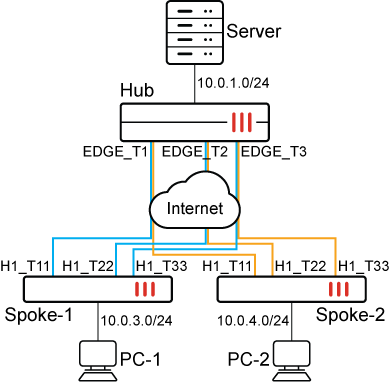

In this example, the Hub has three dial-up tunnels to Spoke-1 and Spoke-2. On-demand duplication is configured on the Hub, and active health-check is configured on the spokes to detect the overlays' SLA.
To configure the Hub:
config system sdwan
set status enable
set duplication-max-num 4
config zone
...
edit "overlay"
next
end
config members
edit 1
set interface "EDGE_T1"
set zone "overlay"
next
edit 2
set interface "EDGE_T2"
set zone "overlay"
next
edit 3
set interface "EDGE_T3"
set zone "overlay"
next
...
end
config health-check
edit "passive_hc"
set detect-mode remote
set sla-id-redistribute 1
set members 1 2 3
config sla
edit 1
set link-cost-factor remote
next
end
next
end
...
config duplication
edit 1
set srcaddr "CORP_LAN"
set dstaddr "CORP_LAN"
set srcintf "lan_zone" "overlay"
set dstintf "overlay" "lan_zone"
set service "PING"
set packet-duplication on-demand
next
end
end
To configure Spoke-1:
config system sdwan
set status enable
config zone
...
edit "overlay"
next
end
config members
...
edit 4
set interface "H1_T11"
set zone "overlay"
set source 172.31.0.65
set priority 10
next
edit 5
set interface "H1_T22"
set zone "overlay"
set source 172.31.0.65
set priority 10
next
edit 6
set interface "H1_T33"
set zone "overlay"
set source 172.31.0.65
set priority 10
next
...
end
config health-check
edit "HUB"
set server "172.31.100.100"
set embed-measured-health enable
set sla-id-redistribute 1
set members 4 5 6
config sla
edit 1
set link-cost-factor latency
set latency-threshold 100
next
end
next
end
...
end
To configure Spoke-2:
config system sdwan
set status enable
config zone
...
edit "overlay"
end
config members
edit 4
set interface "H1_T11"
set zone "overlay"
set source 172.31.0.66
set cost 2
set priority 10
next
edit 5
set interface "H1_T22"
set zone "overlay"
set source 172.31.0.66
set priority 10
next
edit 6
set interface "H1_T33"
set zone "overlay"
set source 172.31.0.66
set priority 10
next
...
end
config health-check
edit "HUB"
set server "172.31.100.100"
set embed-measured-health enable
set sla-id-redistribute 1
set members 4 5 6
config sla
edit 1
set link-cost-factor latency
set latency-threshold 200
next
end
next
end
...
end
To check the routes:
-
On the Hub, check the subnets behind Spoke-1 (10.0.3.0/24) and Spoke-2 (10.0.4.0/24):
# get router info routing-table details 10.0.3.0/24 Routing table for VRF=0 Routing entry for 10.0.3.0/24 Known via "bgp", distance 200, metric 0, best Last update 01:10:23 ago * vrf 0 172.31.0.65 priority 1 (recursive via EDGE_T1 tunnel 172.31.0.65 [1]) (recursive via EDGE_T2 tunnel 10.0.0.14 [1]) (recursive via EDGE_T3 tunnel 10.0.0.15 [1])# get router info routing-table details 10.0.4.0/24 Routing table for VRF=0 Routing entry for 10.0.4.0/24 Known via "bgp", distance 200, metric 0, best Last update 01:09:45 ago * vrf 0 172.31.0.66 priority 1 (recursive via EDGE_T1 tunnel 172.31.0.66 [1]) (recursive via EDGE_T2 tunnel 10.0.0.16 [1]) (recursive via EDGE_T3 tunnel 10.0.0.17 [1]) -
On Spoke-1, check the subnet behind the Hub:
# get router info routing-table details 10.0.1.0/24 Routing table for VRF=0 Routing entry for 10.0.1.0/24 Known via "bgp", distance 200, metric 0, best Last update 01:40:18 ago * vrf 0 172.31.0.1, tag 1 priority 1 (recursive via H1_T11 tunnel 172.31.1.1), best-match (recursive via H1_T22 tunnel 172.31.1.5), best-match (recursive via H1_T33 tunnel 172.31.2.1), best-match -
On Spoke-2, check the subnet behind the Hub:
# get router info routing-table details 10.0.1.0/24 Routing table for VRF=0 Routing entry for 10.0.1.0/24 Known via "bgp", distance 200, metric 0, best Last update 01:11:37 ago * vrf 0 172.31.0.1, tag 1 priority 1 (recursive via H1_T11 tunnel 172.31.1.1), best-match (recursive via H1_T22 tunnel 172.31.1.5), best-match (recursive via H1_T33 tunnel 172.31.2.1), best-match -
On the Hub, check the remote health status and that all child tunnels are in-SLA:
# diagnose sys sdwan health-check remote Remote Health Check: passive_hc(3) Passive remote statistics of EDGE_T3(47): EDGE_T3_0(10.0.0.15): timestamp=02-19 12:10:03.556, src=172.31.0.65, latency=0.150, jitter=0.007, pktloss=0.000%, mos=4.404, SLA id=1(pass), rmt_ver=1, rmt_sla=in, rmt_prio=0, last_sla_change=02-19 10:23:45.877 EDGE_T3_1(10.0.0.17): timestamp=02-19 12:10:03.368, src=172.31.0.66, latency=0.159, jitter=0.022, pktloss=0.000%, mos=4.404, SLA id=1(pass), rmt_ver=1, rmt_sla=in, rmt_prio=0, last_sla_change=02-19 10:51:17.377 Remote Health Check: passive_hc(2) Passive remote statistics of EDGE_T2(46): EDGE_T2_1(10.0.0.14): timestamp=02-19 12:10:03.556, src=172.31.0.65, latency=0.210, jitter=0.004, pktloss=0.000%, mos=4.404, SLA id=1(pass), rmt_ver=1, rmt_sla=in, rmt_prio=0, last_sla_change=02-19 10:21:44.967 EDGE_T2_0(10.0.0.16): timestamp=02-19 12:10:03.368, src=172.31.0.66, latency=0.229, jitter=0.017, pktloss=0.000%, mos=4.404, SLA id=1(pass), rmt_ver=1, rmt_sla=in, rmt_prio=0, last_sla_change=02-19 10:51:08.667 Remote Health Check: passive_hc(1) Passive remote statistics of EDGE_T1(45): EDGE_T1_1(172.31.0.65): timestamp=02-19 12:10:03.556, src=172.31.0.65, latency=0.262, jitter=0.019, pktloss=0.000%, mos=4.404, SLA id=1(pass), rmt_ver=1, rmt_sla=in, rmt_prio=0, last_sla_change=02-19 12:05:34.137 EDGE_T1_0(172.31.0.66): timestamp=02-19 12:10:03.368, src=172.31.0.66, latency=0.285, jitter=0.021, pktloss=0.000%, mos=4.404, SLA id=1(pass), rmt_ver=1, rmt_sla=in, rmt_prio=0, last_sla_change=02-19 10:51:08.157
-
Ping from the server to PC-1 and PC-2 and on the Hub, confirm that traffic goes on EDGE_T1 and no duplication occurs because the child tunnels of EDGE_T1 are in-SLA.
-
PC-1:
test@server:~$ ping 10.0.3.2 PING 10.0.3.2 (10.0.3.2) 56(84) bytes of data. 64 bytes from 10.0.3.2: icmp_seq=1 ttl=62 time=1.09 ms 64 bytes from 10.0.3.2: icmp_seq=2 ttl=62 time=0.684 ms 64 bytes from 10.0.3.2: icmp_seq=3 ttl=62 time=0.679 ms
Packet sniffer on the Hub:
# diagnose sniffer packet any 'host 10.0.3.2' 4 interfaces=[any] filters=[host 10.0.3.2] 39.588602 port4 in 10.0.1.2 -> 10.0.3.2: icmp: echo request 39.588763 EDGE_T1 out 10.0.1.2 -> 10.0.3.2: icmp: echo request 39.589555 EDGE_T1 in 10.0.3.2 -> 10.0.1.2: icmp: echo reply 39.589626 port4 out 10.0.3.2 -> 10.0.1.2: icmp: echo reply 40.588399 port4 in 10.0.1.2 -> 10.0.3.2: icmp: echo request 40.588472 EDGE_T1 out 10.0.1.2 -> 10.0.3.2: icmp: echo request 40.588946 EDGE_T1 in 10.0.3.2 -> 10.0.1.2: icmp: echo reply 40.588998 port4 out 10.0.3.2 -> 10.0.1.2: icmp: echo reply 41.587411 port4 in 10.0.1.2 -> 10.0.3.2: icmp: echo request 41.587491 EDGE_T1 out 10.0.1.2 -> 10.0.3.2: icmp: echo request 41.587972 EDGE_T1 in 10.0.3.2 -> 10.0.1.2: icmp: echo reply 41.588028 port4 out 10.0.3.2 -> 10.0.1.2: icmp: echo reply
-
PC-2:
test@server:~$ ping 10.0.4.2 PING 10.0.4.2 (10.0.4.2) 56(84) bytes of data. 64 bytes from 10.0.4.2: icmp_seq=1 ttl=62 time=0.959 ms 64 bytes from 10.0.4.2: icmp_seq=2 ttl=62 time=0.630 ms 64 bytes from 10.0.4.2: icmp_seq=3 ttl=62 time=0.650 ms
Packet sniffer on the Hub:
# diagnose sniffer packet any 'host 10.0.4.2' 4 interfaces=[any] filters=[host 10.0.4.2] 2.598946 port4 in 10.0.1.2 -> 10.0.4.2: icmp: echo request 2.599055 EDGE_T1 out 10.0.1.2 -> 10.0.4.2: icmp: echo request 2.599777 EDGE_T1 in 10.0.4.2 -> 10.0.1.2: icmp: echo reply 2.599810 port4 out 10.0.4.2 -> 10.0.1.2: icmp: echo reply 3.598778 port4 in 10.0.1.2 -> 10.0.4.2: icmp: echo request 3.598819 EDGE_T1 out 10.0.1.2 -> 10.0.4.2: icmp: echo request 3.599262 EDGE_T1 in 10.0.4.2 -> 10.0.1.2: icmp: echo reply 3.599295 port4 out 10.0.4.2 -> 10.0.1.2: icmp: echo reply 4.598782 port4 in 10.0.1.2 -> 10.0.4.2: icmp: echo request 4.598819 EDGE_T1 out 10.0.1.2 -> 10.0.4.2: icmp: echo request 4.599279 EDGE_T1 in 10.0.4.2 -> 10.0.1.2: icmp: echo reply 4.599316 port4 out 10.0.4.2 -> 10.0.1.2: icmp: echo reply
-
-
Increase the latency to 120ms on overlay H1_T11 of Spoke-1, then confirm that the corresponding child tunnel on the Hub is out-of-SLA. Also confirm that duplication occurs from the Hub to Spoke-1.
-
Check the health status on the HUB:
# diagnose sys sdwan health-check remote Remote Health Check: passive_hc(3) Passive remote statistics of EDGE_T3(47): EDGE_T3_0(10.0.0.15): timestamp=02-19 13:28:14.680, src=172.31.0.65, latency=0.158, jitter=0.009, pktloss=0.000%, mos=4.404, SLA id=1(pass), rmt_ver=1, rmt_sla=in, rmt_prio=0, last_sla_change=02-19 10:23:45.877 EDGE_T3_1(10.0.0.17): timestamp=02-19 13:28:14.504, src=172.31.0.66, latency=0.149, jitter=0.019, pktloss=0.000%, mos=4.404, SLA id=1(pass), rmt_ver=1, rmt_sla=in, rmt_prio=0, last_sla_change=02-19 10:51:17.377 Remote Health Check: passive_hc(2) Passive remote statistics of EDGE_T2(46): EDGE_T2_1(10.0.0.14): timestamp=02-19 13:28:14.680, src=172.31.0.65, latency=0.220, jitter=0.009, pktloss=0.000%, mos=4.404, SLA id=1(pass), rmt_ver=1, rmt_sla=in, rmt_prio=0, last_sla_change=02-19 10:21:44.967 EDGE_T2_0(10.0.0.16): timestamp=02-19 13:28:14.504, src=172.31.0.66, latency=0.213, jitter=0.014, pktloss=0.000%, mos=4.404, SLA id=1(pass), rmt_ver=1, rmt_sla=in, rmt_prio=0, last_sla_change=02-19 10:51:08.667 Remote Health Check: passive_hc(1) Passive remote statistics of EDGE_T1(45): EDGE_T1_1(172.31.0.65): timestamp=02-19 13:28:14.680, src=172.31.0.65, latency=120.247, jitter=0.017, pktloss=0.000%, mos=4.338, SLA id=1(remote), rmt_ver=1, rmt_sla=out, rmt_prio=0, last_sla_change=02-19 13:25:41.227 EDGE_T1_0(172.31.0.66): timestamp=02-19 13:28:14.504, src=172.31.0.66, latency=0.255, jitter=0.031, pktloss=0.000%, mos=4.404, SLA id=1(pass), rmt_ver=1, rmt_sla=in, rmt_prio=0, last_sla_change=02-19 10:51:08.157
-
Ping PC-1:
The duplication takes place from Hub to Spoke-1.
test@server:~$ ping 10.0.3.2 64 bytes from 10.0.3.2: icmp_seq=51 ttl=62 time=120 ms 64 bytes from 10.0.3.2: icmp_seq=52 ttl=62 time=120 ms 64 bytes from 10.0.3.2: icmp_seq=53 ttl=62 time=120 ms 64 bytes from 10.0.3.2: icmp_seq=54 ttl=62 time=0.899 ms 64 bytes from 10.0.3.2: icmp_seq=54 ttl=62 time=0.931 ms (DUP!) 64 bytes from 10.0.3.2: icmp_seq=54 ttl=62 time=120 ms (DUP!) 64 bytes from 10.0.3.2: icmp_seq=55 ttl=62 time=0.820 ms 64 bytes from 10.0.3.2: icmp_seq=55 ttl=62 time=0.855 ms (DUP!) 64 bytes from 10.0.3.2: icmp_seq=55 ttl=62 time=120 ms (DUP!) 64 bytes from 10.0.3.2: icmp_seq=56 ttl=62 time=0.793 ms 64 bytes from 10.0.3.2: icmp_seq=56 ttl=62 time=0.827 ms (DUP!) 64 bytes from 10.0.3.2: icmp_seq=56 ttl=62 time=120 ms (DUP!)
Because one tunnel is out-of-SLA, the ping test changes from single echo replies (as indicated by the sequence number increasing by one and the latency remaining at 120ms) to three echo replies per sequence and only one with 120ms latency, indicating that all tunnels are used at once. Note that the duplication was configured to send four duplicate packets, but only two duplicates are received as a result of only three eligible tunnels.
-
-
Increase the latency to 220ms on overlay H1_T11 of Spoke-2, then confirm that corresponding child tunnel on the Hub is out-of-SLA. Also confirm that duplication occurs from the Hub to Spoke-2.
-
Check the health status on the HUB:
# diagnose sys sdwan health-check remote Remote Health Check: passive_hc(3) Passive remote statistics of EDGE_T3(47): EDGE_T3_0(10.0.0.15): timestamp=02-19 13:40:38.693, src=172.31.0.65, latency=0.157, jitter=0.008, pktloss=0.000%, mos=4.404, SLA id=1(pass), rmt_ver=1, rmt_sla=in, rmt_prio=0, last_sla_change=02-19 10:23:45.877 EDGE_T3_1(10.0.0.17): timestamp=02-19 13:40:38.766, src=172.31.0.66, latency=0.145, jitter=0.017, pktloss=0.000%, mos=4.404, SLA id=1(pass), rmt_ver=1, rmt_sla=in, rmt_prio=0, last_sla_change=02-19 10:51:17.377 Remote Health Check: passive_hc(2) Passive remote statistics of EDGE_T2(46): EDGE_T2_1(10.0.0.14): timestamp=02-19 13:40:38.692, src=172.31.0.65, latency=0.220, jitter=0.006, pktloss=0.000%, mos=4.404, SLA id=1(pass), rmt_ver=1, rmt_sla=in, rmt_prio=0, last_sla_change=02-19 10:21:44.967 EDGE_T2_0(10.0.0.16): timestamp=02-19 13:40:38.766, src=172.31.0.66, latency=0.219, jitter=0.012, pktloss=0.000%, mos=4.404, SLA id=1(pass), rmt_ver=1, rmt_sla=in, rmt_prio=0, last_sla_change=02-19 10:51:08.667 Remote Health Check: passive_hc(1) Passive remote statistics of EDGE_T1(45): EDGE_T1_1(172.31.0.65): timestamp=02-19 13:40:38.692, src=172.31.0.65, latency=120.245, jitter=0.010, pktloss=0.000%, mos=4.338, SLA id=1(remote), rmt_ver=1, rmt_sla=out, rmt_prio=0, last_sla_change=02-19 13:25:41.227 EDGE_T1_0(172.31.0.66): timestamp=02-19 13:40:38.766, src=172.31.0.66, latency=220.242, jitter=0.018, pktloss=0.000%, mos=4.103, SLA id=1(remote), rmt_ver=1, rmt_sla=out, rmt_prio=0, last_sla_change=02-19 13:39:12.427
-
Ping PC-2:
The duplication takes place from Hub to Spoke-2.
test@server:~$ ping 10.0.4.2 64 bytes from 10.0.4.2: icmp_seq=103 ttl=62 time=220 ms 64 bytes from 10.0.4.2: icmp_seq=104 ttl=62 time=220 ms 64 bytes from 10.0.4.2: icmp_seq=105 ttl=62 time=220 ms 64 bytes from 10.0.4.2: icmp_seq=106 ttl=62 time=0.735 ms 64 bytes from 10.0.4.2: icmp_seq=106 ttl=62 time=0.742 ms (DUP!) 64 bytes from 10.0.4.2: icmp_seq=106 ttl=62 time=220 ms (DUP!) 64 bytes from 10.0.4.2: icmp_seq=107 ttl=62 time=0.721 ms 64 bytes from 10.0.4.2: icmp_seq=107 ttl=62 time=0.729 ms (DUP!) 64 bytes from 10.0.4.2: icmp_seq=107 ttl=62 time=220 ms (DUP!) 64 bytes from 10.0.4.2: icmp_seq=108 ttl=62 time=0.719 ms 64 bytes from 10.0.4.2: icmp_seq=108 ttl=62 time=0.731 ms (DUP!) 64 bytes from 10.0.4.2: icmp_seq=108 ttl=62 time=220 ms (DUP!)
-
-
Remove the latency impairment and see that the duplication stops.
-
Check the health status on the HUB:
# diagnose sys sdwan health-check remote Remote Health Check: passive_hc(3) Passive remote statistics of EDGE_T3(47): EDGE_T3_0(10.0.0.15): timestamp=02-19 13:44:03.213, src=172.31.0.65, latency=0.156, jitter=0.013, pktloss=0.000%, mos=4.404, SLA id=1(pass), rmt_ver=1, rmt_sla=in, rmt_prio=0, last_sla_change=02-19 10:23:45.877 EDGE_T3_1(10.0.0.17): timestamp=02-19 13:44:03.307, src=172.31.0.66, latency=0.151, jitter=0.022, pktloss=0.000%, mos=4.404, SLA id=1(pass), rmt_ver=1, rmt_sla=in, rmt_prio=0, last_sla_change=02-19 10:51:17.377 Remote Health Check: passive_hc(2) Passive remote statistics of EDGE_T2(46): EDGE_T2_1(10.0.0.14): timestamp=02-19 13:44:03.213, src=172.31.0.65, latency=0.211, jitter=0.008, pktloss=0.000%, mos=4.404, SLA id=1(pass), rmt_ver=1, rmt_sla=in, rmt_prio=0, last_sla_change=02-19 10:21:44.967 EDGE_T2_0(10.0.0.16): timestamp=02-19 13:44:03.307, src=172.31.0.66, latency=0.224, jitter=0.016, pktloss=0.000%, mos=4.404, SLA id=1(pass), rmt_ver=1, rmt_sla=in, rmt_prio=0, last_sla_change=02-19 10:51:08.667 Remote Health Check: passive_hc(1) Passive remote statistics of EDGE_T1(45): EDGE_T1_1(172.31.0.65): timestamp=02-19 13:44:03.213, src=172.31.0.65, latency=0.269, jitter=0.028, pktloss=0.000%, mos=4.404, SLA id=1(pass), rmt_ver=1, rmt_sla=in, rmt_prio=0, last_sla_change=02-19 13:43:36.967 EDGE_T1_0(172.31.0.66): timestamp=02-19 13:44:03.307, src=172.31.0.66, latency=0.263, jitter=0.036, pktloss=0.000%, mos=4.404, SLA id=1(pass), rmt_ver=1, rmt_sla=in, rmt_prio=0, last_sla_change=02-19 13:43:35.947
-
Ping PC-1:
Note where the duplication stops.
test@server:$ ping 10.0.3.2 64 bytes from 10.0.3.2: icmp_seq=150 ttl=62 time=0.579 ms 64 bytes from 10.0.3.2: icmp_seq=150 ttl=62 time=0.640 ms (DUP!) 64 bytes from 10.0.3.2: icmp_seq=150 ttl=62 time=0.643 ms (DUP!) 64 bytes from 10.0.3.2: icmp_seq=151 ttl=62 time=0.531 ms 64 bytes from 10.0.3.2: icmp_seq=152 ttl=62 time=0.578 ms 64 bytes from 10.0.3.2: icmp_seq=153 ttl=62 time=0.572 ms 64 bytes from 10.0.3.2: icmp_seq=154 ttl=62 time=0.557 ms
-
Ping PC-2:
Note where the duplication stops.
test@server:~$ ping 10.0.4.2 64 bytes from 10.0.4.2: icmp_seq=200 ttl=62 time=0.730 ms 64 bytes from 10.0.4.2: icmp_seq=200 ttl=62 time=0.767 ms (DUP!) 64 bytes from 10.0.4.2: icmp_seq=200 ttl=62 time=0.769 ms (DUP!) 64 bytes from 10.0.4.2: icmp_seq=201 ttl=62 time=0.672 ms 64 bytes from 10.0.4.2: icmp_seq=202 ttl=62 time=0.551 ms 64 bytes from 10.0.4.2: icmp_seq=203 ttl=62 time=0.543 ms 64 bytes from 10.0.4.2: icmp_seq=204 ttl=62 time=0.568 ms
-
