VPN over TCP with Fortinet proprietary encapsulation

In this example, IPsec VPN crosses over a carrier network which blocks UDP and ESP packets. NAT is also applied between the Spokes and the Hub. Therefore, using Fortinet’s proprietary encapsulation, IPsec VPN traffic is encapsulated in TCP on port 1443 to be transported over the carrier.

To configure the IKE TCP port settings in the GUI:

1. On each FortiGate, go to VPN > VPN Tunnels > Settings.

2. Enable Allow VPN negotiations over TCP and change the TCP port to 1443.

3. Click Apply.

To configure the IKE TCP port settings in the CLI:

config system settings
    set ike-tcp-service enable
    set ike-tcp-port 1443
end

To disable anti-replay in the global settings on the FGT_B (NAT) FortiGate:

config system global
    set anti-replay disable
    set hostname "FGT-B"
end

See Verify the ESP packets sniffed on the NAT device for more details.

To configure the FGT_D (hub) FortiGate in the GUI:

1. Go to VPN > VPN Wizard.

2. Set Tunnel name to Hub.

3. Set Select a template to Site to Site.

4. Click Begin.

5. Configure the VPN tunnel settings:

   Field	Value
   Authentication method	Pre-shared key For better security, use Signature.
   Pre-shared key	Enter an appropriate key
   IKE	Version 2
   Transport	Auto
   Use Fortinet encapsulation	Enable

6. Click Next.

7. Configure the Remote site settings:

   Field	Value
   Remote site device type	FortiGate
   Remote site device	Behind NAT or dynamic
   Remote site subnets that can access VPN	0.0.0.0/0 For better security, enter the remote subnets individually.

8. Click Next.

9. Configure the Local site settings:

   Field	Value
   Outgoing interface that binds to tunnel	WAN (port3)
   Create and add interface to zone	Disable
   Local interface	DMZ (port2)
   Local subnets that can access VPN	10.88.0.0/24

10. Click Next.

11. Review the configuration and, if everything is correct, click Submit.

To configure the FGT_A (spoke) FortiGate in the GUI:

1. Go to VPN > VPN Wizard.

2. Set Tunnel name to Spoke.

3. Set Select a template to Site to Site.

4. Click Begin.

5. Configure the VPN tunnel settings:

   Field	Value
   Authentication method	Pre-shared key For better security, use Signature.
   Pre-shared key	Enter an appropriate key
   IKE	Version 2
   Transport	Auto
   Use Fortinet encapsulation	Enable

6. Click Next.

7. Configure the Remote site settings:

   Field	Value
   Remote site device type	FortiGate
   Remote site device	Accessible and static
   IP/FQDN	203.0.113.249
   Route this device's internet traffic through the remote site	Disable
   Remote site subnets that can access VPN	0.0.0.0/0 For better security, enter the remote subnets individually.

8. Click Next.

9. Configure the Local site settings:

   Field	Value
   Outgoing interface that binds to tunnel	wan1
   Create and add interface to zone	Disable
   Local interface	port4
   Local subnets that can access VPN	192.168.111.0/24

10. Click Next.

11. Review the configuration and, if everything is correct, click Submit.

Configure the FGT_C (spoke) FortiGate similar to FGT_A.

To configure the FGT_D (hub) FortiGate in the CLI:

1. Configure the IPsec phase 1 settings:

   config vpn ipsec phase1-interface
       edit "Hub"
           set type dynamic
           set interface "port3"
           set ike-version 2
           set peertype any
           set net-device disable
           set proposal aes128-sha256 aes256-sha256 aes128gcm-prfsha256 aes256gcm-prfsha384 chacha20poly1305-prfsha256
           set dhgrp 20 21
           set fortinet-esp enable
           set psksecret **********
       next
   end

2. Configure the IPsec phase 2 settings:

   config vpn ipsec phase2-interface
       edit "Hub"
           set proposal aes128-sha256 aes256-sha256 aes128gcm aes256gcm chacha20poly1305
           set dhgrp 20 21
       next
   end

To configure the FGT_A (spoke) FortiGate in the CLI:

1. Configure the IPsec phase 1 settings:

   config vpn ipsec phase1-interface
       edit "spoke"
           set interface "wan1"
           set ike-version 2
           set peertype any
           set net-device disable
           set proposal aes128-sha256 aes256-sha256 aes128gcm-prfsha256 aes256gcm-prfsha384 chacha20poly1305-prfsha256
           set dhgrp 20 21
           set transport auto
           set fortinet-esp enable
           set remote-gw 203.0.113.249
           set psksecret **********
       next
   end

2. Configure the IPsec phase 2 settings:

   config vpn ipsec phase2-interface
       edit "spoke"
           set phase1name "spoke"
           set proposal aes128-sha256 aes256-sha256 aes128gcm aes256gcm chacha20poly1305
           set dhgrp 20 21
       next
   end

   IKE and ESP will be encapsulated into TCP, and ESP packets encapsulated into a non-standard TCP header.

Configure the FGT_C (spoke) FortiGate similar to FGT_A.

To verify the tunnel:

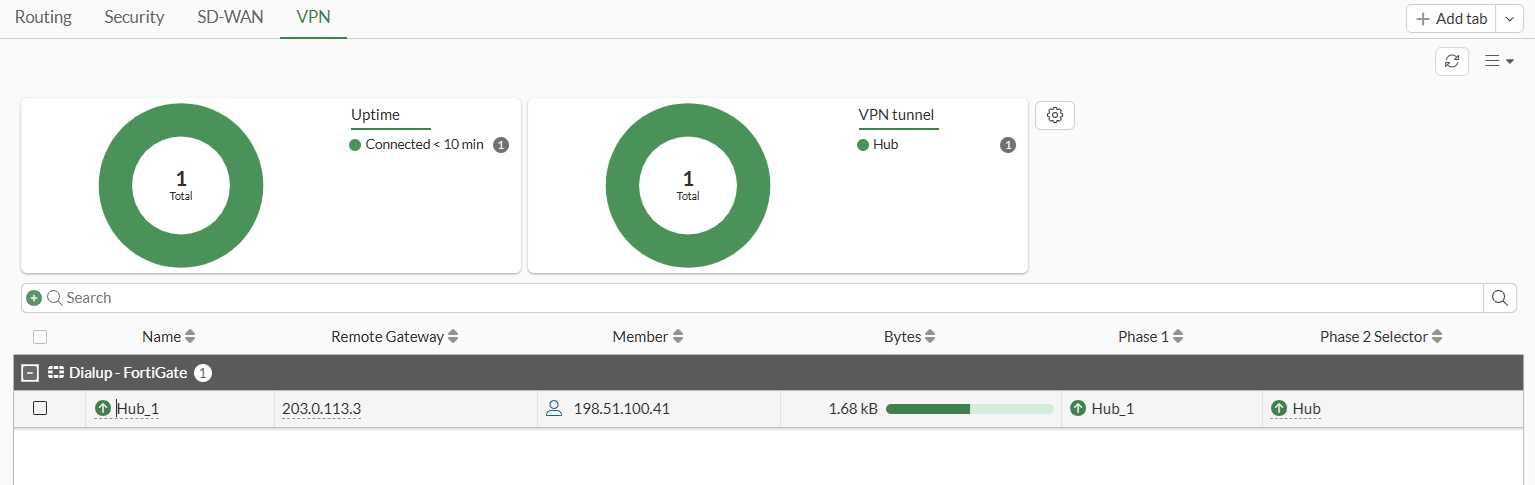

1. On the Hub, go to Dashboard > Network Monitor > VPN.



   The tunnel shows the remote member’s IP address (198.51.100.41), and the NAT’d IP (203.0.113.3) as the Remote Gateway.

2. Verify the IPsec VPN tunnel state from the CLI or from the Command palette (CTRL+P) > CLI diagnostics:

   # diagnose vpn ike gateway list

   vd: root/0
   name: Hub_1
   version: 2
   interface: port3 5
   addr: 203.0.113.249:1443 -> 203.0.113.3:7782
   tun_id: 10.0.0.7/::10.0.0.11
   remote_location: 0.0.0.0
   network-id: 0
   transport: TCP
   tcp-tx-1m-rate : 0 kbps
   tcp-tx-5m-rate : 0 kbps
   tcp-tx-drop    : 0
   tcp-rx-1m-rate : 0 kbps
   tcp-rx-5m-rate : 0 kbps
   tcp-rx-drop    : 0
   created: 485s ago
   peer-id: 198.51.100.41
   peer-id-auth: no
   nat: peer
   pending-queue: 0
   PPK: no
   IKE SA: created 1/1  established 1/1  time 150/150/150 ms
   IPsec SA: created 1/1  established 1/1  time 0/0/0 ms

     id/spi: 2 089657727774ac21/4dde1b606f0602d6
     direction: responder
     status: established 485-485s ago = 150ms
     proposal: aes128-sha256
     child: no
     SK_ei: 25e18afd01da3dbf-74885d4e54ec223c
     SK_er: 35d8eb67940c92a8-32a7407626149f08
     SK_ai: 91cc3bf8b0c06216-5c32132ecac319c7-ff5d08f1bbbf5f1b-540cf4d98a403663
     SK_ar: 5a9c70e487a1709f-b5824d00ca25e6c0-9208ab6413c73258-72df047d0ee05736
     PPK: no
     message-id sent/recv: 0/2
     QKD: no
     PQC-KEM (IKE): no
     PQC-KEM (all IPsec): no
     lifetime/rekey: 86400/85644
     DPD sent/recv: 00000000/00000000
     peer-id: 198.51.100.41

3. Use the following command to see the tunnel information:

   # diagnose vpn tunnel list

   list all ipsec tunnel in vd 0
   ------------------------------------------------------
   name=Hub ver=2 serial=e 203.0.113.249:0->0.0.0.0:0 nexthop= tun_id=10.0.0.6 tun_id6=::10.0.0.6 status=up dst_mtu=0 weight=1
   bound_if=5 real_if=0 lgwy=static/1 tun=intf mode=dialup/2 encap=none options[0x20228]=npu frag-rfc  role=primary accept_traffic=1 overlay_id=0

   proxyid_num=0 child_num=1 refcnt=3 ilast=44162444 olast=44162444 ad=/0
   stat: rxp=25 txp=25 rxb=2100 txb=2100
   dpd: mode=on-demand on=0 status=ok idle=20000ms retry=3 count=0 seqno=0
   natt: mode=none draft=0 interval=0 remote_port=0
   fec: egress=0 ingress=0
   ------------------------------------------------------
   name=Hub_1 ver=2 serial=11 203.0.113.249:1443->203.0.113.3:7782 nexthop=0.0.0.0 tun_id=10.0.0.7 tun_id6=::10.0.0.11 status=up dst_mtu=1500 weight=1 country=ZZ
   bound_if=5 real_if=5 lgwy=static/1 tun=intf mode=dial_inst/3 encap=none options[0x223a8]=npu rgwy-chg rport-chg frag-rfc  run_state=0 role=primary accept_traffic=1 overlay_id=0

   parent=Hub index=1
   proxyid_num=1 child_num=0 refcnt=6 ilast=650 olast=650 ad=/0
   stat: rxp=10 txp=10 rxb=840 txb=840
   dpd: mode=on-demand on=1 status=ok idle=20000ms retry=3 count=0 seqno=0
   natt: mode=none draft=0 interval=0 remote_port=0
   proxyid=Hub proto=0 sa=1 ref=2 serial=1 add-route
     src: 0:10.88.0.0-10.88.0.255:0
     dst: 0:192.168.111.0-192.168.111.255:0
     SA:  ref=3 options=20682 type=00 soft=0 mtu=1406 expire=42469/0B replaywin=2048
          seqno=b esn=0 replaywin_lastseq=0000000b qat=0 rekey=0 hash_search_len=1
     life: type=01 bytes=0/0 timeout=43190/43200
     dec: spi=81de5114 esp=aes key=16 20a323f2850fc89bd274f5192893c178
          ah=sha256 key=32 3f8af0b8c4352a1d169651abed35190921929c81eacc68c09c0986ec30ec04f4
     enc: spi=ec013982 esp=aes key=16 e91b4810924fcf2d1b031abfd47d4b7f
          ah=sha256 key=32 5dca604e0171ec94ed2c997040a97fabf9eecf7dd91ad604e2e8e3d479316863
     dec:pkts/bytes=10/840, enc:pkts/bytes=10/840
     npu_flag=00 npu_rgwy=0.0.0.0:0 npu_lgwy=0.0.0.0:0 npu_selid=0
     dec_npuid=0 enc_npuid=0 dec_engid=-1 enc_engid=-1 dec_saidx=-1 enc_saidx=-1

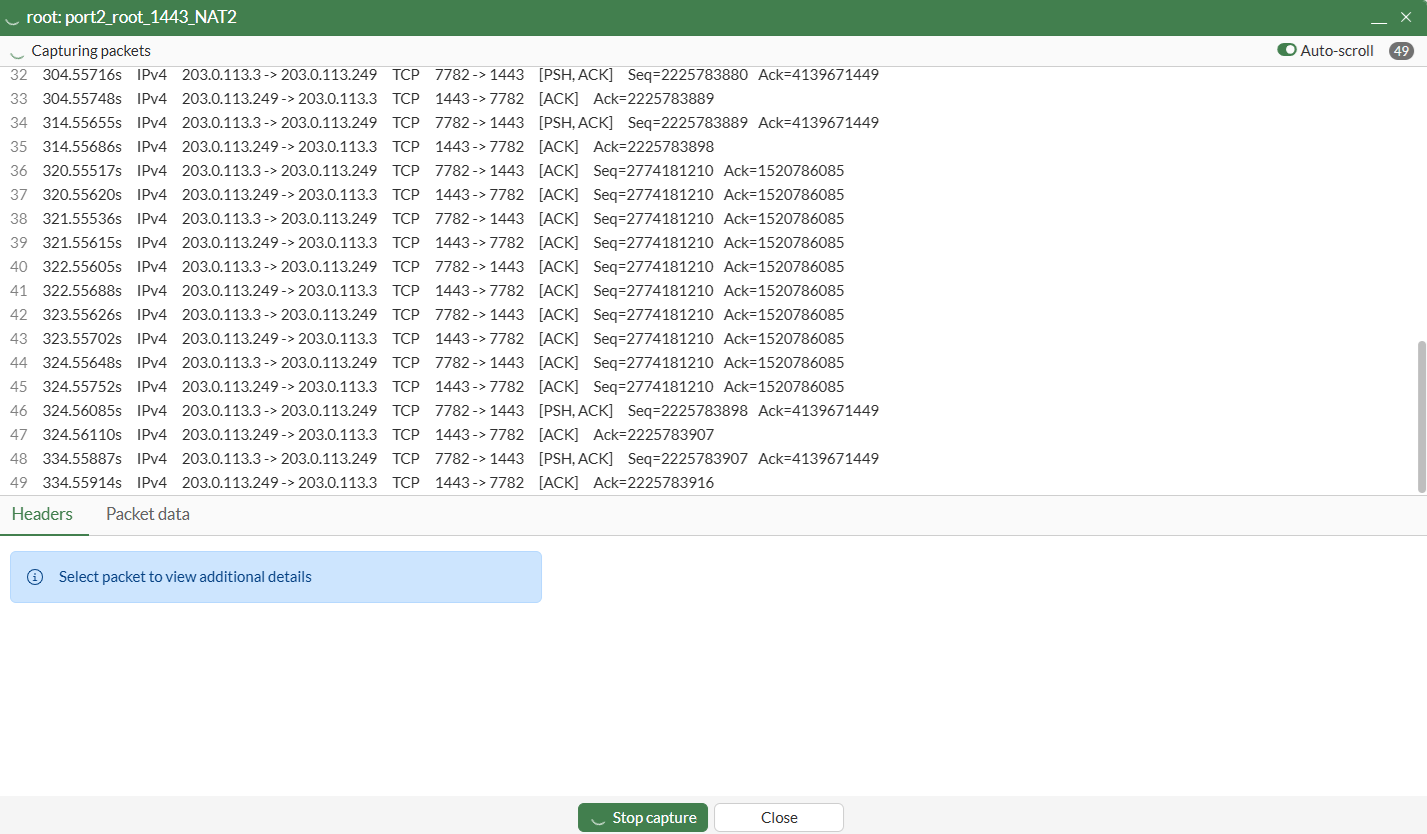

4. Verify the ESP packets sniffed on the NAT device:



   In the packet capture, when data traffic passes through the tunnel, ESP packets are encapsulated into TCP ACK packets with the same sequence number. This is why anti-replay must be disabled on the NAT FortiGate.
