DNS filtering in proxy policies
|
This information is also available in the FortiOS 7.6 Administration Guide: |
DNS filtering can be applied to proxy policies, providing an extra layer of protection for users that are behind a proxy. This is particularly useful when client applications use DoH and DoT protocols and require the added security of DNS filtering.
To configure and test a proxy policy with a DNS filter:
-
Configure a DNS filter. See DNS filter.
-

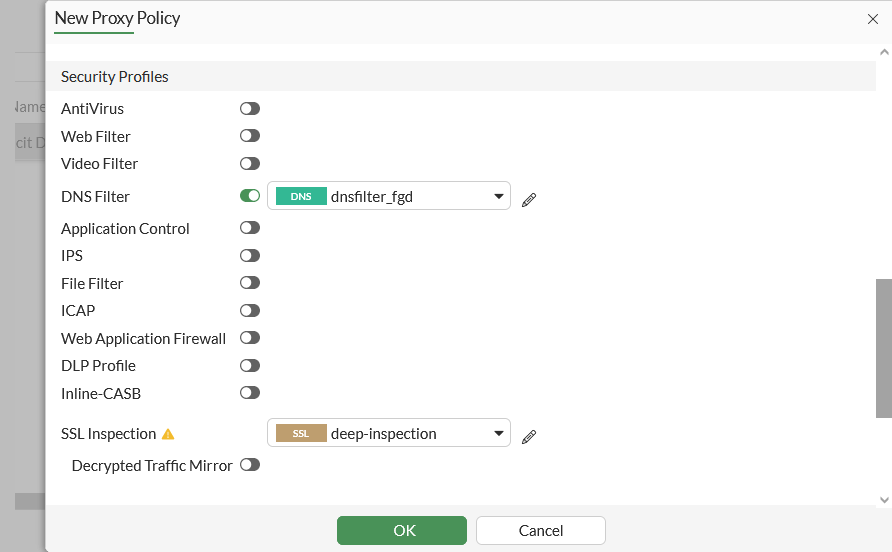

Go to Policy & Objects > Proxy Policy, create or edit an explicit or transparent web proxy policy, and apply the DNS filter.
config firewall proxy-policy edit 1 set proxy {explicit-web | transparent-web} set dnsfilter-profile "dnsfilter_fgd" next end -
Test the filter from a client that is configured to use the proxy:
-
DoH client request through an explicit proxy policy with the action set to block:
curl -H 'accept: application/dns-message' -x 10.1.100.1:8080 -v -k 'https://1.1.1.1/dns-query?dns=q80BAAABAAAAAAAAA3d3dwN1YmMCY2EAAAEAAQ' | hexdump * Trying 10.1.100.1:8080... * TCP_NODELAY set % Total % Received % Xferd Average Speed Time Time Time Current Dload Upload Total Spent Left Speed 0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0* Connected to 10.1.100.1 (10.1.100.1) port 8080 (#0) * allocate connect buffer! * Establish HTTP proxy tunnel to 1.1.1.1:443 > CONNECT 1.1.1.1:443 HTTP/1.1 > Host: 1.1.1.1:443 > User-Agent: curl/7.68.0 > Proxy-Connection: Keep-Alive > < HTTP/1.1 200 Connection established < Proxy-Agent: Fortinet-Proxy/1.0 < * Proxy replied 200 to CONNECT request * CONNECT phase completed! * ALPN, offering h2 * ALPN, offering http/1.1 * Using HTTP2, server supports multi-use * Connection state changed (HTTP/2 confirmed) * Copying HTTP/2 data in stream buffer to connection buffer after upgrade: len=0 } [5 bytes data] * Using Stream ID: 1 (easy handle 0x555786e4bdb0) } [5 bytes data] > GET /dns-query?dns=q80BAAABAAAAAAAAA3d3dwN1YmMCY2EAAAEAAQ HTTP/2 > Host: 1.1.1.1 > user-agent: curl/7.68.0 > accept: application/dns-message } [5 bytes data] < HTTP/2 200 < content-type: application/dns-message < content-length: 28 < { [28 bytes data] 100 28 100 28 0 0 430 0 --:--:-- --:--:-- --:--:-- 430 * Connection #0 to host 10.1.100.1 left intact 0000000 cdab 0381 0100 0000 0000 0000 7703 7777 0000010 7503 6362 6302 0061 0100 0100 000001cconnect svr orig 10.1.100.11:33270->10.1.100.1:8080 out 10.1.100.11:33270->1.1.1.1:8080 [I][p:386][s:1746142837][r:50331664] wad_http_upd_ses_ctx_by_req :1046 wad http session 0x7f3842990b80 forward (nil) fwd_srv_ip= [V][p:386][s:1746142837][r:50331664] wad_http_connect_srv :791 [0x7f384377a8e8] Connect to server: 1.1.1.1:443/1.1.1.1:443 HTTP/1.1 200 Connection established Proxy-Agent: Fortinet-Proxy/1.0 HTTP/1.1 200 server: cloudflare [V][p:386][s:1746142837] wad_http_doh_proc_payload :274 msg(0x7f384378ace8) proc doh payload from 10.1.100.11 -> 1.1.1.1. [V][p:386][s:1746142837] wad_http_doh_proc_payload :289 dnsproxy_local_id=0xabcd. [I][p:386][s:1746142837] wad_dns_req_msg_send_hdr :172 send unreq to dnsproxy. msg_len=135, type=wad_srv_res, dnxproxy_local_id=0xabcd, session_id=157, flags=0, vfid=1, vrf=0, ifindex=7, policy_id=1, proto=6, src_addr=10.1.100.11, dst_addr=1.1.1.1 [worker 0] dns_profile_do_url_rating()-2036: vfid=1 profile=dnsfilter_fgd category=30 domain=www.ubc.ca [worker 0] dns_profile_do_url_rating()-2128: response filter result for www.ubc.ca (type=7 action=10) [worker 0] dns_secure_apply_action()-2270: action=10 category=30 log=1 error_allow=0 profile=dnsfilter_fgd [worker 0] dns_send_error_response()-1809: id: 0xabcd domain: www.ubc.ca qtype: 1 err: 3 [worker 0] dns_send_response()-1626: domain=www.ubc.ca reslen=28 [worker 0] dns_secure_log_response()-1254: id:0xcdab domain=www.ubc.ca profile=dnsfilter_fgd action=10 log=1 [worker 0] dns_secure_log_response()-1276: cannot find IPv4 session [worker 0] dns_unix_stream_packet_write()-287: vfid=1 real_vfid=1 vrf=0 id=0xabcd domain=www.ubc.ca req_type=2 req=0 [worker 0] dns_unix_stream_packet_write()-309: type=7 len=31 session_id=147 flags=1 [worker 0] dns_query_delete()-560: orig id:0xabcd local id:0xabcd domain=www.ubc.ca use=5 active
-
DoT client request to a Cloudfare server at 1.1.1.1 through an explicit proxy policy with the action set to redirect:
kdig www.ubc.ca +tls @127.0.0.1:853 ;; TLS session (TLS1.3)-(ECDHE-X25519)-(ECDSA-SECP256R1-SHA256)-(AES-256-GCM) ;; ->>HEADER<<- opcode: QUERY; status: NOERROR; id: 64291 ;; Flags: qr rd; QUERY: 1; ANSWER: 1; AUTHORITY: 0; ADDITIONAL: 0 ;; QUESTION SECTION: ;; www.ubc.ca. IN A ;; ANSWER SECTION: www.ubc.ca. 60 IN A 208.91.112.55 ;; Received 44 B ;; Time 2024-07-02 22:18:51 UTC ;; From 127.0.0.1@853(TCP) in 54.8 ms
[worker 0] dns_secure_forward_response()-1660: category=30 profile=dnsfilter_fgd [worker 0] dns_visibility_log_hostname()-371: vd=1 pktlen=468 [worker 0] wildcard_fqdn_response_cb()-951: vd=1 pktlen=468 [worker 0] hostname_entry_insert()-292: af=2 domain=www.ubc.ca [worker 0] hostname_entry_insert()-292: af=2 domain=www.ubc.ca [worker 0] hostname_entry_insert()-292: af=2 domain=www.ubc.ca [worker 0] hostname_entry_insert()-292: af=2 domain=www.ubc.ca [worker 0] dns_profile_do_url_rating()-2036: vfid=1 profile=dnsfilter_fgd category=30 domain=www.ubc.ca [worker 0] dns_profile_do_url_rating()-2128: response filter result for www.ubc.ca (type=7 action=10) [worker 0] dns_secure_apply_action()-2270: action=10 category=30 log=1 error_allow=0 profile=dnsfilter_fgd [worker 0] dns_secure_answer_redir()-1605 [worker 0] dns_send_response()-1626: domain=www.ubc.ca reslen=44 [worker 0] dns_secure_log_response()-1254: id:0x23fb domain=www.ubc.ca profile=dnsfilter_fgd action=10 log=1
-
DoH client request through a transparent proxy policy with the action set to redirect:
curl -H 'accept: application/dns-message' -v -k 'https://1.1.1.1/dns-query?dns=q80BAAABAAAAAAAAA3d3dwN1YmMCY2EAAAEAAQ' | hexdump * Copying HTTP/2 data in stream buffer to connection buffer after upgrade: len=0 } [5 bytes data] * Using Stream ID: 1 (easy handle 0x562b7267bdb0) } [5 bytes data] > GET /dns-query?dns=q80BAAABAAAAAAAAA3d3dwN1YmMCY2EAAAEAAQ HTTP/2 > Host: 1.1.1.1 > user-agent: curl/7.68.0 > accept: application/dns-message < HTTP/2 200 < content-type: application/dns-message < content-length: 28 < { [28 bytes data] 100 28 100 28 0 0 27 0 0:00:01 0:00:01 --:--:-- 27 * Connection #0 to host 1.1.1.1 left intact 0000000 cdab 0381 0100 0000 0000 0000 7703 7777 0000010 7503 6362 6302 0061 0100 0100 000001c[worker 0] dns_profile_do_url_rating()-2036: vfid=1 profile=dnsfilter_fgd category=30 domain=www.ubc.ca [worker 0] dns_profile_do_url_rating()-2128: response filter result for www.ubc.ca (type=7 action=10) [worker 0] dns_secure_apply_action()-2270: action=10 category=30 log=1 error_allow=0 profile=dnsfilter_fgd [worker 0] dns_send_error_response()-1809: id: 0xabcd domain: www.ubc.ca qtype: 1 err: 3 [worker 0] dns_send_response()-1626: domain=www.ubc.ca reslen=28 [worker 0] dns_secure_log_response()-1254: id:0xcdab domain=www.ubc.ca profile=dnsfilter_fgd action=10 log=1 [worker 0] dns_policy_find_by_idx()-2990: vfid=1 idx=1 policy_type=1 [worker 0] dns_secure_log_response()-1504: write to log: logid=54803 qname=www.ubc.ca [worker 0] dns_unix_stream_packet_write()-287: vfid=1 real_vfid=1 vrf=0 id=0xabcd domain=www.ubc.ca req_type=2 req=0 [worker 0] dns_unix_stream_packet_write()-309: type=7 len=31 session_id=259 flags=1 [worker 0] dns_query_delete()-560: orig id:0xabcd local id:0xabcd domain=www.ubc.ca use=5 active
