SOCKS proxy supports UTM scanning, authentication, and forward server

SOCKS proxy now supports UTM scanning, authentication, and forward server.

To enable the SOCKS proxy in the explicit web proxy:

config web-proxy explicit
    set socks enable
end

Examples

To test that expired certificates are blocked through a SOCKS proxy:

1. Enable and configure the explicit proxy with SOCKS enabled.

2. Create an explicit proxy policy that uses deep inspection.

3. Browse to a website with an expired certificate, such as https://expired.badssl.com.

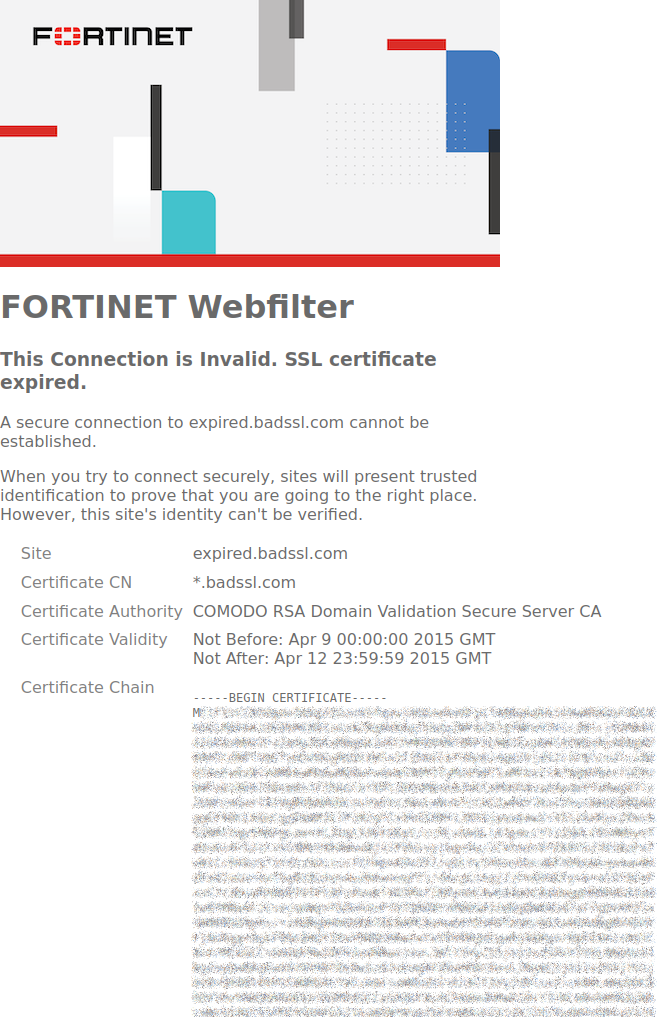

   FortiGate can resign server certificates and block expired server certificates through the SOCKS proxy.



To test web filtering through a SOCKS proxy:

1. Enable and configure the explicit proxy with SOCKS enabled.

2. Create a web filter profile that blocks www.example.com.

3. Create an explicit proxy policy that uses deep inspection and assign the profile to it.

4. Attempt to browse to www.example.com.

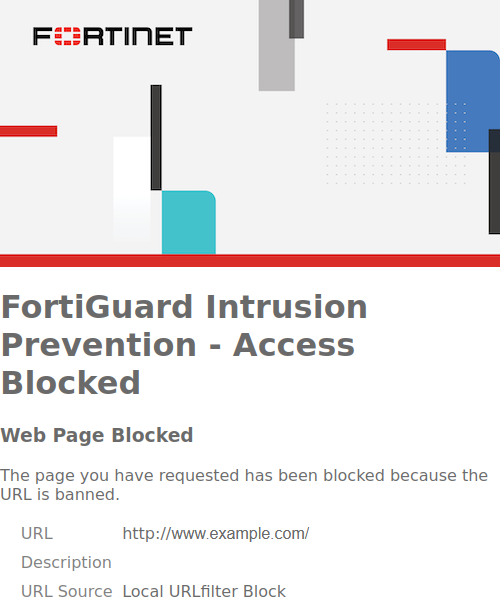

   The website is blocked.

To test blocking a virus through a SOCKS proxy:

1. Enable and configure the explicit proxy with SOCKS enabled.

2. Create an antivirus profile.

3. Create an explicit proxy policy that uses deep inspection and assign the profile to it.

4. Attempt to download a virus.

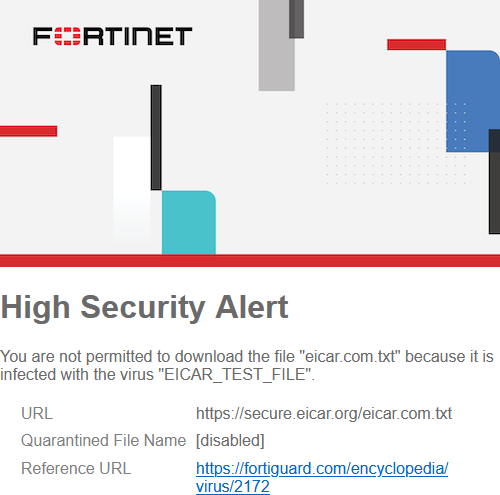

   The file is blocked.

To test authentication through a SOCKS proxy:

1. Enable and configure the explicit proxy with SOCKS enabled.

2. Configure an authentication server and create user groups.

3. Create an authentication scheme and rules.

4. Create an explicit proxy policy and assign the user group to it.

5. Try transferring data with and without user credentials:

   • If user credentials are not provided, the connection will fail:

     root@client:~# curl --socks5 10.1.100.6:1080 https://172.16.200.99 -v -k
     *   Trying 10.1.100.6:1080...
     * No authentication method was acceptable.
     * Closing connection 0
     curl: (97) No authentication method was acceptable.

   • When user credentials are provided, the connection succeeds and traffic can be passed:

     root@client:~# curl --socks5-host 10.1.100.6:1080 http://172.16.200.99 -v -k --proxy-user test1:123
     *   Trying 10.1.100.6:1080...
     * SOCKS5 connect to 172.16.200.99:80 (remotely resolved)
     * SOCKS5 request granted.
     * Connected to 10.1.100.6 (10.1.100.6) port 1080 (#0)
     > GET / HTTP/1.1
     > Host: 172.16.200.99
     > User-Agent: curl/7.83.1
     > Accept: */*
     >
     * Mark bundle as not supporting multiuse
     < HTTP/1.1 200 OK
     < Date: Fri, 14 Jun 2024 00:46:47 GMT
     < Server: Apache/2.4.38 (Ubuntu)
     < Upgrade: h2c
     < Connection: Upgrade
     < Last-Modified: Tue, 08 Nov 2022 23:15:16 GMT
     < ETag: "2f-5ecfdb689edac"
     < Accept-Ranges: bytes
     < Content-Length: 47
     < Content-Type: text/html
     <

     It works!
     this is pc4.
     this is a test file
     * Connection #0 to host 10.1.100.6 left intact

6. Check the WAD user information:

   # diagnose wad user list

   ID: 3, VDOM: root, IPv4: 10.1.100.77
     user name   : test1
     worker      : 5
     duration    : 179
     auth_type   : IP
     auth_method : socks-Basic
     pol_id      : 0
     g_id        : 0
     user_based  : 0
     expire      : 421
     LAN:
       bytes_in=217 bytes_out=648
     WAN:
       bytes_in=309 bytes_out=77

To use a web proxy forwarding server through a SOCKS proxy:

1. Enable and configure the explicit proxy with SOCKS enabled.

2. Configure a web proxy forwarding server.

3. Create an explicit proxy policy that uses deep inspection and apply the web proxy forwarding server to it.
