SD-WAN segmentation over a single overlay using IPv6 NEW

IPv6 is supported for SD-WAN segmentation over a single overlay. This allows seamless communication between IPv6 devices within virtual routing and forwarding (VRF) overlay networks, benefiting organizations transitioning to IPv6 or operating in a dual-stack environment.

Example

In this example, multiple companies (or departments of a company) share the ADVPN. Company A and company B each have two branches in two different locations. Company A's branches (A-1 and A-2) can talk to each other using the VPN shortcut, but not to company B's branches (B-1 and B-2). Likewise, company B's branches can talk to each other using the VPN shortcut, but not to company A's branches. Traffic can share the tunnels and shortcuts, but cannot be mixed up.

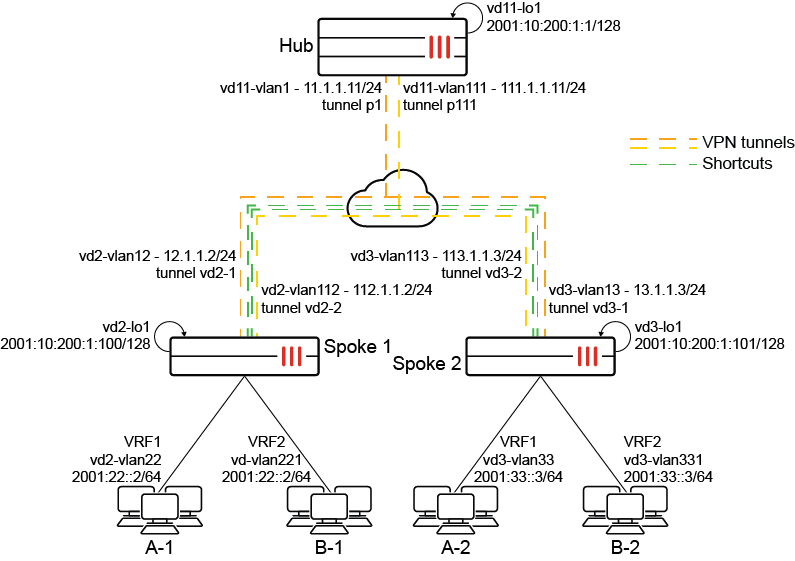

In this example, two spokes each have two tunnels to the hub.

• Each spoke has two VRFs behind it that can use the same IP address or subnets.
• The computers in VRF1 behind spoke 1 can talk to the computers in VRF1 behind spoke 2, but not to any of the computers in the VRF2s behind either spoke.
• The computers in VRF2 behind spoke 1 can talk to the computers in VRF2 behind spoke 2, but not to any of the computers in the VRF1s behind either spoke.
• Loopback addresses are used for communication between the spokes and the hub instead of tunnel IP address.

The exchange-ip-addr6 option allows a loopback IPv6 address to be exchanged between the spokes and the hub in a network. This means that instead of using the tunnel IP address, which is typically used for communication, the loopback IPv6 address is used.

See config router bgp and config router route-map in the CLI Reference for a comprehensive list of commands.

To configure the hub:

1. Configure the BGP settings:

   config router bgp
       set as 65100
       set router-id 10.200.1.1
       set keepalive-timer 5
       set holdtime-timer 15
       set ibgp-multipath enable
       set network-import-check disable
       set additional-path6 enable
       set additional-path-vpnv6 enable
       set additional-path-select6 4
       config neighbor-group
           edit "EDGEv6"
               set advertisement-interval 1
               set activate disable
               set activate-vpnv4 disable
               set capability-graceful-restart enable
               set next-hop-self-rr6 enable
               set soft-reconfiguration6 enable
               set remote-as 65100
               set update-source "vd11-lo1"
               set additional-path6 both
               set adv-additional-path6 4
               set route-reflector-client6 enable
               set route-reflector-client-vpnv6 enable
           next
       end
       config neighbor-range6
           edit 2
               set prefix6 2001::10:200:1:0/112
               set neighbor-group "EDGEv6"
           next
       end
       config network6
           edit 1
               set prefix6 2001::10:200:1:0/112
           next
       end
       config vrf6
           edit "0"
               set role pe
           next
           edit "1"
               set role ce
               set rd "1:1"
               set export-rt "1:1"
               set import-rt "1:1"
           next
           edit "2"
               set role ce
               set rd "2:1"
               set export-rt "2:1"
               set import-rt "2:1"
           next
       end
   end

2. Configure the IPsec phase 1 interface settings:

   config vpn ipsec phase1-interface
       edit "p1"
           set type dynamic
           set interface "vd11-vlan1"
           set ike-version 2
           set peertype any
           set net-device disable
           set exchange-ip-addr6 2001::10:200:1:1
           set proposal aes128-sha256 aes256-sha256 aes128gcm-prfsha256 aes256gcm-prfsha384 chacha20poly1305-prfsha256
           set add-route disable
           set dpd on-idle
           set npu-offload disable
           set dhgrp 5
           set auto-discovery-sender enable
           set encapsulation vpn-id-ipip
           set psksecret **********
           set dpd-retryinterval 60
       next
       edit "p111"
           set type dynamic
           set interface "vd11-vlan111"
           set ike-version 2
           set peertype any
           set net-device disable
           set exchange-ip-addr6 2001::10:200:1:1
           set proposal aes128-sha256 aes256-sha256 aes128gcm-prfsha256 aes256gcm-prfsha384 chacha20poly1305-prfsha256
           set add-route disable
           set dpd on-idle
           set npu-offload disable
           set dhgrp 5
           set auto-discovery-sender enable
           set encapsulation vpn-id-ipip
           set psksecret **********
           set dpd-retryinterval 60
       next
   end

3. Configure the IPsec phase 2 interface settings:

   config vpn ipsec phase2-interface
       edit "p1-v6"
           set phase1name "p1"
           set proposal aes128-sha1
           set replay disable
           set src-addr-type subnet6
           set dst-addr-type subnet6
       next
       edit "p111-v6"
           set phase1name "p111"
           set proposal aes128-sha1
           set replay disable
           set src-addr-type subnet6
           set dst-addr-type subnet6
       next
   end

To configure a spoke:

1. Configure the BGP settings:

   config router bgp
       set as 65100
       set router-id 10.200.1.100
       set keepalive-timer 5
       set holdtime-timer 15
       set ibgp-multipath enable
       set additional-path6 enable
       set additional-path-vpnv6 enable
       set recursive-next-hop enable
       set tag-resolve-mode merge
       set graceful-restart enable
       set additional-path-select6 4
       config neighbor
           edit "2001::10:200:1:1"
               set advertisement-interval 1
               set activate disable
               set activate-vpnv4 disable
               set capability-dynamic enable
               set capability-graceful-restart6 enable
               set capability-graceful-restart-vpnv6 enable
               set soft-reconfiguration6 enable
               set remote-as 65100
               set route-map-in6 "tag"
               set route-map-in-vpnv6 "tag"
               set connect-timer 10
               set update-source "vd2-lo1"
               set additional-path6 both
               set additional-path-vpnv6 both
           next
       end
       config network6
           edit 1
               set prefix6 2001:22::/64
           next
           edit 2
               set prefix6 2001::10:200:1:100/128
           next
       end
       config vrf6
           edit "0"
               set role pe
           next
           edit "1"
               set role ce
               set rd "1:1"
               set export-rt "1:1"
               set import-rt "1:1"
           next
           edit "2"
               set role ce
               set rd "2:1"
               set export-rt "2:1"
               set import-rt "2:1"
           next
       end
   end

2. Configure the IPsec phase 1 interface settings:

   config vpn ipsec phase1-interface
       edit "vd2-1"
           set interface "vd2-vlan12"
           set ike-version 2
           set peertype any
           set net-device enable
           set exchange-ip-addr6 2001::10:200:1:100
           set proposal aes128-sha256 aes256-sha256 aes128gcm-prfsha256 aes256gcm-prfsha384 chacha20poly1305-prfsha256
           set add-route disable
           set npu-offload disable
           set dhgrp 5
           set auto-discovery-receiver enable
           set encapsulation vpn-id-ipip
           set remote-gw 11.1.1.11
           set psksecret **********
       next
       edit "vd2-2"
           set interface "vd2-vlan112"
           set ike-version 2
           set peertype any
           set net-device enable
           set exchange-ip-addr6 2001::10:200:1:100
           set proposal aes128-sha256 aes256-sha256 aes128gcm-prfsha256 aes256gcm-prfsha384 chacha20poly1305-prfsha256
           set add-route disable
           set npu-offload disable
           set dhgrp 5
           set auto-discovery-receiver enable
           set encapsulation vpn-id-ipip
           set remote-gw 111.1.1.11
           set psksecret **********
       next
   end

3. Configure the IPsec phase 2 interface settings:

   config vpn ipsec phase2-interface
       edit "vd2-1-6"
           set phase1name "vd2-1"
           set proposal aes128-sha1
           set dhgrp 5
           set replay disable
           set auto-negotiate enable
           set src-addr-type subnet6
           set dst-addr-type subnet6
       next
       edit "vd2-2-6"
           set phase1name "vd2-2"
           set proposal aes128-sha1
           set dhgrp 5
           set replay disable
           set auto-negotiate enable
           set src-addr-type subnet6
           set dst-addr-type subnet6
       next
   end

4. Configure the SD-WAN settings:

   config system sdwan
       set status enable
       config zone
           edit "virtual-wan-link"
           next
       end
       config members
           edit 1
               set interface "vd2-1"
               set cost 10
           next
           edit 2
               set interface "vd2-2"
               set cost 20
           next
       end
       config health-check
           edit "ping6"
               set addr-mode ipv6
               set server "2001::10:200:1:1"
               set source6 2001::10:200:1:100
               set members 1 2
               config sla
                   edit 1
                   next
               end
           next
       end
       config service
           edit 61
               set addr-mode ipv6
               set priority-members 1
               set dst6 "6001-100"
           next
           edit 62
               set addr-mode ipv6
               set priority-members 2
               set dst6 "6100-200"
           next
       end
   end

To check the spoke 1 routes:

# get router info6 routing-table bgp
Routing table for VRF=0
B       2001::10:200:1:0/112 [200/0] via 2001::10:200:1:1 tag 100 (recursive via vd2-1 tunnel ::11.1.1.11), 1d15h41m
(recursive via vd2-2 tunnel ::111.1.1.11), 1d15h41m, [1024/0]
B       2001::10:200:1:101/128 [200/0] via 2001::10:200:1:1 tag 100 (recursive via vd2-1 tunnel ::11.1.1.11), 1d15h41m
(recursive via vd2-2 tunnel ::111.1.1.11), 1d15h41m, [1024/0]

Routing table for VRF=1
B V     2001:33::/64 [200/0] via 2001::10:200:1:101 tag 100 (recursive via vd2-1 tunnel ::11.1.1.11), 1d15h41m
(recursive via vd2-2 tunnel ::111.1.1.11), 1d15h41m, [1024/0]

Routing table for VRF=2
B V     2001:33::/64 [200/0] via 2001::10:200:1:101 tag 100 (recursive via vd2-1 tunnel ::11.1.1.11), 1d15h41m
(recursive via vd2-2 tunnel ::111.1.1.11), 1d15h41m, [1024/0]

To test the configuration on shortcut 1:

1. From VRF1 of spoke 1, ping VRF1 of spoke 2.

2. From VRF2 of spoke 1, ping VRF2 spoke 2. Both VRF1 and VRF2 source and destination IP addresses are the same, so you can see how the traffic is isolated.

3. Verify the session list:

   # diagnose sys session6 list
   session6 info: proto=58 proto_state=00 duration=3 expire=59 timeout=0 refresh_dir=both flags=00000000 sockport=0 socktype=0 use=3
   origin-shaper=
   reply-shaper=
   per_ip_shaper=
   class_id=0 ha_id=0 policy_dir=0 tunnel=/ vlan_cos=0/0
   state=may_dirty
   statistic(bytes/packets/allow_err): org=416/4/0 reply=416/4/0 tuples=2
   tx speed(Bps/kbps): 136/1 rx speed(Bps/kbps): 136/1
   orgin->sink: org pre->post, reply pre->post dev=100->223/223->100
   hook=pre dir=org act=noop 2001:22::55:398->2001:33::44:128(:::0)
   hook=post dir=reply act=noop 2001:33::44:398->2001:22::55:129(:::0)
   src_mac=02:4c:a5:fc:77:6f
   misc=0 policy_id=1 pol_uuid_idx=1070 auth_info=0 chk_client_info=0 vd=3:2
   serial=0001104d tos=ff/ff ips_view=0 app_list=0 app=0 url_cat=0
   sdwan_mbr_seq=0 sdwan_service_id=61
   rpdb_link_id=ff00003d ngfwid=n/a
   npu_state=0x1040001 no_offload
   no_ofld_reason:  disabled-by-policy non-npu-intf
   total session6: 1

   In the output, vd=<vdom_ID>:<VRF_ID> indicates that sessions are created in and stay in the corresponding VRFs.
