Encapsulate ESP packets within TCP headers NEW

FortiOS includes a proprietary solution to support the encapsulation of Encapsulating Security Payload (ESP) packets within Transmission Control Protocol (TCP) headers. This allows ESP packets to be assigned a port number, which enables them to traverse over carrier networks where direct IPsec traffic is blocked or impeded by carrier-grade NAT.

This feature only works with IKE version 2, and it does not support ADVPN.

To configure the TCP port for IKE/IPsec traffic:

config system settings
    set ike-tcp-port <integer>
end

ike-tcp-port <integer>

Set the TCP port for IKE/IPsec traffic (1 - 65535, default = 4500).

To configure ESP encapsulation on the phase 1 interface:

config vpn ipsec phase1-interface
    edit <name>
        set ike-version 2
        set transport {udp | udp-fallback-tcp | tcp}
        set fortinet-esp {enable | disable}
        set fallback-tcp-threshold <integer>
    next
end

transport {udp | udp-fallback-tcp | tcp}	Set the IKE transport protocol. udp: use UDP transport for IKE. udp-fallback-tcp: use UDP transport for IKE, with fallback to TCP transport. tcp: use TCP transport for IKE.
fortinet-esp {enable | disable}	Enable/disable Fortinet ESP encapsulation.
fallback-tcp-threshold <integer>	Set the timeout before IKE/IPsec traffic falls back to TCP, in seconds (1 - 300, default = 15).

Example

In this example, IPsec VPN crosses over a carrier network and UDP packets are not allowed.

To encapsulate ESP packets within TCP headers:

1. On each FortiGate, configure the IKE TCP port setting:

   config system settings
       set ike-tcp-port 1443
   end

2. Disable anti-replay in the global settings on the FGT_B (NAT) FortiGate (see step 7 for more information):

   config system global
       set anti-replay disable
       set hostname "FGT-B"
   end

3. Configure the FGT_A (spoke) FortiGate.

   1. Configure the IPsec phase 1 settings:

      config vpn ipsec phase1-interface
          edit "spoke"
              set interface "wan1"
              set ike-version 2
              set peertype any
              set net-device disable
              set proposal aes128-sha256 aes256-sha256 aes128gcm-prfsha256 aes256gcm-prfsha384 chacha20poly1305-prfsha256
              set transport tcp
              set fortinet-esp enable
              set remote-gw 173.1.1.1
              set psksecret **********
          next
      end

   2. Configure the IPsec phase 2 settings:

      config vpn ipsec phase2-interface
          edit "spoke"
              set phase1name "spoke"
              set proposal aes128-sha1 aes256-sha1 aes128-sha256 aes256-sha256 aes128gcm aes256gcm chacha20poly1305
              set src-subnet 10.1.100.0 255.255.255.0
          next
      end

      IKE and ESP will be encapsulated into TCP, and ESP packets encapsulated into a fake TCP header.

4. Configure the FGT_C (spoke) FortiGate.

   1. Configure the IPsec phase 1 settings:

      config vpn ipsec phase1-interface
          edit "Spoke"
              set interface "wan1"
              set ike-version 2
              set peertype any
              set net-device disable
              set proposal aes128-sha256 aes256-sha256 aes128gcm-prfsha256 aes256gcm-prfsha384 chacha20poly1305-prfsha256
              set transport udp-fallback-tcp
              set fortinet-esp enable
              set fallback-tcp-threshold 10
              set remote-gw 173.1.1.1
              set psksecret **********
          next
      end

   2. Configure the IPsec phase 2 settings:

      config vpn ipsec phase2-interface
          edit "Spoke"
              set phase1name "Spoke"
              set proposal aes128-sha1 aes256-sha1 aes128-sha256 aes256-sha256 aes128gcm aes256gcm chacha20poly1305
              set src-subnet 192.168.4.0 255.255.255.0
          next
      end

      IKE will use UDP encapsulation first. If it fails to establish in 10 seconds, it will fall back to TCP. ESP packets are encapsulated into a fake TCP header.

5. Configure the FGT_D (hub) FortiGate.

   1. Configure the IPsec phase 1 settings:

      config vpn ipsec phase1-interface
          edit "Hub"
              set type dynamic
              set interface "port25"
              set ike-version 2
              set peertype any
              set net-device disable
              set proposal aes128-sha256 aes256-sha256 aes128gcm-prfsha256 aes256gcm-prfsha384 chacha20poly1305-prfsha256
              set dpd on-idle
              set transport tcp
              set fortinet-esp enable
              set psksecret **********
              set dpd-retryinterval 60
          next
      end

   2. Configure the IPsec phase 2 settings:

      config vpn ipsec phase2-interface
          edit "Hub"
              set phase1name "Hub"
              set proposal aes128-sha1 aes256-sha1 aes128-sha256 aes256-sha256 aes128gcm aes256gcm chacha20poly1305
          next
      end

6. Verify the IPsec VPN tunnel state on FGT_D (hub):

   # diagnose vpn ike gateway list

   vd: root/0
   name: Hub_0
   version: 2
   interface: port25 33
   addr: 173.1.1.1:1443 -> 173.1.1.2:23496
   tun_id: 173.1.1.2/::10.0.0.4
   remote_location: 0.0.0.0
   network-id: 0
   transport: TCP
   created: 733s ago
   peer-id: 11.101.1.1
   peer-id-auth: no
   nat: peer
   PPK: no
   IKE SA: created 1/1  established 1/1  time 0/0/0 ms
   IPsec SA: created 1/1  established 1/1  time 0/0/0 ms

     id/spi: 3 f050ac7a151a3b31/3b46b71108eea2e2
     direction: responder
     status: established 733-733s ago = 0ms
     proposal: aes128-sha256
     child: no
     SK_ei: 619dfbeb679345f7-531692a72da85727
     SK_er: 5b6a1625b2ce71cf-13b339289ca99b9d
     SK_ai: a61818128c0d5390-b6d15cf9eb58e0f6-4e8c552e6265387b-4f79dc3acdd5d092
     SK_ar: 64fb56b13ee65bd2-6ea1fb268b3ffad9-818c8e4d302a1176-c8978a8ce91d9856
     PPK: no
     message-id sent/recv: 11/2
     QKD: no
     lifetime/rekey: 86400/85396
     DPD sent/recv: 0000000c/0000000c
     peer-id: 11.101.1.1

   vd: root/0
   name: Hub_2
   version: 2
   interface: port25 33
   addr: 173.1.1.1:1443 -> 173.1.1.2:12186
   tun_id: 10.0.0.4/::10.0.0.6
   remote_location: 0.0.0.0
   network-id: 0
   transport: TCP
   created: 645s ago
   peer-id: 172.16.200.3
   peer-id-auth: no
   nat: peer
   PPK: no
   IKE SA: created 1/1  established 1/1  time 0/0/0 ms
   IPsec SA: created 1/1  established 1/1  time 0/0/0 ms

     id/spi: 17 7eb5a40cd324d2fc/f04fec6d8d77d996
     direction: responder
     status: established 645-645s ago = 0ms
     proposal: aes128-sha256
     child: no
     SK_ei: c1fe2027086b046b-0f15c6e2d25a255d
     SK_er: 3eac9a73b4dd2961-900c0af7f0e18abf
     SK_ai: e21ca3934cca7a85-af425d12baf40693-0c30e3f6d98a6a7d-273b33cc49155092
     SK_ar: 1bef95d13784e8e1-9894c1b3628e158a-3cbfe4f7a730d9de-c9150844e3ff2002
     PPK: no
     message-id sent/recv: 10/2
     QKD: no
     lifetime/rekey: 86400/85484
     DPD sent/recv: 0000000b/0000000b
     peer-id: 172.16.200.3

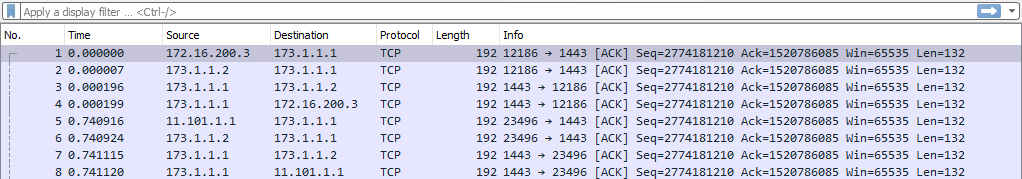

7. Verify the ESP packets sniffed on the NAT device.



   In the packet capture, ESP packets are encapsulated into TCP ACK packets with the same sequence number. This is why anti-replay must be disabled on the NAT FortiGate.
