Location

The location object is a group of GeoIP regions. GSLB is able to detect requests from all countries and regions in the world and is accurate to the city level of G20 countries.

Each location object must contain at least one location record, with a maximum of 50 location records supported per location object.

When configuring multiple location records, ensure that each record specifies distinct GeoIP regions that do not overlap, otherwise it results in an invalid configuration. For example, if one record specifies the continent as Asia, and another record specifies the country as Japan; these two GeoIP regions would overlap as Japan is already a part of Asia, resulting in an invalid Location configuration.

After you have configured the location object, you can then use it as the location list in GSLB services. For more information, see FQDN .

Note: any is a predefined location object that includes all regions in the database by default.

To configure a location object:

1. Go to GSLB > Service > Location.

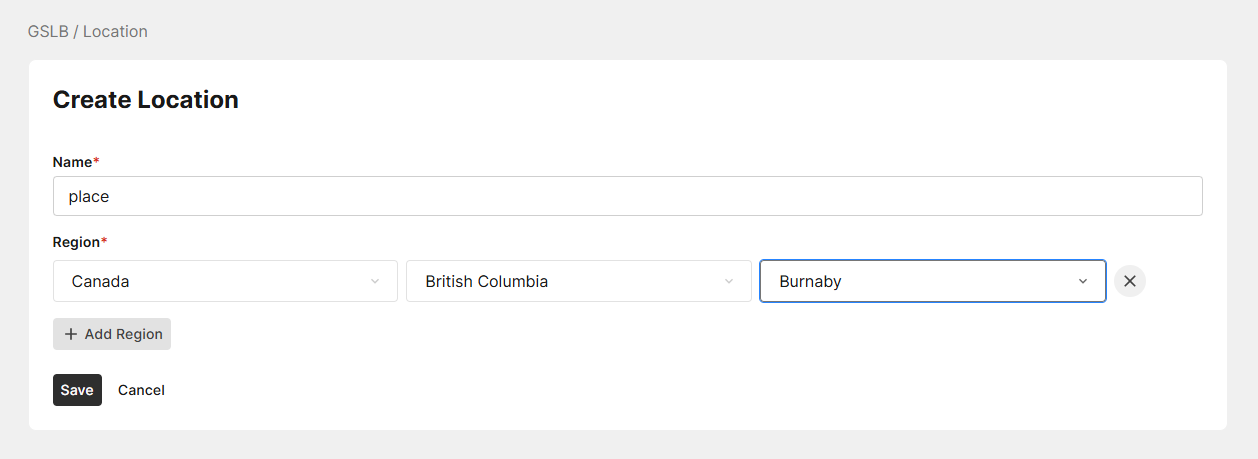

2. Click Add Location to display the configuration editor.

3. In the Name field, specify a unique name for the location configuration.
   Valid characters are A-Z, a-z, 0-9, _, and -. No spaces. After you initially save the configuration, you cannot edit the name.
4. Click Add Region to add a location record.
   At least one Region must be added for a location object.

5. Configure the following Location settings:


   Setting	Description
   Continent/Country	Specify the continent or country to include in the GeoIP region. The Continent/Country selection determines the availability of the State and City options. ALL is the default option, which specifies that all continents/countries is included in this GeoIP region. Note: At minimum, a continent or country must be selected for a location record to be valid.
   State/Province	Specify the state to include in the GeoIP region. The availability of State options is dependent on the selected Continent/Country. ALL is the default option, which specifies that all states under the specified continent/country is included in this GeoIP region.
   City	Specify the city to include in the GeoIP region. The availability of City options is dependent on the selected Continent/Country and State. ALL is the default option, which specifies that all cities under the specified state is included in this GeoIP region.

6. Optionally, you can add multiple location records under the same location object, with up to 50 location records supported per single location object. However, a Location configuration becomes invalid if multiple location records share the same GeoIP region specification.
   Beware of the following scenarios that can result in this type of configuration conflict:

   • When separate location records specify regions that overlap, such as when both Asia and Japan are selected as the Continent/Country. As Japan is a part of Asia, the two GeoIP regions overlap.
   • When one of the location records is set as ALL for Continent/Country, State, and City levels. If the Continent/Country is set to ALL, then it would naturally overlap with any other location record that specifies a continent or country. However, by default, a location record is already invalid if ALL is set for Continent/Country.
7. Click Save.

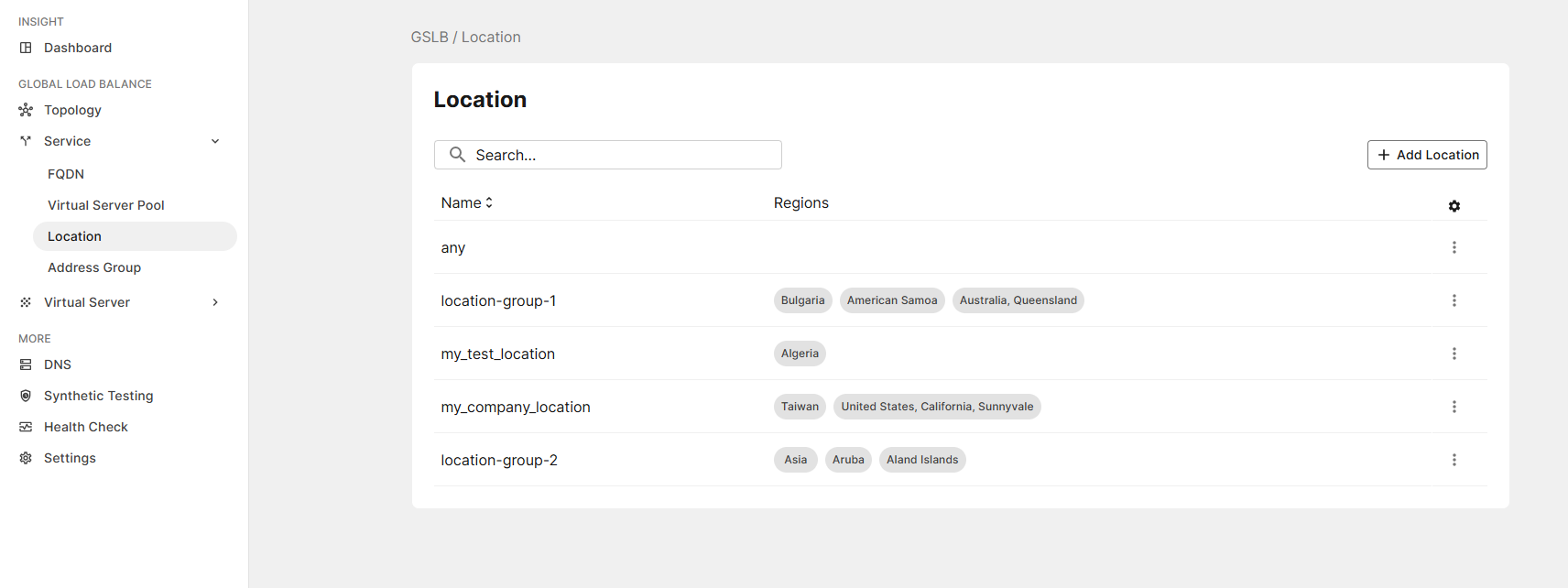

   The new location object will be listed on the Location page.
