Viewing storage quota and disk usage in the Service Information widget

Viewing storage quota and disk usage in the Service Information widget

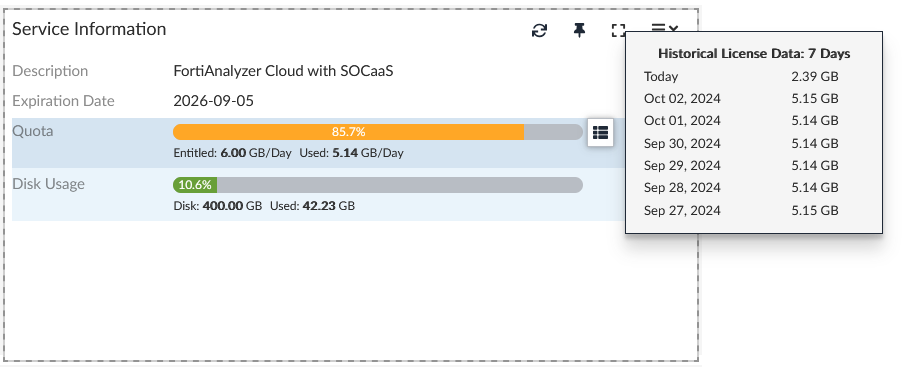

The Service Information widget on the FortiAnalyzer Cloud Dashboard displays the following information:

Description

The service description.

Expiration Date

The expiration date of the license.

Quota

Quota displays the current day's storage entitlement and usage.

This includes storage space used by both raw logs and database logs. Click the list icon to see a breakdown of quota usage over the past 7 days.

Note

The Quota field on FortiAnalyzer Cloud differs from the GB/Day field and diagnose fortilogd logvol-adom all command in on-premise FortiAnalyzers which only shows the raw log volume for the last 7 days.

Disk Usage

Displays the amount of disk currently being used as well as the total available disk size.

Information about other Dashboard widgets shared between on-premises FortiAnalyzer and FortiAnalyzer Cloud can be found in the FortiAnalyzer Administration Guide.
