"<health-check_name>"

Enter the name of the server health check. The maximum length is 63 characters.

To display the list of existing server health checks, enter:

edit ?

trigger-policy "<trigger-policy_name>"

Enter the name of the trigger to apply when the health check detects a failed server (see log trigger-policy). The maximum length is 63 characters.

To display the list of existing trigger policies, enter:

set trigger ?

relationship {and |or}

• and—FortiWeb considers the server to be responsive when it passes all the tests in the list.
• or—FortiWeb considers the server to be responsive when it passes at least one of the tests in the list.

group-id <int>

group-id is used together with role {master | slave}.

FortiWeb performs health check on the server pool which has referenced a "master" health check, then synchronize the result to all the server pools which have referenced the "slave" health check of the same group-id.

This can avoid unnecessary health checks in certain cases such as when different server pools sharing the same IP address.

This option is not available if the role is standalone.

role {master | slave | standalone}

If you want the health check result to be shared across multiple server pools, then specify whether this health check is a master or a slave. This is used together with the above command group-id <int>.

If the health check result is not to be shared, then choose standalone.

<entry_index>

type {icmp | tcp | HTTP | tcp-ssl | tcp-half-open}

Select either:

• icmp—Send ICMP type 8 (ECHO_REQUEST) and listen for either ICMP type 0 (ECHO_RESPONSE) indicating responsiveness, or timeout indicating that the host is not responsive.
• tcp—Send TCP SYN and listen for either TCP SYN ACK indicating responsiveness, or timeout indicating that the host is not responsive.
• HTTP—Send an HTTP request and listen for the code specified by response-code, the page content specified by match-content, or both the code and the content, or timeout indicating that the host is not responsive.

  Apply to server pool members only if the SSL setting for the member is disabled.

• tcp-ssl—Send a TCP SSL request. FortiWeb considers the host to be responsive if the SSL handshake is successful, and closes the connection once the handshake is complete. This type of health check requires fewer resources than HTTP or HTTPS.

  Apply to server pool members only if the SSL setting for the member is enabled.
• tcp-half-open—Send TCP SYN and listen for either TCP SYN ACK indicating responsiveness, or timeout indicating that the host is not responsive. If the response is SYN ACK, send TCP RST to terminate the connection. This type of health check requires fewer resources from the pool member than tcp.

timeout <seconds_int>

retry-times <retries_int>

interval <seconds_int>

• timeout <seconds_int>: The maximum duration (in seconds) FortiWeb will wait for a response from a back-end server during a health check. If the server does not respond within this time frame, the health check is considered failed.

  The valid range is 1–30 .

• retry-times <retries_int>: The number of consecutive retries FortiWeb will perform—each with the configured timeout—if no response is received from the server. The server is marked down only after all retries fail.

  The valid range is 1 - 10.

• interval <seconds_int>: The frequency (in seconds) at which FortiWeb performs health checks on the back-end server.

  The valid range is from 1 - 300.

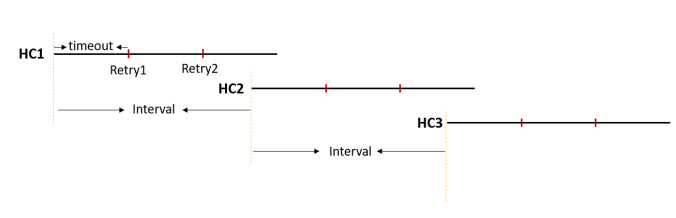

The diagram illustrates how FortiWeb’s health check mechanism uses timeout, retry-times, and interval. In this example:

• Each health check (HC) begins and, if no response is received, performs up to two retries (retry-times = 2), with each retry waiting up to the configured timeout duration.

• Health checks can run concurrently—starting a new health check does not cancel or override an existing one that is still active. As shown in the diagram, HC2 begins while the second retry of HC1 is still in progress.

Best Practice Strategy

We recommend setting the interval so that the next health check begins when the last retry of the current health check is underway, as shown in the diagram above.

• Example

  If:

  • timeout = 3 seconds

  • retry-times = 2

  Then, the recommended interval is between 6 and 9 seconds.

This ensures:

• Minimal overlap between health check cycles.

• Efficient use of CPU and memory by reducing unnecessary concurrency.

• Faster failover or recovery detection without redundant checks.

Special Notice for Public Cloud Deployments

If FortiWeb and your back-end resources are hosted on public cloud platforms, be aware that network latency is typically higher compared to on-premises environments.

As a result, the default timeout value of 3 seconds may be too short for receiving a response from the server. We recommend configuring a longer timeout and interval based on the observed network conditions in your environment to ensure reliable health check results.

url-path "<request_str>"

Enter the URL, such as /index.html, that FortiWeb uses in the HTTP/HTTPS request to verify the responsiveness of the server.

If the web server successfully returns this URL, and its content matches the expression specified by match-content, FortiWeb considers it to be responsive.

Available when type {icmp | tcp | HTTP | tcp-ssl | tcp-half-open} is HTTP or HTTPS.

method {get | head | post}

Specify whether the health check uses the HEAD, GET, or POST method.

Available when type {icmp | tcp | HTTP | tcp-ssl | tcp-half-open} is HTTP or HTTPS.

match-type {response-code | match-content | all}

• response-code—If the web server successfully returns the URL specified by url-path and the code specified by response-code, FortiWeb considers the server to be responsive.
• match-content—If the web server successfully returns the URL specified by url-path and its content matches the match-content value, FortiWeb considers the server to be responsive.
• all—If the web server successfully returns the URL specified by url-path and its content matches the match-content value, and the code specified by response-code, FortiWeb considers the server to be responsive.

Available when type {icmp | tcp | HTTP | tcp-ssl | tcp-half-open} is HTTP or HTTPS.

response-code {response-code_int}

Enter the response code that you require the server to return to confirm that it is available, if match-type is response-code or all.

Available when type {icmp | tcp | HTTP | tcp-ssl | tcp-half-open} is HTTP or HTTPS.
