Configuring Virtual Private Cloud

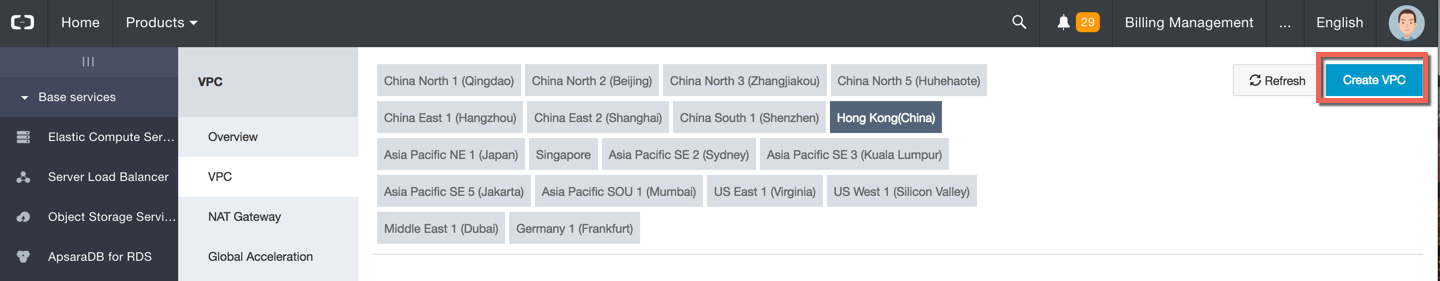

  1. Assuming this is a new environment, the first step is to create the VPC. Click Create VPC.

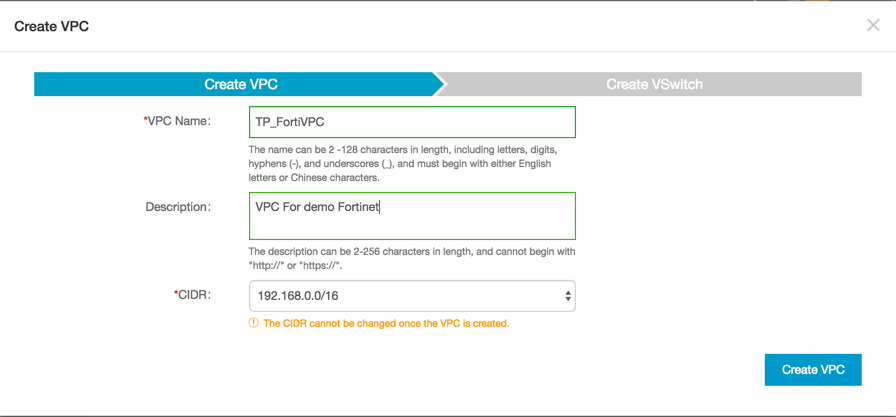

  2. Enter a name for the VPC. In this example, the VPC is named TP_FortiVPC. Click Create VPC.

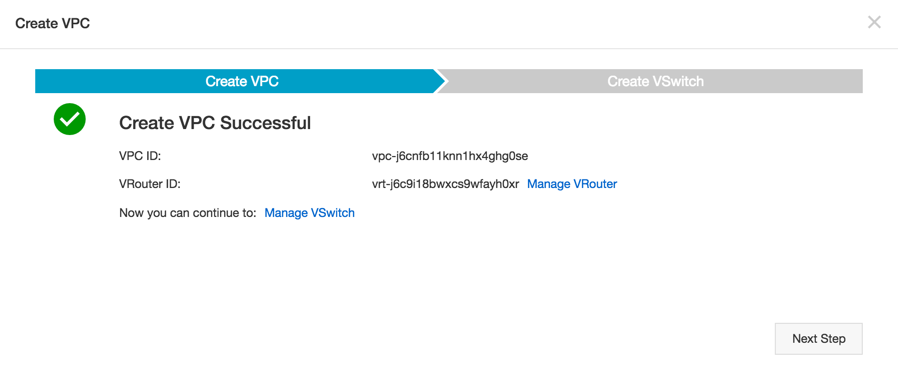

  3. Click Next Step.

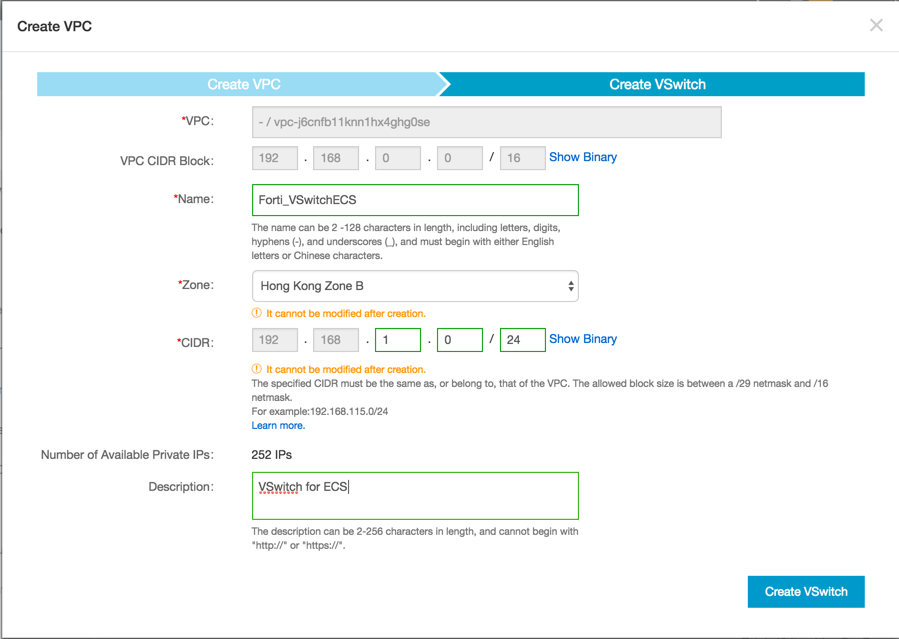

  4. You will require at least two VSwitches: one for the ECS and one for the FortiGate VM. Create the ECS VSwitch first as shown below.

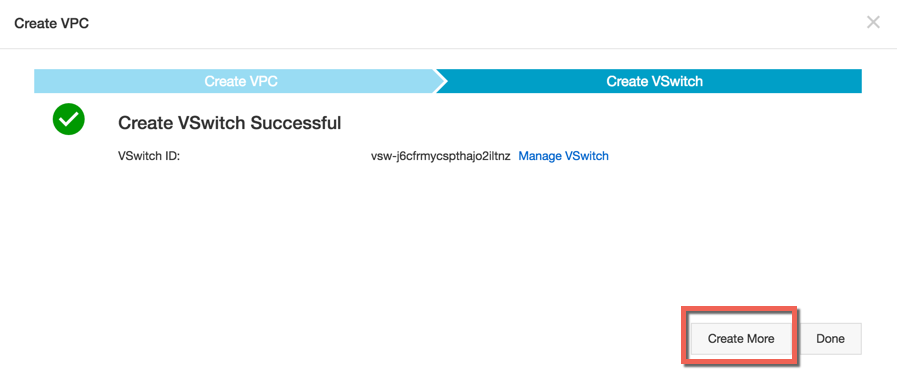

  5. Click Create More.

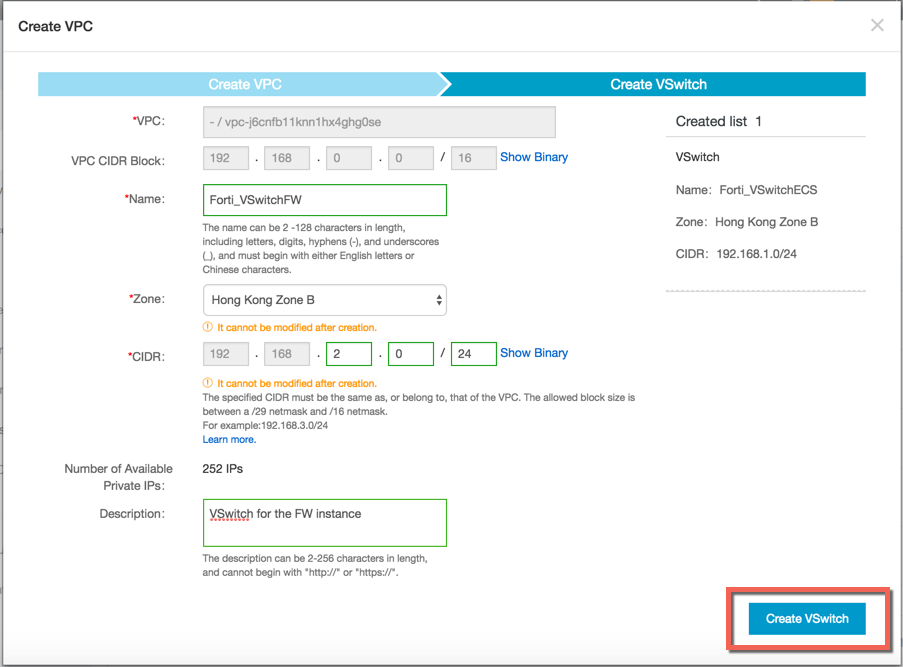

  6. Configure the VSwitch for the FortiGate VM as shown below, then click Create VSwitch.

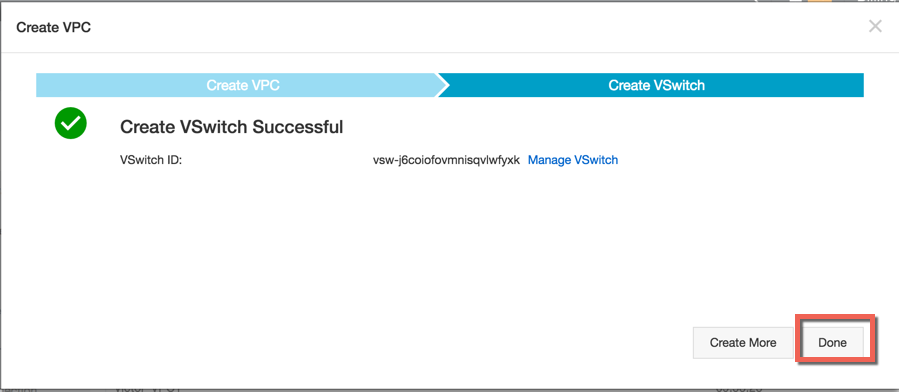

  7. Click Done. VPC and VSwitch setup is complete.
