Invoking the CFTs

  1. In the AWS Management Console, go to Management & Governance > CloudFormation.
  2. Click Create Stack.
  3. Choose one of the following. Both templates are located in the <your S3 bucket>/template directory.
    1. To deploy into a new VPC, use "template/fwb-ha-work-use-new-vpc.template".
    2. To deploy into an existing VPC, use “template/fwb-ha-work-use-exist-vpc.template”.

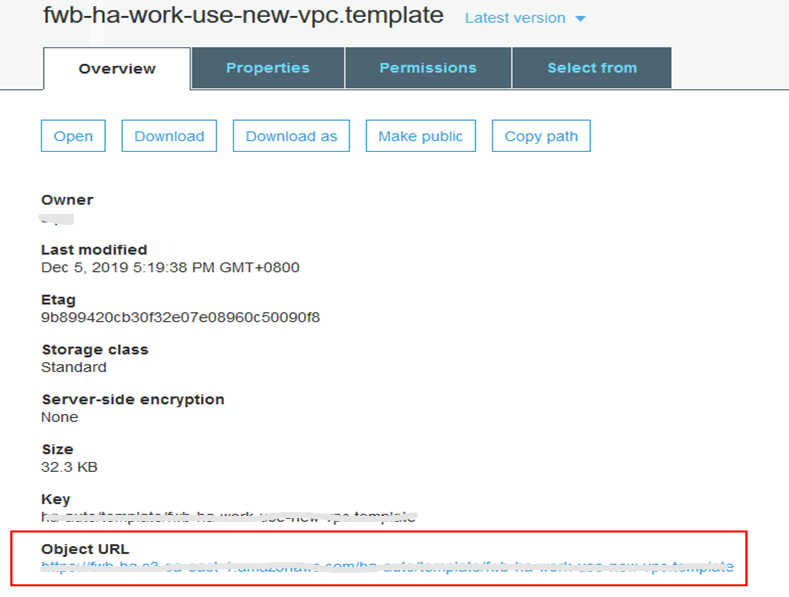

  4. Obtain the template file's URL. The following screenshot shows how to obtain the URL for the "template/fwb-ha-work-use-new-vpc.template".

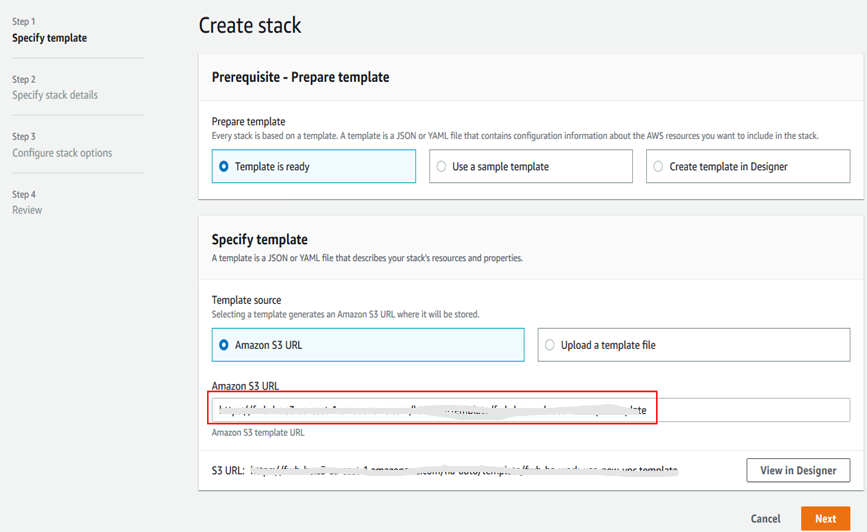

  5. Copy and paste the URL to the CFT as shown.

  6. Click Next.
