Deploy and authorize the FortiTelemetry agent

You can configure and authorize FortiTelemetry agents on the FortiTelemetry Controller (FortiGate) using the GUI or CLI. On FortiGate acting as a FortiTelemetry controller, FortiTelemetry must be enabled on the System > Feature Visibility page to display telemetry features in the GUI.

The FortiTelemetry Controller connects to FortiTelemetry agents through the Telemetry fabric connector. The following methods are supported for adding FortiTelemetry agents to FortiTelemetry Controller.

Discovery method	FortiTelemetry Controller discovers telemetry agents using CAPWAP. These agents are automatically displayed in the Telemetry fabric connector. The administrator must manually authorize each agent before it can be used by the FortiTelemetry Controller. See Authorizing FortiTelemetry agents.
Pre-configuration method	In the FortiTelemetry fabric connector settings, you can create FortiTelemetry agent using the FortiTelemetry agent's serial number as the name, and set the Authorization status to Authorized. When the FortiTelemetry Controller detects the real agent online, it will be automatically authorized. See Creating a FortiTelemetry agent in the Telemetry fabric connector.

FortiTelemetry agent(s) must be deployed in the same subnet as the internal interface of the FortiTelemetry Controller.

Viewing the FortiTelemetry fabric connector

To view the FortiTelemetry fabric connector:

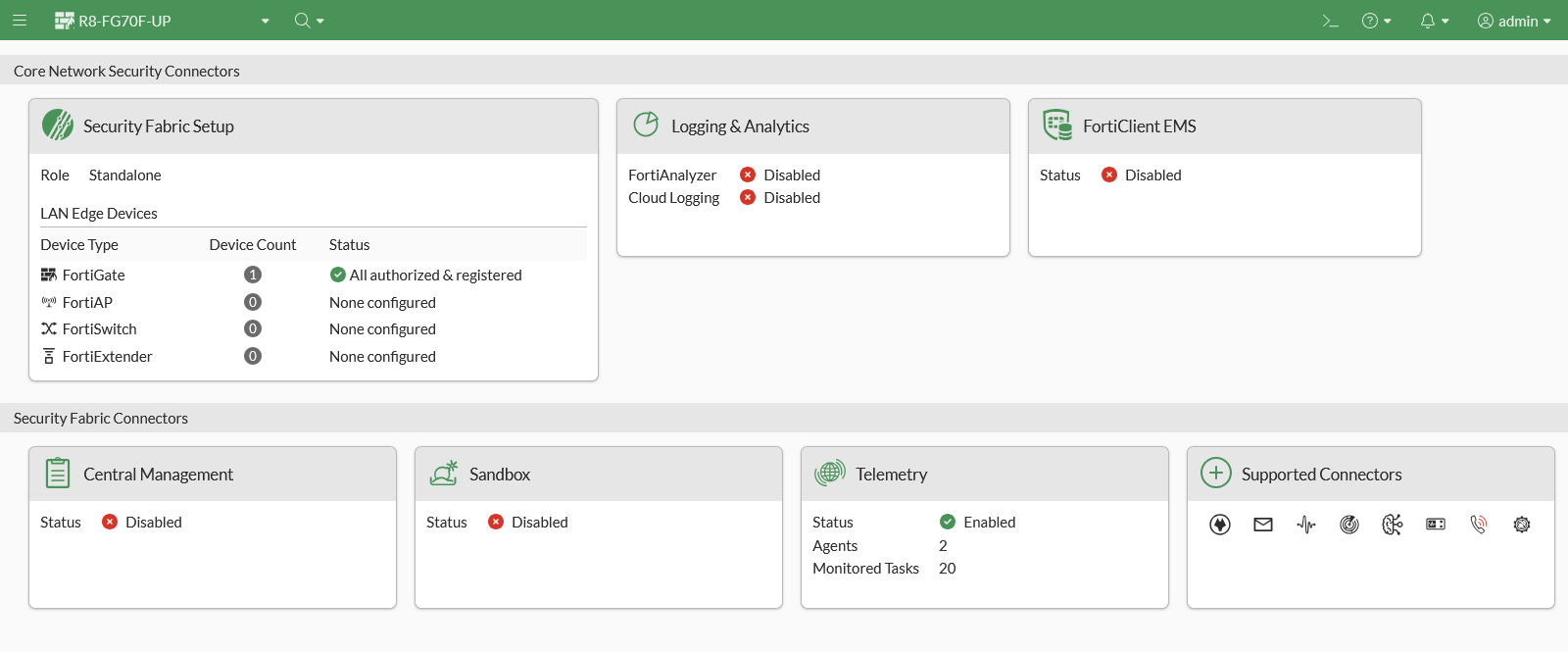

1. Go to Security Fabric > Fabric Connectors. The Telemetry connector is displayed with the following information:



   Status	Status of FortiTelemetry: Enabled or Disabled.
   Agents	The number of online, authorized FortiTelemetry agents discovered by the FortiTelemetry Controller.
   Monitored Tasks	Number of tasks being monitored by the FortiTelemetry agents based on the configured telemetry profile(s) selected in the firewall policy used by the FortiTelemetry Controller.

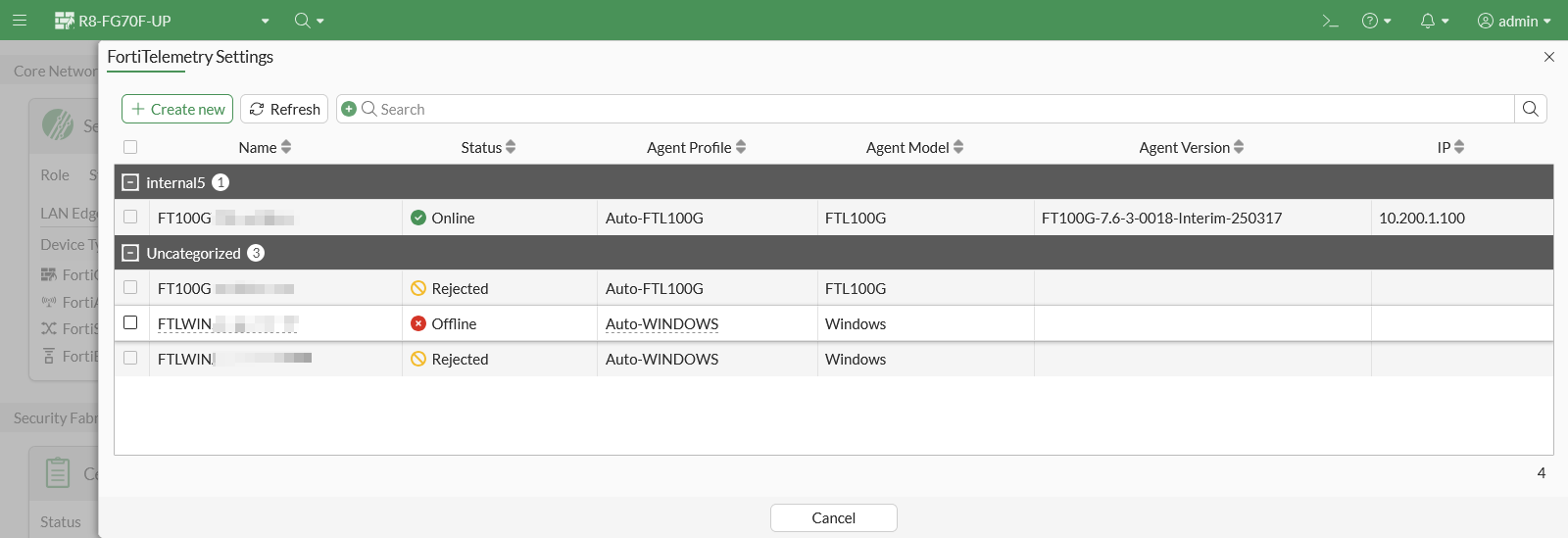

2. Click on the Telemetry connector, and click Edit. The FortiTelemetrySettings pane opens.

   FortiTelemetry agents are displayed and are grouped by interface. The following information is displayed:

   Create new	Click to create pre-authorized Telemetry connectors to automatically authorize FortiTelemetry agents. See Creating a FortiTelemetry agent in the Telemetry fabric connector.
   Name	Name of the FortiTelemetry agent.
   Status	Status of the FortiTelemetry agent: Authorized, Unauthorized, or Reject.
   Agent Profile	Profile assigned to the agent when FortiTelemetry Controller discovers the agent. FortiTelemetry Controller automatically creates and assigns the following profiles when no pre-configured profiles exist: The Auto-WINDOWS agent profile is assigned to software agents. The Auto-FTL100G agent profile is assigned to hardware agents. Agent profile details can be viewed in the CLI using the config telemetry-controller agent-profile command.
   Agent Model	Model of the agent: Windows for software agents and FTL100G for hardware agents.
   Agent Version	Agent version.
   IP	IP address of the FortiTelemetry agent

3. Select an agent to access additional buttons, such as Edit, Delete, and More.

4. Select an agent, and click Edit. The Telemetry Agent pane opens.

5. Click OK to close the Telemetry Agent pane.

6. Click Cancel to close the FortiTelemetry Settings pane

Authorizing FortiTelemetry agents

When the FortiTelemetry Controller automatically discovers FortiTelemetry agents, it displays them in the Telemetry fabric connector and assigns a profile to each agent.

You must manually authorize each discovered FortiTelemetry agent before the FortiTelemetry Controller can use it.

After a FortiTelemetry agent is authorized, a firewall address with the agent's serial number is automatically created.

To authorize FortiTelemetry agents in the GUI:

1. Go to Security Fabric > Fabric Connectors.

2. Click the Telemetry connector, and click Edit. The FortiTelemetry Settings pane opens.

3. Select an agent, and click More > Set Status > Authorize.

To authorize FortiTelemetry agents in the CLI:

1. By default, automatically discovered telemetry agents are unauthorized, but you can authorize each agent after it connects to FortiGate:

   config telemetry-controller agent
     edit "FT100GTK24000002"
       set authz authorize

     next
   end

Creating a FortiTelemetry agent in the Telemetry fabric connector

You can configure Telemetry fabric connectors to automatically authorize agents after they connect to the FortiTelemetry Controller. You must know the agent name to configure pre-authorized telemetry connectors. The agent name is used to match the discovered agent to the corresponding telemetry connector. The agent name is the serial number of the FortiTelemetry agent.

You can create and use a custom agent profile, or you can use a default agent profile (Auto-WINDOWS for software agents or Auto-FTL100G for hardware agents) if the FortiTelemetry Controller has created a default agent profile. If you create an agent profile, ensure that the model in the agent profile matches the type of agent used.

To create agent profiles in the CLI:

1. Create an agent profile for the type of agent you are using.

   A profile for hardware agents should use the FTL100G model, and a profile for software agents should use the WINDOWS model.


   config telemetry-controller agent-profile
     edit "WINDOWS-pre-auth"
       set comment windows devices
       set model WINDOWS
     next
     edit "FTL100G-pre-auth"
       set comment hardware
       set model FTL100G
     next
   end

To configure FortiTelemetry agents in the FortiOS GUI:

1. Go to Security Fabric > Fabric Connectors.

2. Click on the Telemetry connector, and click Edit. The FortiTelemetry Settings pane opens.

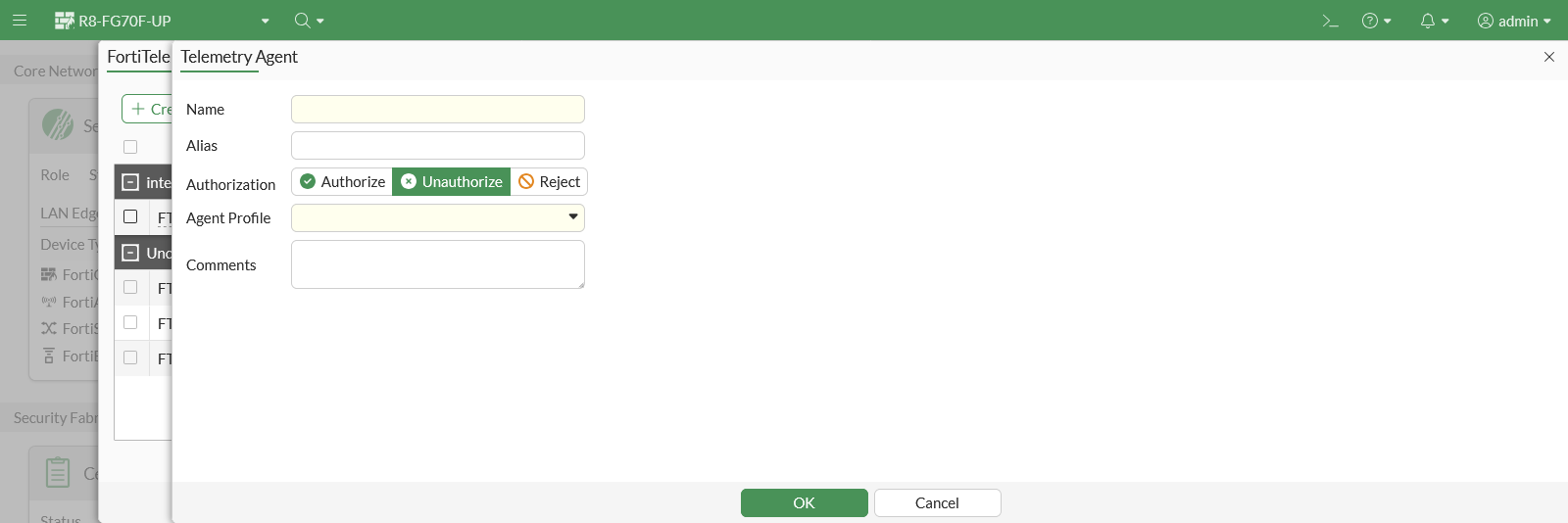

3. Click Create New to add a new FortiTelemetry agent, and provide the following information:


   Name	Enter a name for the FortiTelemetry agent. The agent name is the serial number of the FortiTelemetry agent. The name starts with FTLWIN for Windows agents or FT100G for hardware agents.
   Alias	(Optional) Provide an alias for the FortiTelemetry agent.
   Authorization	Select Authorize.
   Agent Profile	Select an agent profile. Ensure the model configured in the profile matches the type of agent.
   Comments	(Optional) Add comments to help identify the agent.

4. Click OK. The telemetry connector is displayed in the uncategorized list until the FortiTelemetry Controller discovers the corresponding telemetry agent and uses the connector to automatically authorize the agent and assign a status of Online.

To create pre-authorized telemetry connectors in the CLI:

1. Create a pre-authorized telemetry connector for each agent to specify the agent name, authorization, and agent profile.

   The agent name starts with FTLWIN for Windows agents or FT100G for hardware agents.

   config telemetry-controller agent
     edit "FT100GTK24000007"
       set alias "FTL100G"
       set authz authorized
       set agent-profile "FTL100G-pre-auth"
     next
     edit "FTLWIN8660000001"
       set alias "WINDOWS-108"
       set authz authorized
       set agent-profile "WINDOWS-pre-auth"
     next
   end
