Fortinet FortiSIEM

About the connector

Fortinet FortiSIEM is a highly scalable multi-tenant Security Information and Event Management (SIEM) solution that provides real-time infrastructure and user awareness for accurate threat detection, analysis and reporting.

This document provides information about the Fortinet FortiSIEM Connector, which facilitates automated interactions, with your Fortinet FortiSIEM server using FortiSOAR™ playbooks. Add the Fortinet FortiSIEM Connector, as a step in FortiSOAR™ playbooks and perform automated operations such as retrieving device information for all devices configured on the Fortinet FortiSIEM server and retrieving a list of monitored organizations from the Fortinet FortiSIEM server.

Data Ingestion support

Use the Data Ingestion Wizard to easily ingest data into FortiSOAR™ by pulling incidents from Fortinet FortiSIEM. Currently, "incidents" in Fortinet FortiSIEM are mapped to "alerts" in FortiSOAR™.

For more information on the Data Ingestion Wizard, see the "Connectors Guide" in the FortiSOAR™ product documentation. The following playbooks have been added to support data ingestion:

  • > FortiSIEM > Fetch
  • >> FortiSIEM > Fetch Associated events for Incident
  • FortiSIEM > Ingest

Notes for Data Ingestion

  • Users can pull data from Fortinet FortiSIEM either by time range (minutes) or by Incident ID. The "Fetch Data" screen of the Data Ingestion wizard has been changed and a new field named Fetch Mode has been added. Users can choose whether they want to fetch data from FortiSIEM that have been updated in the last X minutes or they want to fetch data based on an Incident ID. The data ingestion playbooks have also been updated to accommodate this change.
    Important: While configuring data ingestion in version 5.1.1, picklists do not map correctly. For example the Severity picklist. To ensure that picklists map correctly, enter the following (considering the severity picklist) in the picklist field:
    {{vars.item.incident_data.attributes.eventSeverityCat | resolveRange(vars.alerts_severity_map)}}
    This issue has been resolved in version 6.0.0.

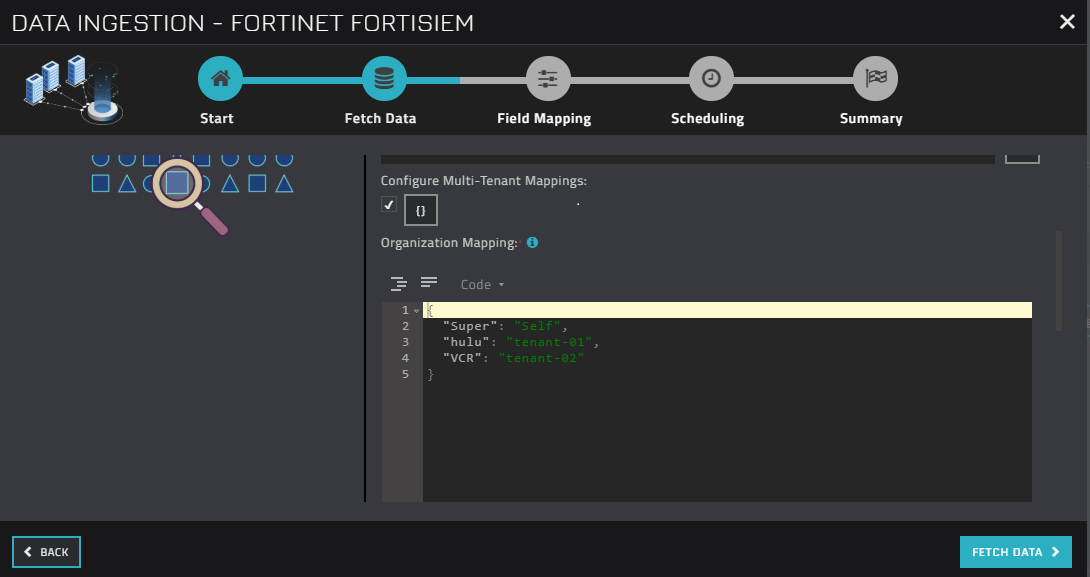

  • During configuring data ingestion for MSSP systems if you have checked the Configure Multi-Tenant Mappings checkbox on the "Fetch Data" screen, then ensure that you map the organization name defined in FortiSIEM as a tenant in FortiSOAR™:
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •

  • If you have not mapped or wrongly mapped an organization, then the incident record will be created as a "Self" entry.

Version information

Connector Version: 3.0.1

FortiSOAR™ Version Tested on: 5.1.1-58 and 6.0.0

Fortinet FortiSIEM Version Tested on: 5.2.6 and later

Authored By: CyberSponse, Inc.

Certified: Yes

Release Notes for version 3.0.1

Following enhancements have been made to the Fortinet FortiSIEM connector in version 3.0.1:

  • Updated the data ingestion playbooks as follows:
    • Updated the > FortiSIEM > Fetch and FortiSIEM > Ingest playbooks to improve the performance of the Data Ingestion Wizard while fetching data from Fortinet FortiSIEM.

Installing the connector

From FortiSOAR™ 5.0.0 onwards, use the Connector Store to install the connector. For the detailed procedure to install a connector, click here.
You can also use the yum command to install connectors. Connectors provided by FortiSOAR™ are delivered using a FortiSOAR™ repository. Therefore, you must set up your FortiSOAR™ repository and run the yum command as a root user to install connectors:

yum install cyops-connector-fortinet-fortisiem

Prerequisites to configuring the connector

  • You must have the URL of a Fortinet FortiSIEM server to which you will connect and perform automated operations and the credentials, such as the username and password to access that server.
  • To access the FortiSOAR™ UI, ensure that port 443 is open through the firewall for the FortiSOAR™ instance.
  • The minimum privileges that require to be assigned to users who are going to use this connector and run actions on FortiSIEM are "Read" and "Update" access on Incidents and access to "Run Reports".

Configuring the connector

For the procedure to configure a connector, click here.

Configuration parameters

In FortiSOAR™, on the Connectors page, click the Fortinet FortiSIEM connector row (if you are in the Grid view on the Connectors page), and in the Configurations tab enter the required configuration details.

Parameter Description
Server URL URL of the Fortinet FortiSIEM server to which you will connect and perform the automated operations.
Username Username used to access the Fortinet FortiSIEM server to which you will connect and perform the automated operations.
Password Password used to access the Fortinet FortiSIEM server to which you will connect and perform the automated operations.
Organization Name of the organization that you will access on the Fortinet FortiSIEM server to perform the automated operations.
Verify SSL Specifies whether the SSL certificate for the server is to be verified or not.
By default, this option is set as True.

Actions supported by the connector

The following automated operations can be included in playbooks, and you can also use the annotations to access operations from FortiSOAR™ release 4.10.0 onwards:

Function Description Annotation and Category
Get All Devices Retrieves a short description for all devices that are configured on the Fortinet FortiSIEM server. get_devices
Investigation
Get All Devices For Specified IP Address Range Retrieves a short description for devices that are configured on the Fortinet FortiSIEM server, based on the IP address range that you have specified. get_devices
Investigation
Get Device Information Retrieves details of a specific device that is configured on the Fortinet FortiSIEM server, based on the Device IP that you have specified. get_devices
Investigation
List Monitored Devices and Attributes Retrieves a list and attributes of all monitored devices that are configured on the Fortinet FortiSIEM server. get_devices
Investigation
List Monitored Organizations Retrieves a list and details of all monitored organizations that are configured on the Fortinet FortiSIEM server. get_domains
Investigation
Get Organization Details Retrieves the details of a specific organization from the Fortinet FortiSIEM server based on the organization ID that you have specified. get_organization
Investigation
List Incidents Retrieves a list and details of incidents from the Fortinet FortiSIEM server based on the incident ID or search criteria you have specified. get_incidents
Investigation
Comment Incident Adds a comment to a specific incident on the Fortinet FortiSIEM server based on the incident ID you have specified. incident_comment
Investigation
Clear Incident With Reason Clears an incident with the reason you have specified on the Fortinet FortiSIEM server based on the incident ID you have specified. clear_incident
Investigation
Change Severity Changes the severity of a specific incident severity to LOW, MEDIUM or HIGH on the Fortinet FortiSIEM server based on the incident ID you have specified. change_incident_severity
Investigation
Change Resolution Changes the resolution of a specific incident True Positive or False Positive on the Fortinet FortiSIEM server based on the incident ID you have specified. change_incident_resolution
Investigation
Get Events For Incident Retrieves all associated events for a specified incident from the Fortinet FortiSIEM server, based on the incident ID you have specified. get_associated_events
Investigation
Run Report Runs a report on the Fortinet FortiSIEM server, based on the report name and time range you have specified. run_report
Investigation
Update Incident Updates the attributes of a specific incident on the Fortinet FortiSIEM server based on the incident ID and other input parameters you have specified. update_incident
Investigation
Get Event Details Retrieves details of a specific event from the Fortinet FortiSIEM server based on the event ID you have specified. get_event_details
Investigation

Important: Fortinet FortiSIEM supports the "Change Severity" and "Change Resolution" actions from version 5.2.8 and later.

operation: Get All Devices

Input parameters

None.

Output

The output contains the following populated JSON schema:
{
     "devices": {
         "device": [
             {
                 "organization": {
                     "@id": "",
                     "@name": ""
                 },
                 "discoverTime": "",
                 "unmanaged": "",
                 "accessIp": "",
                 "approved": "",
                 "discoverMethod": "",
                 "name": "",
                 "deviceType": {
                     "version": "",
                     "vendor": "",
                     "accessProtocols": "",
                     "jobWeight": "",
                     "model": ""
                 },
                 "creationMethod": "",
                 "version": "",
                 "updateMethod": ""
             }
         ]
     }
}

operation: Get All Devices For Specified IP Address Range

Input parameters

Parameter Description
Include IP SET Value of IP addresses based on which you want for retrieve device information from the Fortinet FortiSIEM server. You must provide the value of this field as a range or in the .csv format.
For example, enter, 192.168.20.1-192.168.20.100
Exclude IP SET (Optional) Value of the range of IP addresses that you want to exclude from this search operation. You must provide the value of this field as a range or in the .csv format.

Output

The output contains the following populated JSON schema:
{
     "devices": {
         "device": [
             {
                 "organization": {
                     "@id": "",
                     "@name": ""
                 },
                 "discoverTime": "",
                 "unmanaged": "",
                 "accessIp": "",
                 "approved": "",
                 "discoverMethod": "",
                 "name": "",
                 "deviceType": {
                     "version": "",
                     "vendor": "",
                     "accessProtocols": "",
                     "jobWeight": "",
                     "model": ""
                 },
                 "creationMethod": "",
                 "version": "",
                 "updateMethod": ""
             }
         ]
     }
}

operation: Get Device Information

Input parameters

Parameter Description
Device IP IP address of the device for which you want to retrieve details from the Fortinet FortiSIEM server.
Organization (Optional) Name of the organization for which you want to retrieve details of the device from the Fortinet FortiSIEM server.

Output

The output contains the following populated JSON schema:
{
     "device": {
         "name": "",
         "raidGroups": "",
         "description": "",
         "sanControllerPorts": "",
         "storages": "",
         "luns": "",
         "eventParserList": "",
         "systemUpTime": "",
         "components": "",
         "unmanaged": "",
         "processors": "",
         "applications": "",
         "accessIp": "",
         "approved": "",
         "softwarePatches": "",
         "ipToHostNames": "",
         "organization": {
             "@name": "",
             "@id": ""
         },
         "storageGroups": "",
         "softwareServices": "",
         "interfaces": {
             "networkinterface": {
                 "isTrunk": "",
                 "ipv4Addr": "",
                 "ipv4Mask": "",
                 "description": "",
                 "name": "",
                 "type": "",
                 "macAddr": "",
                 "isCritical": "",
                 "macIsVirtual": "",
                 "ipv4IsVirtual": "",
                 "inSpeed": "",
                 "speed": "",
                 "snmpIndex": "",
                 "isMonitor": "",
                 "adminStatus": "",
                 "outSpeed": "",
                 "operStatus": "",
                 "isWAN": ""
             }
         },
         "deviceType": {
             "model": "",
             "version": "",
             "category": "",
             "jobWeight": "",
             "vendor": ""
         },
         "updateMethod": "",
         "discoverTime": "",
         "discoverMethod": "",
         "creationMethod": ""
     }
}

operation: List Monitored Devices and Attributes

Input parameters

None.

Output

The output contains the following populated JSON schema:
{
     "monitoredDevices": {
         "eventPullingDevices": "",
         "perfMonDevices": {
             "device": {
                 "deviceName": "",
                 "monitors": {
                     "monitor": [
                         {
                             "method": "",
                             "category": ""
                         }
                     ]
                 },
                 "deviceType": "",
                 "organization": "",
                 "accessIp": ""
             }
         }
     }
}

operation: List Monitored Organizations

Input parameters

None.

Output

The output contains the following populated JSON schema:
{
     "disabled": "",
     "@lastModified": "",
     "name": "",
     "initialized": "",
     "collectors": {
         "collector": []
     },
     "@xmlId": "",
     "custProperties": "",
     "@ownerId": "",
     "@id": "",
     "domainId": "",
     "@entityVersion": "",
     "@custId": "",
     "@creationTime": ""
}

operation: List Incidents

Input parameters

Parameter Description
Incident ID ID of the incident based on which you want to retrieve incidents from the Fortinet FortiSIEM server.
Important: If you enter the incident ID then all other parameters specified for this action get ignored.
Search     Search criteria based on which you want to retrieve incidents from the Fortinet FortiSIEM server. You can choose from the following options: Incident Status, Severity, Host, IP, or Organization.
By default, this option is set as Incident Status.
Search Value Value of the search criteria based on what you have selected in the Search parameter.
For example, in the case of Incident Status, you must select the status of the incident (Active or Cleared) based on which you want to retrieve incidents from the Fortinet FortiSIEM server.
OR
For example, if you select Host, then you must specify the hostname based on which you want to retrieve incidents from the Fortinet FortiSIEM server.
Note: From version 2.2.0 of the Fortinet FortiSIEM connector, if you have selected Organization from the Search field, then you can either explicitly add the organization name or use a jinja expression to add the value of the Organization.
Time Selection (Optional) Specify the time for which you want to retrieve the list of incidents from the Fortinet FortiSIEM server. By default, this is set as Relative Time.
If you select Absolute Time, then you must specify the time range, for which you want to retrieve the list of incidents from the Fortinet FortiSIEM server, in the From and To fields using the calendar tool.
If you select Relative Time, then you have to specify the time duration for which you want to retrieve the list of incidents from the Fortinet FortiSIEM server.
For example, if you choose Hours from the Relative Time drop-down list and provide the value 2 in the Last field, then this operation retrieves the list of incidents that have occurred in the last 2 hours from the Fortinet FortiSIEM server.

Output

The output contains the following populated JSON schema:
{
     "events": [
         {
             "attributes": {},
             "id": "",
             "receiveTime": "",
             "nid": "",
             "dataStr": "",
             "index": "",
             "eventType": "",
             "custId": ""
         }
     ],
     "@queryId": "",
     "@totalCount": "",
     "@errorCode": "",
     "@start": ""
}

operation: Get Organization Details

Input parameters

Parameter Description
Organization ID ID of the organization whose details you want to retrieve from the Fortinet FortiSIEM server.

Output

The output contains the following populated JSON schema:
{
     "@custId": "",
     "@creationTime": "",
     "@entityVersion": "",
     "@id": "",
     "@lastModified": "",
     "name": "",
     "domainId": "",
     "@xmlId": "",
     "@ownerId": "",
     "initialized": "",
     "disabled": ""
}

operation: Comment Incident

Input parameters

Parameter Description
Incident ID ID of the incident in which you want to add the comment on the Fortinet FortiSIEM server.
Comment Text Text of the comment that you want to add to the specified incident on the Fortinet FortiSIEM server.

Output

The output contains the following populated JSON schema:
{
     "message": "",
     "incident_id": ""
}

operation: Clear Incident With Reason

Input parameters

Parameter Description
Incident ID ID of the incident that you want to clear from the Fortinet FortiSIEM server.
Reason Text of the reason that you want to provide which clearing the specified incident from the Fortinet FortiSIEM server.

Output

The output contains the following populated JSON schema:
{
     "message": "",
     "incident_id": []
}

operation: Change Severity

Input parameters

Parameter Description
Incident ID ID of the incident whose severity you want to update on the Fortinet FortiSIEM server.
Incident Severity Severity that you want to set for the specified incident on the Fortinet FortiSIEM server. You can choose from the following options: HIGH, MEDIUM, or LOW.

Output

The output contains the following populated JSON schema:
{
     "incident_id": [],
     "message": ""
}

operation: Change Resolution

Input parameters

Parameter Description
Incident ID ID of the incident whose resolution you want to update on the Fortinet FortiSIEM server.
Incident Resolution Resolution that you want to set for the specified incident on the Fortinet FortiSIEM server. You can choose between True Positive or False Positive.

Output

The output contains the following populated JSON schema:
{
     "incident_id": [],
     "message": ""
}

operation: Get Events For Incident

Input parameters

Parameter Description
Incident ID ID of the incident for which you want to retrieve all associated events from the Fortinet FortiSIEM server.
Page Size

Number of objects that you want this operation to return in the response.
By default, the page size is set to 50 items.

Page Number Page number from which you want to retrieve records.
By default, this is set as 0.

Output

The output contains the following populated JSON schema:
{
     "event_ids": "",
     "event_details": [
         [
             {
                 "dataStr": "",
                 "index": "",
                 "custId": "",
                 "receiveTime": "",
                 "attributes": {
                     "eventSeverity": "",
                     "relayDevIpAddr": "",
                     "reptDevName": "",
                     "reptModel": "",
                     "eventParsedOk": "",
                     "phRecvTime": "",
                     "count": "",
                     "hostIpAddr": "",
                     "hostName": "",
                     "reptDevIpAddr": "",
                     "parserName": "",
                     "customer": "",
                     "eventId": "",
                     "eventRuleTrigger": "",
                     "procName": "",
                     "collectorId": "",
                     "eventName": "",
                     "eventType": "",
                     "rawEventMsg": "",
                     "phEventCategory": "",
                     "eventSeverityCat": "",
                     "reptVendor": ""
                 },
                 "nid": "",
                 "id": "",
                 "eventType": ""
             }
         ]
     ]
}

operation: Run Report

Input parameters

Parameter Description
Report Name Name of the report that you want to run on the Fortinet FortiSIEM server.
Report Time Range (Optional) Specify the time duration for which you want to search for reports that you want to run on the Fortinet FortiSIEM server. By default, this is set as Relative Time.
If you select Absolute Time, then you must specify the time range, for which you want to search for reports that you want to run on the Fortinet FortiSIEM server, in the From and To fields using the calendar tool.
If you select Relative Time, then you have to specify the time duration for which you want to search for reports that you want to run on the Fortinet FortiSIEM server.
For example, if you choose Hours from the Relative Time drop-down list and provide the value 2 in the Last field, then this operation searches for reports that are created in the last 2 hours on the Fortinet FortiSIEM server.

Output

No output schema is available at this time.

operation: Update Incident

Input parameters

Parameter Description
Incident ID ID of the incident that you want to update on the Fortinet FortiSIEM server.
Comment Text Text of the comment that you want to add to the specified incident on the Fortinet FortiSIEM server.
Incident Status Status of the incident that you want to update in the specified incident on the Fortinet FortiSIEM server.
External Ticket Type Type of the external ticket that you want to update in the specified incident on the Fortinet FortiSIEM server.
External Ticket ID ID of the external ticket that you want to update in the specified incident on the Fortinet FortiSIEM server.
External Ticket State State of the external ticket that you want to update in the specified incident on the Fortinet FortiSIEM server.
External Assigned User External assigned that you want to update in the specified incident on the Fortinet FortiSIEM server.

Output

The output contains a non-dictionary value.

operation: Get Event Details

Input parameters

Parameter Description
Event ID ID of the event whose details you want to retrieve from the Fortinet FortiSIEM server.

Output

The output contains the following populated JSON schema:
{
     "dataStr": "",
     "index": "",
     "custId": "",
     "receiveTime": "",
     "attributes": {
         "eventSeverity": "",
         "relayDevIpAddr": "",
         "reptDevName": "",
         "reptModel": "",
         "eventParsedOk": "",
         "phRecvTime": "",
         "count": "",
         "hostIpAddr": "",
         "hostName": "",
         "reptDevIpAddr": "",
         "parserName": "",
         "customer": "",
         "eventId": "",
         "eventRuleTrigger": "",
         "procName": "",
         "collectorId": "",
         "eventName": "",
         "eventType": "",
         "rawEventMsg": "",
         "phEventCategory": "",
         "eventSeverityCat": "",
         "reptVendor": ""
     },
     "nid": "",
     "id": "",
     "eventType": ""
}

Included playbooks

The Sample - Fortinet FortiSIEM - 3.0.1 playbook collection comes bundled with the Fortinet FortiSIEM connector. This playbook contains steps using which you can perform all supported actions. You can see the bundled playbooks in the Automation > Playbooks section in FortiSOAR™ after importing the Fortinet FortiSIEM connector.

  • Device: Get All Devices
  • Device: Get All Devices For Specified IP Address Range
  • Device: Get Device Information
  • Device: List Monitored Devices and Attributes
  • Event: Get Events For Incident
  • Event: Get Event Details
  • > FortiSIEM > Fetch
  • >> FortiSIEM > Fetch Associated Events for Incident
  • FortiSIEM > Ingest
  • Incident: Change Resolution
  • Incident: Change Severity
  • Incident: Clear Incident With Reason
  • Incident: Comment Incident
  • Incident: List Incidents
  • Incident: Update Incident
  • Organization: Get Organization Details
  • Organization: List Monitored Organizations
  • Run Report

Note: If you are planning to use any of the sample playbooks in your environment, ensure that you clone those playbooks and move them to a different collection since the sample playbook collection gets deleted during the connector upgrade and delete.

About the connector

Fortinet FortiSIEM is a highly scalable multi-tenant Security Information and Event Management (SIEM) solution that provides real-time infrastructure and user awareness for accurate threat detection, analysis and reporting.

This document provides information about the Fortinet FortiSIEM Connector, which facilitates automated interactions, with your Fortinet FortiSIEM server using FortiSOAR™ playbooks. Add the Fortinet FortiSIEM Connector, as a step in FortiSOAR™ playbooks and perform automated operations such as retrieving device information for all devices configured on the Fortinet FortiSIEM server and retrieving a list of monitored organizations from the Fortinet FortiSIEM server.

Data Ingestion support

Use the Data Ingestion Wizard to easily ingest data into FortiSOAR™ by pulling incidents from Fortinet FortiSIEM. Currently, "incidents" in Fortinet FortiSIEM are mapped to "alerts" in FortiSOAR™.

For more information on the Data Ingestion Wizard, see the "Connectors Guide" in the FortiSOAR™ product documentation. The following playbooks have been added to support data ingestion:

Notes for Data Ingestion

Version information

Connector Version: 3.0.1

FortiSOAR™ Version Tested on: 5.1.1-58 and 6.0.0

Fortinet FortiSIEM Version Tested on: 5.2.6 and later

Authored By: CyberSponse, Inc.

Certified: Yes

Release Notes for version 3.0.1

Following enhancements have been made to the Fortinet FortiSIEM connector in version 3.0.1:

Installing the connector

From FortiSOAR™ 5.0.0 onwards, use the Connector Store to install the connector. For the detailed procedure to install a connector, click here.
You can also use the yum command to install connectors. Connectors provided by FortiSOAR™ are delivered using a FortiSOAR™ repository. Therefore, you must set up your FortiSOAR™ repository and run the yum command as a root user to install connectors:

yum install cyops-connector-fortinet-fortisiem

Prerequisites to configuring the connector

Configuring the connector

For the procedure to configure a connector, click here.

Configuration parameters

In FortiSOAR™, on the Connectors page, click the Fortinet FortiSIEM connector row (if you are in the Grid view on the Connectors page), and in the Configurations tab enter the required configuration details.

Parameter Description
Server URL URL of the Fortinet FortiSIEM server to which you will connect and perform the automated operations.
Username Username used to access the Fortinet FortiSIEM server to which you will connect and perform the automated operations.
Password Password used to access the Fortinet FortiSIEM server to which you will connect and perform the automated operations.
Organization Name of the organization that you will access on the Fortinet FortiSIEM server to perform the automated operations.
Verify SSL Specifies whether the SSL certificate for the server is to be verified or not.
By default, this option is set as True.

Actions supported by the connector

The following automated operations can be included in playbooks, and you can also use the annotations to access operations from FortiSOAR™ release 4.10.0 onwards:

Function Description Annotation and Category
Get All Devices Retrieves a short description for all devices that are configured on the Fortinet FortiSIEM server. get_devices
Investigation
Get All Devices For Specified IP Address Range Retrieves a short description for devices that are configured on the Fortinet FortiSIEM server, based on the IP address range that you have specified. get_devices
Investigation
Get Device Information Retrieves details of a specific device that is configured on the Fortinet FortiSIEM server, based on the Device IP that you have specified. get_devices
Investigation
List Monitored Devices and Attributes Retrieves a list and attributes of all monitored devices that are configured on the Fortinet FortiSIEM server. get_devices
Investigation
List Monitored Organizations Retrieves a list and details of all monitored organizations that are configured on the Fortinet FortiSIEM server. get_domains
Investigation
Get Organization Details Retrieves the details of a specific organization from the Fortinet FortiSIEM server based on the organization ID that you have specified. get_organization
Investigation
List Incidents Retrieves a list and details of incidents from the Fortinet FortiSIEM server based on the incident ID or search criteria you have specified. get_incidents
Investigation
Comment Incident Adds a comment to a specific incident on the Fortinet FortiSIEM server based on the incident ID you have specified. incident_comment
Investigation
Clear Incident With Reason Clears an incident with the reason you have specified on the Fortinet FortiSIEM server based on the incident ID you have specified. clear_incident
Investigation
Change Severity Changes the severity of a specific incident severity to LOW, MEDIUM or HIGH on the Fortinet FortiSIEM server based on the incident ID you have specified. change_incident_severity
Investigation
Change Resolution Changes the resolution of a specific incident True Positive or False Positive on the Fortinet FortiSIEM server based on the incident ID you have specified. change_incident_resolution
Investigation
Get Events For Incident Retrieves all associated events for a specified incident from the Fortinet FortiSIEM server, based on the incident ID you have specified. get_associated_events
Investigation
Run Report Runs a report on the Fortinet FortiSIEM server, based on the report name and time range you have specified. run_report
Investigation
Update Incident Updates the attributes of a specific incident on the Fortinet FortiSIEM server based on the incident ID and other input parameters you have specified. update_incident
Investigation
Get Event Details Retrieves details of a specific event from the Fortinet FortiSIEM server based on the event ID you have specified. get_event_details
Investigation

Important: Fortinet FortiSIEM supports the "Change Severity" and "Change Resolution" actions from version 5.2.8 and later.

operation: Get All Devices

Input parameters

None.

Output

The output contains the following populated JSON schema:
{
     "devices": {
         "device": [
             {
                 "organization": {
                     "@id": "",
                     "@name": ""
                 },
                 "discoverTime": "",
                 "unmanaged": "",
                 "accessIp": "",
                 "approved": "",
                 "discoverMethod": "",
                 "name": "",
                 "deviceType": {
                     "version": "",
                     "vendor": "",
                     "accessProtocols": "",
                     "jobWeight": "",
                     "model": ""
                 },
                 "creationMethod": "",
                 "version": "",
                 "updateMethod": ""
             }
         ]
     }
}

operation: Get All Devices For Specified IP Address Range

Input parameters

Parameter Description
Include IP SET Value of IP addresses based on which you want for retrieve device information from the Fortinet FortiSIEM server. You must provide the value of this field as a range or in the .csv format.
For example, enter, 192.168.20.1-192.168.20.100
Exclude IP SET (Optional) Value of the range of IP addresses that you want to exclude from this search operation. You must provide the value of this field as a range or in the .csv format.

Output

The output contains the following populated JSON schema:
{
     "devices": {
         "device": [
             {
                 "organization": {
                     "@id": "",
                     "@name": ""
                 },
                 "discoverTime": "",
                 "unmanaged": "",
                 "accessIp": "",
                 "approved": "",
                 "discoverMethod": "",
                 "name": "",
                 "deviceType": {
                     "version": "",
                     "vendor": "",
                     "accessProtocols": "",
                     "jobWeight": "",
                     "model": ""
                 },
                 "creationMethod": "",
                 "version": "",
                 "updateMethod": ""
             }
         ]
     }
}

operation: Get Device Information

Input parameters

Parameter Description
Device IP IP address of the device for which you want to retrieve details from the Fortinet FortiSIEM server.
Organization (Optional) Name of the organization for which you want to retrieve details of the device from the Fortinet FortiSIEM server.

Output

The output contains the following populated JSON schema:
{
     "device": {
         "name": "",
         "raidGroups": "",
         "description": "",
         "sanControllerPorts": "",
         "storages": "",
         "luns": "",
         "eventParserList": "",
         "systemUpTime": "",
         "components": "",
         "unmanaged": "",
         "processors": "",
         "applications": "",
         "accessIp": "",
         "approved": "",
         "softwarePatches": "",
         "ipToHostNames": "",
         "organization": {
             "@name": "",
             "@id": ""
         },
         "storageGroups": "",
         "softwareServices": "",
         "interfaces": {
             "networkinterface": {
                 "isTrunk": "",
                 "ipv4Addr": "",
                 "ipv4Mask": "",
                 "description": "",
                 "name": "",
                 "type": "",
                 "macAddr": "",
                 "isCritical": "",
                 "macIsVirtual": "",
                 "ipv4IsVirtual": "",
                 "inSpeed": "",
                 "speed": "",
                 "snmpIndex": "",
                 "isMonitor": "",
                 "adminStatus": "",
                 "outSpeed": "",
                 "operStatus": "",
                 "isWAN": ""
             }
         },
         "deviceType": {
             "model": "",
             "version": "",
             "category": "",
             "jobWeight": "",
             "vendor": ""
         },
         "updateMethod": "",
         "discoverTime": "",
         "discoverMethod": "",
         "creationMethod": ""
     }
}

operation: List Monitored Devices and Attributes

Input parameters

None.

Output

The output contains the following populated JSON schema:
{
     "monitoredDevices": {
         "eventPullingDevices": "",
         "perfMonDevices": {
             "device": {
                 "deviceName": "",
                 "monitors": {
                     "monitor": [
                         {
                             "method": "",
                             "category": ""
                         }
                     ]
                 },
                 "deviceType": "",
                 "organization": "",
                 "accessIp": ""
             }
         }
     }
}

operation: List Monitored Organizations

Input parameters

None.

Output

The output contains the following populated JSON schema:
{
     "disabled": "",
     "@lastModified": "",
     "name": "",
     "initialized": "",
     "collectors": {
         "collector": []
     },
     "@xmlId": "",
     "custProperties": "",
     "@ownerId": "",
     "@id": "",
     "domainId": "",
     "@entityVersion": "",
     "@custId": "",
     "@creationTime": ""
}

operation: List Incidents

Input parameters

Parameter Description
Incident ID ID of the incident based on which you want to retrieve incidents from the Fortinet FortiSIEM server.
Important: If you enter the incident ID then all other parameters specified for this action get ignored.
Search     Search criteria based on which you want to retrieve incidents from the Fortinet FortiSIEM server. You can choose from the following options: Incident Status, Severity, Host, IP, or Organization.
By default, this option is set as Incident Status.
Search Value Value of the search criteria based on what you have selected in the Search parameter.
For example, in the case of Incident Status, you must select the status of the incident (Active or Cleared) based on which you want to retrieve incidents from the Fortinet FortiSIEM server.
OR
For example, if you select Host, then you must specify the hostname based on which you want to retrieve incidents from the Fortinet FortiSIEM server.
Note: From version 2.2.0 of the Fortinet FortiSIEM connector, if you have selected Organization from the Search field, then you can either explicitly add the organization name or use a jinja expression to add the value of the Organization.
Time Selection (Optional) Specify the time for which you want to retrieve the list of incidents from the Fortinet FortiSIEM server. By default, this is set as Relative Time.
If you select Absolute Time, then you must specify the time range, for which you want to retrieve the list of incidents from the Fortinet FortiSIEM server, in the From and To fields using the calendar tool.
If you select Relative Time, then you have to specify the time duration for which you want to retrieve the list of incidents from the Fortinet FortiSIEM server.
For example, if you choose Hours from the Relative Time drop-down list and provide the value 2 in the Last field, then this operation retrieves the list of incidents that have occurred in the last 2 hours from the Fortinet FortiSIEM server.

Output

The output contains the following populated JSON schema:
{
     "events": [
         {
             "attributes": {},
             "id": "",
             "receiveTime": "",
             "nid": "",
             "dataStr": "",
             "index": "",
             "eventType": "",
             "custId": ""
         }
     ],
     "@queryId": "",
     "@totalCount": "",
     "@errorCode": "",
     "@start": ""
}

operation: Get Organization Details

Input parameters

Parameter Description
Organization ID ID of the organization whose details you want to retrieve from the Fortinet FortiSIEM server.

Output

The output contains the following populated JSON schema:
{
     "@custId": "",
     "@creationTime": "",
     "@entityVersion": "",
     "@id": "",
     "@lastModified": "",
     "name": "",
     "domainId": "",
     "@xmlId": "",
     "@ownerId": "",
     "initialized": "",
     "disabled": ""
}

operation: Comment Incident

Input parameters

Parameter Description
Incident ID ID of the incident in which you want to add the comment on the Fortinet FortiSIEM server.
Comment Text Text of the comment that you want to add to the specified incident on the Fortinet FortiSIEM server.

Output

The output contains the following populated JSON schema:
{
     "message": "",
     "incident_id": ""
}

operation: Clear Incident With Reason

Input parameters

Parameter Description
Incident ID ID of the incident that you want to clear from the Fortinet FortiSIEM server.
Reason Text of the reason that you want to provide which clearing the specified incident from the Fortinet FortiSIEM server.

Output

The output contains the following populated JSON schema:
{
     "message": "",
     "incident_id": []
}

operation: Change Severity

Input parameters

Parameter Description
Incident ID ID of the incident whose severity you want to update on the Fortinet FortiSIEM server.
Incident Severity Severity that you want to set for the specified incident on the Fortinet FortiSIEM server. You can choose from the following options: HIGH, MEDIUM, or LOW.

Output

The output contains the following populated JSON schema:
{
     "incident_id": [],
     "message": ""
}

operation: Change Resolution

Input parameters

Parameter Description
Incident ID ID of the incident whose resolution you want to update on the Fortinet FortiSIEM server.
Incident Resolution Resolution that you want to set for the specified incident on the Fortinet FortiSIEM server. You can choose between True Positive or False Positive.

Output

The output contains the following populated JSON schema:
{
     "incident_id": [],
     "message": ""
}

operation: Get Events For Incident

Input parameters

Parameter Description
Incident ID ID of the incident for which you want to retrieve all associated events from the Fortinet FortiSIEM server.
Page Size

Number of objects that you want this operation to return in the response.
By default, the page size is set to 50 items.

Page Number Page number from which you want to retrieve records.
By default, this is set as 0.

Output

The output contains the following populated JSON schema:
{
     "event_ids": "",
     "event_details": [
         [
             {
                 "dataStr": "",
                 "index": "",
                 "custId": "",
                 "receiveTime": "",
                 "attributes": {
                     "eventSeverity": "",
                     "relayDevIpAddr": "",
                     "reptDevName": "",
                     "reptModel": "",
                     "eventParsedOk": "",
                     "phRecvTime": "",
                     "count": "",
                     "hostIpAddr": "",
                     "hostName": "",
                     "reptDevIpAddr": "",
                     "parserName": "",
                     "customer": "",
                     "eventId": "",
                     "eventRuleTrigger": "",
                     "procName": "",
                     "collectorId": "",
                     "eventName": "",
                     "eventType": "",
                     "rawEventMsg": "",
                     "phEventCategory": "",
                     "eventSeverityCat": "",
                     "reptVendor": ""
                 },
                 "nid": "",
                 "id": "",
                 "eventType": ""
             }
         ]
     ]
}

operation: Run Report

Input parameters

Parameter Description
Report Name Name of the report that you want to run on the Fortinet FortiSIEM server.
Report Time Range (Optional) Specify the time duration for which you want to search for reports that you want to run on the Fortinet FortiSIEM server. By default, this is set as Relative Time.
If you select Absolute Time, then you must specify the time range, for which you want to search for reports that you want to run on the Fortinet FortiSIEM server, in the From and To fields using the calendar tool.
If you select Relative Time, then you have to specify the time duration for which you want to search for reports that you want to run on the Fortinet FortiSIEM server.
For example, if you choose Hours from the Relative Time drop-down list and provide the value 2 in the Last field, then this operation searches for reports that are created in the last 2 hours on the Fortinet FortiSIEM server.

Output

No output schema is available at this time.

operation: Update Incident

Input parameters

Parameter Description
Incident ID ID of the incident that you want to update on the Fortinet FortiSIEM server.
Comment Text Text of the comment that you want to add to the specified incident on the Fortinet FortiSIEM server.
Incident Status Status of the incident that you want to update in the specified incident on the Fortinet FortiSIEM server.
External Ticket Type Type of the external ticket that you want to update in the specified incident on the Fortinet FortiSIEM server.
External Ticket ID ID of the external ticket that you want to update in the specified incident on the Fortinet FortiSIEM server.
External Ticket State State of the external ticket that you want to update in the specified incident on the Fortinet FortiSIEM server.
External Assigned User External assigned that you want to update in the specified incident on the Fortinet FortiSIEM server.

Output

The output contains a non-dictionary value.

operation: Get Event Details

Input parameters

Parameter Description
Event ID ID of the event whose details you want to retrieve from the Fortinet FortiSIEM server.

Output

The output contains the following populated JSON schema:
{
     "dataStr": "",
     "index": "",
     "custId": "",
     "receiveTime": "",
     "attributes": {
         "eventSeverity": "",
         "relayDevIpAddr": "",
         "reptDevName": "",
         "reptModel": "",
         "eventParsedOk": "",
         "phRecvTime": "",
         "count": "",
         "hostIpAddr": "",
         "hostName": "",
         "reptDevIpAddr": "",
         "parserName": "",
         "customer": "",
         "eventId": "",
         "eventRuleTrigger": "",
         "procName": "",
         "collectorId": "",
         "eventName": "",
         "eventType": "",
         "rawEventMsg": "",
         "phEventCategory": "",
         "eventSeverityCat": "",
         "reptVendor": ""
     },
     "nid": "",
     "id": "",
     "eventType": ""
}

Included playbooks

The Sample - Fortinet FortiSIEM - 3.0.1 playbook collection comes bundled with the Fortinet FortiSIEM connector. This playbook contains steps using which you can perform all supported actions. You can see the bundled playbooks in the Automation > Playbooks section in FortiSOAR™ after importing the Fortinet FortiSIEM connector.

Note: If you are planning to use any of the sample playbooks in your environment, ensure that you clone those playbooks and move them to a different collection since the sample playbook collection gets deleted during the connector upgrade and delete.
